AMS Neve 1073 DPX
Launched in 1970, the Neve 1073 Classic soon became the first choice mic preamp for leading producers and artists. Found on some of the most famous recordings of the past 40 years, the big, punchy sound of the 1073 complements any musical genre – from rock to rap to classical. The quality is legendary. Designed and built in England, the modern-day 1073DPX is produced to the exact specifications of the original with matched components to ensure the sound remains true.
The 1073DPX has two channels of Neve 1073 Class A design microphone preamplifiers, each with 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and high pass filter, adding warmth and depth to recordings, bringing out subtle ambience, maintaining spatial positioning, and capturing a more precise image – embodying, think many engineers and producers, the essence of the genuine Neve sound.
Building on the 1073 classic module features, the 1073DPX introduces extra functionality with integrated DI input, phantom power, selectable Insert feature, level meters, selectable headphone monitoring and I/O connectors on each channel for easy and direct connection of microphones and instruments.

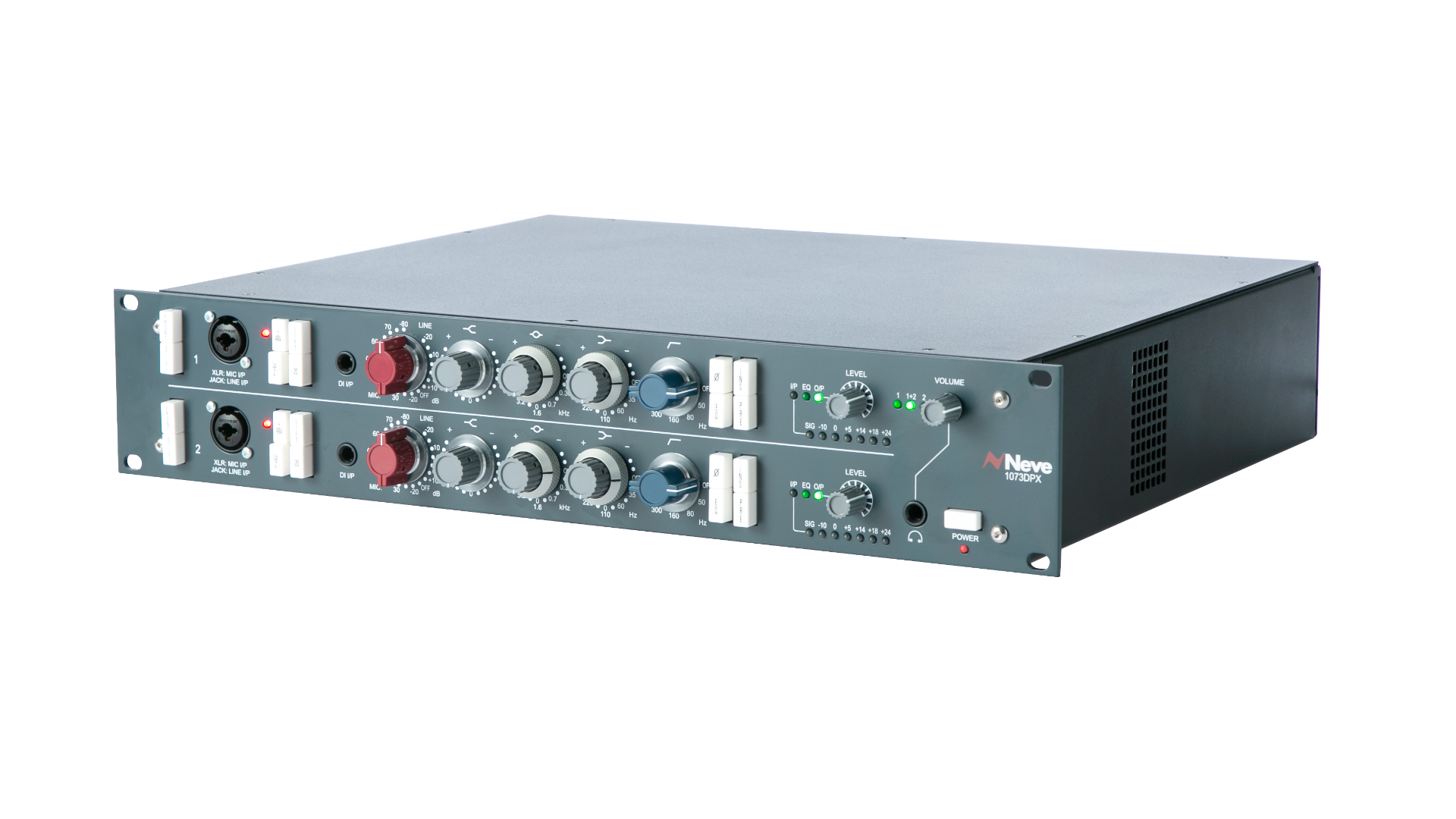

The 19” rack-mount 2U unit includes an external multi-voltage PSU
- 2 independent, genuine Neve 1073 transformer-coupled microphone preamplier / EQ circuits, in a single 2U 19" rack mount enclosure
- Exclusive Neve Marinair™ transformers used on each input and output stage.

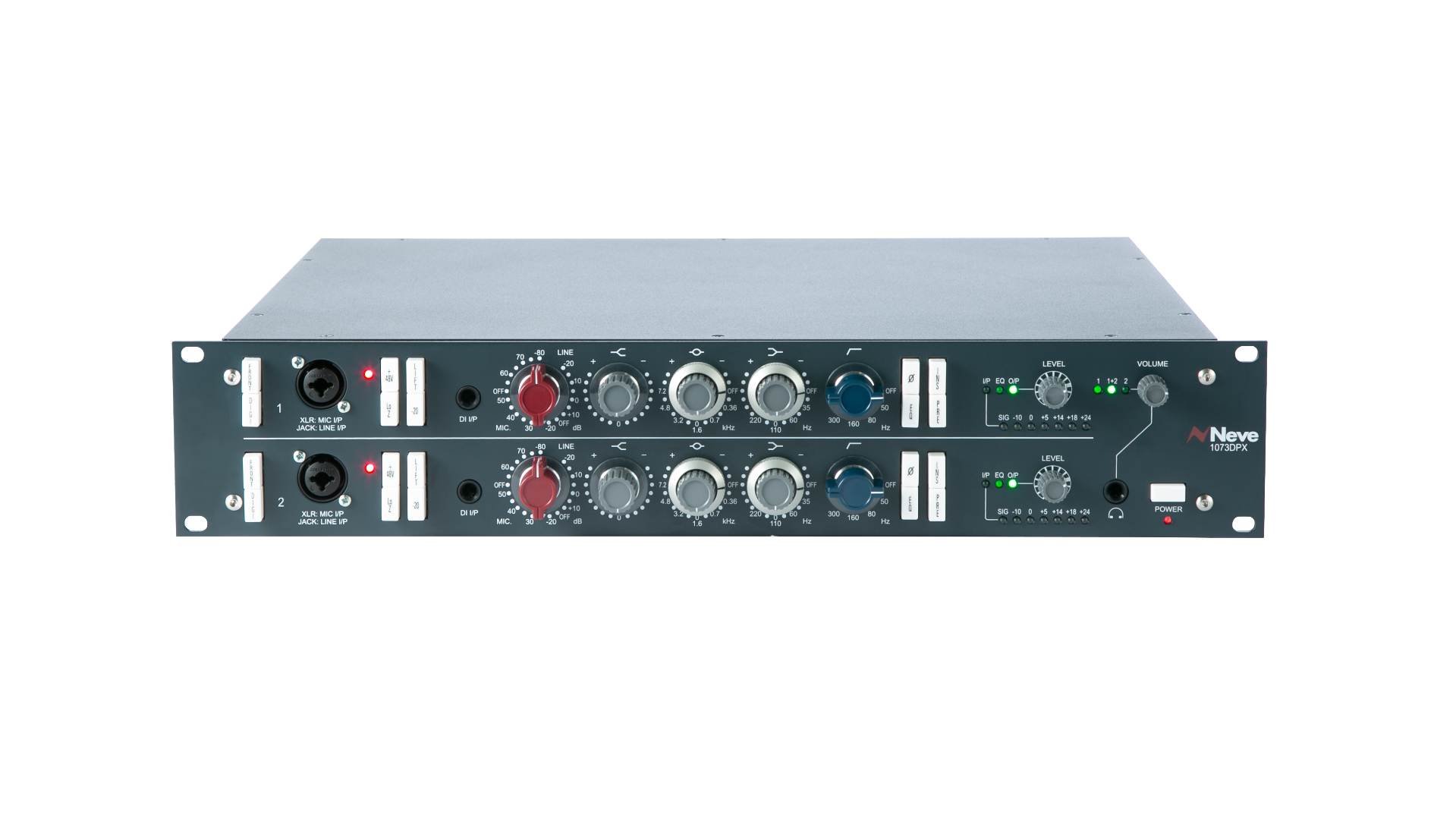

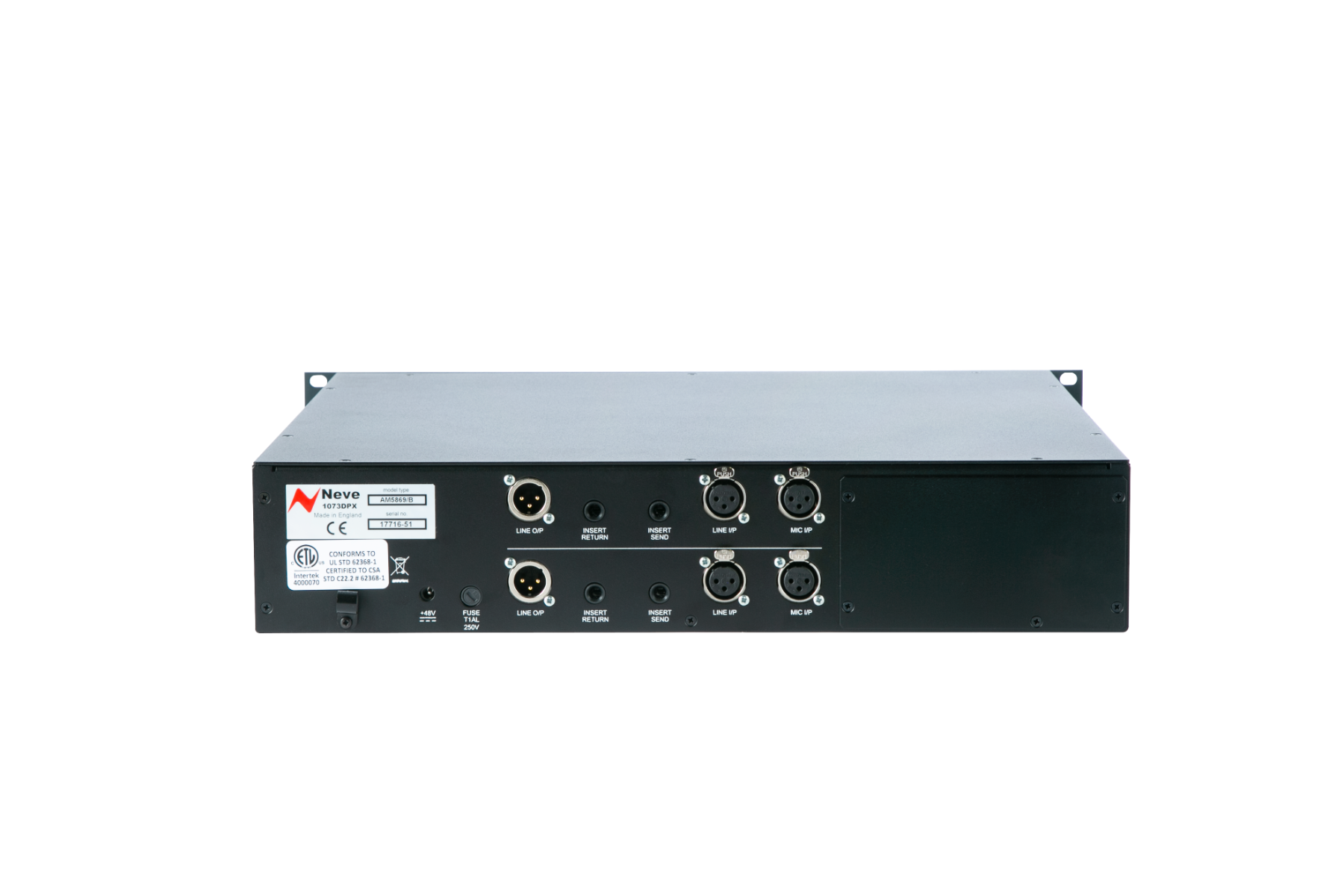

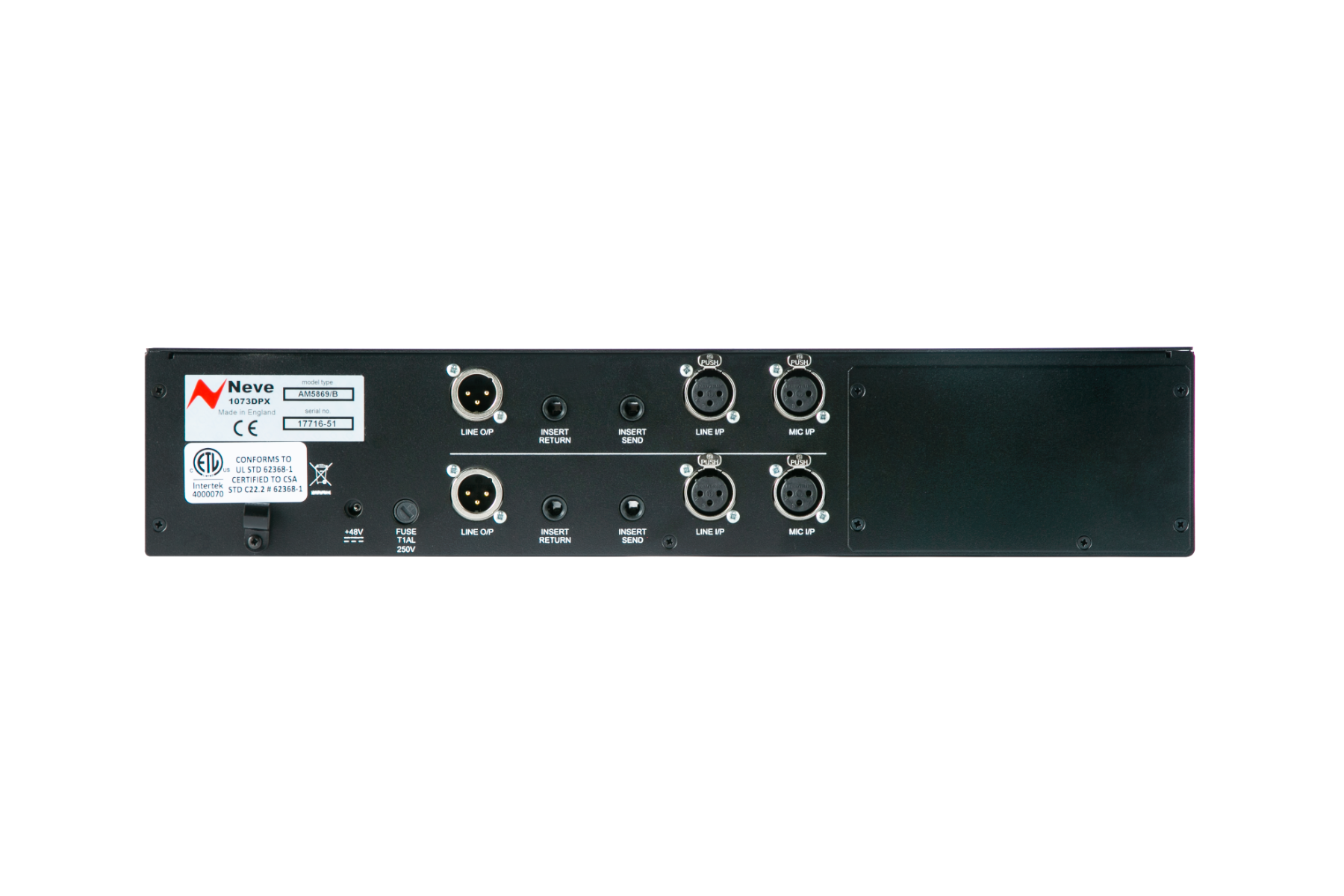

- Convenient connections for Mic, Line & DI inputs on front of unit, with switchable mic/line input connections on the rear of the unit
- Switchable +48v Phantom Power, Hi/Lo impedence, -20dB pad and DI ground lift on the input stage
- Switchable Phase, and EQ in/out
- Insert send and return loop feature allows external equipment to be connected easily to the 1073DPX audio chain, such as mono/stereo limiter/compressors;
- Pre-EQ insert send/return - a line level send is available from the mic-preamp output stage and a return just before the EQ stage
- Post-EQ insert send/return - a line level send is available from the post-EQ stage and a return just before the main output stage
- Independent channel output level controls
- 7-stage LED signal level meters for each channel - can show mic/line/DI input-stage level, EQ-stage level or output-stage level up to +24dB
- Headphone output with adjustable volume control, can listen to channel 1, channel 2 or both channels combined
- External multi-voltage PSU
| Technical Specifications | |
|---|---|
| Mic Amplifier Section: | |
| Microphone Input: | Input impedance 300 Ohms or 1200 Ohms, gain +80dB to +20dB in 5dB steps.Input is transformer balanced and earth free. |
| Line Input: | Input impedance 10K Ohms bridging, gain +20dB to -10dB in 5dB steps.Input is transformer balanced and earth free. |
| DI Input: | Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on)Gain +80dB to +20dB in 5dB steps. |
| Output: | Maximum output is >+26dBu into 600 Ohms. Output impedance is 75 Ohms @ 1kHzOutput is transformer balanced and earth free. |
| Distortion: | Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600 Ohms |
| Frequency Response: | '+/-0.5dB 20Hz to 20kHz, -3dB at 40kHz, EQ out. |
| Noise: | Not more than -83dBu at all Line gain settings, EQ In/Out (22Hz to 22kHz bandwidth) |
| EIN: | Better than -125dBu @ 60dB gain. |
| EQ Section: | |
| High Frequency: | Smooth +/- 16dB fixed frequency shelving at 12kHz |
| Mid Frequency: | Smooth +/- 18dB peaking, fixed 'Q' with selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz |
| Low Frequency: | Smooth +/- 16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz |
| High Pass Filter: | 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz |
| EQL Button: | Switches the equaliser in or out of circuit. |
| Phase Button: | Gives 180 degree phase change at balanced output |
| Unit Dimensions: | |
| Width: | 480mm (19 inches) |
| Height: | 88mm (3.5 inches) |
| Depth: | 356mm (14 inches) |
| Approx. Weight: | 10kg (22 pounds) |
