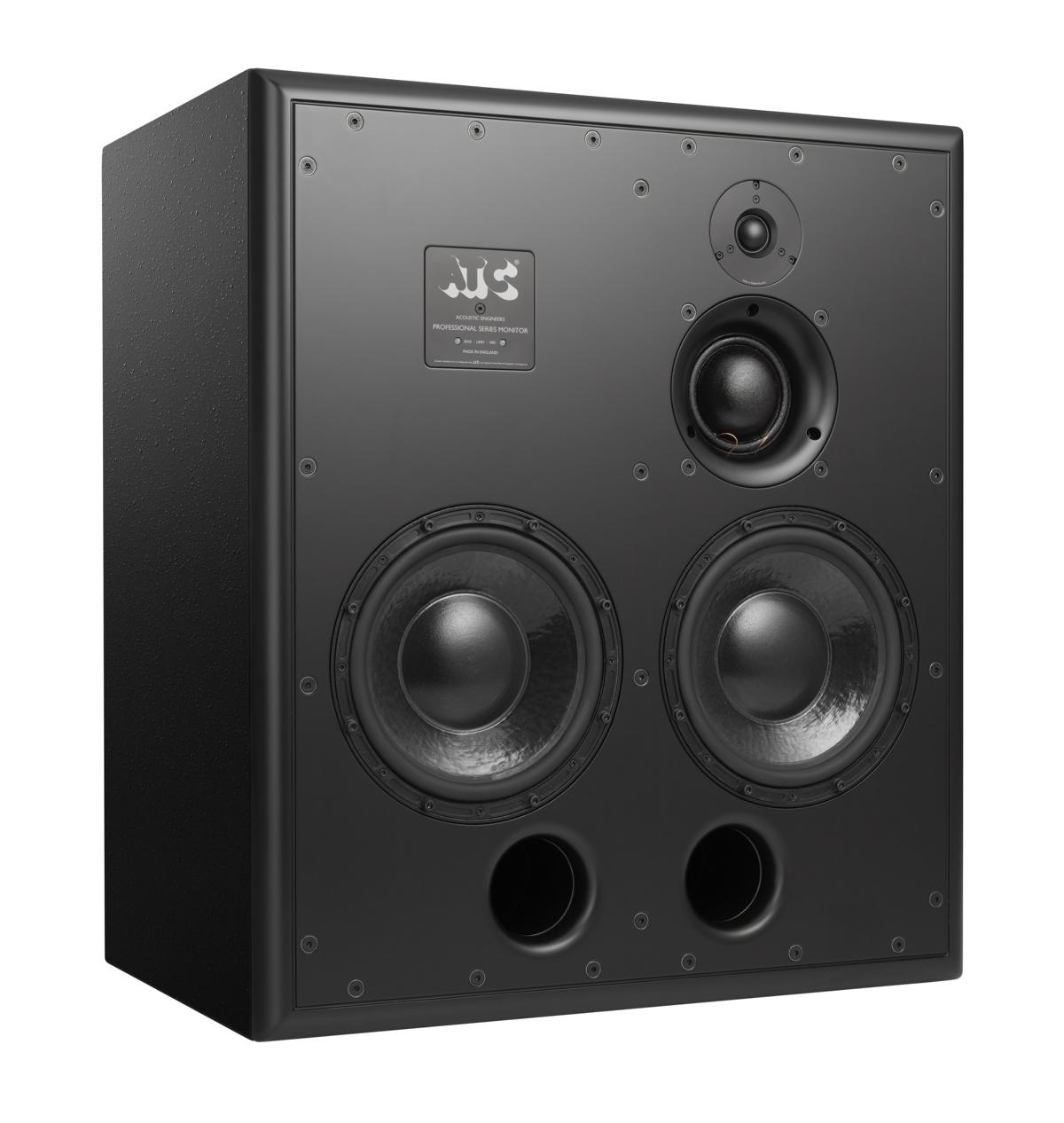

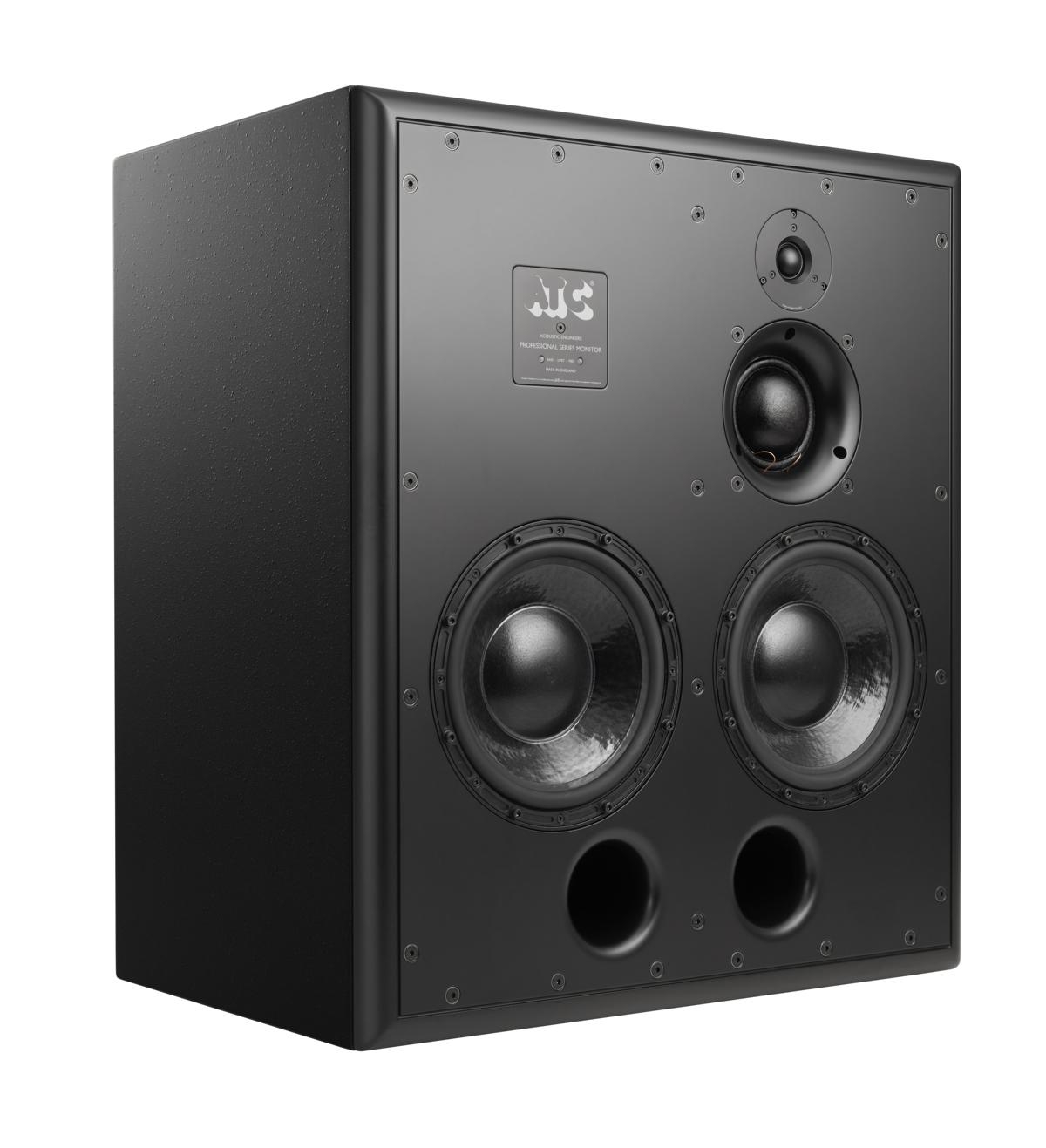

ATC SCM110ASL Pro
SCM110ASL Pro: 3-way Active
Features
25mm soft dome tweeter.
Twin full "SL" spec 9"/234mm bass driver.
ATC 75mm "Super Dome" mid driver.
On board ATC grounded plane 350W Tri-amplifier.
LF contour control.
Clip indication.
6 year warranty.
Specifications
Drivers :
HF 25mm, Mid 75mm, LF 2x234mm
Amplitude Linearity (±2dB) :
50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing) :
30Hz, 22kHz
Horizontal Dispersion :
±80°, Coherent
Vertical Dispersion :
±10°, Coherent
Max. Continuous SPL (1 metre) :
115dB
Crossover Frequencies :
380Hz, 3.5kHz
Input Connectors :
Male XLR
Input Sensitivity :
1V
Input Sensitivity Trim :
±6dB
Input Impedance :
Balanced > 10kΩ
Amplifier Output :
Bass 200W, Mid 100W, High 50W
Filters :
Even Order Critically Damped
Overload Protection :
Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators :
Power On indicator, Gain Reduction warning
LF EQ :
+6dB @ 40Hz
Dimensions (HxWxD) :
715 x 625 x 420mm (28.2" x 24.5" x 16.5") Depth with amplifier at rear adds 3"
Weight :
73kg / 160.6lbs
