ATC SCS70-PRO
Produktinformationen "ATC SCS70-PRO"
Features
- Active 12" subwoofer
- High performance sealed box design using 12”/314mm ATC proprietary sub driver.
- Ideal partner to the ATC SCM12, SCM20, SCM25A Pro, SCM45A Pro, SCM50A Pro.
- Suitable for use in stereo, surround and immersive audio applications.
- On-board 300W convention cooled discrete MOSFET class A/B amp.
- 2 x balanced XLR inputs
- 2 x balanced XLR outputs (un-filtered/processed).
- User adjustable gain, low pass frequency, polarity and phase settings.
- Remote sub muting via latching footswitch (supplied separately, latching type, ¼”/6.35mm jack connection)
- In-Wall variant with remote amplifier also available – the SCS70iW Pro.
- Drive Unit – Bass: 1 x SS75-314SC 8Ω
- Low Frequency Cut-off: 22Hz (-6dB, half space, low pass filter set at 80Hz).
- Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley).
- MaxSPL: 110dB continuous, 116dB peak (IEC Weighted Pink Noise, 1m, half space, low pass filter
- @ 80Hz).
- Sensitivity: +4dBu ref 88dBC (single channel driven, Gain +6dB, Level 0dB, pink noise, low pass
- filter @ 80Hz).
- Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled.
- Output Power: 300W in to 8Ω.
- THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth.
- Input CMRR: 90dB at 200Hz.

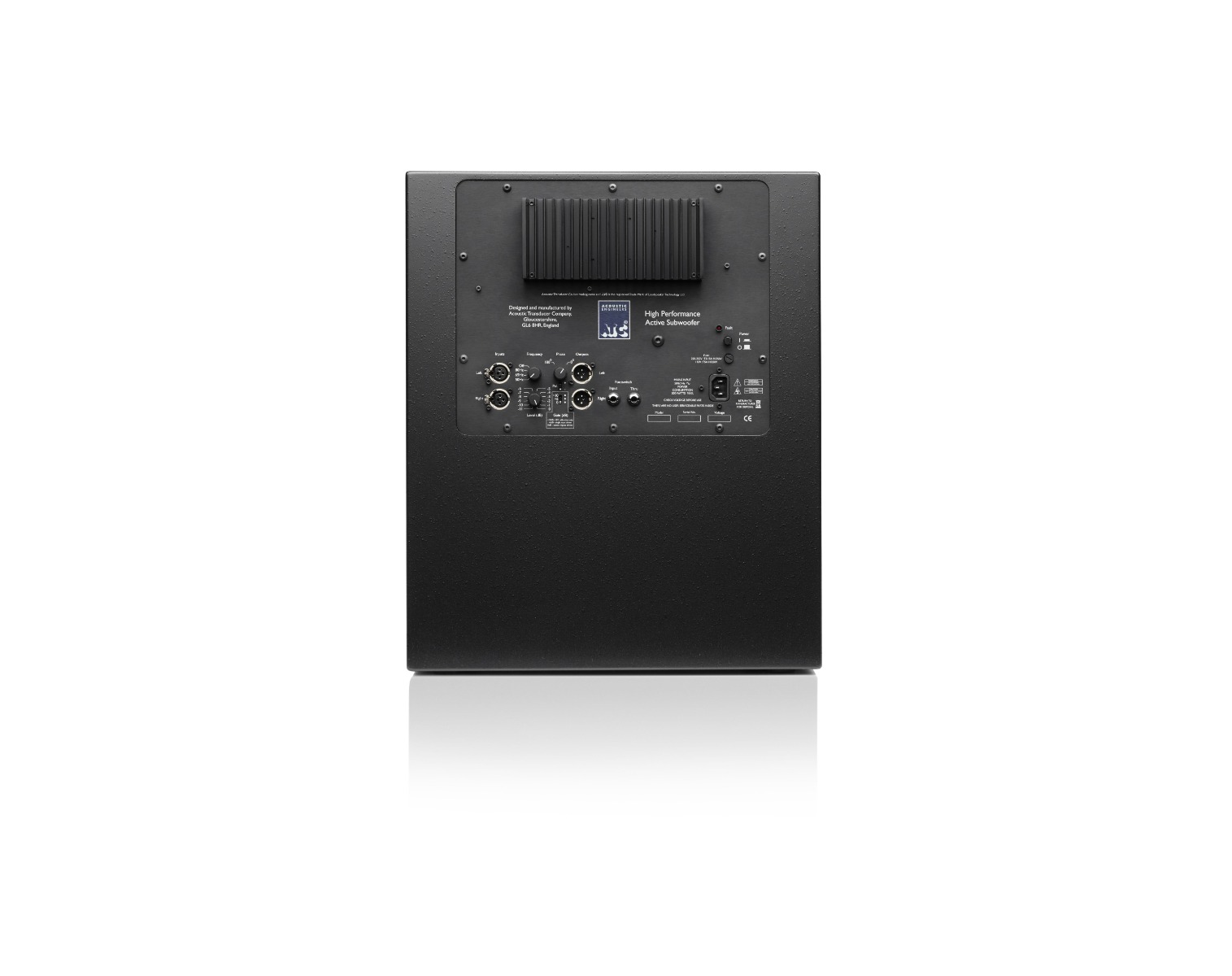

- Balanced Inputs: 2 x Rear Panel Mounted Female XLR, pin 2 hot.
- Input Impedance: 20kΩ (differential).
- Balanced Outputs: 2 x Rear Panel Mounted Male XLR, pin 2 hot.
- Output Impedance: 100Ω (differential).
- Frequency Response: <2Hz (-3dB) – 320Hz (-6dB, set by panel-controlled LP filter).
- Low Pass Filters: 4th Order Linkwitz Riley
- Gain Control: 0, +6dB, +10dB.
- Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch.
- Phase Control: 0-180° ref. Input.
- Polarity Control: In-phase/Out-of-phase ref. Input.
- Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated via front panel LED.
- Sensitivity: 6dBu / 1.55Vrms for full power (single channel driven, Gain 0dB, Level 0dB)
- Mains Input: 220-230V or 115V – Factory set. Please observe panel markings and labels!
- Power Consumption: Idle 8W/14VA. 1/8th Power 170W/230VA. Full Power 500W/600VA.
- Remote Control: Mute via ¼”/ 6.35mm Jack socket, controlled via latching footswitch (supplied seperately)

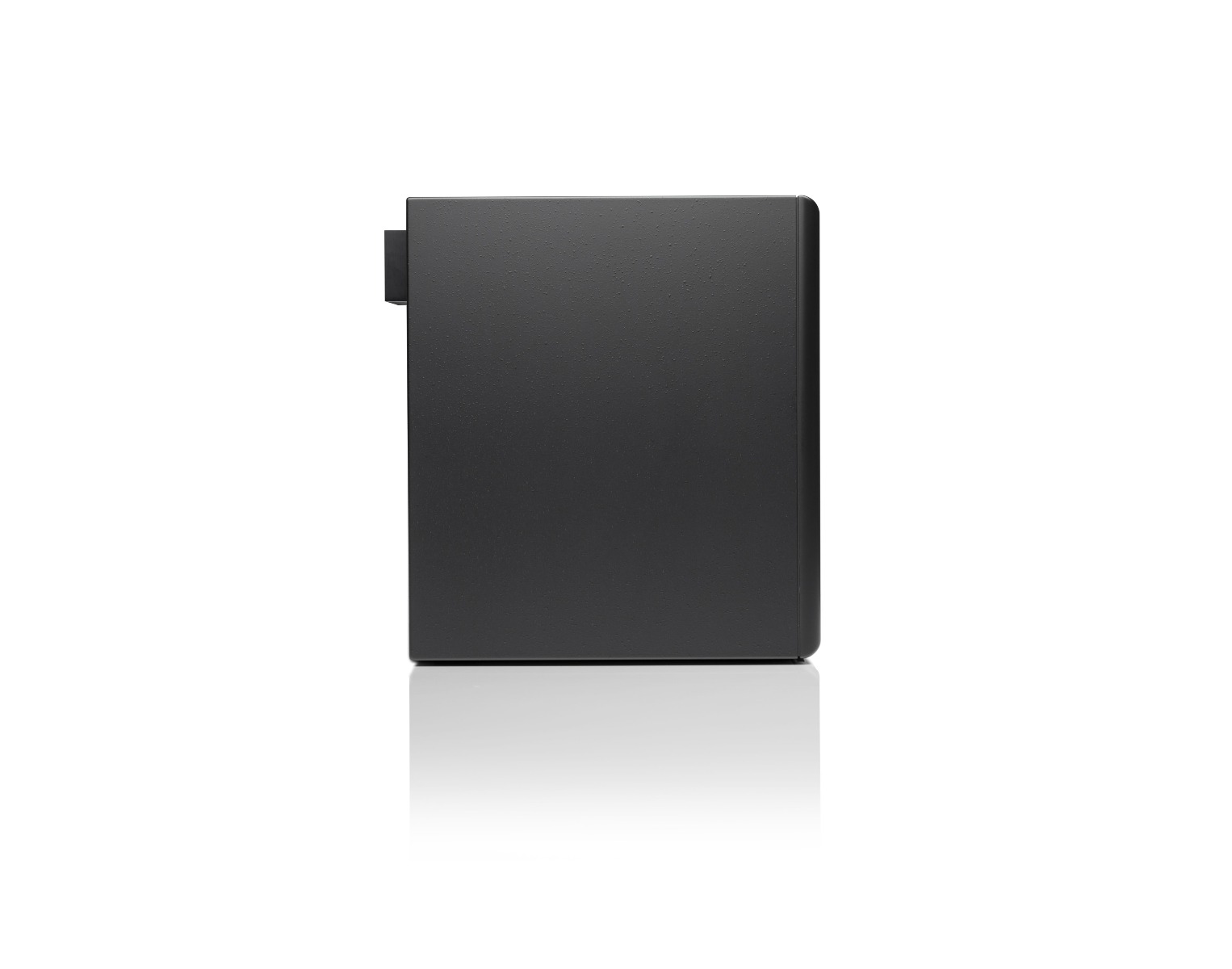

- Dimensions (W x H x D): 464 x 560 x 540 mm
- Weight: 44kg
