Audient iD44 MKII

539,00 €*

Hersteller: Audient

Produktinformationen "Audient iD44 MKII"

Our most powerful audio interface just got better. The latest generation of iD44 sees improved audio performance, additional must-have features and a beautiful new smoke-grey finish. The addition of audio loop-back and a dual headphone output, combined with four Audient Console mic preamps, class-leading converters, ADAT expandability and balanced inserts – means iD44 delivers the audio performance of an Audient console straight to your desktop.

4 x Audient Console Mic Preamps
Class Leading AD/DA Converters
2 x JFET Instrument Inputs
2 x Fully Balanced Inserts
2 x ADAT Inputs & Outputs

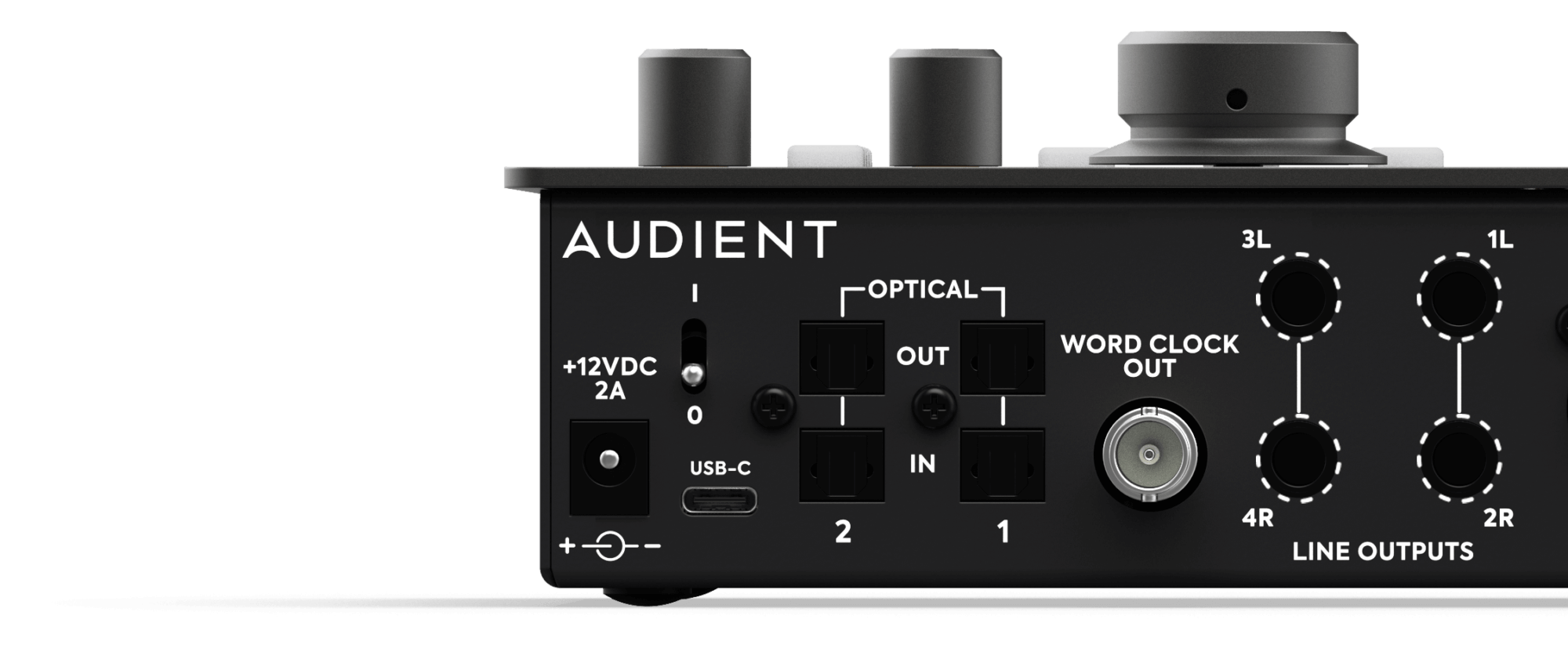

4 x Line Outputs
1 x Dual Headphone Output
1 x Headphone Output
1 x Word Clock Output
3 x User Defined Function Keys
Dedicated Talkback, Dim and Cut Controls
+48V, Pad, and HPF Switches

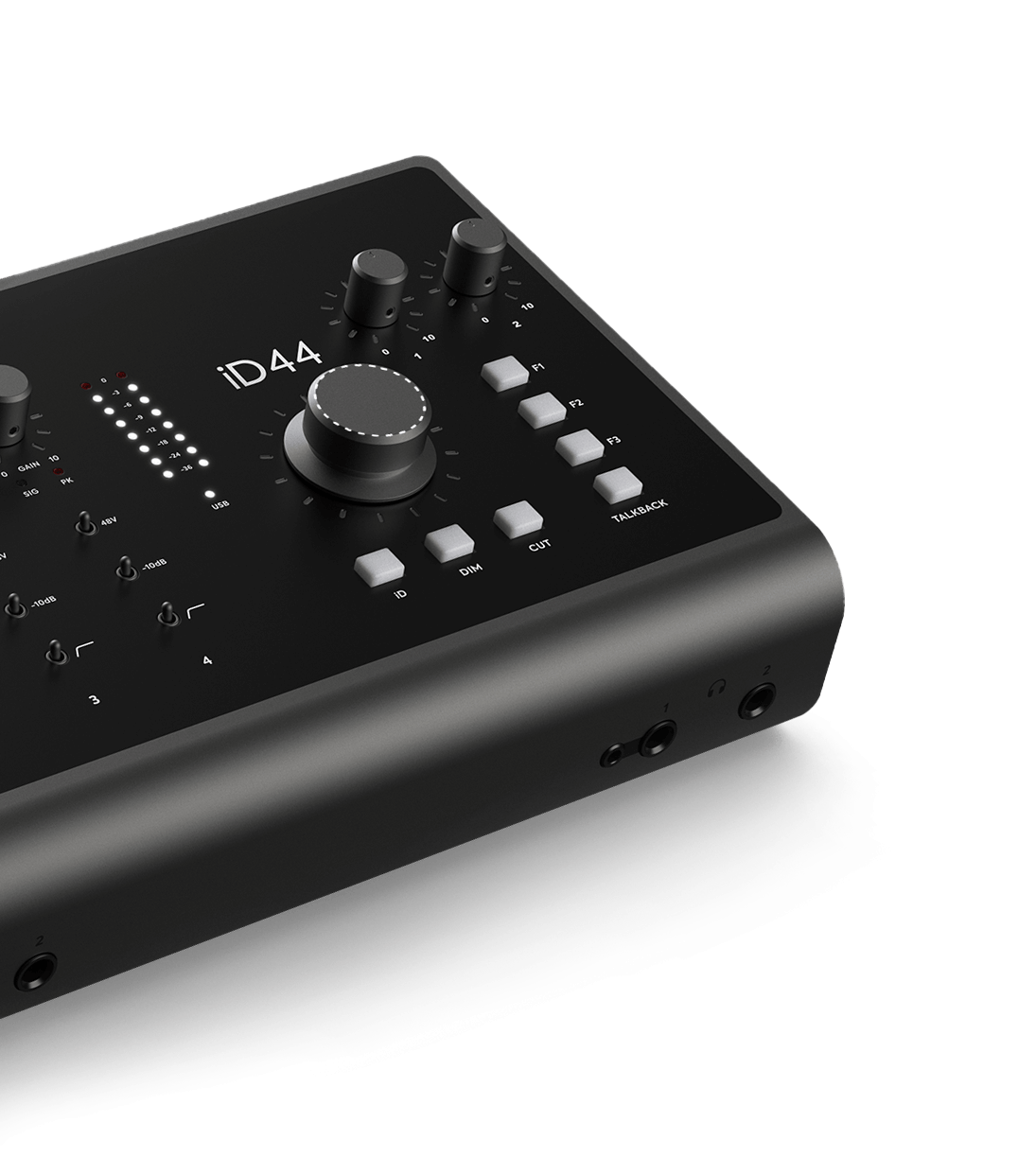

ScrollControl
Ultra-low Latency Software Mixer (Direct Monitoring)
Audio Loop-back
Power Switch
True Phantom Power over USB
Standalone Mode
USB 2.0 Compliant
24bit/96kHz
Mac & Windows Compatible
All Metal Design
Free Software + Plugins

Microphone Preamplifier

MIC GAIN: 0 to +60dB

LINE GAIN: -10 to +50dB

PHANTOM POWER: 48v +/-4v @ 10mA/Channel

MIC EIN: -126dBu

CMRR: >80dB @ 1kHz

MAXIMUM INPUT LEVEL: +18dBu

INPUT IMPEDANCE (Mic): 3k Ω balanced

INPUT IMPEDANCE (Line): 10k Ω balanced

FREQUENCY RESPONSE: ±0.5dB 10Hz to 65kHz

CROSSTALK: <-90dBu @ 1kHz & 10kHz

THD+N @ 0dBu (1kHz): 0.003% (-90dB)

SNR:96dB XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

PAD: -10dB HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)

D.I / Instrument Input (Channel 1)

D.I GAIN: 0 to +60dB

MAXIMUM INPUT LEVEL: +10dBu

INPUT IMPEDANCE: 1MegΩ Unbalanced

FREQUENCY RESPONSE: ±0.5dB 10Hz to 50kHz

THD+N @ 0dBu (1kHz): <0.3%

SNR: 95dB A-weighted

1/4” JACK: Tip (Hot) & Sleeve (Shield)

Analogue to Digital Converter (ADC 1 & 2):

(Measured via Insert Returns under AES-17)

MAXIMUM INPUT LEVEL: +18dBu (0dBFS digital maximum)

DIGITAL REFERENCE LEVEL: +18dBu = 0dBFS

INPUT IMPEDANCE: >10k Ω Balanced

CROSSTALK: <-118dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz): <0.0003% (-112dB)

DYNAMIC RANGE: 120dB A-weighted

1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Digital to Analogue Converter (DAC 1, 2, 3 & 4):

(Measured under AES-17 at line outputs 1, 2, 3 & 4)

MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)

OUTPUT IMPEDANCE: <100 Ω

CROSSTALK: <-118dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)

DYNAMIC RANGE: 124dB un-weighted, 126dB A-weighted

1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

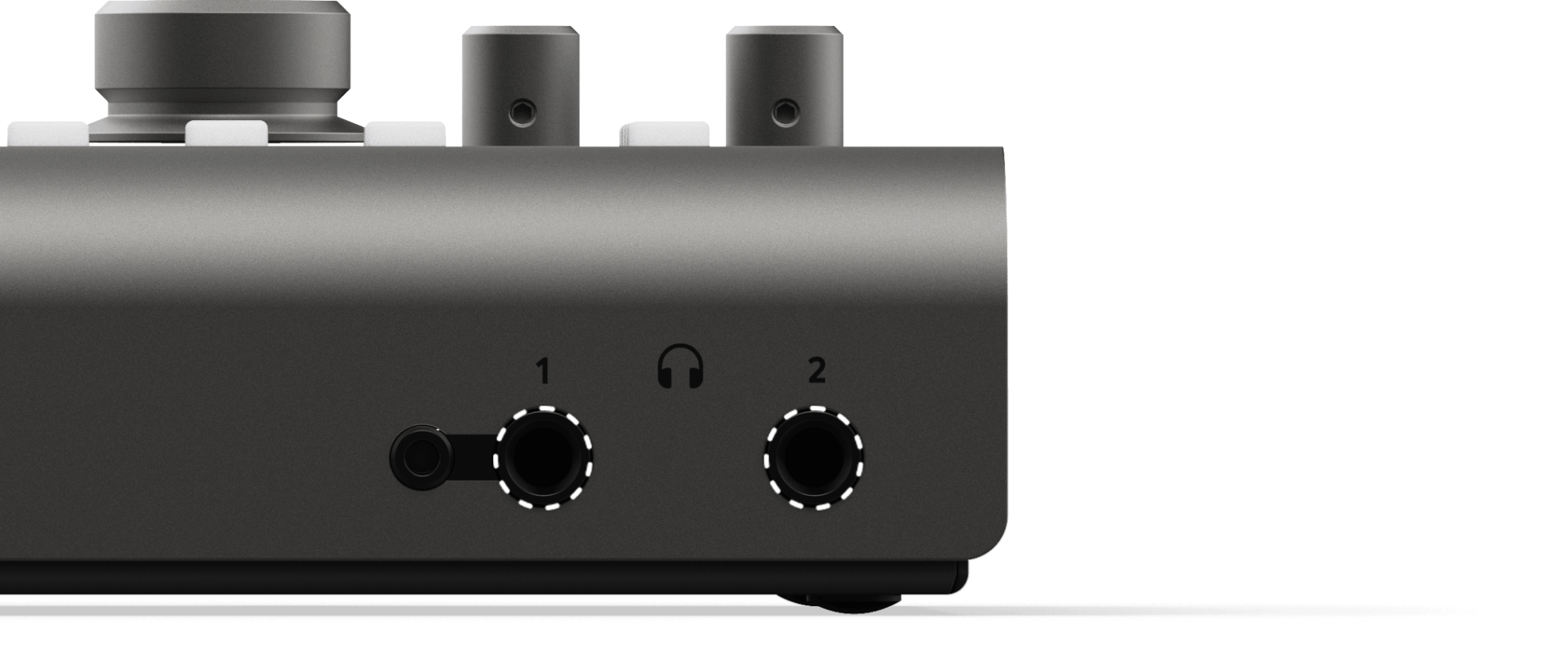

Headphone Outputs (Measured under AES-17 at phones output)

MAXIMUM OUTPUT LEVEL: +14dBu (0dBFS digital maximum)

OUTPUT IMPEDANCE: <50 Ω unbalanced

CROSSTALK: <-110dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2

CROSSTALK: -115dBu @ 1kHz & 10kHz

THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)

DYNAMIC RANGE: 121dB un-weighted, 124dB A-weighted

MAX LEVEL INTO 30ohms: +10.2dBu 0.002% THD+N Power: 210mW

MAX LEVEL INTO 60ohms: +14.2dBu 0.001% THD+N Power: 54mW

MAX LEVEL INTO 600ohms: +14.2dBu 0.001% THD+N Power: 54mW

1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Digital Input

DAT 16 CHANNELS: 44.1kHz to 48.0kHz

DAT 8 CHANNELS (SMUX): 88.2kHz to 96.0kHz

STEREO S/PDIF: 44.1kHz to 96.0kHz

Digital Output

ADAT 16 CHANNELS: 44.1kHz to 48.0kHz

ADAT 8 CHANNELS (SMUX): 88.2kHz to 96.0kHz

STEREO S/PDIF: 44.1kHz to 96.0kHz

USB2.0 High Speed

No. of INPUT CHANNELS 20: 20 (4 Analogue, 16 Digital)

No. of OUTPUT CHANNELS 24: 24 (8 Analogue, 16 Digital)

CONNECTOR: USB Type-C

INCLUDED CABLES: 1.5m USB 2.0 Type-C to USB Type-C, 1.5m USB 2.0 Type-C to USB Type-A

DSP Mixer Latency – ROUND TRIP (in-to-out)

44.1kHz 0.677ms

48.0kHz 0.625ms

88.2kHz 0.354ms

96.0kHz 0.323ms

Word Clock Output

WORD CLOCK OUTPUT: 44.1kHz to 96kHz

MIKROFONVORVERSTÄRKER:(measured to insert send)
MIC GAIN: 0 to +60 dB
LINE GAIN: -10 to +50 dB
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-126dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu (+28dBu with pad)
INPUT IMPEDANCE (Mic): >3kΩ Balanced
INPUT IMPEDANCE (Line): >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 65kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.003% (-96dBu)
SNR: 96dB
Pad: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

D.I (Kanal 1):
(measured to insert send)

D.I GAIN: -0 to +60 dB
MAXIMUM INPUT LEVEL: +10dBu
INPUT IMPEDANCE: 1MegΩ Unbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 95dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
EINFÜGEN SENDEN (Mic Pre Out):
MAXIMUM OUTPUT LEVEL: +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

ADC LINE INPUTS (Einfügen von Returns):
(measured at optical output under AES-17)

MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUT IMPEDANCE: >10kΩ Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -115dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0008% (-103dB)
DYNAMIC RANGE: 121dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
DIGITAL-ANALOG-WANDLER (1-4):
(measured from optical input under AES-17)

MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUT IMPEDANCE: <100Ω Balanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -118dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.0006% (-104dB)
DYNAMIC RANGE: 126dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)

KOPFHÖRER-AUSGANG (5&6):
(measured from optical input under AES-17)

MAXIMUM OUTPUT LEVEL: +14dBu
