Remotes & Controller

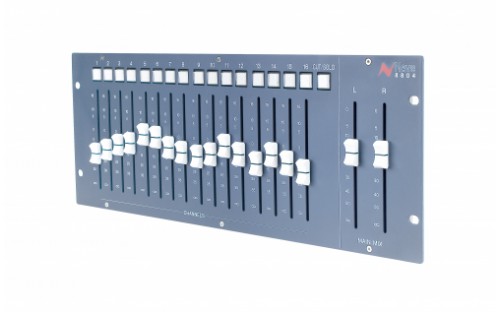

8804 Faderpack für den Summing Amp 8816 Der Fader Pack 8804 ist die ideale Ergänzung zum Summing Amp 8816. Es erlaubt dem Anwender nicht nur die Möglichkeit die Signal mit 16 Fader zu regeln, sondern erweitert auch die Möglichkeiten des 8816 dahingegen, dass der Level-Regler vom 8816 dann als Aux-Regler genutzt werden kann. Weiterhin verfügt dieses Faderpack über Directouts in jedem Signalpfad. High Quality Long Throw Faders 16 Fader 2 Master Fader 16 Mute/Solo Schalter 16 Direct Outputs Allows 8816 Level Pots werden Auxiliary Sends perfekte Ergänzung zum 8816 Summing Mixer Für weitere Informationen, besuchen Sie bitte die Homepage zu diesem Produkt.

The M10 remote console is a dedicated hardware remote controller for use with the M7 stereo reverb processor. Following the same design criteria as the M7, the M10 casing is manufactured and milled from solid anodized aluminum, for an enduring design and long life. The M10 is also designed to be simple to use, and easy to interface; utilising a standard RS422 serial interface. In application it can be very useful when using more than one M7 or when there is a need to be more in the sweet spot when making adjustments in a large mixing environment.   The main features of the Bricasti Design M10 include: Custom milled solid aluminum casing and buttons, fine finished and anodized for an enduring design and classic look. Controls from 1-8 x M7s Connects to the first M7 via RS422 9pin serial cable, 10meter cable provided, up to 30 meter that is 480L compatible, simple to install with no practical distance limits, or IP addresses to configure. Longer distances may require an additional power source for the M10 Simple serial ‘loop thru’ for connecting more M7s, connect to the first and loop to the second, and third etc. DC power is supplied from the M7 through the cable, no wall warts or external power supplies 8 meters, for 4 stereo pairs, metering 4 machines at a time Machine selection is by a dedicated machine Key in the M10: Press the machine key to “toggle or step through” for 2 x M7 operation. Press machine key and use the jog wheel to step through the machines for control of more than 2 x M7s. Press machine key and use the 1-4 keys to directly access any machine, for control of more than 2 x M7s Use the “up down keys” to change banks and for metering for control of more than 4 x M7s Same clear easy to read displays as used in the M7 Same user interface as the M7, with the addition of machine and setup keys, so no need to learn something new Simultaneous control of the M7 from both the M7s front panel and or the M10, with lock out * Cable/Connector: 3 pin gold plated male XLR connector Setup key for the M10’s local memory, configurations, and settings.

The RM Synchronizer is designed to operate with a standard Sony 9-pin remote, using a scalable extended Sony protocol. OEM customers may extend their existing machine control using the functions they require, or develop full synchroniser interface with individual machine control and status display.The RM Serial remote/Synchronizer uses experience gained from both the SR and MR series remote control system. Designed to be used with existing consoles and DAW's this unit will expand a single Sony Protocol serial port to five serial ports. The various serial protocol options allow the RM Synchronizer unit to act as a serial protocol converter.A single machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to five machines. Record On and Off are sent to all record enabled machines. Record track arming is provided for up to 100 tracks and may be mapped over all machines either by the user or an automatic algorithm.With the development of the RM-6 rack mounted unit we are able to move most of the electronics from the controller to the machine room. The SR-4 may be used with a single RS-422 connection to control the RM-6. Whilst the existing SR-24 may also be used as a remote control for the RM-6 the separate Display box made it expensive. The new SR-424 is our solution, it may be used as a remote for the RM-6 in the same way but with 24 track arm keys.The rear panel of the SR-424 is the same as the SR-4, this allows the SR-424 to be used as a stand alone unit with extra track arm keys. We are also looking at an ADR version of the SR-424 for the future.

Rack Mount Serial Synchroniser 6 Serial ports, SR-4 remote - 2 port The RM Synchronizer is designed to operate with a standard Sony 9-pin remote, using a scalable extended Sony protocol. OEM customers may extend their existing machine control using the functions they require, or develop full synchroniser interface with individual machine control and status display.The RM Serial remote/Synchronizer uses experience gained from both the SR and MR series remote control system. Designed to be used with existing consoles and DAW's this unit will expand a single Sony Protocol serial port to five serial ports. The various serial protocol options allow the RM Synchronizer unit to act as a serial protocol converter.A single machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to five machines. Record On and Off are sent to all record enabled machines. Record track arming is provided for up to 100 tracks and may be mapped over all machines either by the user or an automatic algorithm.With the development of the RM-6 rack mounted unit we are able to move most of the electronics from the controller to the machine room. The SR-4 may be used with a single RS-422 connection to control the RM-6. Whilst the existing SR-24 may also be used as a remote control for the RM-6 the separate Display box made it expensive. The new SR-424 is our solution, it may be used as a remote for the RM-6 in the same way but with 24 track arm keys.The rear panel of the SR-424 is the same as the SR-4, this allows the SR-424 to be used as a stand alone unit with extra track arm keys. We are also looking at an ADR version of the SR-424 for the future.SR4The SR Series remote controls have been designed as stand alone controllers or used to expand the single serial output of a Console or Digital Audio Work-station, the SR serial remotes make cost effective ergonomic solutions. The master machine or virtual machine(Generator) is controlled by the serial input, the chase functionexpands this to up to four machines. When the A port is configured as a input SR-4/SR-424 may be used with a Digital Audio Work-station or Console to provide control of up to 3 machines from one serial port. The record tracks are mapped so that the Serial input may have up to 64 record tracks. The timecode input enables the SR to act as a timecode to serial converter. Track arming from the front panel or via the input port is used to provide track arming, aA 24/48 track parallel to serial converter is also available. Record track arming is provided for up to 100 tracks and may be mapped to single or multiple machines by the user. Record On and Off are sent to all record enabled machines.

Rack Mount Serial Synchroniser 6 Serial ports, SR-4 remote - 4 port The RM Synchronizer is designed to operate with a standard Sony 9-pin remote, using a scalable extended Sony protocol. OEM customers may extend their existing machine control using the functions they require, or develop full synchroniser interface with individual machine control and status display. The RM Serial remote/Synchronizer uses experience gained from both the SR and MR series remote control system. Designed to be used with existing consoles and DAW's this unit will expand a single Sony Protocol serial port to five serial ports. The various serial protocol options allow the RM Synchronizer unit to act as a serial protocol converter. A single machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to five machines. Record On and Off are sent to all record enabled machines. Record track arming is provided for up to 100 tracks and may be mapped over all machines either by the user or an automatic algorithm. With the development of the RM-6 rack mounted unit we are able to move most of the electronics from the controller to the machine room. The SR-4 may be used with a single RS-422 connection to control the RM-6. Whilst the existing SR-24 may also be used as a remote control for the RM-6 the separate Display box made it expensive. The new SR-424 is our solution, it may be used as a remote for the RM-6 in the same way but with 24 track arm keys. The rear panel of the SR-424 is the same as the SR-4, this allows the SR-424 to be used as a stand alone unit with extra track arm keys. We are also looking at an ADR version of the SR-424 for the future. SR4 The SR Series remote controls have been designed as stand alone controllers or used to expand the single serial output of a Console or Digital Audio Work-station, the SR serial remotes make cost effective ergonomic solutions. The master machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to four machines. When the A port is configured as a input SR-4/SR-424 may be used with a Digital Audio Work-station or Console to provide control of up to 3 machines from one serial port. The record tracks are mapped so that the Serial input may have up to 64 record tracks. The timecode input enables the SR to act as a timecode to serial converter. Track arming from the front panel or via the input port is used to provide track arming, aA 24/48 track parallel to serial converter is also available. Record track arming is provided for up to 100 tracks and may be mapped to single or multiple machines by the user. Record On and Off are sent to all record enabled machines.

Rack Mount Serial Synchroniser 6 Serial ports, SR-424 remote - 2 port The RM Synchronizer is designed to operate with a standard Sony 9-pin remote, using a scalable extended Sony protocol. OEM customers may extend their existing machine control using the functions they require, or develop full synchroniser interface with individual machine control and status display. The RM Serial remote/Synchronizer uses experience gained from both the SR and MR series remote control system. Designed to be used with existing consoles and DAW's this unit will expand a single Sony Protocol serial port to five serial ports. The various serial protocol options allow the RM Synchronizer unit to act as a serial protocol converter. A single machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to five machines. Record On and Off are sent to all record enabled machines. Record track arming is provided for up to 100 tracks and may be mapped over all machines either by the user or an automatic algorithm. With the development of the RM-6 rack mounted unit we are able to move most of the electronics from the controller to the machine room. The SR-4 may be used with a single RS-422 connection to control the RM-6. Whilst the existing SR-24 may also be used as a remote control for the RM-6 the separate Display box made it expensive. The new SR-424 is our solution, it may be used as a remote for the RM-6 in the same way but with 24 track arm keys. The rear panel of the SR-424 is the same as the SR-4, this allows the SR-424 to be used as a stand alone unit with extra track arm keys. We are also looking at an ADR version of the SR-424 for the future. SR424 The SR Series remote controls have been designed as stand alone controllers or used to expand the single serial output of a Console or Digital Audio Work-station, the SR serial remotes make cost effective ergonomic solutions. The master machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to four machines. When the A port is configured as a input SR-4/SR-424 may be used with a Digital Audio Work-station or Console to provide control of up to 3 machines from one serial port. The record tracks are mapped so that the Serial input may have up to 64 record tracks. The timecode input enables the SR to act as a timecode to serial converter. Track arming from the front panel or via the input port is used to provide track arming, aA 24/48 track parallel to serial converter is also available. Record track arming is provided for up to 100 tracks and may be mapped to single or multiple machines by the user. Record On and Off are sent to all record enabled machines. Features * Four Serial Ports......................................... May be assigned as Inputs or Outputs* Multimaster Mode ................................Interface with Multiple DAW’s or Consoles* Plug & Play Sony P2 protocol............................................... VTR's, ATR’;s, DAW’s ..* Optional Protocols............................................... Timeline, ES-BUS, Ampex, Studer* Macro Keys.........................................................................9 (SR-4) or 26 (SR-424)* Track Arm Keys .................................................................8 (SR-4) or 24 (SR-424)* GPI’s...........................................................................6 Cmos inputs, 6 TTL outputs* Timecode Output........................................ Follows the master position and Offset* Timecode Input......................................................................... chase remote code* RS422 Synchroniser...........................Will synchronise any suitable 9-pin Machine* Real or Virtual Master ........................ Perfect Machine as Master, Tapeless Master

Rack Mount Serial Synchroniser 6 Serial ports, SR-424 remote - 4 port The RM Synchronizer is designed to operate with a standard Sony 9-pin remote, using a scalable extended Sony protocol. OEM customers may extend their existing machine control using the functions they require, or develop full synchroniser interface with individual machine control and status display. The RM Serial remote/Synchronizer uses experience gained from both the SR and MR series remote control system. Designed to be used with existing consoles and DAW's this unit will expand a single Sony Protocol serial port to five serial ports. The various serial protocol options allow the RM Synchronizer unit to act as a serial protocol converter. A single machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to five machines. Record On and Off are sent to all record enabled machines. Record track arming is provided for up to 100 tracks and may be mapped over all machines either by the user or an automatic algorithm. With the development of the RM-6 rack mounted unit we are able to move most of the electronics from the controller to the machine room. The SR-4 may be used with a single RS-422 connection to control the RM-6. Whilst the existing SR-24 may also be used as a remote control for the RM-6 the separate Display box made it expensive. The new SR-424 is our solution, it may be used as a remote for the RM-6 in the same way but with 24 track arm keys. The rear panel of the SR-424 is the same as the SR-4, this allows the SR-424 to be used as a stand alone unit with extra track arm keys. We are also looking at an ADR version of the SR-424 for the future. SR424 The SR Series remote controls have been designed as stand alone controllers or used to expand the single serial output of a Console or Digital Audio Work-station, the SR serial remotes make cost effective ergonomic solutions. The master machine or virtual machine(Generator) is controlled by the serial input, the chase function expands this to up to four machines. When the A port is configured as a input SR-4/SR-424 may be used with a Digital Audio Work-station or Console to provide control of up to 3 machines from one serial port. The record tracks are mapped so that the Serial input may have up to 64 record tracks. The timecode input enables the SR to act as a timecode to serial converter. Track arming from the front panel or via the input port is used to provide track arming, aA 24/48 track parallel to serial converter is also available. Record track arming is provided for up to 100 tracks and may be mapped to single or multiple machines by the user. Record On and Off are sent to all record enabled machines. Features * Four Serial Ports......................................... May be assigned as Inputs or Outputs * Multimaster Mode ................................Interface with Multiple DAW’s or Consoles * Plug & Play Sony P2 protocol............................................... VTR's, ATR’;s, DAW’s .. * Optional Protocols............................................... Timeline, ES-BUS, Ampex, Studer * Macro Keys.........................................................................9 (SR-4) or 26 (SR-424) * Track Arm Keys .................................................................8 (SR-4) or 24 (SR-424) * GPI’s...........................................................................6 Cmos inputs, 6 TTL outputs * Timecode Output........................................ Follows the master position and Offset * Timecode Input......................................................................... chase remote code * RS422 Synchroniser...........................Will synchronise any suitable 9-pin Machine * Real or Virtual Master ........................ Perfect Machine as Master, Tapeless Master

The SR Series remote controls have been designed using experience gained from the MR series remote control system. Designed as a stand alone controller or to be used with a Digital Audio Work-stations the SR serial remotes make cost effective ergonomic solutions. Although the user can control only one machine at a time from the remote both the record and un-record commands are global so that multiple machines may be controlled simultaneously using the internal 9-pin synchroniser or using the built in chase feature of modern machines. Specifications: Multiple serial outputs    SR-3: 3 Output, SR-4: 4 OutputPlug and Play Sony P2 protocol    Auto recognition/Configuration, DAT's, VTR's, DA-88, Digital DubbersES BUS protocol    Audio Kinetics ES 1.11, ES.12Studer TLS4000 protocol    Studer Audio Tape RecordersStuder D820/D827 protocol    Direct interface to machine synchronizerAmpex Protocol    VPR-3, VPR-80, Timeline LynxRS422 Input    On SR-3 for use with DAW or Video EditorsParallel GPI's    6 parallel inputs, 6 parallel outputsTimecode Output    Follows the master position and OffsetTimecode Input    All four outputs will chase remote codeBuilt in P2 Synchroniser    Will synchronise any suitable 9-pin MachineVirtual Machine    Perfect Machine as Tapeless MasterMidi Protocol    MX2424Pioneer protocol    DVDSR-3The SR-3 may be used with a Digital Audio Work-station or Video Editor to provide control of up to 3 machines from one serial port. The record tracks are mapped so that the Serial input may have up to 64 record tracks. The timecode input enables the SR-3 to act as a timecode to serial converter.PARALLEL INPUT/OUTPUTThere are 6 CMOS parallel inputs and 6 TTL parallel outputs provided. Currently used as machine control and tallies and General Purpose Trigger Outputs.RECORD ENABLEEight record ready switches and a bank switch are provided, these are switched with the machine selects and provide access to up to 48 tracks on each machine.MACRO KEYSAny of the 50 user functions provided may be assigned to one of the 9 macro keys. The user functions include Dat specific functions such as PNO renumber, id write, id read. video specific commands such as assemble or insert, ADR keys (Next Loop, Prev Loop, Join, Insert), or system commands such as instant replay, instant record, Mark. Continual user feedback ensures that more functions are provided on a regular basis.

Price On Request This may be used as a remote for the RM-6 used with a single RS-422 connection to control the RM-6 with 24 track arm keys

Price on Request The SR Series remote controls have been designed using experience gained from the MR series remote control system. Designed as a stand alone controller or to be used with a Digital Audio Work-stations the SR serial remotes make cost effective ergonomic solutions. Although the user can control only one machine at a time from the remote both the record and un-record commands are global so that multiple machines may be controlled simultaneously using the internal 9-pin synchroniser or using the built in chase feature of modern machines. Features: Multiple serial outputs    SR-3: 3 Output, SR-4: 4 OutputPlug and Play Sony P2 protocol    Auto recognition/Configuration, DAT's, VTR's, DA-88, Digital DubbersES BUS protocol    Audio Kinetics ES 1.11, ES.12Studer TLS4000 protocol    Studer Audio Tape RecordersStuder D820/D827 protocol    Direct interface to machine synchronizerAmpex Protocol    VPR-3, VPR-80, Timeline LynxRS422 Input    On SR-3 for use with DAW or Video EditorsParallel GPI's    6 parallel inputs, 6 parallel outputsTimecode Output    Follows the master position and OffsetTimecode Input    All four outputs will chase remote codeBuilt in P2 Synchroniser    Will synchronise any suitable 9-pin MachineVirtual Machine    Perfect Machine as Tapeless MasterMidi Protocol    MX2424Pioneer protocol    DVD

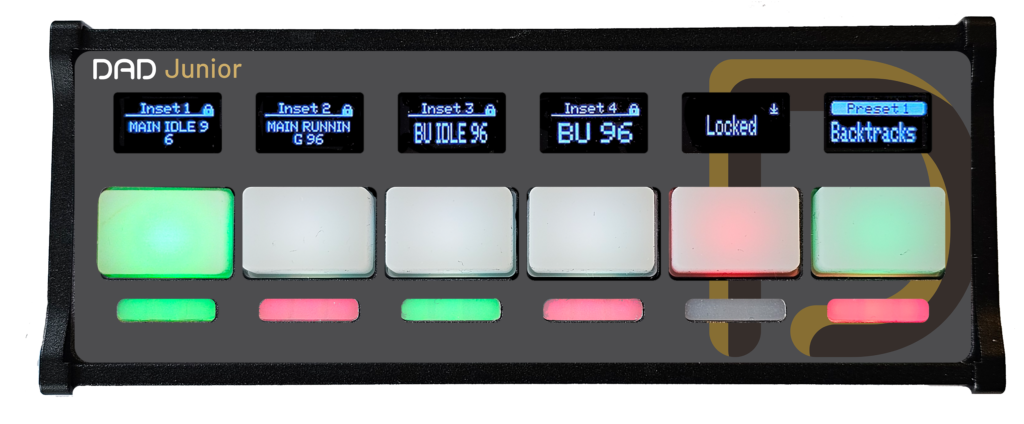

Steuerung | PacksteuerungTaktile Steuerung der Wiedergabe- und Show-Steuerungsfunktionen Junior Control | Pack Controller ermöglicht Ihnen die einfache, unkomplizierte und manuelle Steuerung vorkonfigurierter Routing-Presets und Buckets mit jedem DAD Thunder | Core Audio-Interface. Ganz einfach: Junior ermöglicht Ihnen die Kontrolle über die in allen Thunder | Core-Geräten integrierte Control | Pack-Funktionalität.

With the Remote Control, the talkback mic preamp is assignable to stereo masters 1 and 2, mono outputs 1 - 12, and the balanced intercom/slate output. Connects up to 500 feet with a standard CAT5e cable. FOR USE WITH MIX BACK (MB) ONLY.

Egal welchen Trinnov-Prozessor Sie haben, ob einen ST2Pro, einen D-MON oder einen MC-Prozessor, mit LA REMOTE steuern Sie alle Funktionen per Tastendruck und stellen jeden Parameter im Handumdrehen ein. Konfigurierbares Display   (aktueller Status, Lautstärke, Tastenfunktion / -Ebenen)    Voreinstellung/Profil/Snapshot-Abruf    Lautsprecher-Konfiguration/Audioquellen laden (D-Mon)    Kopfhörerausgangs-Pegel(D-Mon)    Solo/Mute für jeden Lautsprecher    Talkback    Display-Helligkeit und Tastenbeleuchtung einstellbar    Netzwerk Setup, zum Einstellen/Abrufen der Trinnov-Geräte IP-Adresse ohne zusätzliches Display oder Tastatur
