Dangerous Music Liaison

Overview

To survive in this modern day audio jungle, the contemporary studio must be flexible and agile; a facility that can adapt to any workflow, effortlessly. Tracking, mixing and mastering services oftentimes must be performed under one roof, utilizing every piece of outboard gear available.

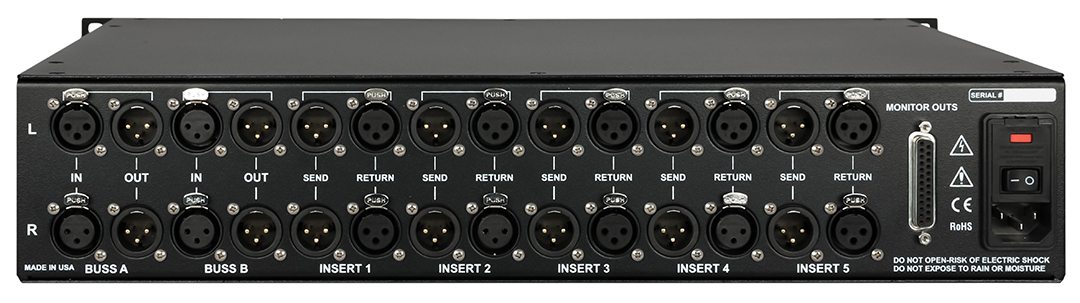

The Dangerous Liaison realizes this dream by providing unprecedented access to your outboard equipment. Connect up to six of your favorite units to the Liaison (more if you daisy chain, leverage a patchbay or add a Dangerous Master). Instantly audition any device or combination, change the order, dial in some parallel processing and then store these customized signal paths as presets to use again, on demand, anytime. True hard-wire bypass relays remove the gear entirely from the signal path; this includes outboard that lacks an integrated bypass or true hard-wire bypass. Mastering grade components switch instantly and silently, providing true A/B comparisons without coloration or latency. Pre and post-processing monitor outputs make it simple to audition between the original source and the treated product.

You will hear the difference.

Specifications

Frequency Response (Passive Section) +0, -0.1dB from 10Hz to 100kHz

Frequency Response (Active Section) +0, -0.1dB from 10Hz to 100kHz

Maximum level > +28dBu

Noise floor < -94.5dBu 22Hz-22kHz bandwidth

THD+N < 0.002%

IMD < 0.003%

Crosstalk rejection (Passive Section) > 124dB

Crosstalk rejection (Active Section) > 113dB

Input Impedance: 20K Ohms

Output Impedance: 20 Ohms

Replacement Fuses:

USA 500mA fast blow for 120V
Europe 250mA fast blow for 240V

Warranty: 2 years parts and labor, subject to inspection. Does not include damage incurred through abusive operation or modifications/attempted repair by unauthorized technicians.
