DiGiGrid IOX

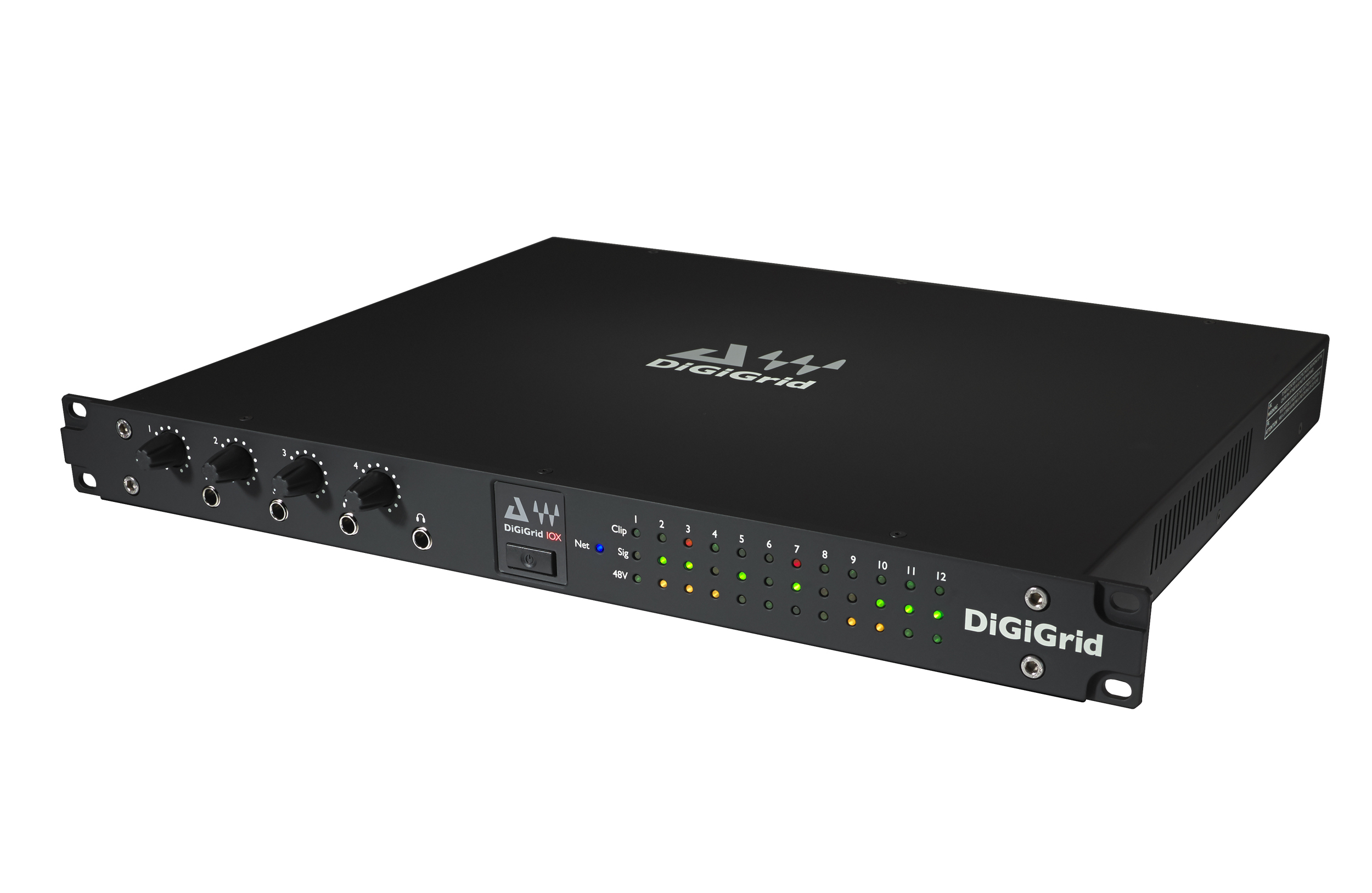

Ideal for your studio’s performance/recording room, DiGiGrid IOX is a high-count I/O interface featuring 12 mic/line inputs with broadcast/studio-quality preamps and 6 line outputs. With four customizable headphone outputs which allow individual mixes for each musician, the IOX delivers high-resolution monitoring whether you’re performing in the studio or listening in the control room. Plug the IOX into your SoundGrid network with a single Ethernet cable, and you will enter a new world of real-time tracking, mixing and monitoring. And that’s not all: With a SoundGrid DSP server on your network, you can run hundreds of SoundGrid-compatible plugins from Waves and other developers, fully integrated within your DAW, with latency of only 0.8 milliseconds.

Hardware

General

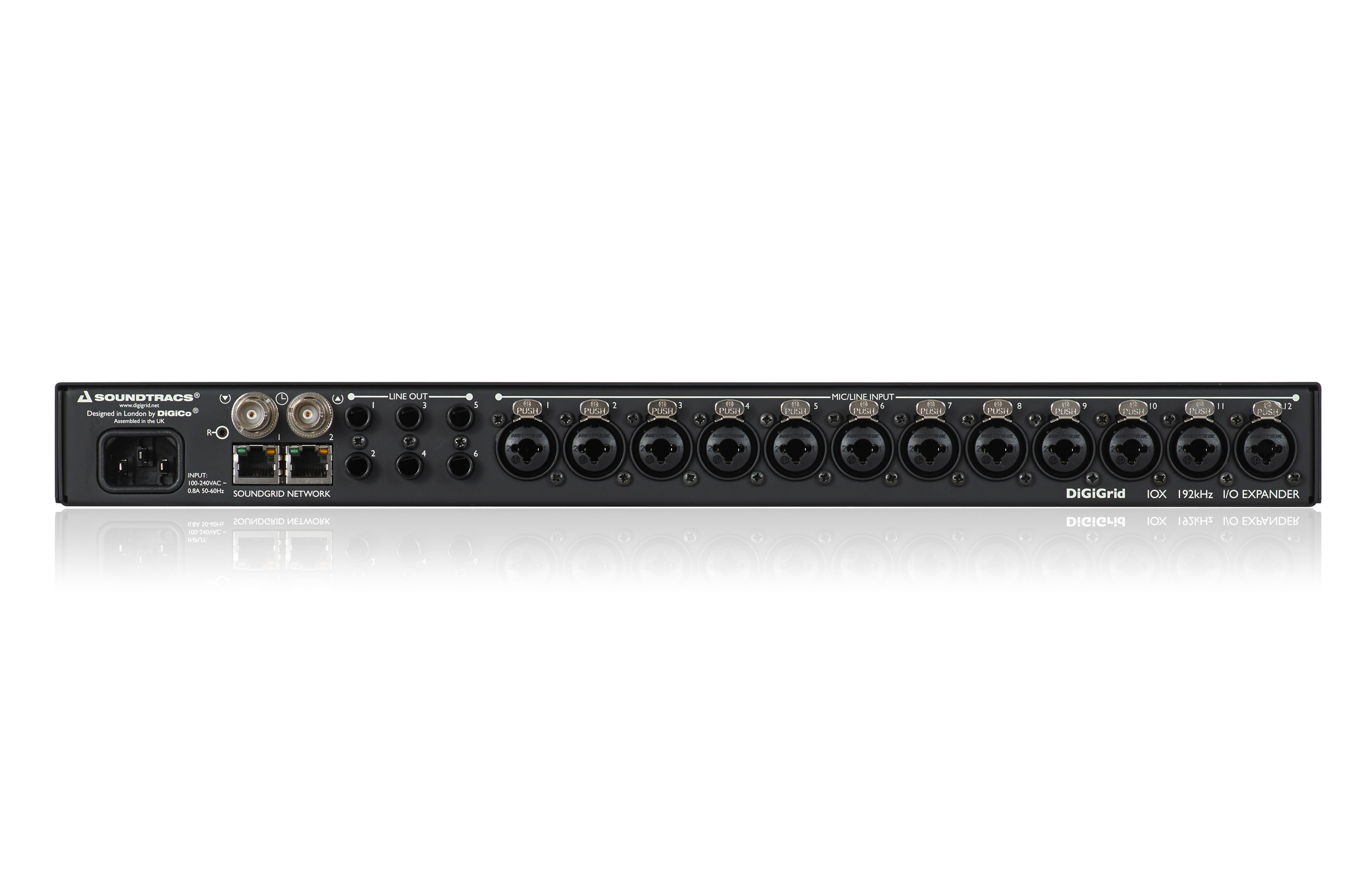

• 12x mic/line inputs (XLR/TRS combo)
• 6x line outputs (TRS)
• 1x word clock I/O
• 2x SoundGrid RJ45 Ethernet ports
• 1x AC input
• 4x headphone outputs with analog level knobs
• 6x channel line outputs (TRS)
• 1U rack-mounted
• Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz
• Clock synchronization via Word Clock input, SoundGrid (Sync over Ethernet), Internal
• Reset switch
• Multiple broadcast level format settings (jumpers on all analog I/Os)

Inputs

• Mic input impedance: 2K5 Ohms
• Phantom power: 48V
• Line input impedance: 8K0 Ohms
• Mic gain range: -20 to +60dB in 0.5dB steps
• Line gain range: -30 to +50dB in 0.5dB steps
• Mic maximum input level: +26dBu
• Line maximum input level: +36dBu
• Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB)
• Frequency response: +/-0.5dB 20Hz to 20kHz
• Channel separation: Better than 90dB (40Hz to 15kHz)

Outputs

• Maximum line output level: +22dBu
• Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz
• Line output impedance: 50 Ohms
• Channel separation: Better than 90dB (40Hz to 15kHz)

Software

The IOX installer includes the relevant drivers and software for your unit: the SoundGrid ASIO/Core Audio driver, the SoundGrid Studio Application, the eMotion ST mixer, StudioRack, and the IOX Control Panel.

DiGiGrid IOX Comes with the Complete SoundGrid Studio System Software by Waves

The SoundGrid Studio System is the next generation of sound technology. It is a real-time processing and networking platform designed to bring your studio up to light speed. It allows your DAW to offload its plugin processing to a SoundGrid DSP server and enables your devices to communicate with one another and with the devices of the people you work with. The SoundGrid Studio System integrates seamlessly with all DAWs and DiGiGrid (or other SoundGrid-compatible) I/Os, providing endless possibilities for setups of every size—from a single DAW with one DiGiGrid I/O, to an entire network of host computers, I/Os, and SoundGrid DSP servers.

The SoundGrid Studio System Gives You the Power to Do More

• Real-Time Processing – Run hundreds of plugins simultaneously.
• Low-Latency Monitoring – Track and rehearse with full-on plugins in near-zero latency
• Networking – Connect everything and everyone through a centralized hub.
• Seamless Integration – Connect multiple DAWs using the SoundGrid ASIO/Core Audio driver
• Open Architecture – Compliant with SoundGrid-compatible Waves and third-party plugins.

SoundGrid Studio System Software Components

• SoundGrid Studio Application – For managing the SoundGrid network on your host computer.
• eMotion ST Mixer –Low-latency monitoring with SoundGrid plugins for tracking and rehearsing.
• StudioRack –For running plugin chains, saving and loading their presets, and offloading their processing to a SoundGrid DSP server.
• SoundGrid ASIO/Core Audio – Connects any DAW to the SoundGrid network as a software I/O.

SoundGrid Studio Application

The SoundGrid Studio Application is your tool for managing all software and hardware connected to the SoundGrid network. With its dynamic I/O mapping ability, the SoundGrid Studio Application lets you configure your SoundGrid network, manage its various components, and set up any combination of drivers and SoundGrid-compatible devices. It also enables I/O sharing between several computers, allowing you to manage their resources from your host computer.

eMotion ST Mixer

eMotion ST is the mixer part of the SoundGrid Studio System. Combined with StudioRack, it lets you run SoundGrid plugins for low-latency monitoring, giving you complex monitor mixing options while recording with your DAW.

eMotion ST is a high-quality mixer with 8 multi-purpose inputs, 64 additional StudioRack input channels, 2 FX busses, 6 mix busses, and a main stereo mix. Since the mixer operates within the SoundGrid network, any DiGiGrid I/O or any available SoundGrid-compatible I/O device, whether hardware or driver-based, can provide it with inputs and outputs.

The eMotion ST mixer can run hundreds of Waves and third-party SoundGrid-compatible plugins in low latency, replacing in this respect the external mixer traditionally used to create monitor mixes for studios and headphones.

• 8 multi-purpose mono/stereo input channels
• 2 stereo FX aux buss/returns and 6 stereo aux buss/returns
• Up to 64 mono channel feeds from StudioRack plugins
• 8 insert slots per channel for SoundGrid plugins
• Connects to multiple DiGiGrid I/Os and other SoundGrid-compatible devices and hosts
• Compliant with SoundGrid-compatible Waves and third-party plugins
• Fully integrates with StudioRack
• Enables use of SoundGrid plugins as standalone processors for any purpose
• Requires at least one DiGiGrid I/O and a SoundGrid DSP server

StudioRack

StudioRack is a software rack dedicated to running plugin chains. The processing of each chain can then be directed to your host computer’s CPU or to a SoundGrid DSP server, as you choose. When you process your plugin chains on a SoundGrid server, StudioRack lets you monitor your tracks in extremely low latency via the eMotion ST mixer.

• Compatible with most popular DAWs
• Plugin chains are processed on local CPU or SoundGrid DSP server
• Compatible with Waves and third-party plugins
• Enables  monitoring in super-low latency
• Up to 8 plugins per rack
• Fully automatable
• Plugin chain presets can be loaded on any DAW as well as on MultiRack and eMotion ST
• Instant access to plugin parameters within each chain
• Intuitive MIDI control over all plugins
• Avid Control Surface support
