Dynaudio M3 XE Left
M3XE is the ultimate main monitoring solution, combining world-class driver and cabinet technology from Dynaudio Professional with cutting-edge signal processing and amplification from Lab.gruppen and Lake.
The Dynaudio Professional M3XE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. To top it off, the speakers are powered by two of Lab.gruppen's highly esteemed PLM10000Q amplifiers.
Sporting the newest and most pristine Dynaudio ESOTAR² driver technology, M3XE takes over where most other monitor systems give up. With unsurpassed attention to detail, underpinned by an impressive 22Hz - 21kHz frequency response and beyond 135dB SPL, M3XE leaves no room for desire in terms of resolution, range or sheer power.
Different from its sister monitor M3VE, a set of M3XE's is powered by not one, but two PLM10000Q Lab.gruppen amplifiers, using the integrated Lake active cross-over processing as well as powering the HF, MF and dual LF woofers by the four independent amplifier channels of the PLM10000Q.
The cutting-edge combination of Lab.gruppen and Lake processing technology forms the ultimate backing for M3XE and ensures unlimited power and the tools for optimizing any room to become the perfect listening environment.
In short, M3XE surpasses any and all main monitor expectations!

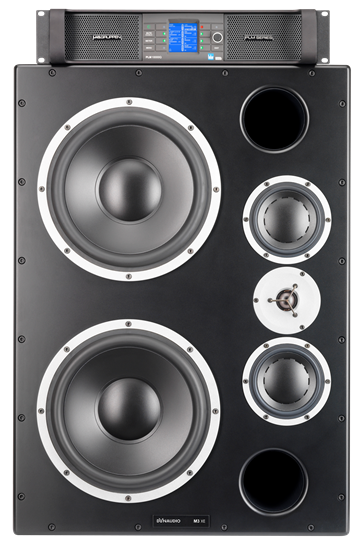

M3XE Monitor Features
- Unique linear phase frequency response
- Frequency Response: 20Hz - 22kHz
- Dual 12" ESOTAR Woofers, aluminum voice coil
- Dual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil
- 1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coil
- Max. SPL (short term peak @ 1m): 133 SPL
- Heavy internal damping for minimum cabinet resonance

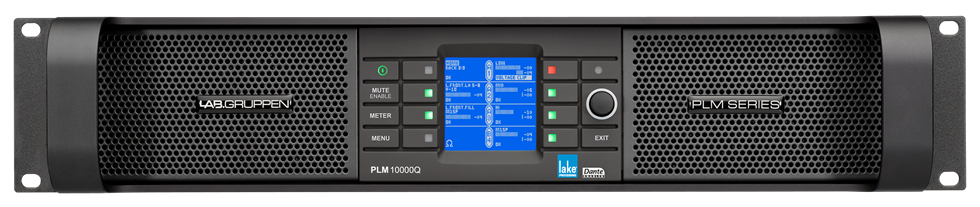

Lab.gruppen PLM 10000Q
The PLM 10000Q amplifier is based on technology from Lab.gruppen's highly acclaimed and road-proven FP+ series, but goes the extra mile for even greater sustained output power: an impressive 4 x 2,300 watts! Basically, the power amplifier technology is Lab.gruppen's patented Class TD amplifier design that offers the proven efficiency of Class D amplification with the amazing, sonic purity of Class B designs, but that is not all. A new circuit provides substantially greater current-carrying capabilities, and the Regulated Switch Mode Power Supply (R.SMPS) is optimized to deliver full power during long low-frequency bursts as well as maintain stable rail voltages despite fluctuating line voltage. Further, PLM 10000Q offers extreme power density, patented intercooler cooling, a full suite of protection features and a Power Average Limiter (PAL) that prevents tripping of mains breakers. Finally, advanced cross-overs inside the PLM 10000Q feed its four output stages, allowing for optimized RMS and true-peak limiter settings for the lo and mid/hi drivers.
In other words, the PLM 10000Q amplifier delivers exactly the kind of pure and reliable power that is worthy of a set of high-end monitors such as Dynaudio Acoustic's M3A.
