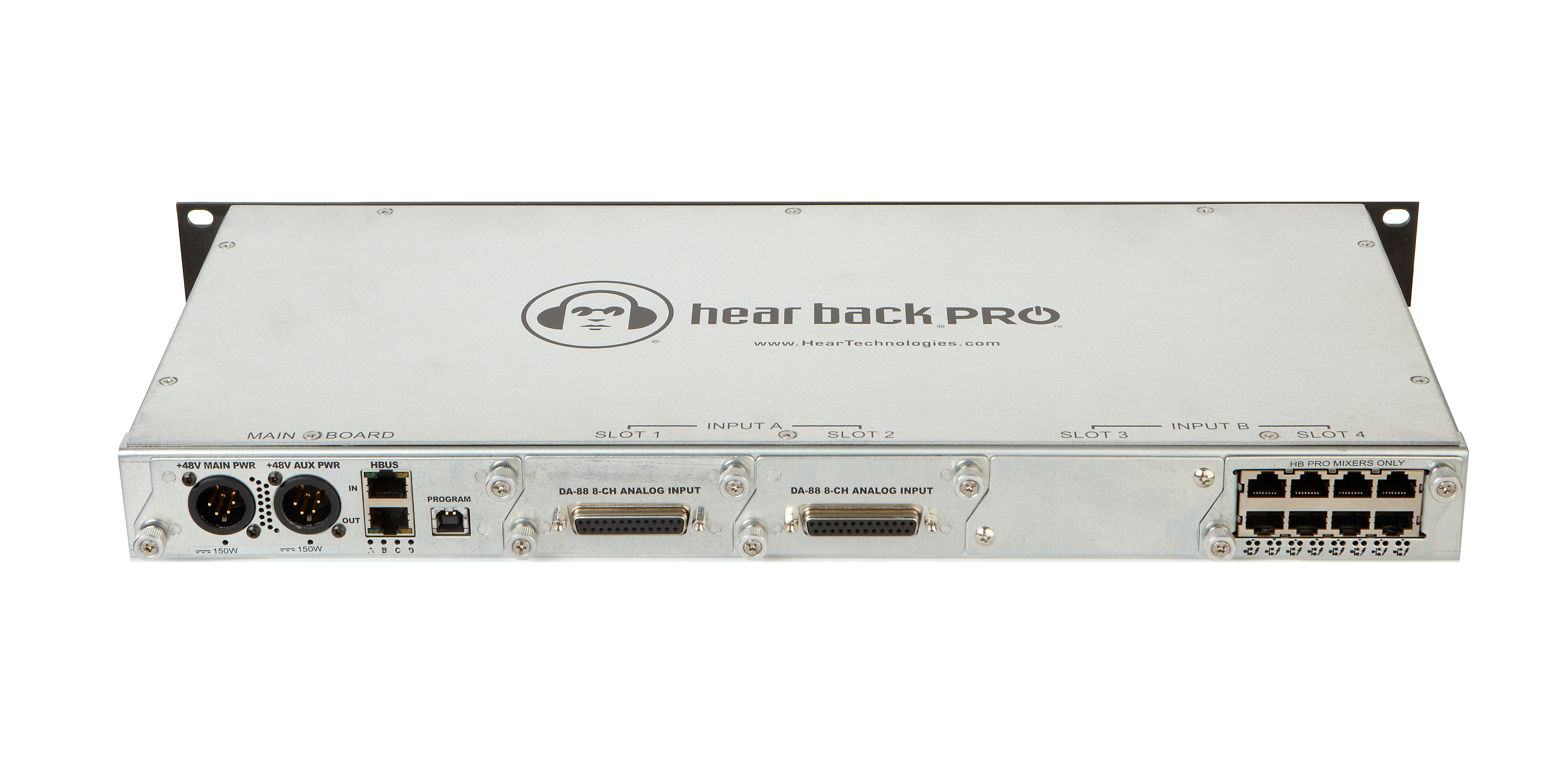

Hear Technologies Hear Back PRO Hub Mainframe

Introducing the latest addition to the Hear Technologies family – Hear Back PRO.

With this system, there is no learning curve. Whether or not you’ve ever used a personal monitor mixer, the simple layout of this powerful system makes getting the right mix a quick and effortless experience. Based in Gigabit Ethernet, this framework paves the way for an impressive range of future possibilities.

Hear Back PRO Hub Mainframe Features:

• Three switch selectable 16-channel
  input sources:
  – Input A (Slots 1 & 2)
  – Input B (Slots 3 & 4)
  – HBus
• 24-bit Delta-Sigma A/D converters
• Six user-selectable sample rates, indicated
  by LEDs: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
  176.4 kHz, and 192 kHz
• Less than .25 milliseconds total system delay (latency) from analog input to output
• 16 RGB LEDs intuitively display signal / peak levels for channel metering
• Standard CAT5e/6 cabling delivers power and signals to Mixers
• Daisy-chain via HBus for very large systems
• 1 RU chassis
• Modular I/O card-slot configurable mainframe
• Gigabit Ethernet network fabric
• 48V Power Over Ethernet supply

the Mainframe includes:

- 1x Hub Frame, loaded with

- 1x Mezzanine Board,

- 1x Hub Main Board,

- 1x External Power Supply

This is it – the simplest, most affordable digital solution to get everyone the mix they need to perform their best. This new system platform is completely modular and infinitely expandable, which means it has become the last personal monitoring system you’ll ever need.
