Multiple 10MHz outputs and an ultra-stable Word Clock signal in just 1U rack space
10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope's legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world's most stable and musical clocking.
10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.
10MX is perfectly suited for recording, mixing and mastering environments. Its form factor, occupying only 1U of rack space, makes it ideal for live sound application where rack slots are precious commodity.
The multiple atomic outputs allow up to 10 devices to be clocked simultaneously over BNC outputs of 10MHz. The unit can also be used as a master clock with 4 outputs, supporting the outstanding sampling rate of up to 768 kHz via BNC. Two more clocking outputs are available via AES and two via S/PDIF.
The new Rubidium Atomic Clock is equally easy manageable either from the front panel or the intuitive software control panel available for OS X and Windows, connecting via a USB port.
Features
Rubidium core with accuracy of 0.05 ppb (parts per BILLION)
4th generation Acoustically Focused Clocking (AFCTM ), employing 64-bit DSP
Master clocking up to 768 kHz over 4 WC
2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz
Atomic clocking compatible with any device that accepts 10MHz reference
Utmost ease of operation, just connect it and power it on
PC/Mac connection via USB, allowing remote control and firmware upgrades
Intuitive Software Control Panel
Extremely sturdy mechanical construction
Amari is a hi-end 384kHz PCM / DSD256 AD/DA Converter. Its majestic sound will suit mixing engineers, mastering gurus and the most dedicated audiophiles. The beautifully designed desktop unit is equipped with a slick touchscreen display. Amari offers 1 pair of Analog outs (either on XLR or TRS connectors), 1 pair of analog inputs (either on Combo XLR or RCA), and 2 high power headphone (HP) outputs with dedicated volume control and adjustable output impedance.
Key features:
High-End 24-bit 384kHz for play back and recording
A/D – Dual AK5578 ADC chips. Dynamic Range 128dB
D/A -Eight CS43198 DAC chips. Dynamic range of 138dB
DSD64, DSD128 and DSD256 formats supported (DSD over PCM a.k.a. DoP) playback
2 headphone outputs with dedicated volume control for each output with user-selectable output resistance (a.k.a. headphone membrane weight compensation) that can be switched to balanced mode.
Standard and Balanced mode for Headphones
4th Generation 64-Bit Acoustically Focused Clocking.
10M Atomic Clock Input and Word Clock Input for better system integration and improved audio clarity
2 pairs of Analog Ins on combo XLR and RCA
2 pairs of Analog Outs on combo XLR and TRS
AES/EBU, S/PDIF and TOSLINK I/O.
Large touchscreen display to ease the advanced functions control and visualization
USB 3.1 Connection for playback and recording.
Software Control Panel for flexibility and advanced functionality both on MAC and PC.
Stunning design
CONNECTIVITY
2× Discrete ultra-linear preamps with 65dB of gain for studio-quality recordings. All work as microphone/line/Hi-Z inputs, on combo XLR jacks
Thunderbolt™ 3 port (for Zen Go Thunderbolt) carrying 16 input and 16 output channels in any popular DAW with custom macOS & Windows drivers
USB2.0 type C port (for Zen Go USB) carrying 8 input and 8 output channels in any popular DAW with custom macOS & Windows drivers
Secondary USB-C port (for Zen Go USB) allowing reverse-charging
Digitally expandable over S/PDIF
Analog monitor outputs including 1x stereo output over RCA and 1× stereo output over TRS (mirrored)
2× stereo headphone outputs with separate gain control, compatible with wide variety of headphones
WORKFLOW-ENHANCING FEATURES
Bus-powered interface powered by the Thunderbolt or USB-C connection without the need for a dedicated power source
Direct monitoring with Synergy Core effects, processed in real-time with imperceptible latency
Simplified I/O routing with pre-configured settings, allowing immediate recording and playback
Digitally expandable over S/PDIF
Analog monitor outputs including 1x stereo output over RCA and 1× stereo output over TRS (mirrored)
2× stereo headphone outputs with separate gain control, compatible with wide variety of headphones
REAL-TIME EFFECTS PROCESSING
Synergy Core proprietary onboard platform powered by DSP & FPGA chips for real-time effects processing with imperceptible latency
Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear
37 INCLUDED SYNERGY CORE EFFECTS
Gyraf Gyratec IX (Dual Tube Mic Preamp with HPF)
VCA160 (VCA Compressor / Limiter)
Stay-Levin (Vari-Mu Tube Compressor)
FET-A76 (FET Compressor / Limiting Amplifier)
VEQ-1A (2-Band Tube EQ)
VMEQ-5 (3-Band Tube Mid-Range EQ)
X903 (VCA Compressor / Limiter)
PowerFFC (Feed-Forward Compressor)
Clear Q (Parametric EQ)
Power EX (Expander)
VEQ-HLF (Tube 2-Band HPF / LPF)
Auraverb (Reverb)
BA-31 (Germanium Mic Preamp)
Power Gate (Noise Gate)
A-Tuner (Guitar Tuner)
Plexi 59 (UK) (Tube Guitar Amp)
Bass SuperTube VR (Tube Guitar Amp)
Darkface 65 (US) (Tube Guitar Amp)
Top30 (UK) Bright (Tube Guitar Amp)
Tweed Deluxe (US) (Tube Guitar Amp)
Overange 120 (UK) (Tube Guitar Amp)
BurnSphere (DE) Lead (Tube Guitar Amp)
Marcus II (US) Lead (Tube Guitar Amp)
Modern (US) CH3 (Tube Guitar Amp)
Rock 75 (UK) (Tube Guitar Amp)
Rock 22.10 (UK) (Tube Guitar Amp)
Darkface 65 2×12 (2×12 Guitar Cabinet)
Top30 2×12 (2×12 Guitar Cabinet)
Modern 4×12 (4×12 Guitar Cabinet)
Green 2×12 (2×12 Guitar Cabinet)
Vintage 4×12 (4×12 Guitar Cabinet)
Green 4×12 (4×12 Guitar Cabinet)
Caliper 50 1×10 (1×10 Guitar Cabinet)
Bluelux 1×12 (1×12 Guitar Cabinet)
Clst 1×12 (1×12 Guitar Cabinet)
England 4×12 (4×12 Guitar Cabinet)
Bass Tube 1×15 (1×15 Guitar Cabinet)
IN-THE-BOX CONTENT
Zen Go Synergy Core
Zen Go Synergy Core (USB)
USB-C to USB-C cable
USB-C to USB-A adapter
Getting Started leaflet
Zen Go Synergy Core (Thunderbolt)
• Getting Started leaflet
*Note: Thunderbolt cable is not included
Features
Conversion & Clocking
Class-leading AD/DA conversion with up to 127dB of headroom;
Recording, mixing and playback at up to 24-bit/192kHz;
Proprietary 64-bit Acoustically Focused Clocking (AFC™) technology & Jitter Management algorithm delivering increased width, separation, and detail in musical performances.
Connectivity
2x Discrete ultra-linear preamps with 65dB of gain for studio-quality recordings. All work as microphone/line/Hi-Z inputs, on combo XLR jacks;
USB-C port carrying up to 8 input and 8 output channels in any popular DAW with custom macOS & Windows drivers.
Secondary USB-C port allowing reverse-charging;
Digitally expandable over S/PDIF;
Analog monitor outputs including 1x stereo output over RCA and 1x stereo output over TRS (mirrored);
2x stereo headphone outputs with separate gain control.
Workflow-Enhancing Features
Bus-powered interface - no need for a dedicated power source, powered by the USB connection.
Direct hardware monitoring with Synergy Core effects, processed in real-time with imperceptible latency.
Simplified I/O routing with pre-configured settings, allowing immediate recording and playback.
Front panel with dedicated volume knob and buttons for frequency adjustment, and hands-on control of core parameters.
Customizable presets complete with signal routing, level adjustments, mixer settings and sub-mixes.
Easily adjust the monitor mixes for the monitor output and split headphone mixes into individual cue and sub-mixes while applying pan, reverb, other effects, and stereo link;
Real-Time Effects Processing
Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear;
Synergy Core proprietary onboard platform powered by DSP & FPGA chips for real-time effects processing with imperceptible latency.
Included Onboard Effects
2 Preamps (Gyraf Gyratec IX, BA-31)
4 Equalizers (incl. VEQ-1A, VMEQ-5)
5 Compressors & Limiters (incl. Stay-Levin, FET-A76, VCA160)
22 Guitar Amps & Cabs (incl. Bluelux 1x12, Tube Guitar Amp)
2 Special Processing Effects (Expander, Noise Gate)
1 Reverb Effect (Auraverb)
1 Guitar Tuner (A-Tuner)
14-in/10-out Dual USB-C bus-powered audio interface with Discrete preamps, class-leading converters, and included real-time DSP+FPGA effectsThe Zen Quadro stretches the limits of modern audio interface technology by implementing top-shelf components into an affordable price and portable bus-powered form factor.Taking the AD/DA chips from Antelope Audio’s flagship Galaxy range, along with console-grade Discrete preamps with 75dB gain, the Zen Quadro provides creators of all kinds with the same uncompromising sound quality enjoyed by the world’s premiere recording studios. Synergy Core real-time effect processing and enhanced standalone functionality are only part of the additional features packed into it, while the revolutionary dual-USB design allows simultaneous playback and recording on two systems – making it a no-brainer for all budding producers, musicians, and streamers looking to power up their production setup.High-fidelity conversion with up to 130dB headroom, paired with 64-bit AFC™ clocking technology for increased sound width, separation, and detail;Four Discrete console-grade 6-transistor preamps for crystal-clear recordings;Real-time Synergy Core processing, for tracking, monitoring and streaming with near-zero latency through faithful digital recreations of legendary studio equipment;Includes 37 effects modeled after vintage analog compressors, EQs, guitar amps, modulation effects and more;Dual-USB design, with secondary USB-C port (OTG) for simultaneous playback and recording on two systems;Easy access to routing and mixer settings, device control and preset recall via large color display provide complete standalone functionality;DC-coupled inputs and outputs for controlling synths via control voltage (CV) signals.
Unparalleled AD/DA Conversion and ClockingZen Quadro Synergy Core packs the latest gen converters, with up to 130dB dynamic range at 24-bit/192 kHz, outperforming competitors at several times the cost. Paired with Antelope Audio’s proprietary 64-bit AFC™ clocking technology, the interface provides you with a new level of detail in your recordings and wider soundstage for an exceptional stereo image in audio playback – allowing you to make the best decisions for your mix.
Crystal Clear PreampsThe Zen Quadro’s four Discrete preamps are built with a 6-transistor topology inspired by the British and American analog console designs of the eighties and nineties, offering maximum noise reduction and precise sound capture. With extremely low noise and up to 75dB gain, the Zen Quadro can handle even the quietest dynamic and ribbon mics.
Synergy Core: The Magic of Real-time DSP and FPGA Processing Antelope Audio engineers combined DSP with FPGA chips to model each and every individual component of analog hardware. This ensures sound and behavior that’s virtually indistinguishable from the real thing—with near-zero latency, and zero strain on your computer’s CPU.
Zen Quadro comes with 37 legendary compressors, EQs, guitar amps and cabs, modulation effects and more, that can be applied in real-time during recording, streaming or live performances. Up to 48 mono effect instances can be loaded on 6 input chains simultaneously, putting the power of a complex multi-rack setup on your desktop.
At any time, you can expand your collection with more real-time effects such as Antares’ Auto-Tune Synergy and Grove Hill's Liverpool, available as additional purchases.
Revolutionary Dual-USB designThe Zen Quadro’s dual USB-C ports unlock a new world of possibilities for creators of all kinds. It’s like having two interfaces in one – freely route signals and create mixes between the two USB connections, using Mac, PC, iOS (USB-C) or Android devices together. The convenient loopback makes it great for streaming, and the secondary port can charge your mobile device while the primary port provides power for the Zen Quadro.
Enhanced Standalone Functionality for Live and TouringTake the studio on the road with bus-powered USB-C connectivity alongside a durable metal enclosure.
With complete standalone operation, you can easily access routing and mixer controls through the color display, and recall settings and real-time FX chains, making it ideal for live performances. The secondary USB-C port even allows collaboration between duo live acts that are using two computers on stage!
Flexible Connectivity for Your Entire StudioFour mic/line inputs, two instrument inputs, ADAT input and S/PDIF I/O are at your disposal to record a total of up to 14 inputs simultaneously. On top of the monitor outs, you also get an additional pair of line outs to connect a second pair of speakers or use them for outboard processing. The second headphone out has an independent mixer, so 2 people can listen to different cue mixes at the same time. The DC-coupled I/O can also send and receive control voltage (CV) signals and allow the Zen Quadro to be part of a modular synth setup.
FeaturesConversion & Clocking Class-leading AD/DA conversion with up to 130dB of headroom.Recording, mixing and playback at up to 24-bit/192kHz. Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology & Jitter Management algorithm delivering increased sound width, separation, and detail.
Connectivity Connectivity 4 × Discrete 6-transistor preamps with 75dB of gain for pristine recordings. All work as microphone/line and two are also Hi-Z inputs, on combo XLR jacks, and supply 48V of phantom power. 2 x monitor outs and 2 x line outputs via TRSTwo stereo headphone outputs with separate gain control and mixTwo independent USB-C ports (OTG) for simultaneous playback & recordingADAT Input (up to 8 ch) and S/PDIF I/O (2 ch)DC-coupled inputs and outputs for controlling modular synths with control voltage (CV)Workflow-enhancing features Direct monitoring with Synergy Core effects, processed in real-time with near-zero latency. Easy routing - select audio sources per channel, for each monitoring mix. Also available through the color display.Simultaneous playback and recording with two computers or computer + mobile device.Flexible loopback options for streaming.Customizable presets with signal routing, level adjustments, mixer, and effects settings. Customizable monitoring mixes with adjustable levels, panning and reverb. Class-compliant, no driver required on macOS and iOS.Standalone operation – simply connect to a phone charger and use without being connected to a computer.Remote control of software features from a separate computer connected to the same network. Real-time effects processing Included collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear. Synergy Core - proprietary FPGA+DSP platform for real-time effects processing allows up to 48 effects loaded simultaneously with near-zero latency.Mic Modeling Engine allows pairing with the Edge microphones for real-time use of vintage microphone emulations.
Features:
Synergy Core fuses the power and speed of FPGA processing with developer-friendly DSP chips
All effects processing is off-loaded to the platform for lower buffer sizes and CPU-heavy plug-ins
FPGA processing recreates studio effects with incredible realism
DSP power brings third-party effects to an efficient real-time, low-latency platform
Synergy Core will expand Antelope’s effects library with new types of effects
Synergy Core will let Antelope Audio release new effects on all SC devices simultaneously, which wasn’t always possible before
Future-proof and configurable architecture allows designing each product for optimal performance
FPGA eliminates the issue of latency stacking which is common with DSP-only devices
Existing Antelope products will be updated with Synergy Core technology
Features:
Synergy Core fuses the power and speed of FPGA processing with developer-friendly DSP chips
All effects processing is off-loaded to the platform for lower buffer sizes and CPU-heavy plug-ins
FPGA processing recreates studio effects with incredible realism
DSP power brings third-party effects to an efficient real-time, low-latency platform
Synergy Core will expand Antelope’s effects library with new types of effects
Synergy Core will let Antelope Audio release new effects on all SC devices simultaneously, which wasn’t always possible before
Future-proof and configurable architecture allows designing each product for optimal performance
FPGA eliminates the issue of latency stacking which is common with DSP-only devices
Existing Antelope products will be updated with Synergy Core technology
Features:
Powerful mic modeling engine
duosonic / stereosonic microphone
output split in 2 independent audio channels for maximum control and re-micing
large double-membrane condenser capsule
switchable polar patterns and anything in between
ultra-low resonance headbasket and body construction
shock mount with pop filter and special oxygen-free copper y-cable
extensive library of vintage mic emulations
The Antelope Audio Edge Go is a studio-grade large-diaphragm condenser USB microphone that gives musicians, content creators, and producers unprecedented access to Antelope's industry-leading mic-modeling technology. What would your recordings sound like if you had a locker full of classic vintage microphones? With the Antelope Edge Go, you'll unlock detailed software emulations of the world's most iconic mics and studio effects processors. Just plug your Edge Go USB microphone into your Mac or PC, launch the included Edge Go software, and start rolling.
Pristine USB Output for High-Resolution Recording -- Anywhere
You've never seen a USB mic quite like the Edge Go. Built to Antelope's exacting specifications, with the same dual-diaphragm capsules as the Antelope Edge Duo condenser microphone, the Edge Go gives you USB-C output for convenient recording directly to your computer -- with no need for an external preamp, mixer, or audio interface. The Edge Go mic functions as its own audio interface, offering pristine A/D conversion with up to 192 kHz/24-bit resolution -- far higher resolution than the typical USB mic can deliver. In the pro audio world, Antelope is known for building the high-end analog-to-digital converters and super-accurate digital clocks found in world-class recording studios and broadcast facilities. The Edge Go draws on this impressive pedigree of engineering expertise to bring you Antelope sound quality in a go-anywhere, bus-powered USB microphone.
Edge Go Mic + Software = Classic Microphone Emulations
The Antelope Edge Go mic includes Edge Go control panel software, which lets you instantly audition and compare 11 expertly crafted microphone emulations. They're all modeled after the time-tested studio mics you've heard on thousands of hit recordings: Fat-sounding tube mics like the Tokyo 800T, Berlin 49T, Berlin 67, and Vienna 12; crisp FET condensers like the Berlin 87, Berlin M103, Berlin 47 FT, and Vienna 414; and smooth ribbons like the Sacramento 121R and Oxford 4038. Just select the mic you'd like to hear and dial in the pickup pattern you want to use: omnidirectional, cardioid, bidirectional figure-8, and everything in between. Antelope's software models meticulously emulate the distinctive character of each iconic microphone -- effectively giving you access to an epic mic collection. And you can record through the Edge Go microphone with no mic emulation applied for a transparent, flat 20 Hz - 20 kHz large-diaphragm condenser sound.
Antelope-Modeled Effects: Preamps, EQ, Compression, Reverb and More
Antelope's software magic doesn't end with microphone modeling. The Edge Go also gives you access to a killer collection of 22 effects modeled after classic studio gear, including all the must-have mic preamplifiers, dynamics processors (limiters, compressors, gates, expanders), de-esser, equalizers, and Antelope's AuraVerb with 6 reverb types to help you dial in the right ambiance from barely-there atmosphere to epic echoes. There's even a reel-to-reel tape effect to give your recordings a distinctively vintage vibe. Not sure where to start? Edge Go software gives you one-click access to presets like "Telephone Effect," "Massive Reverb Space," "Fan Noise Reduction," and more, so you can nail that sound in your head and start recording fast. Get creative and build the effects chain of your dreams, then save it as a preset, so inspiration is only a click away.
FPGA Processing Inside the Microphone -- Not Your Computer's CPU
All the processing power you need to run Antelope's mic emulations and effects models is built right into the Edge Go microphone's hardware, in the form of a dedicated FPGA chip. With the Edge Go mic, there's no need to bog down your DAW with effects processing plug-ins, sap your computer's limited CPU power, or buy an external DSP accelerator or interface box. Antelope Audio is an industry leader when it comes to harnessing the power of FPGA (Field Programmable Gate Array) chips for real-time audio processing -- and with the Edge Go microphone, all that power is now in your hands.
Everything You Need to Start Rolling
Your Edge Go microphone comes packed in a road-ready hard case with a heavy-duty shock mount, a professional metal mesh pop filter, an adjustable-angle desktop mic stand with a sturdy non-slip base, and a USB-C to USB-A cable. There's even a 1/8" stereo headphone jack right on the Edge Go microphone body for easy zero-latency monitoring. Just add your favorite pair of headphones, your computer with a USB input, and the audio software of your choice, and you'll have everything you need to start recording.
Features:
Studio-grade dual-diaphragm condenser microphone with 192 kHz/24-bit USB output
1/8" stereo headphone output on the microphone for zero-latency monitoring
Includes Edge Go software with 11 microphone emulations and 22 studio effects, with easy presets for dialing in your sound fast
Built-in Antelope FPGA processing for real-time processing without sapping your computer's CPU
Comes with hard case, shock mount, metal pop filter, desktop mic stand, and USB-C to USB-A cable
No need for an external audio interface, preamp, power supply, or DSP accelerator
Ideal go-anywhere recording rig for musicians, podcasters, vloggers, voiceover artists, and content creators
Features
13 microphone emulations of classic microphone models
Back-electret design provides transparent, balanced sound, & accurate transient responses
Cardioid polar pattern suitable for wide variety of recording scenarios
Frequency response of 20Hz–20kHz covers the audible spectrum
Signal-to-noise ratio of 69dB
Pad attenuation switch (-10db and -20dB) improves close-miking of loud sources, ensuring a clean signal without distortion.
Maximum sound pressure level of 146dB
High-pass filter switch (75Hz and 115Hz) eliminates low-frequency rumble and compensates for proximity effect
Metal housing and black-matte finish provides style and endurance
Includes shock mount holder to eliminate unwanted vibrations and provide easy positioning
48V DC Phantom Power required
Features:
one-of-a-kind quadrosonic modeling microphone
rotatable head with large double-membrane condenser capsules
audio signal split into 4 independent xlr output channels for optimum control and re-micing
switchable patterns: cardioid, figure-8 and omnidirectional
individual mic emulation and polar pattern selection for each head
infinite top head rotation for maximum flexibility
ultra-low reflection, fully symmetrical top and bottom heads
extensive library of vintage mic emulations
custom luxury shock mount, two special oxygen-free copper y-cables and a custom handmade wooden case included

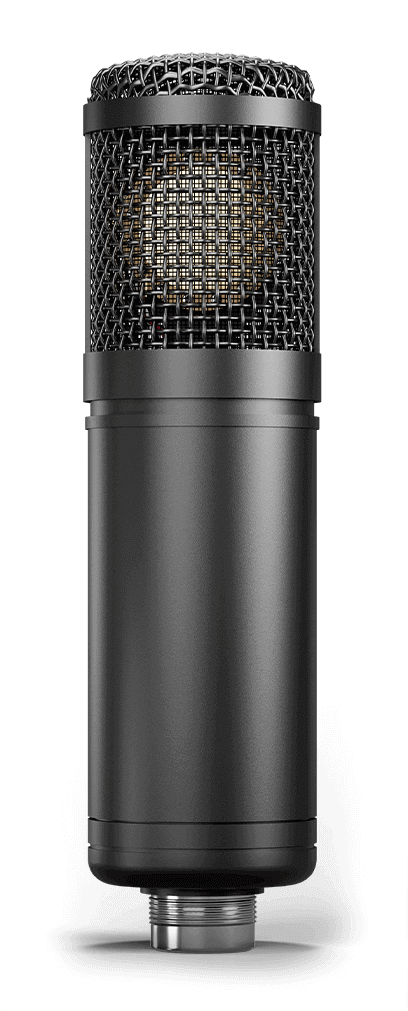

Edge Solo is a high-quality single-capsule large-diaphragm condenser microphone by Antelope Audio. Combined with Antelope’s cutting-edge modeling technology, it allows users to emulate the world’s most iconic vintage microphones with uncanny accuracy.
The Edge Solo features modeling that was performed in one of the most respected facilities in Germany using an exquisitely preserved collection of classic microphones.
SINGLE CAPSULE, SINGLE MEMBRANE CONDENSER
FIXED CARDIOID CHARACTERISTICS
ACCURATE MIC MODELING
EXPANDING LIBRARY OF THE WORLD’S MOST RENOWNED CARDIOID MICROPHONES
EASY TO USE
IMPRESSIVE DYNAMIC RANGE AND FREQUENCY RESPONSE
In the box:
Breakout cable: Not included (standard 3-pin XLR cable)
Mount: Hard mount included
Case: Standard small suitcase
The Edge Strip bundle includes the stunning Edge Modeling Microphone, the Discrete MP ultra-linear mic preamp and our native AFX modeling plug-ins. These three elements work hand-in-hand to deliver a locker full of unobtainable vintage mics and a rack full of classic outboard gear, all for a fraction of the price of the originals
Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.
36 Real-Time Effects Included Galaxy 64 Synergy Core includes a massive expandable library of 36 real-time effects. It is largely composed of software emulations of vintage analog gear found in world-renowned recording studios. The collection does not lack in variety – you can find rarities like a boutique autowah pedal from Finland, a Danish master-grade compressor or emulation of famous units like American-design EQs.
768 kHz HD Master Clock
For over a decade, Antelope’s legendary OCX Master Clock has been a dominant force in the audio world. This legacy now continues with the newest master clock by Antelope Audio - Isochrone OCX HD.
OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator. OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven,proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.
Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope's newest Atomic Clock – 10MX.
Antelope’s latest master clock benefits from flexible firmware update functionality, as featured in all new-generation Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows. The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.
Features
4th generation Acoustically Focused Clocking (AFC) jitter management algorithm
Sample rate support of up to 768 kHz over WC
Multipliers/dividers enabling the output of 5 different sample rates
4x AES/EBU and 2x S/PDIF clocking outputs up to 192kHz for additional connectivity
Comprehensive audio gear-boxing
Universal Video Input on BNC
Atomic clock input for optimum accuracy and calibration
3 recallable presets
Rate lock from Control Panel to avoid settings change during session
Ergonomic front panel control
Software Control Panel, allowing remote control and firmware updates via USB
Features:
FPGA-based real-time FX models of iconic studio gear
64 channels of 24-bit, 192 kHz audio via ThunderboltTM / 32 channels via USB
ThunderboltTM, MADI, USB, ADAT, S/PDIF, 8x DB25 connectivity
Flawless 4th Generation 64-bit clocking and jitter management
Networking Control from multiple computers
Routing, mixing, and effects chaining via macOS & Windows app
Explore Vintage Studio Equipment
The Orion 32+ | Gen 3 features a suite of essential effects from Antelope Audio’s vast library of FPGA FX models. Customers can purchase additional effects as they deem fit, as well as invest in the AFX2DAW software bridge which lets them use on-board processed, low-latency effects as inserts in their preferred digital audio workstation.
64-CHANNELS OF AUDIO VIA THUNDERBOLT™
Orion 32+ | Gen 3 provides seamless connectivity to any DAW, with low-latency, simultaneous streaming of 64 channels of 24-bit, 192 kHz audio via ThunderboltTM and 32 channels via USB. The analog I/O are handled by 8 DB25 connectors and a pair of TRS connectors for monitoring. Digital connectivity options are complemented by ADAT and S/PDIF.
EXTENSIVE FLEXIBILITY
Orion 32+ | Gen 3 offers extensive flexibility for excellent productivity. A color-coded software routing matrix with four separate mixers, effects chaining, and zero latency monitoring is provided. The routing matrix, mixers, and control panel are found within an intuitive desktop application for macOS and Windows.
HIGH-END CLOCKING & CONVERSION
Digital clarity meets analog musicality to form the signature Antelope Audio sound.
Our proven clocking accuracy is ensured by Antelope’s renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. A 10 MHz input enables connectivity to Antelope’s legendary 10M Atomic Clock and its successor 10MX. That, and a pair of word clock outputs make the Orion 32+ | Gen 3 a great fit in any setup - not just as an interface, but as a premium master clock as well.
REDESIGNED SOFTWARE PANEL
Control all Orion 32+ | Gen 3 features and functionality from its intuitive desktop app. macOS and Windows compatible, it implements Antelope Audio’s networking control concept to let you access the interface from multiple computers in the same network. For added convenience and flexibility, the control panels are freely movable and resizable, facilitating multi-screen workflows.
The Antelope Audio Orion Studio Synergy Core is a major step forward for Antelope's workhorse Orion series of audio interfaces, designed to be the heart of your professional recording studio for years to come. Hot-rodded with Antelope Audio's future-proof Synergy Core FX processing platform, this updated Orion Studio is loaded with 2 FPGA and 6 DSP chips working in harmony to run Antelope's vast library of effects plug-ins. You get 50 of Antelope's top FX bundled with the hardware, including spot-on models of vintage analog gear and a killer collection of guitar amp and cabinet emulations.
With Thunderbolt 3 and USB connectivity, 12 of Antelope's Discrete microphone preamps, extensive analog and digital I/O, upgraded digital-to-analog converters with dynamic range up to 130 dB, and unprecedented FX processing power on board, the Orion Studio Synergy Core is a well-oiled machine -- up for any recording or mixing project your studio throws its way.
Synergy Core: FPGA + DSP = Future-Proof Effects Processing
With 6 DSP + 2 FPGA chips under the hood running a massive effects library by Antelope Audio and platform partners, the Orion Studio Synergy Core frees up your host Mac or PC to record and play back more tracks strapped with CPU-hungry virtual instruments and effects. Take on big projects, build intricate mixes, reduce latency, shorten buffer size, and keep your system stable -- all thanks to Antelope's state-of-the-art Synergy Core dedicated FX processors. With massive processing potential on board, this Orion can grow with your studio.
50 Antelope FX Included
The Orion Studio Synergy Core unlocks 50 of Antelope's top real-time effects plug-ins. Right out of the box you get mic preamp emulations, compressors, EQs, reverb, and guitar amp and cabinet models to bring your tracks to life. And thanks to Synergy Core architecture, you've got the processing muscle to run all the simultaneous FX your sessions need.
Thunderbolt 3 + USB Connectivity
A cross-platform audio interface for Windows or Mac, Orion Studio Synergy Core offers both USB and Thunderbolt 3 connection to your DAW host computer. You can even power/charge your MacBook from the Orion Studio Synergy Core.
130 dB Dynamic Range D/A for Critical Listening
Why trust your projects to anything less than the best D/A converters? The Antelope Orion Studio Synergy Core delivers 130 dB dynamic range on both pairs of monitor outs -- which can run simultaneously, or in A/B mode.
12 Discrete Microphone Preamps + Direct Inputs
The Orion Studio Synergy Core gives you 12 mic preamps based on Antelope's ultra-linear Discrete MP standalone preamplifier, with 75 dB of pristine gain. Recording line-level signals? The Orion Studio Synergy Core's Direct In hard-bypasses the mic pres, directly sailing into the A/D converters with 124 dB dynamic range. Get ready to hear the truth.
Digital Patch Bay for Pro Studios
Send audio anywhere you need it with the digital patch bay and latency-free mixer in your Orion Studio Synergy Core's software control panel. As the "brain" of your pro studio, this interface gives you robust, flexible tools for routing and monitoring.
Antelope's 4th Generation Acoustically Focused Clocking
Antelope Audio is renowned for building rock-solid digital audio clocks found in top recording studios and broadcast facilities around the globe. The Orion Studio Synergy Core wouldn't be an Antelope interface if it didn't deliver world-class clocking. With Word Clock I/O, the Orion Studio Synergy Core syncs up your studio with Antelope's 4th Generation Acoustically Focused Clocking, employing 64-bit DDS to keep your audio in lockstep at up to 192 kHz.
Features:
Rackmount Thunderbolt 3 & USB audio interface with 12 Discrete mic preamps
Synergy Core processing platform with 2 FPGA + 6 DSP chips
2 pairs of monitor outputs run concurrently or in A/B mode with 130 dB dynamic range
30 simultaneous inputs x 22 simultaneous outputs
DC-coupled I/O for CV control of analog modular synths
Hand-built in Europe to be your pro studio's centerpiece for years to come
50 real-time effects included:
Gyraf Gyratec IX (Tube Mic Preamp)
VCA160 (Compressor / Limiter)
Stay-Levin (Tube Compression Amplifier)
FET-A76 (FET Compressor)
X903 (Compressor / Limiter)
PowerFFC (Compressor)
VEQ-HLF (Passive High/Low Filter)
BA-31 (Vintage Mic Preamp)
ALT-436C (Tube Compressor Amplifier)
FET-A78 (FET Compressor Limiter)
SMT-100A (Tube Leveling Amplifier)
VEQ-1A (Tube Equalizer)
VMEQ-5 (Tube Mid-Range Equalizer)
BAE-1023 (3-band Vintage EQ)
NEU-PEV (Passive Vintage EQ)
NEU-W492 (5-band Vintage EQ)
NEU-W495 (3-band Vintage Mastering EQ)
VEQ-4K BROWN (Legendary Vintage EQ)
VEQ-4K ORANGE (Legendary Vintage EQ)
VEQ-4K PINK (Legendary Vintage EQ)
VEQ-STU 089 (Vintage EQ)
VEQ-STU 169 (Vintage EQ)
VEQ-STU 900 (Vintage EQ)
Clear Q (Parametric EQ)
Auraverb (Reverb)
Power EX (Expander)
Power Gate (Gate)
Master De-Esser (De-Esser)
Plexi 59 (UK) (Tube Guitar Amp)
Bass SuperTube VR (Tube Guitar Amp)
Darkface 65 (US) (Tube Guitar Amp)
Top30 (UK) Bright (Tube Guitar Amp)
Tweed Deluxe (US) (Tube Guitar Amp)
Overange 120 (UK) (Tube Guitar Amp)
BurnSphere (DE) Lead (Tube Guitar Amp)
Marcus II (US) Lead (Tube Guitar Amp)
Modern (US) CH3 (Tube Guitar Amp)
Rock 75 (UK) (Tube Guitar Amp)
Rock 22.10 (UK) (Tube Guitar Amp)
Darkface 65 2x12 (Guitar Cabinet)
Top30 2x12 (Guitar Cabinet)
Modern 4x12 (Guitar Cabinet)
Green 2x12 (Guitar Cabinet)
Vintage 4x12 (Guitar Cabinet)
Green 4x12 (Guitar Cabinet)
Caliper 50 1x10 (Guitar Cabinet)
Bluelux 1x12 (Guitar Cabinet)
Clst 1x12 (Guitar Cabinet)
England 4x12 (Guitar Cabinet)
Bass Tube 1x15 (Guitar Cabinet)
Digital clarity, analog warmth
Pure2 is a mastering-grade 24/192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.An intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.
Five ultra high performance components
A/D converter with optimized overloads handling
D/A converter with dual DAC architecture
High-end headphone amp with a dedicated D/A converter
Relay-based analog volume control for accurate monitoring
Master clock with 4th generation of Antelope's AFC jitter management
Features:
A/D Conversion: The famous Burr-Brown (TI) A/D converter PCM4222 is unsurpassed in terms of sound quality and performance. Carefully optimized analog driver stage gently handles overloads, contributing to distinct analog sound and smoother clipping.
D/A Conversion: The main D/A conversion in Pure2 is designed with a dual DAC architecture, providing separate DAC chips for the left and the right channels. The dual DAC design tremendously enhances the signal-to-noise ratio and greatly improves stereo imaging.
Master Clock: The conversion timing and the sync of all digital studio devices is kept stable by the 4th generation of 64-bit AFC jitter management and oven-controlled crystal oscillator. This is exactly the same technology used in Antelope's flagship master clock, Isochrone Trinity and the top-seller Orion32 AD/DA. With several Word Clock outputs, Pure2 can function as the master clock for an entire studio and can also be locked to Antelope's legendary 10M Atomic Clock for even greater clocking stability.
Headphone Amp: The high-end headphone amp is powered by a dedicated D/A converter, allowing greater convenience and better routing flexibility. The separate DAC provides the option for monitoring a secondary source independent from the main outs.
Monitoring: Pure2 utilizes Antelope's high quality analog volume control. It features a stepped relay attenuator with 0.05 dB precision, providing optimal transparency of the monitoring through the main outs.
Userfriendly Device Management: With Pure2, attaining immaculate audio quality does not have to be complicated. The device includes a highly intuitive software control panel (compatible with both Mac and PC) enabling users to manage all facets of its operation from a computer. Meanwhile, the front panel of the unit also includes user-definable presets for added routing convenience and efficiency.
Mastering-grade transparency
Satori is a true analog monitoring and summing system. A Japanese Buddhist term referring to enlightenment, Satori is designed to deliver an 'epiphany' experience to the sound engineer. Antelope's renowned relay-controlled stepped attenuator, the extremely versatile connectivity options and great selection of stereo effects such as mid-side monitoring, place the Satori among the most advanced monitoring controllers in the world, equally suited to both commercial and project studios. Satori expands upon the acclaimed design architecture of Eclipse 384 – Antelope's award-winning mastering AD/DA and monitoring controller. Carefully designed analog circuits and fast, transparent relay attenuators ensure the audio integrity throughout the whole signal path.
Stepped relay attenuator with precision accuracy
Satori employs advanced, quiet gold-plated relays and precise resistors to facilitate fast, responsive level attenuation, without sacrificing excellent sonic performance. These relays achieve 0.05 dB stereo accuracy and stable L/R balance even at lower volume levels. The pristine, attenuator signal path fully preserves audio signal integrity while revealing even the most subtle nuances.
Analog summing functionality
In addition to providing outstanding monitoring capabilities, Satori includes a fully analog 8-channel summer. Analog summing allows engineers who work completely “in-the-box” to mix signals in the analog domain for a more natural blending of instruments. The summer inside Satori maintains punch, headroom and excellent dynamics, while offering the analog sound usually found only from legendary analog consoles.
Analog sound with digital control
The exceptionally clear sonic performance of Satori is derived from advanced analog circuit design. But the flexible and accurate control capabilities are made possible by Antelope's next generation of software control panel technology, which has opened the door to a whole new generation of analog devices, such as the Satori Monitoring System and MP32 32-channel mic preamp. For Satori this means fast and responsive source and speaker output switching, accurate remote volume control and also Mute, Mono, Dim, Mid/Side monitoring. The Satori Control Panel also features stereo peak meters for instant signal visualization.
Headphone amps and talk back
Surpassing most monitoring controllers, which offer one or two headphone outs, Satori features four independent headphone amps ready to provide several band members their own, unique input feed with independent volume control. Satori's headphone drivers are audiophile-grade and are the same as those used in Antelope's premium line of high-end home audio converters, able to drive both low and high impedance headphones.
An abundant number of I/Os
Satori provides a generous amount of connectivity options. No other 1U monitoring system has eight stereo inputs and four stereo outputs and features such a comprehensive choice of connections: XLR, ¼'' TRS and D-Sub 25. Satori also boasts a subwoofer output and four ¼'' independent headphone outs.
Sleek and functional front panel control
Large warmly-lit front panel buttons and an ergonomic aluminum volume knob provide the user with elegant and fast management of all major monitoring functions. The result is a powerful state-of-the-art device that still feels user-friendly and simple to operate.
Features:
A complete palette of inputs and outputs
Precise stepped relay volume control
Four independent headphone outputs with dedicated volume controls
Analog Summing allowing easy mixing
Extremely flexible routing
Analog sound with digital control
A user friendly desktop application available for both Windows and OS X
Antelope Isochrone TrinityUniversal high-definition master clock employing Antelope's 4th Generation of Acoustically Focused Clocking with 64-bit Digital Signal Processing (DSP) and up to 384 kHz audio streaming.A master clock that stands out:In the fickle world of Audio & Video formats, the new Trinity will be the Master Clock that stands out from the crowd for years to come, with the kind of features that other manufacturers can only aspire to. With dedicated functions and controls, the new Trinity is the best sounding and most versatile Master Clock available anywhere.The features that make it unique:There are unique features that are only available on the Trinity - such as Audio up to 384kHz, Varispeed, nine completely independent generators, and a Triple display! Of course, all of this comes in an intuitive menu-free user interface, just as you would expect from Antelope.Features: 4th Generation of Acoustically Focused Clocking employing 64 bit DSP leads to a new level in detailed & focused sound Oven Controlled Crystal Oscillator or Atomic Input for supremely low jitter Factory calibrated to better than +/- 0.001 ppm accuracy A wealth of rear panel connectivity for tremendous flexibility Comprehensive audio gear-boxing for anything in, anything out Atomic Input for ultimate performance 3 Independent & simultaneous audio generators up to 384kHz, and varispeed control +/- 200 cents 3 Independent & simultaneous HD generators, covering 16 formats 3 Independent & simultaneous SD generators, simultaneously offering PAL & NTSC Full Euro and USA Pull-ups / pull-downs for SD and HD video USB connection via PC & Mac allowing full remote control, loading/saving presets and firmware upgrades Dual redundant power supply with automatic switchover for added reliability
Zen Tour Synergy Core
A desktop audio interface in a league all of its own.
For what it brought to the pro audio trade back in 2016, the original Zen Tour is still in a league of its own. Never before had the pro audio community enjoyed this kind of connectivity, sound quality and touchscreen control on a desktop unit. Hard to surpass it may be, but the all-new Zen Tour Synergy Core more than lives up to its ancestor's impressiveness.
Antelope's consummate Synergy Core FX processing is an obvious highlight of the new Zen Tour, but the 4x ARM DSP cores and 2x FPGA processors handling system I/O and as many as 256 instances of lifelike, low-latency audio effects merely scratch the surface! Familiar on the outside, the Zen Tour Synergy Core has been reimagined internally to establish new standards in audio quality and performance in its category.
With up to 130dB dynamic range on the monitor outputs and Antelope's signature Acoustically Focused Clocking technology, the AD/DA conversion bar is raised high. And then comes the connectivity. It's 8 preamp/combo inputs and 14 outputs (monitor, headphone, line, reamp) for the analog part, with ADAT & S/PDIF expandability adding a further 10 digital I/O channels.
For computer connection, both USB Type-B and Thunderbolt 3™ are found on the same unit and users of multiple computers/operating systems can switch connections on the fly. The touchscreen control borrowed from our flagship Goliath interfaces and the 36 Synergy Core FX included to get you started (incl. 11 guitar amps and cabs) make for a complete all-around solution for bands and producers both for desktop and on the go.
Put simply, the Zen Tour Synergy Core punches above any competing product with its unbeatable value and vast studio potential.
Zen Tour Synergy Core comes with 36 Synergy Core FX included (worth USD 2120 if purchased separately):
Mic Preamps (Included)
1. Gyraf Gyratec IX
2. BA-31
Equalizers (Included)
3. VEQ-1A
4. VMEQ-5
5. VEQ-HLF
6. Clear Q
Compressors & Limiters (Included)
7. FET-A76
8. Stay-Levin
9. VCA160
10. X903
11. PowerFFC
Shred Guitar Amps (Included)
12. Plexi 59 (UK)
13. Bass SuperTube VR
14. Darkface 65 (US)
15. Top30 (UK) Bright
16. Tweed Deluxe (US)
17. Overange 120 (UK)
18. BurnSphere (DE) Lead
19. Marcus II (US) Lead
20. Modern (US) CH3
21. Rock 75 (UK)
22. Rock 22.10 (UK)
Shred Guitar Cabinets (Included)
23. Darkface 65 2x12
24. Top30 2x12
25. Modern 4x12
26. Green 2x12
27. Vintage 4x12
28. Green 4x12
29. Caliper 50 1x10
30. Bluelux 1x12
31. Clst 1x12
32. England 4x12
33. Bass Tube 1x15
Special Processing FX (Included)
34. PowerEX
35. PowerGate
Reverb (Included)
36. AuraVerb
Key Product Features
4x ARM DSP + 2x FPGA Synergy Core FX processing handling up to 256 effects instances per session.
36 Synergy Core FX started pack included
Compatible with the Antelope Audio AFX2DAW bridge plug-in
USB (Type-B) & Thunderbolt 3 (Type-C) computer connectivity
Up to 130dB dynamic range AD/DA conversion at up to 24-bit/192kHz resolution
Proprietary 4th-generation Acoustically Focused Clocking & Jitter Management clocking technology with 64-bit DDS
4 Discrete transistor mic preamps with mic modeling support (for Antelope Audio Edge & Verge modeling microphones)
Dedicated mastering monitor out DAC for critical listening
Two pairs of headphone outputs
Two pairs of re-amp outputs
8 DC-Coupled line outs on DB25 for sending CV/Gate to your analog synthesizers
ADAT and S/PDIF digital connectivity. External converters can be clocked via ADAT.
Multifunctional touchscreen display for monitoring and operation
Hand-assembled in Europe
Free technical support is available 20 hours/business day over phone, chat & ticketing system
STACKED WITH EFFECTS POTENTIAL
With 4x ARM DSP cores and 2x FPGA processors, the Zen Tour Synergy Core can process up to 256 FX instances over 32 audio channels with ultra-low latency and zero CPU drain. Users can now choose among a wider variety of DSP-based effects, such as Auto-Tune Synergy (by Antares & Antelope), Vari-Speed Tremolo, Space Flanger, Opto-2A, and others. 36 premier Synergy Core FX culled from our growing library are included to get you going immediately.
HEAR THE TRUTH
Utilizing Antelope’s signature clocking technology and updated converter chips, Zen Tour Synergy Core maintains pristine AD/DA conversion for artefact-free recording and critical listening with a best-in-class dynamic range of up to 130dB (measured on the monitor outputs).
MAKE CONNECTIONS
Zen Tour Synergy Core's comprehensive connectivity rivals that of rackmount pro audio interfaces with 4 Instrument/Line inputs, 4 Mic/Line Ins, 8 Line Outs (DC-Coupled), 2 Monitor Outs, 2 Headphone Outs and 2 Re-Amp Outs, totaling 8 inputs and 14 outputs. The unit is digitally expandable over ADAT & SPDIF for an additional 10 input and 10 output channels. Upgraded computer connectivity now offers Thunderbolt 3 (Type-C) as well as USB 2 (Type-B) for cross-platform compatibility with Mac and Windows computers.
ROUTE ANY AUDIO
The comprehensive Routing Matrix inside the software Control Panel houses a full-fledged digital patch bay to freely route audio between the interface's analog and digital inputs. Process DAW tracks through Synergy Core FX and re-amp guitar DIs with the Shred Guitar Amps & Cabs or integrate external audio equipment. With the 'training wheels' removed, your workflow can be as esoteric as you want it to be.
STURDY & PORTABLE
Hand-assembled in Europe, the Zen Tour Synergy Core can adorn both your studio desktop and your band’s practice space with equal success - then live to tell about it!
1.599,00 €*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
