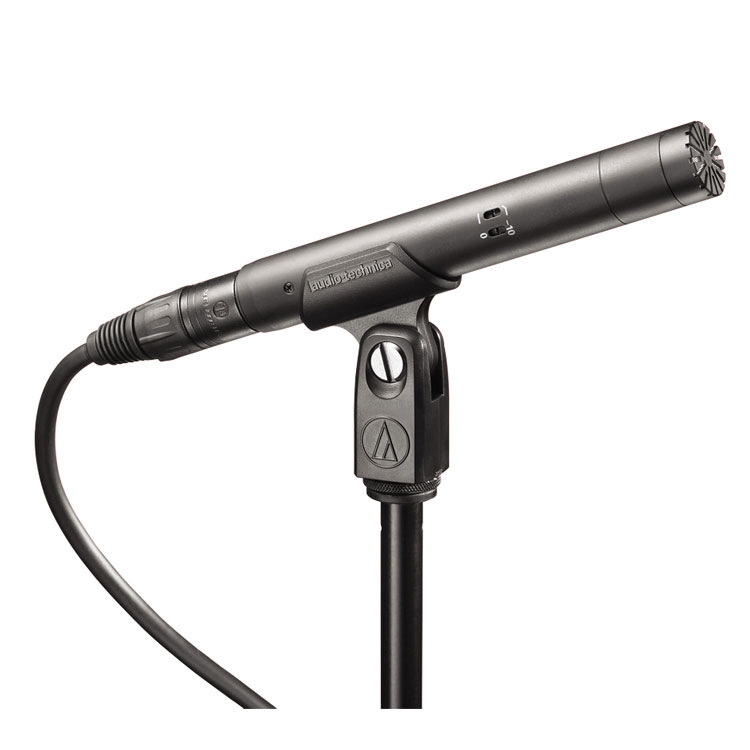

deal for critical studio and live applications, the low-profile AT4021 offers a flat, extended frequency response, high maximum SPL and wide dynamic range. Its low self-noise is perfectly suited for the most sophisticated recording equipment. Its low-mass diaphragm improves transient response, increases response bandwidth and reduces handling and mechanical noise transfer. The microphone offers outstanding reproduction of low-frequency sounds.FeaturesOutstanding performance and rugged constructionHigh SPL handling and wide dynamic rangeFlat, extended frequency responseSwitchable 80 Hz hi-pass filter and 10 dB padHigh front-to-back rejection ratio--cardioid polar pattern improves isolation of desired sound sourceLow self noise perfectly suited for digital recording equipmentExceptional reproduction of low frequency soundsLow-mass element for superb transient responseSpecifications:Element: Fixed-charge back plate, permanently polarized condenserPolar Pattern: CardioidFreq. Response: 20-20,000 HzLF Roll-Off: 80 Hz, 12 dB/octaveOpen Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 PaImpedance: 250 ohmsMax Input Sound Level: 146 dB SPL, 1 kHz at 1% T.H.D.;156 dB SPL, with 10 dB pad (nominal)Noise: 14 dB SPLDynamic Range (typical): 132 dB, 1 kHz at Max SPLSignal-to-Noise Ratio: 80 dB, 1 kHz at 1 PaPhantom Power Requirements: 48V DC, 3.0 mA typicalSwitches: Flat, roll-off; 10 dB padWeight: 119 g (4.2 oz)Dimensions: 144.0 mm (5.67 in.) long,21.0 mm (0.83 in.) maximum body diameterOutput Connector: Integral 3-pin XLRM-typeAccessories Furnished: AT8405A stand clamp for 5/8 in.-27 threaded stands; windscreen; protective carrying caseAudio-Technica Case Style: S1 For more information, please visit this products webpage.

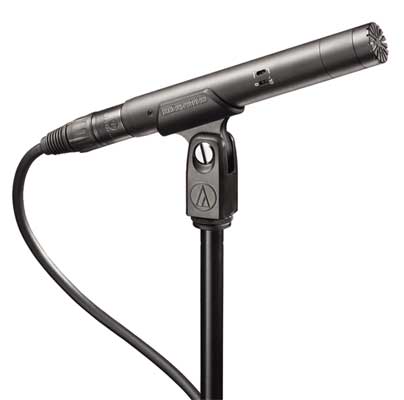

The Audio-Technica AT4022 Omnidirectional Condenser Microphone features a low-profile design and small-diaphragm condenser element. The sensitivity, frequency response and SPL capabilities make it a suitable choice for speaker cabinets, vocals, percussion instruments, drums and "spot" placement on guitars, stringed instruments, etc. The omnidirectional polar pattern provides a wide pickup area and preserves the integrity of the signal. An 80Hz high-pass filter switch reduces low frequencies and all associated noise. In addition a -10dB Pad switch provides added headroom and minimizes distortion when capturing transient (peaking) audio signals. Specifications: Omnidirectional Polar Pattern The omnidirectional polar pattern provides a generous pickup area and effectively preserves the integrity of the audio quality. Switchable 80Hz High Pass Filter The 80Hz high-pass filter switch eliminates hum and low frequency noise, rumble, etc. -10dB Pad Switch A -10dB Pad provides additional headroom for capturing peaking audio signals without distortion and noise. Transducer Fixed-charge back plate, permanently polarized condenser Polar Pattern Omnidirectional Frequency Response 20Hz - 20kHz Dynamic Range (Typical) 132dB, 1kHz at Max SPL Signal-to-Noise Ratio 80dB, 1kHz at 1Pa Maximum Input Sound Level 146dB SPL, 1kHz at 1% T.H.D.; 156dB SPL, with 10dB pad (nominal) Power Requirements 48VDC, 3.0mA typical Output Impedance 250 ohms Output Connectors 3-pin XLR Pad -10dB Low Frequency Roll-Off 80Hz Dimensions (LxDiameter) 5.67 x 0.83" (144 x 21mm) Weight 119g (4.2 oz) For more information, please visit this products webpage.

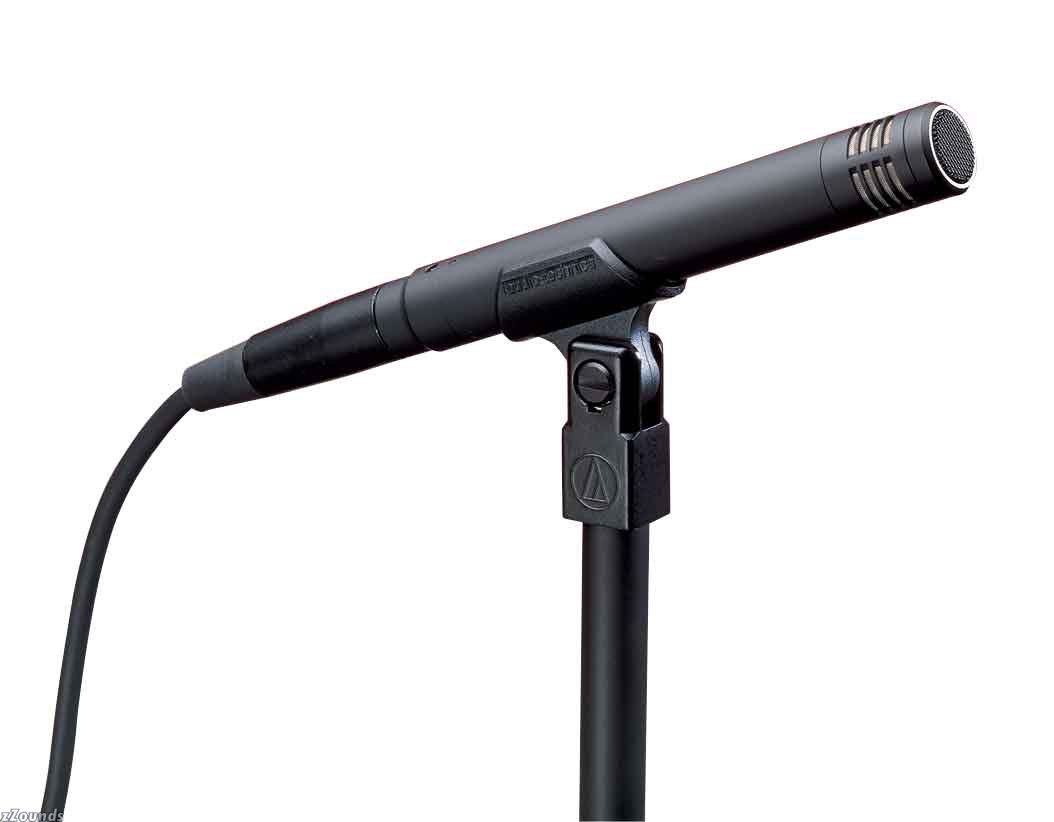

The AT4041 is recommended for professional recording and critical applications in broadcast and live-sound. It is ideal for drum overheads, acoustic guitar, piano, horns, and under snare. The AT4041 features a smooth, extended frequency response, high output, and very high SPL capability, transformerless design for low self-noise, and a switchable hi-pass filter and rugged turned-brass microphone housing.Specifications:Element: CapacitorDynamic Range (Typical): 121 dB, 1 kHz at Max. SPLPolar Pattern: CardioidPhantom Power Requirements: 48VFrequency Response: 20 - 20,000 HzSwitch: Flat/roll-offOpen Circuit Sensitivity: -36 dB (15.8 mV), +/-2 dB re 1V at 1 PaLow-frequency Roll-off: 80 Hz, 12 dB per octaveImpedance: 100 ohmsWeight: 4.2 oz. (120 g)Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.Output Connector: XLRM-typeSignal To Noise Ratio: 70 dB, 1 kHz at 1 PaAccessories Furnished: AT8405 stand clamp; foam windscreen; protective case For more information, please visit this products webpage.
Audio-Technica’s AT4047MP delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-of-eight polar patterns. The microphone’s transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs. With a wide dynamic range, incredibly low self-noise and high SPL capability, this versatile microphone excels on vocals, strings, acoustic guitar, instrument ensembles, small vocal groups and voiceovers.
Three switchable polar patterns: cardioid, omnidirectional, figure-of-eight
Engineered to meet the critical acoustic requirements of professional recording, broadcast and sound reinforcement
Transformer-coupled output and specially tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
Exceptionally low self-noise, wide dynamic range and high SPL capability
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Vintage silver-matte finish on microphone and shock mount
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
Custom shock mount provides superior isolation
Integral 80 Hz high-pass filter switch and 10 dB pad switch

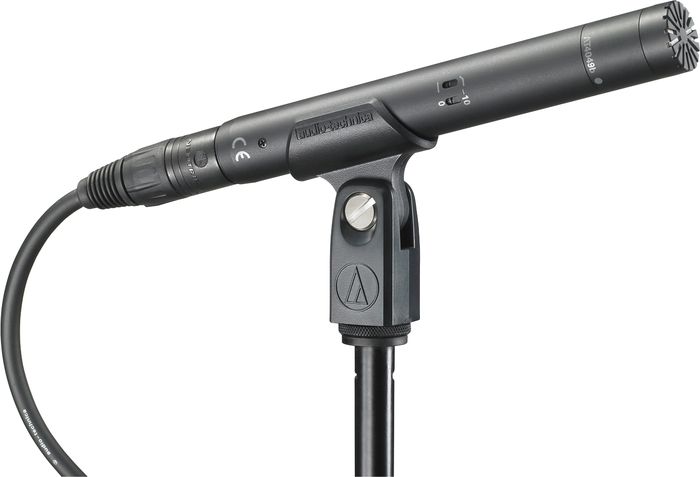

The Audio-Technica AT4049B is a versatile omnidirectional condenser microphone recommended for professional recording and critical applications in broadcast. Use the AT4049B mic with confidence in a wide variety of professional miking applications, such as acoustic instruments and percussion, where proximity effect and coloration are not desired; ambient recording for clean room sound free from off-axis coloration; and distance miking of electric guitars and other instruments in great-sounding live rooms. The greatest advantage of omni mics in general and the AT4049B in particular, is the open and extended bass response and lack of phase-cancellation problems that can occur with directional mics. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the Audio AT4049B microphone is totally free of the distortion associated with conventional transformer-coupled outputs. Its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The AT4049B microphone is fully RoHS-compliant—free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS). The Audio-Technica AT4049B consists of 2 modular subassemblies: an AT4900b-48 body and an AT4049b-EL omnidirectional microphone head capsule. Audio-Technica AT4049B Omnidirectional Condenser Microphone Features:Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast, and live classical recording.Omnidirectional polar pattern provides maximum ambient pickupDirect-coupled, balanced output results in a clean signal even under high-output conditionsTransformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transientsSwitchable 80 Hz hi-pass filter and 10 dB padRugged turned-brass microphone housing for enduring dependabilityState-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standardsRoHS-compliant — free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)Audio-Technica AT4049B Omnidirectional Condenser Microphone Includes:AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying caseAudio-Technica AT4049B Omnidirectional Condenser Microphone Specifications:Element: Externally polarized (DC bias) capacitorPolar Pattern: OmnidirectionalFrequency Response: 20-20,000 HzLow Frequency Roll-Off: 80 Hz, 12 dB/octaveOpen Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 PaImpedance: 50 ohmsMaximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)Noise: 16 dB SPLDynamic Range (Typical): 129 dB, 1 kHz at Max SPLSignal-To-Noise Ratio: 78 dB, 1 kHz at 1 PaPhantom Power Requirements: 48V DC, 4.8 mA typicalSwitch: Flat, roll-off; 10 dB pad (nominal)Weight: 130 g (4.6 oz)Dimensions: 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameterOutput Connector: Integral 3-pin XLRM-typeOptional Interchangeable Elements (sold separately):AT4051b-EL (cardioid); AT4053b-EL (hypercardioid)Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying caseAudio-Technica Case Style: S1For more information, please visit this products webpage
Stereo Condenser MicrophoneOffering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.
Features: Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement Independent cardioid and figure-of-eight condenser elements Switch selection of Mid-Side mode and two internally matrixed stereo modes Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections Integral 80 Hz high-pass filter switch and 10 dB pad switch State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards Custom shock mount provides superior isolation Certified by the METAlliance (Music Engineering and Technology Alliance)Technische Spezifikationen: ELEMENT Externally-polarized (DC bias) condenser POLAR PATTERN Cardioid and Figure-of-eight FREQUENCY RESPONSE 20-18,000 Hz LOW FREQUENCY ROLL-OFF 80 Hz, 12 dB/octave OPEN CIRCUIT SENSITIVITY Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa Side: -36 dB (15.8 mV) dB re 1V at 1 Pa IMPEDANCE 50 ohms MAXIMUM INPUT SOUND LEVEL Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.; 159 dB SPL, with 10 dB pad (nominal) NOISE Stereo 90°: 25 dB SPL Stereo 127°: 16 dB SPL Mid: 15 dB SPL Side: 17 dB SPL DYNAMIC RANGE (typical) Mid: 134 dB, 1 kHz at Max SPL Side: 132 dB, 1 kHz at Max SPL SIGNAL-TO-NOISE RATIO Stereo 90°: 69 dB, 1 kHz at 1 Pa Stereo 127°: 78 dB, 1 kHz at 1 Pa Mid: 79 dB, 1 kHz at 1 Pa Side: 77 dB, 1 kHz at 1 Pa PHANTOM POWER REQUIREMENTS 48V DC, 6.4 mA typical (both channels total) SWITCHES 90°, 127°, M-S; Flat, roll-off; 10 dB pad (nominal) WEIGHT 517 g (18.2 oz) DIMENSIONS 193.0 mm (7.60") long, 53.4 mm (2.10") maximum body diameter OUTPUT CONNECTOR Integral 5-pin XLRM-type CABLE 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end ACCESSORIES FURNISHED AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case AUDIO-TECHNICA CASE STYLE R1

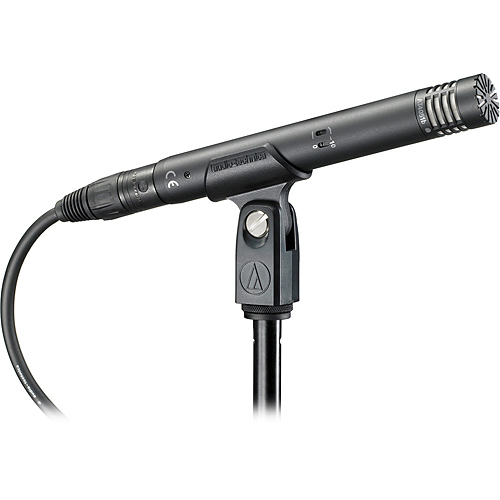

The Audio-Technica AT4051B Cardioid Condenser Microphone is ideal for professional recording and critical applications in broadcast. Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the AT4051B microphone is totally free of the distortion associated with conventional transformer-coupled outputs. Its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments.The AT4051B mic is fully RoHS-compliant—free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS). The AT4051b consists of two modular subassemblies: an AT4900b-48 body and an AT4051b-EL cardioid head capsule.Recommended uses of the AT4051B are acoustic guitar, percussion, drum overheads (mainly for cymbals), and live sound instrument recording where rear-cancellation is required.Audio-Technica AT4051B Cardioid Condenser Mic Includes:AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case
Features: Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement High front-to-back rejection ratio—cardioid polar pattern improves isolation of desired sound source Direct-coupled, balanced output results in a clean signal even under high-output conditions Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients Switchable 80 Hz hi-pass filter and 10 dB pad Rugged turned-brass microphone housing for enduring dependability State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards RoHS-compliant—free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)Specifications: Element: Externally polarized (DC bias) capacitor Polar Pattern: Cardioid Frequency Response: 20-20,000 Hz Low Frequency Roll-Off: 80 Hz, 12 dB/octave Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa Impedance: 50 ohms Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) Noise: 16 dB SPL Dynamic Range (Typical): 129 dB, 1 kHz at Max SPL Signal-To-Noise Ratio: 78 dB, 1 kHz at 1 Pa Phantom Power Requirements: 48V DC, 4.8 mA typical Switch: Flat, roll-off; 10 dB pad (nominal) Weight: 126 g (4.4 oz) Dimensions: 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameter Output Connector: Integral 3-pin XLRM-type Optional Interchangeable Elements (sold separately): AT4049b-EL (Omnidirectional); AT4053b-EL (hypercardioid) Accessories Furnished: AT8405a stand clamp for 5/8"-27 threaded stands; windscreen; protective carrying case Audio-Technica Case Style: S1

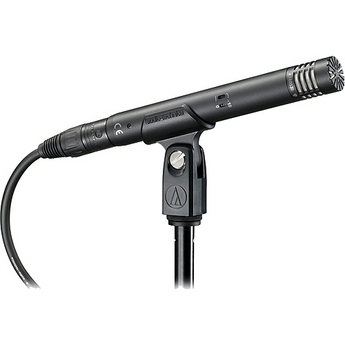

This versatile studio performer may be used with confidence in a wide variety of professional miking applications.Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).The AT4053b consists of two modular subassemblies: an AT4900b-48 body and an AT4053b-EL hypercardioid head capsule (both available separately). Additional interchangeable capsules are available in omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL).FeaturesSpecially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source Direct-coupled, balanced output results in a clean signal even under high-output conditions Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients Switchable 80 Hz hi-pass filter and 10 dB pad Rugged turned-brass microphone housing for enduring dependability State-of-the-art design and manufacturing techniques ensure compliance with Audio-Technica's stringent consistency and reliability standards RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)AccessoriesAT8405a stand clamp for 5/8"-27 threaded standsWindscreenProtective carrying caseSpecificationsElement: Externally polarized (DC bias) capacitor Polar Pattern: Hypercardioid Frequency Response: 20-20,000 Hz Low Frequency Roll Off: 80 Hz, 12 dB/octave Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa Impedance: 50 ohms Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) Dynamic Range: 129 dB, 1 kHz at Max SPL Signal to Noise Ratio: 78 dB, 1 kHz at 1 Pa Phantom Power Requirements: 48V DC, 4.8 mA typical Switch: Flat, roll-off; 10 dB pad (nominal) Weight: 127 g (4.5 oz) Dimensions: 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameter Output Connector: Integral 3-pin XLRM-typeFor more information, please visit this products webpage.
The AT4060a is a large-diaphragm cardioid condenser tube microphone, designed for use in the most demanding studio applications. Each hand-selected tube is individually aged and tested, then employed in a uniquely configured circuit for enhanced tube performance.
Specially tuned elements improve dynamic range and the allow the AT4060a to handle high SPLs without sacrificing high-frequency characteristics. Floating-construction mounting of the elements provides isolation from noise and vibration.
The AT4060a operates in conjunction with the included tube microphone powering unit, featuring low-impedance output and a ground-lift switch.
Vintage tube sound with the versatile performance necessary for the most demanding studio applications
Hand-selected tubes are individually tested and aged to maintain peak performance
Regulated and heavily filtered heater current prevents noise contamination of audio signal chain
Wide dynamic range, low self-noise and high max SPL capability
Large coupling transformer provides superior low-frequency linearity
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
Mit dem Innovativen AT4080 bietet Audio-Technica den begehrten Klang von Bändchenmikrofonen, wobei die Probleme der Fragilität und der niedrigen Ausgangsleistung gelöst werden konnten, die in der Historie der Bändchenmikrofonen immer ein Makel dieses Mikrofontyps waren. Das von Hand gefertigte, aktive AT4080 liefert den warmen, natürlichen Klang von klassischen Bändchenmikrofonen. Dabei verfügt es über eine robuste Bauweise für eine langfristige, verlässliche Performance und eine höhere Ausgangsleistung für die maximale Kompatibilität mit der Vielfalt von Mikrofonvorverstärkern. Das Mikrofon beinhaltet Audio-Technica´s innovatives MicroLinear™ Bändchengepräge, das eine wesentlich höhere Stabilität für seine Wandler garantiert. Daher ist es gleichermaßen im Aufnahmestudio, wie auch auf der Bühne für eine Vielzahl von Anwendungen voll einsetzbar, da die MicroLinear™-Technologie die Dual-Bändchen vor seitlichen Verwindungen und Bändchenverzerrungen schützt. Mit seinen 18 angemeldeten Patenten und einer lebenslangen Garantie bringt Audio-Technica’s innovativer Bändchen-Wandler die Evolution der Bändchenmikrofon-Technologie einen entscheidenden Schritt nach vorne. Erlebe den Unterschied. Sanfter, warmer und natürlicher Klang mit präziser und klarer Ausprägung, so dass auch die höchsten Ansprüche moderner Aufnahme-, Rundfunk- und Beschallungsprofis erfüllt werden.Zukunftsweisendes Audio-Technica Bändchen-Design mit 18 PatentanmeldungenHerstellerspezifisches MicroLinear™-Verfahren zur Bändchenprägung sorgt für längere HaltbarkeitInnovative Doppelbändchenkonstruktion für erhöhte EmpfindlichkeitExtrem leistungsstarke N50 Neodymmagnete für hohen AusgangspegelEngmaschiger Korb schützt Bändchen vor Beschädigungen durch Wind und PoplauteKlassische zweiseitige Ausrichtung (Acht) sorgt für gleichmäßige Klangaufnahme sowohl von vor als auch hinter dem ElementHohe Schallpegelfestigkeit und breiter FrequenzgangBreiter Frequenzgang für natürliche KlangwiedergabeAkustisches Schallwandsystem und besonders große Ausgangsübertrager bieten natürlichen Bassfrequenzgang und erweiterten DynamikumfangHandgefertigt – einschließlich Bändchenfaltung, -prägung und -einbauOffene Akustik des Gehäuseaufbaus minimierte unerwünschte interne ReflektionenPhantomgespeiste aktive Elektronik sorgt für stabile Impedanz und höhere Ausgangsleistung, so dass beste Kompatibilität mit Mikrofonvorverstärkern erzielt wirdSpezielle Spinne bietet hochklassige Isolierung
Delivering the warmth and natural sound of a classic ribbon microphone, Audio-Technica's handcrafted AT4081 offers a robust build for long-lasting performance and higher output for maximum compatibility with microphone preamplifiers. With its low-profile stick design, this microphone is a natural for use on a wide range of instruments (horns, strings, drum overheads, orchestras and more) and guitar cabinets in recording studios and live-sound settings.Equally at home in recording studios and live-sound settings, the microphone features Audio-Technica's innovative MicroLinear(TM) ribbon imprint, which protects the dual ribbons from lateral flexing and distortion. With 18 patents pending, Audio-Technica's innovative ribbon transducer advances the evolution of ribbon microphone design. Experience the difference.Features- Low-profile stick design maximizes placement options- Smooth, warm and natural sound tuned for instrument reproduction- Audio-Technica ribbon design with 18 patents pending including proprietary MicroLinear(TM) ribbon imprint for superior durability- Innovative dual ribbon construction for increased sensitivity- Extremely powerful N50 neodymium magnets for high output level- Superfine mesh guards against ribbon damage- High-SPL capability and extended frequency response- Handmade production - including ribbon corrugation, imprint and assembly- Phantom-powered active electronics provide stable impedance and higher output for maximum compatibility with microphone preamplifiers- Certified by the METAlliance (Music Engineering and Technology Alliance) SpecificationsElement: RibbonPolar Pattern: Figure-Of-EightFrequency Response: 30-18,000 HzOpen Circuit Sensitivity: -42 Db (7.9 Mv), Re 1v At 1 PaImpedance: 100 OhmsMaximum Input Sound Level: 150 Db Spl, 1 Khz At 1% T.H.D.Noise: 25 Db SplDynamic Range (Typical): 125 Db, 1 Khz At Max SplSignal-To-Noise Ratio: 69 Db, 1 Khz At 1 PaPhantom Power Requirements: 48v Dc, 3.0 Ma TypicalWeight: 152 G (5.4 Oz)Dimensions: 155.0 Mm (6.10") Long, 21.0 Mm (0.83") Maximum Body DiameterOutput Connector: Integral 3-Pin Xlrm-TypeAccessories Furnished: At8471 Isolation Clamp For 5/8"-27 Threaded Stands; 5/8"-27 To 3/8"-16 Threaded Adapter; Windscreen; Protective Carrying CaseAudio-Technica Case Style: S13 NewShipping Weight: 1 lbs Shipping Dimensions: 5 x 10 x 3 in For more information, please visit this products webpage.
749,00 €*
