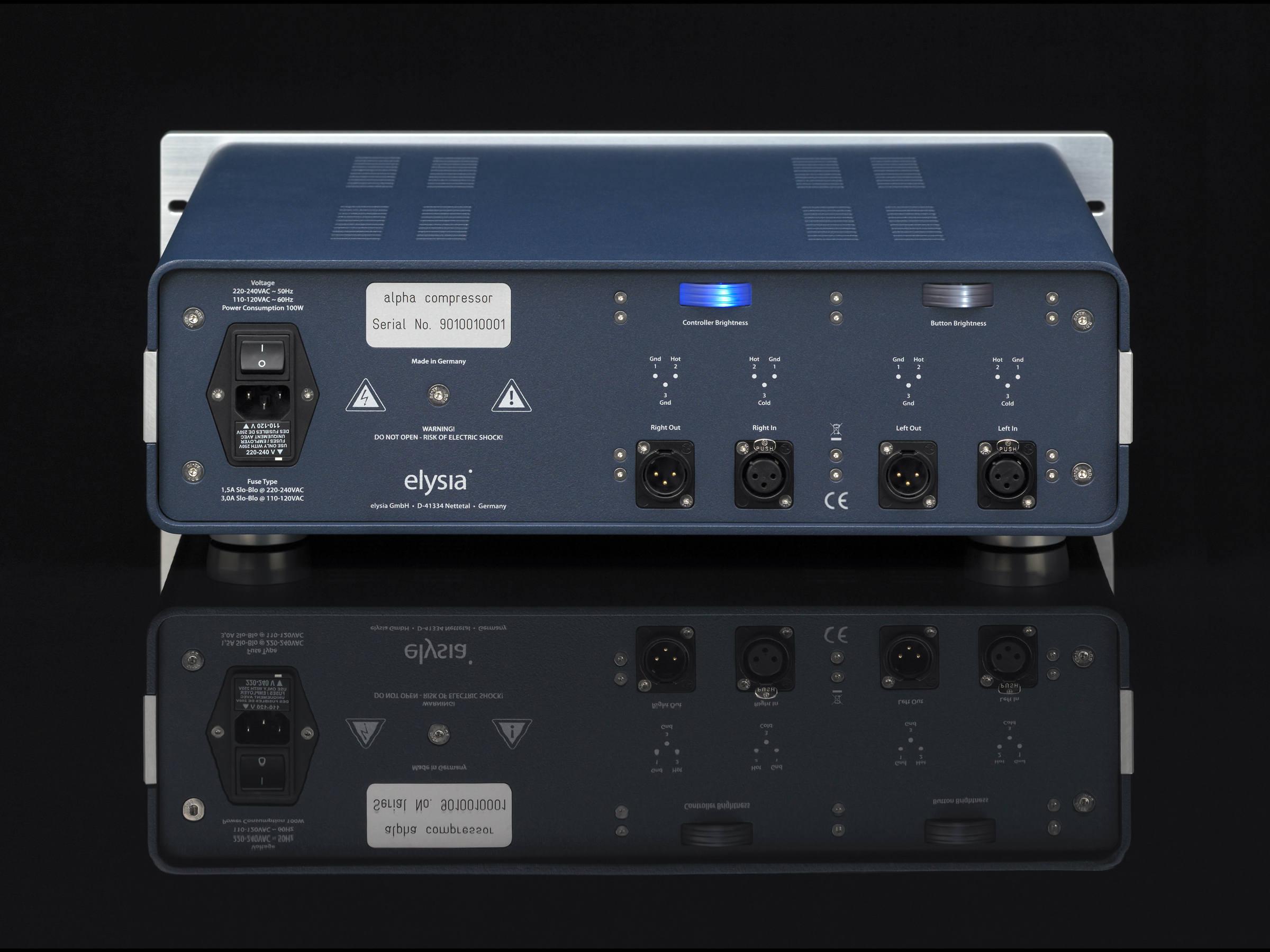

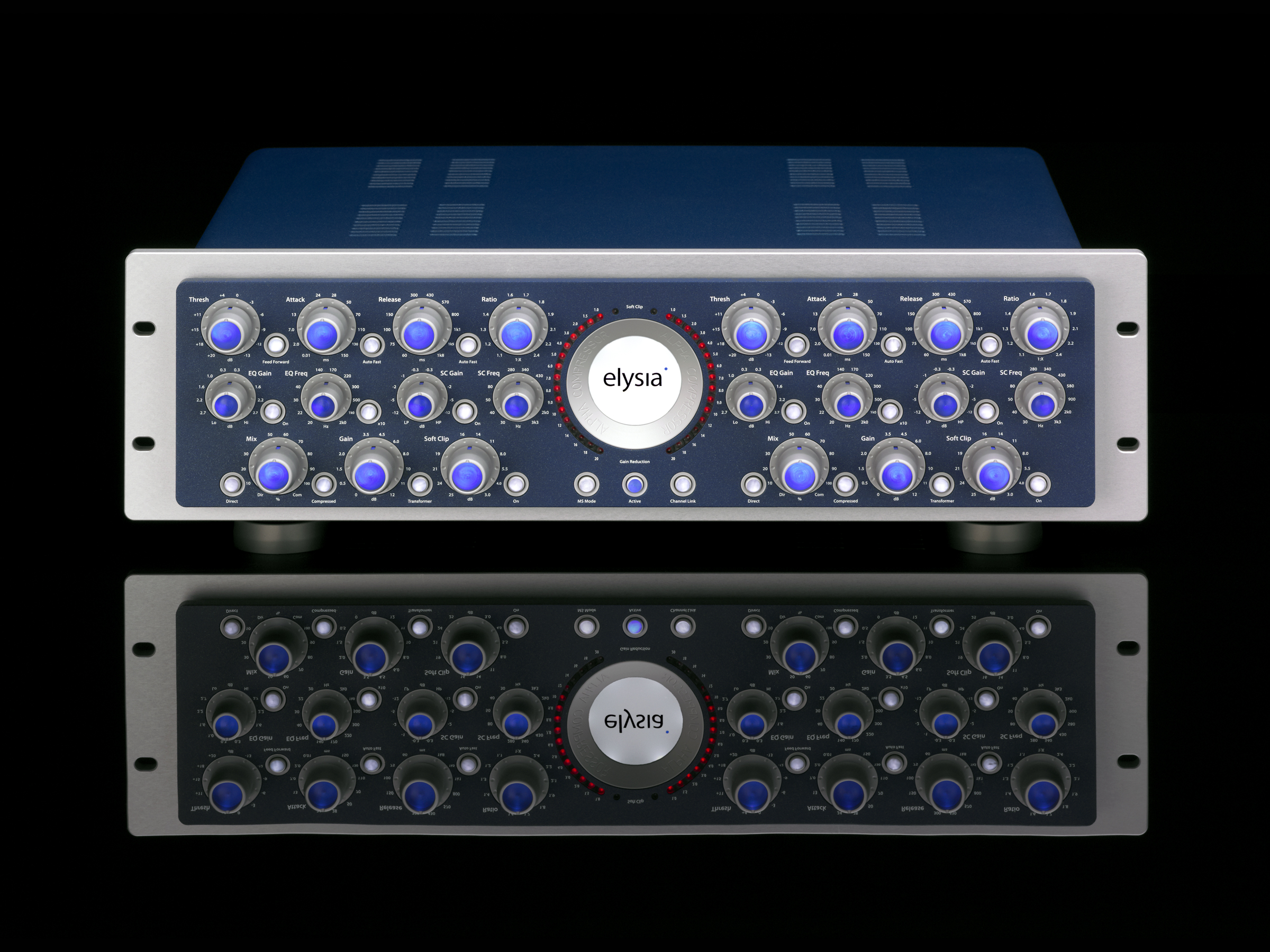

The alpha compressor is a mighty tool for professional dynamics processing. Featuring innovative functions and providing absolutely uncompromising sound quality, it sets new standards for enhancing any kind of audio material. It offers M/S processing, parallel compression, limiters, as well as sidechain and audio filters, just to name a few.
The circuitry is a completely new development which provides an amount of openness and clarity which can hardly be found a second time. Every part of its signal processing is based on single transistors running in constant class-A mode, and even the sidechain and power supply use discrete circuits. All components are of the highest grade available and exclusively chosen according to their sonic excellence.
These benefits sum up in an audio quality that is beyond all doubt. Even when extreme settings are used, the sound characteristic stays clean and powerful. The alpha compressor achieves perfect processing results for all different styles of music and assures the 'this is it' feeling of a finished song. Its enhanced functions exceed the potential of normal compressors by far and give you unimagined options for mastering and mixing.

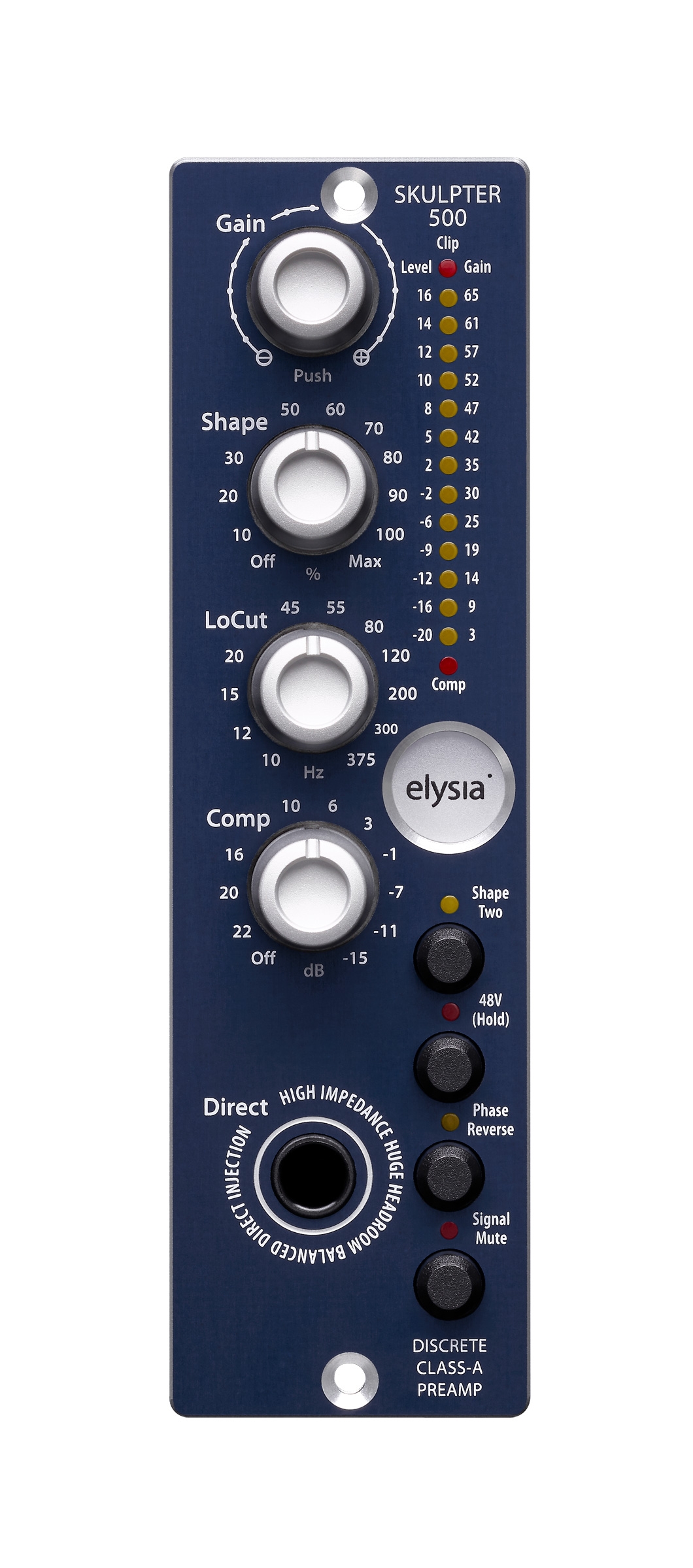

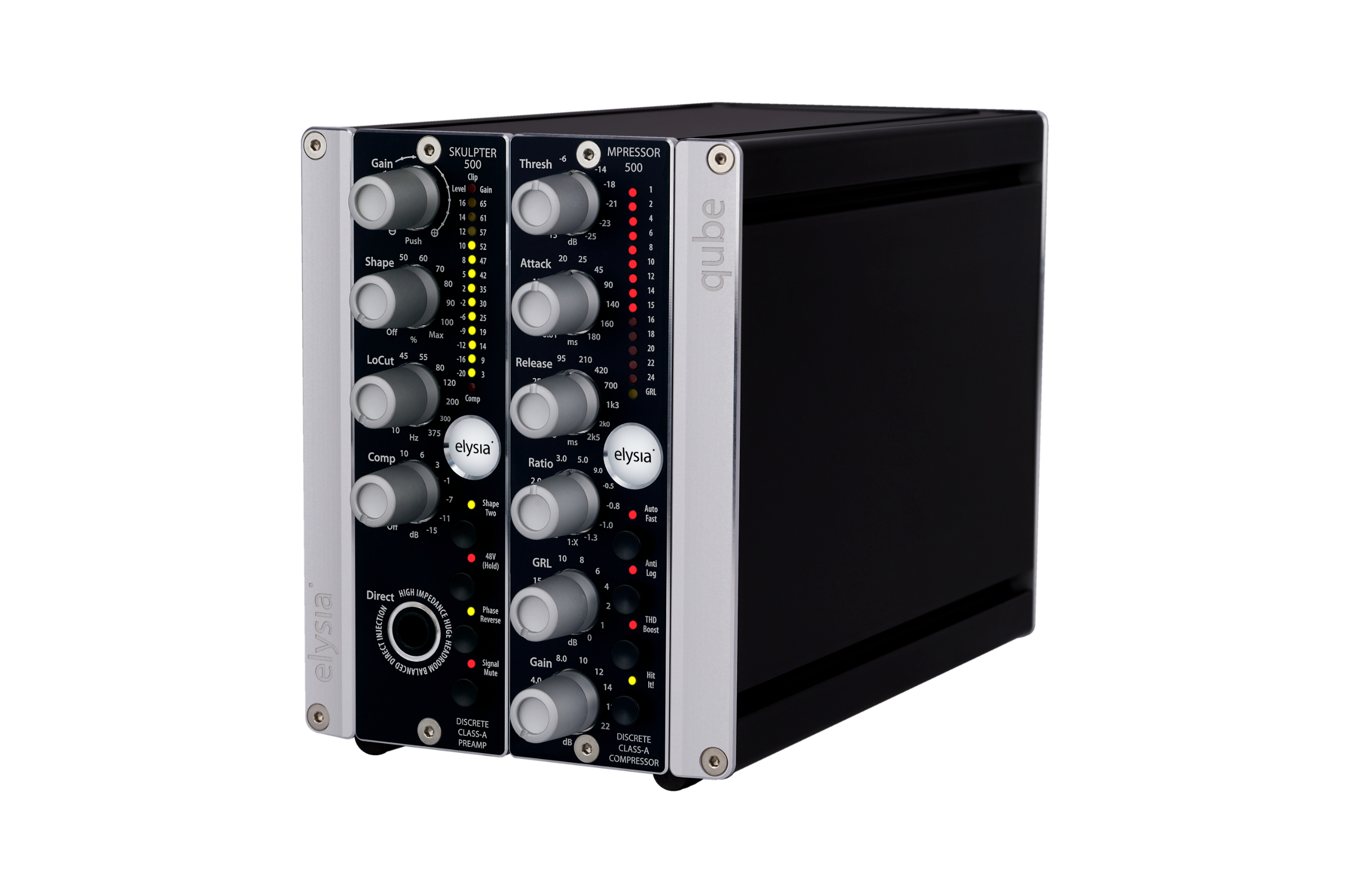

Der skulpter 500 ist das ultimative Recording-Frontend. Sein audiophiler Preamp basiert auf einzelnen Widerständen, die einen vollständig diskreten Class-A Verstärker steuern. Der äußerst natürliche Klangcharakter unterstreicht die Stärken jedes individuellen Mikrofons bis ins kleinste Detail. Mehr Mojo gewünscht? Kein Problem, denn die flexible Klangformung und der intelligente Kompressor machen es möglich, bereits während der Aufnahme einen komplett „fertigen” Sound zu produzieren. Ob fein oder fett – das Soundvergnügen endet nicht am Mikrofonschrank. Der skulpter 500 verfügt über einen symmetrischen DI-Eingang mit sehr viel Headroom, sodass auch Gitarren, Bässe, Synthesizer und Effekte in den Genuss eines hochwertigen Audiopfads mit absolut überzeugender Klangveredelung kommen.
So viel mehr als nur ein Preamp... der skulpter 500 ist eine komplette Aufnahmelösung, und damit der perfekte Partner für jede DAW.
Features:
100% Diskrete Class-A Topologie: Höchste Güte für Audiopfad und Processing.
Audiophile Gainstruktur: Natürlicher und äußerst detailreicher Klang.
Dual Sound Shaper: Mojo-Maschine mit Filtern und Harmonischen.
Intelligente Onboard-Dynamik: Clever gesteuerte, musikalische Kompression.
Variables Low Cut-Filter: Flexible Optimierung der tiefsten Frequenzen.
Symmetrischer DI-Eingang: Instrumenten-Eingang mit massig Headroom.
Multifunktionale Anzeige: Pegel, Verstärkung, Kompression und Clipping.
Gerasterte Regler: Exakte und wiederholbare Einstellungen.

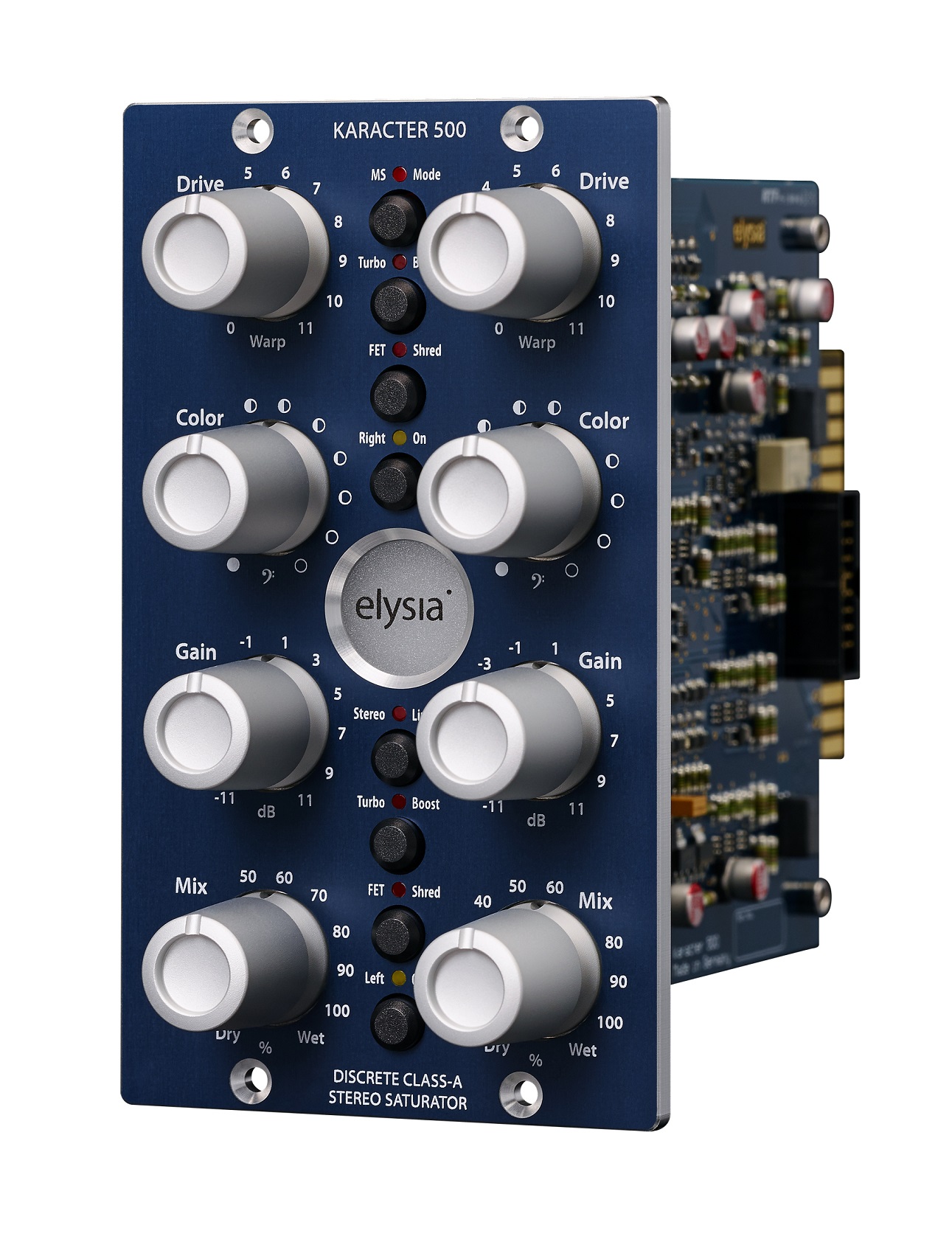

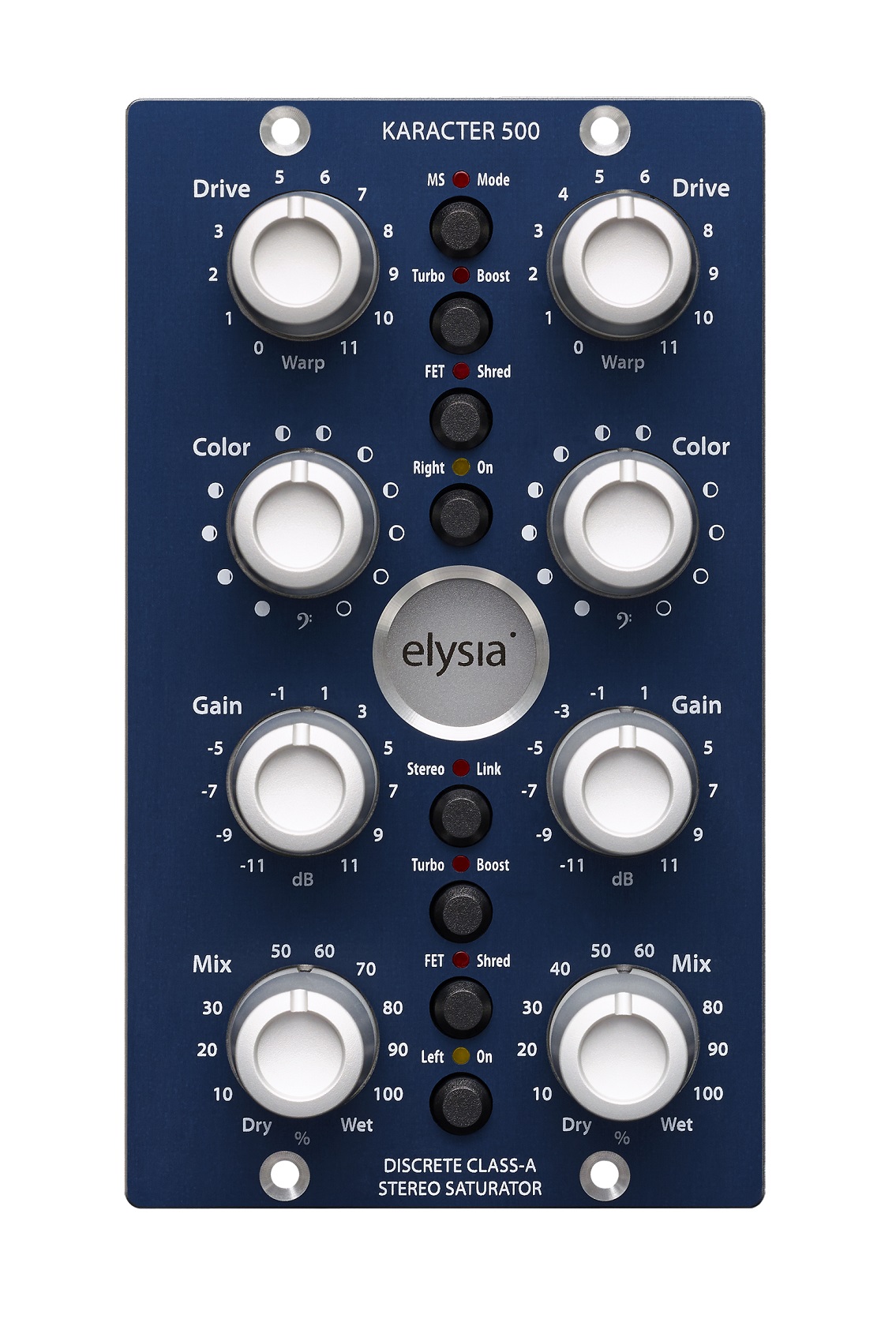

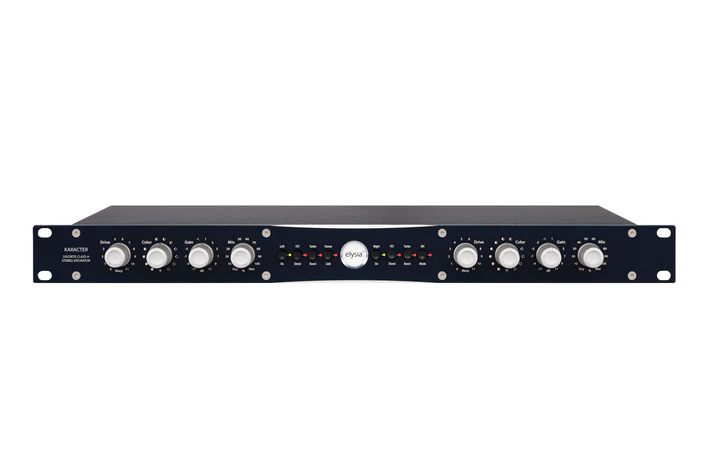

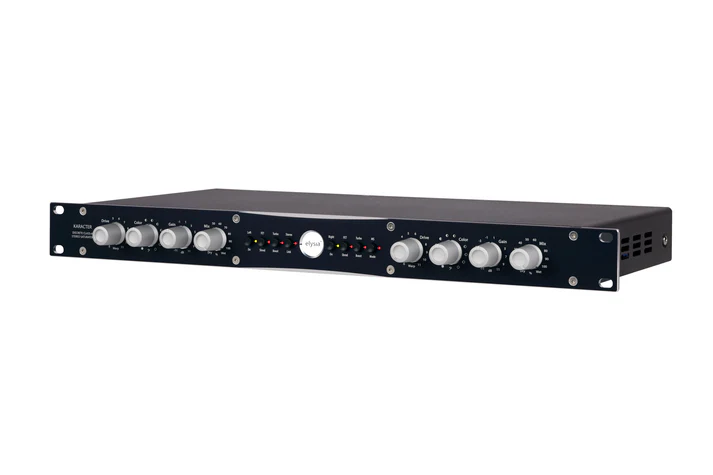

The karacter 500 is a box full of vibrant colors. It covers a complete spectrum including mastering-grade saturation, tube-inspired distortion and glorious destruction. Gone are the days when only racks full of outboard gear could achieve these elusive and highly desirable styles of tonal coloration...
This all-in-one solution offers two separate channels which can be set up for dual mono, linked stereo or linked and unlinked M/S operation. Integrated mix stages for parallel signal processing and the unique Color Control add to its remarkable flexibility.
The entire unit is designed with discrete class-A topology, so even the most lo-fi sounds will benefit from the karacter's high-end touch. Enhance your tracks or decimate everything – It's a matter of karacter.
Discrete Class-A Topology: The input and output stages as well as the complete audio path are fully discrete designs running in constant class-A mode. The result: Signal coloration, high-end style.
Mastering-Grade Saturation: In this mode, the karacter 500 generates gentle Total Harmonic Distortion (THD) with a soft characteristic curve, resulting in very musical symmetrical clipping.
Tube-Inspired Distortion: In FET Shred mode, the behavior of the karacter 500 changes drastically. The sound instantly reminds of tube amplifiers, with a wide range of asymmetrical distortion.
Glorious Destruction: Now, this is pushing the envelope. The Turbo Boost shifts the operating point of the distortion circuit in FET shred mode and generates even more asymmetrical wave forms.
Color Filter: The Color control changes the harmonics-frequency relation with tons of interesting variations. Middle is flat; turn left for more dub and right for more shred.
Integrated M/S Matrix: As an alternative to standard stereo operation you can process the mid and side signals, opening up completely new options for your work!
Dual Mono/Stereo Link: For ultimate flexibility, the karacter 500 offers both true dual mono and linked stereo operation, while in M/S mode the channels can be linked or unlinked as well.
Stepped Controllers: All potentiometers of the karacter 500 have 41 steps, which is a great help for recalling your previous sessions fast and precisely.

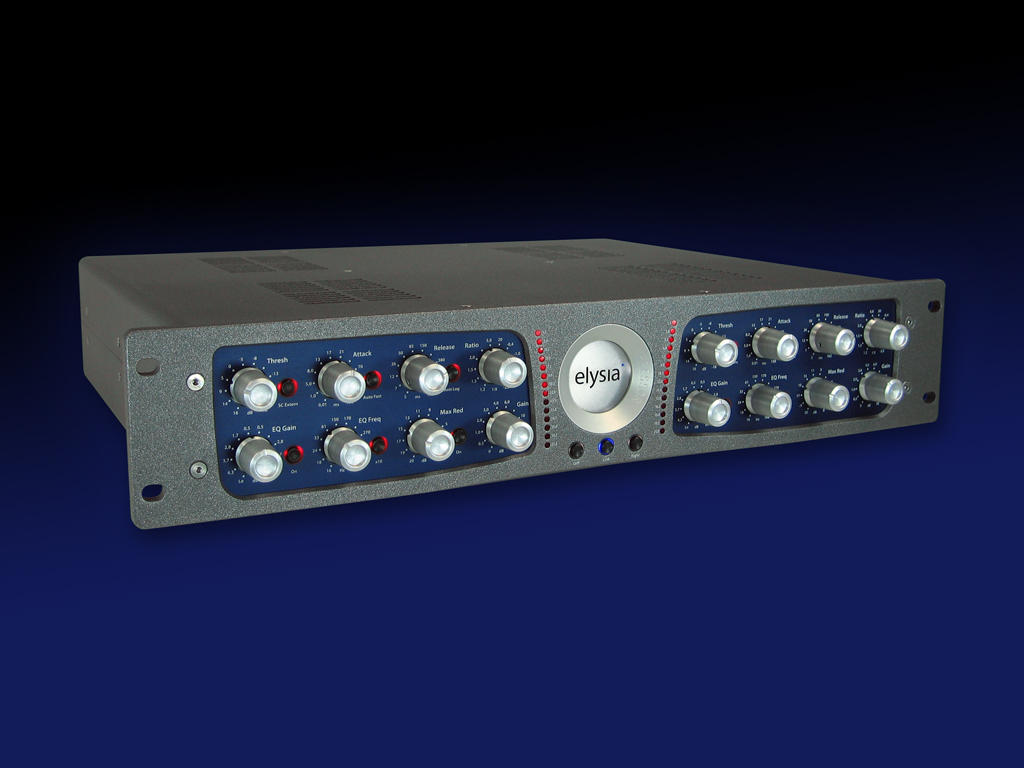

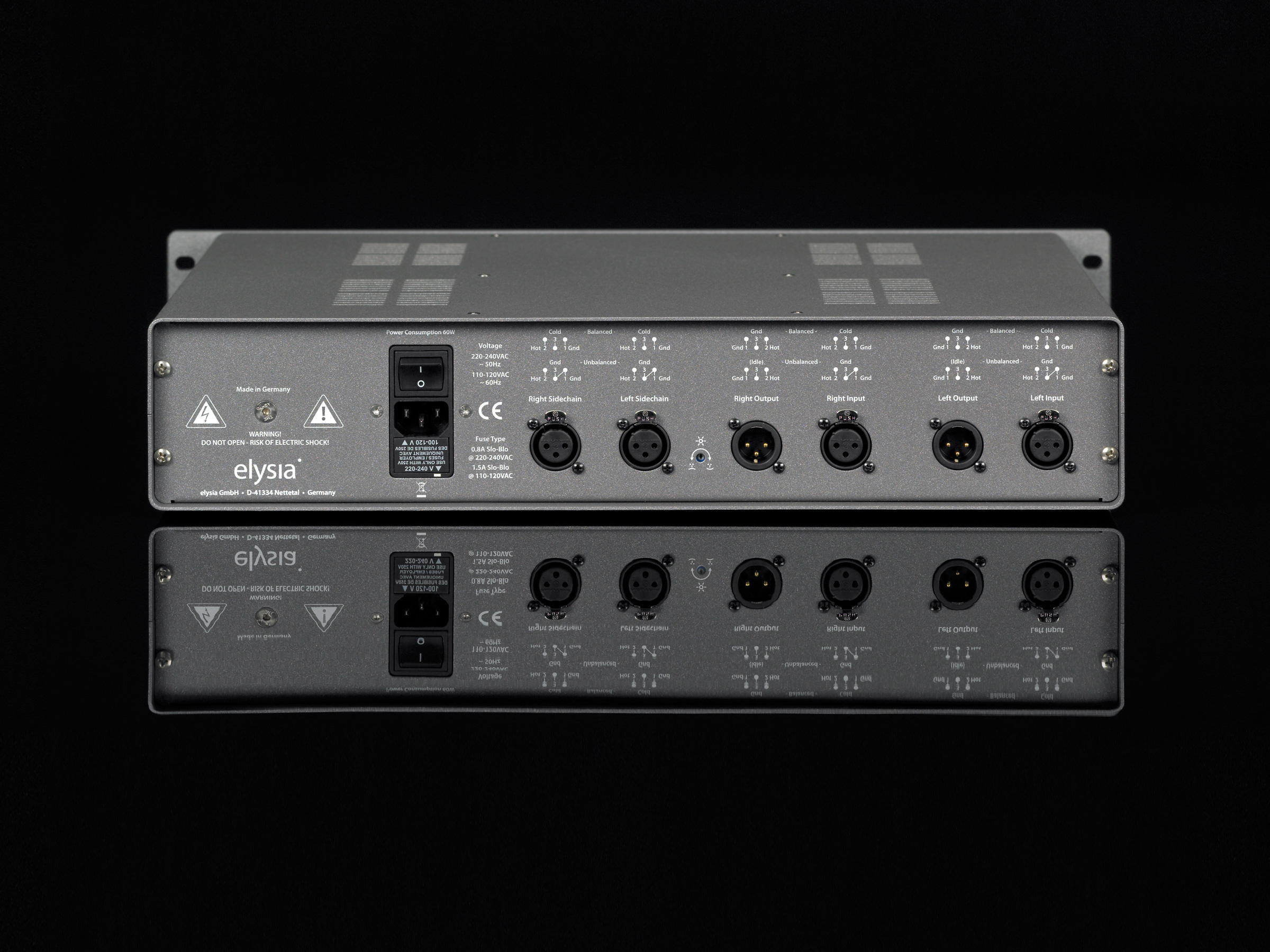

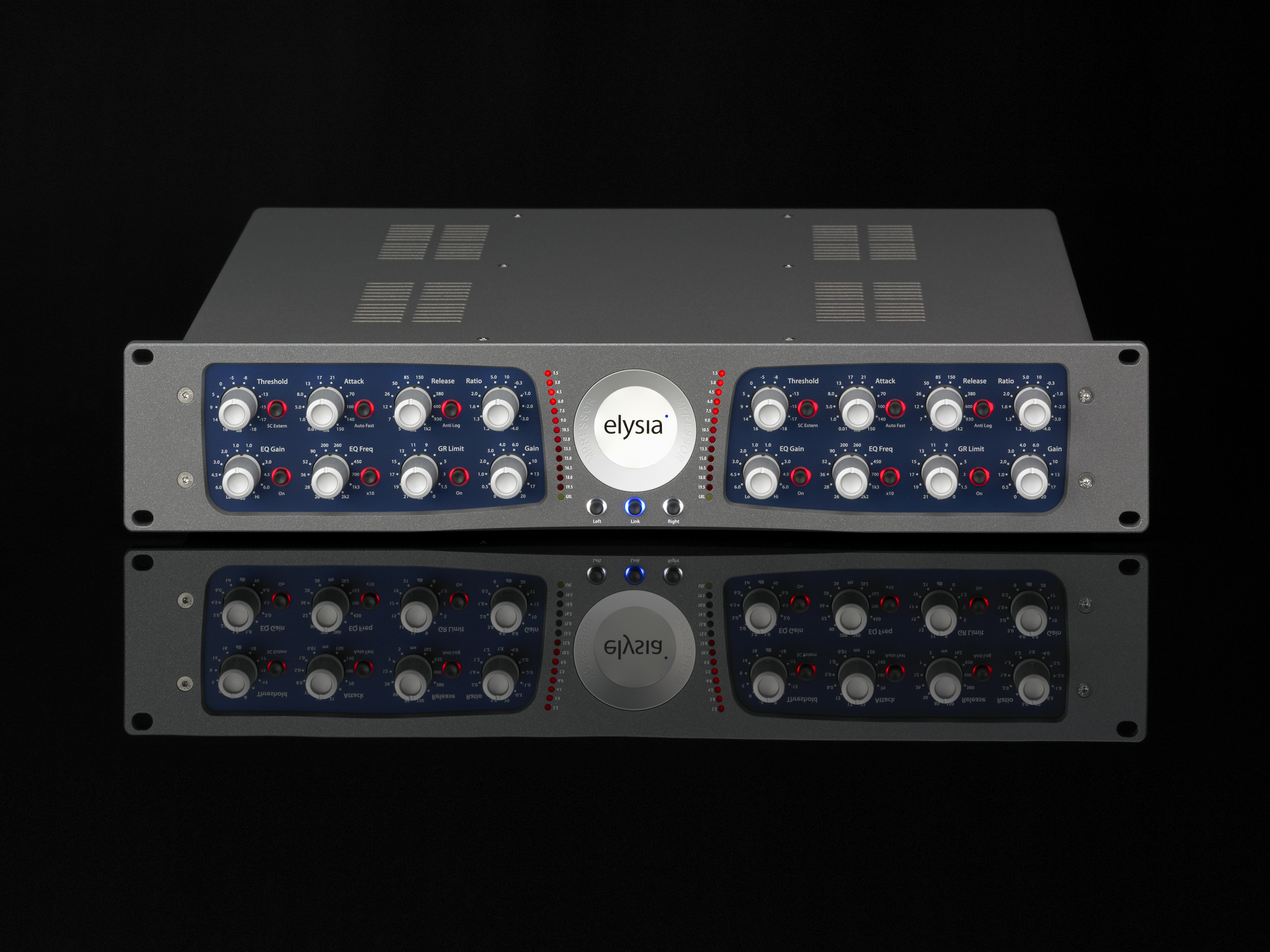

The Elysia Mpressor is a new tool for creative dynamics processing. On top of the tried and tested standard features, this creative compressor provides several special functions that produce fat and freaky sounds by employing a punchy control behavior, coloration full of character and extreme settings. Besides classic tracking applications, its favorite domains are groovy effect compression and creative sound design.On first evaluation, the mpressor might be considered a combination of the Empirical Labs EL8 Distressors and the SSL G Series buss compressor. However, the mpressor's performance is much more hi-fi than either of those.
Each of both linkable channels offers a switchable Auto Fast function that allows very fast yet distortion-free compression without any artifacts. The Anti Log circuit generates explicit compression effects such as pumping and breathing. As the mpressor is a true feed forward design, it also allows negative ratios which result in the most extreme over-compression effects. The Niveau Filters can change the character of a track from subtle to striking with the possibility of a continuous frequency shift. The Gain Reduction Limiter is a novel feature that lets the user choose the maximum amount of Gain Reduction he wants to draw from the unit, and this at the twist of a knob. The switchable external side-chain inputs make for further flexibility in terms of compression behavior.
The circuit design of the mpressor is completely based on discrete analog technology. The entire signal processing is implemented with single transistors in permanent class-A mode, and even the side-chain and power supply are composed of fully discrete circuits. An oversized power transformer, capsule conductive plastic potentiometers, internal temperature stabilizers for critical components as well as special current feedback amplifiers are part of the technical finesse. The combination of these elements aims at the maximum reachable signal quality and guarantees clean and powerful sound characteristics even when extreme settings are used.
Elysia Mpressor Features:
100% Discrete Class-A: As a true elysia specialty, the mpressor is completely based on discrete circuitry and does not use any integrated circuits at all.
Auto Fast: Inspired by its big brother: the switchable semi automation for a perfect attack on the basis of the value set by the user.
Anti Log: This alternative characteristic of the release curve follows an anti-logarithmic course instead of the linear one and produces a much more audible result.
Negative Ratios: The characteristic curve bends and goes back down! Heavy pumping, backward sounds, etc. – perfect for very cool compression effects.
Audio Filter: Just as the alpha the mpressor features a Niveau Filter. According to its creative approach, it here allows even stronger sound shaping results.
External Sidechain: You want to create frequency dependent compression or have it accented by the groove? The switchable sidechain inputs make nearly everything possible!
Gain Reduction Limiter: This novel limiter is not placed in the audio path as usually, but restricts the control voltage of the compressor instead.
Analog Dynamic LED Meter: The gain reduction meter modulates its LEDs in their brightness in order to show the action of the compressor in an analog way: fast and with smooth transitions.
Transconductance Amplifier: The mpressor’s custom discrete gain reduction cell provides low noise, extremely fast time constants and all the punch in the world.
T12 Heater: The single transistors are kept at a constant temperature by the use of this heating system which helps to avoid parameter drifts.

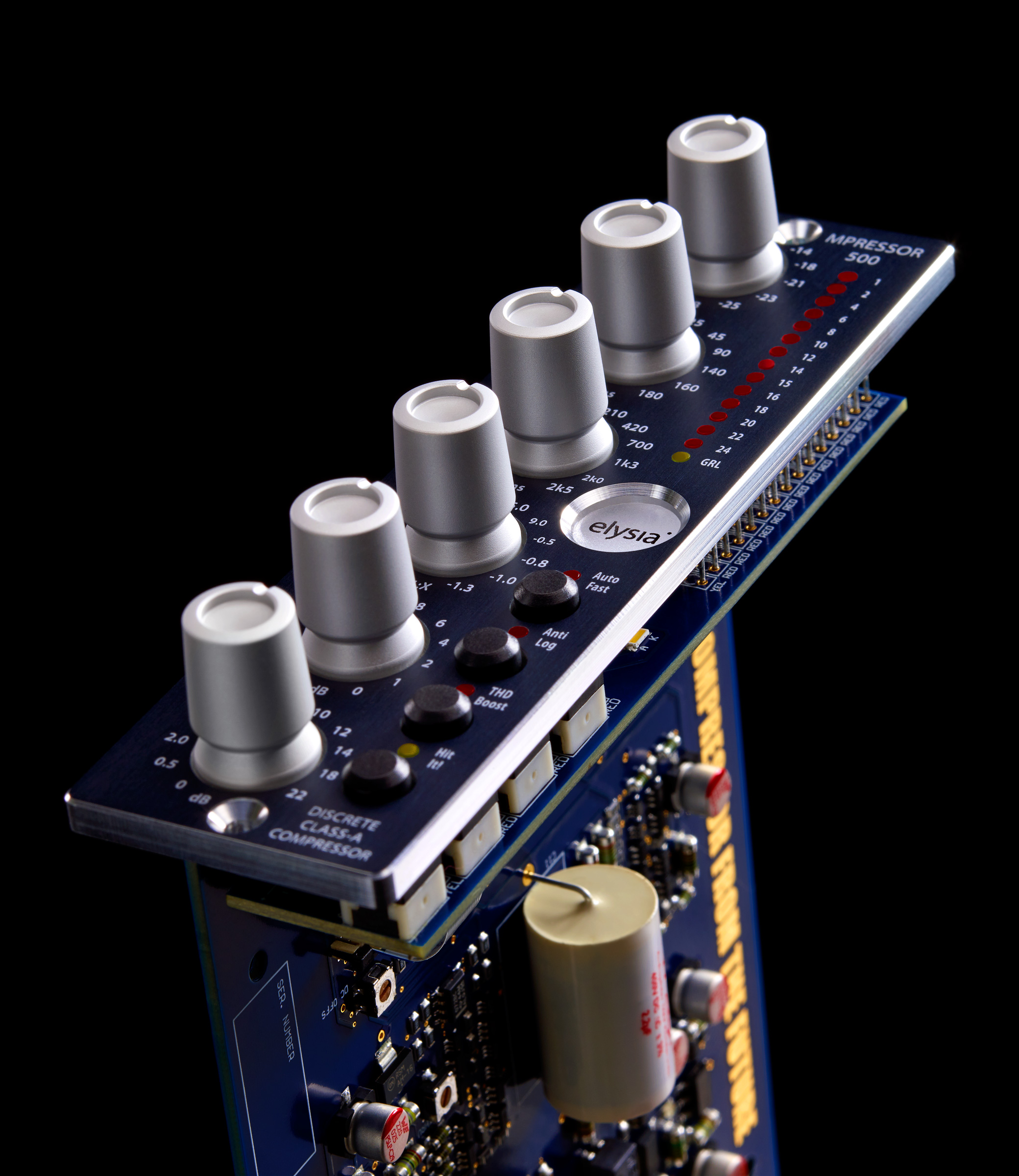

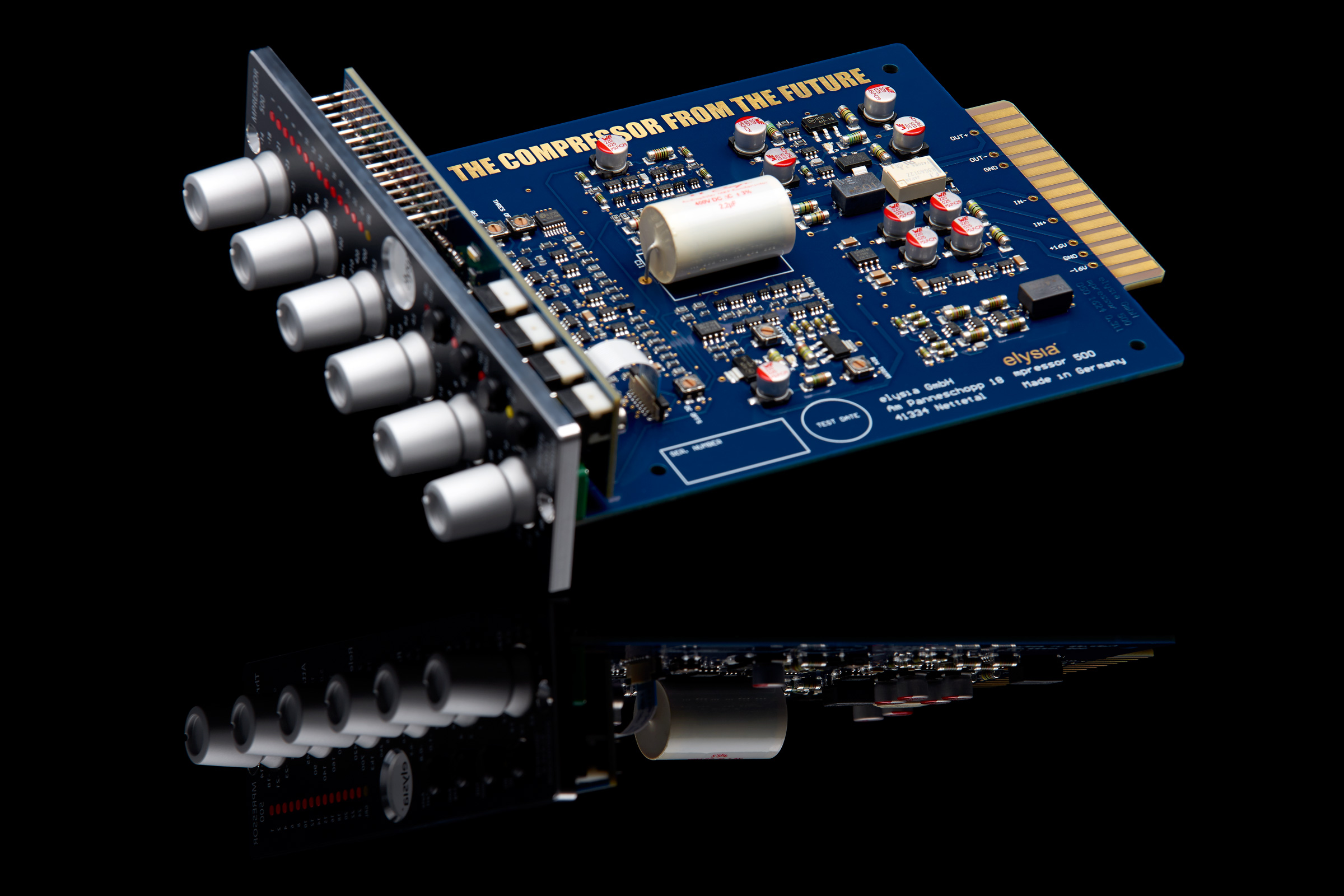

Der mpressor 500 trägt das Erbgut des fantastischen mpressor rack ins 500er Modulformat. Wie sein großer Bruder vereint der mpressor 500 enormen Punch mit einem vollen und detaillierten Class-A Sound. Seine herausragende Klanggüte und Flexibilität machen ihn zur exzellenten Wahl beim Aufnehmen und Abmischen, während seine vielen Sonderfeatures erstaunliche Dynamik-Effekte weit außerhalb der Reichweite normaler Kompressoren erzeugen.Extreme Zeitkonstanten, negative Ratios, Antilog Release und elysias innovativer Gain Reduction Limiter eröffnen ein komplettes Spektrum an einzigartigen Möglichkeiten. Eine neue Funktion des 500er-Moduls ist der THD Boost für Klangfärbung per Knopfdruck und Sättigungseffekte, die den Kompressor deutlich kantiger in Szene setzen.Sein massiver Klang, ein Funktionsumfang der nächsten Generation und sein kreativer Ansatz machen den mpressor 500 zu einem wirklich herausragenden Werkzeug in der Welt der Dynamik-Bearbeitung. Der Kompressor aus der Zukunft.
Der mpressor 500 trägt das Erbgut des fantastischen mpressor rack ins 500er Modulformat. Wie sein großer Bruder vereint der mpressor 500 enormen Punch mit einem vollen und detaillierten Class-A Sound. Seine herausragende Klanggüte und Flexibilität machen ihn zur exzellenten Wahl beim Aufnehmen und Abmischen, während seine vielen Sonderfeatures erstaunliche Dynamik-Effekte weit außerhalb der Reichweite normaler Kompressoren erzeugen.Extreme Zeitkonstanten, negative Ratios, Antilog Release und elysias innovativer Gain Reduction Limiter eröffnen ein komplettes Spektrum an einzigartigen Möglichkeiten. Eine neue Funktion des 500er-Moduls ist der THD Boost für Klangfärbung per Knopfdruck und Sättigungseffekte, die den Kompressor deutlich kantiger in Szene setzen.Sein massiver Klang, ein Funktionsumfang der nächsten Generation und sein kreativer Ansatz machen den mpressor 500 zu einem wirklich herausragenden Werkzeug in der Welt der Dynamik-Bearbeitung. Der Kompressor aus der Zukunft.
Elysia museq - the musical equalizer..
The basic idea behind this analog EQ is the combination of premium sound shaping capabilities with optimally matched parameters which enables the user to find the desired results fast and precisely. The provided bands with their ample control ranges as well as some elysia-specific special features make sure that the museq can be used flexibly in any recording and mixing situation, and the stepped controllers are especially dedicated to mastering applications.
Each of the two channels offers three parametric bands with a switchable Q. The additional outer bands are low/high shelf designs which can be separately switched into a low/high cut mode with an extra resonance peak as a special finesse. Each gain controller of the two times five bands can be altered from boost to cut mode which results in a notably well resolution of the control ranges and twice the number of available settings. Both channels have a switchable option for a stronger coloration of the signal to complete the musical master plan.
The circuit design of the museq is completely based on discrete analog technology. The entire signal processing is realized with single transistors in permanent class A mode, and even the power supply is composed of fully discrete circuits. An oversized transformer, selected capsuled conductive plastic potentiometers as well as special current feedback amplifiers are part of the technical refinement. The combination of these elements aims at maximum signal quality and guarantees clean and powerful sound characteristics even when extreme settings are used.Elysia Museq Features:
Stereo equalizer in fully discrete transistor technology
Complete circuitry operates in permanent class A mode
Conventional, fully discrete power supply
All controllers have 23 steps for an easy recall
Low and High band can be separately switched from shelfing filters into low/high cut filters with an additional resonance peak
The switchable Warm-function reduces the slew rate of the output amplifier stages. This results in added harmonics and produces a vintage-like warm sound
Elysia Museq Applications:
Its universal concept and the huge and open sound characteristics result in the fact that you can use the museq in any given situation without cutting back and with great benefit:
Tracking & Recording
Mixing
Mastering
Creative approaches
Elysia nvelope

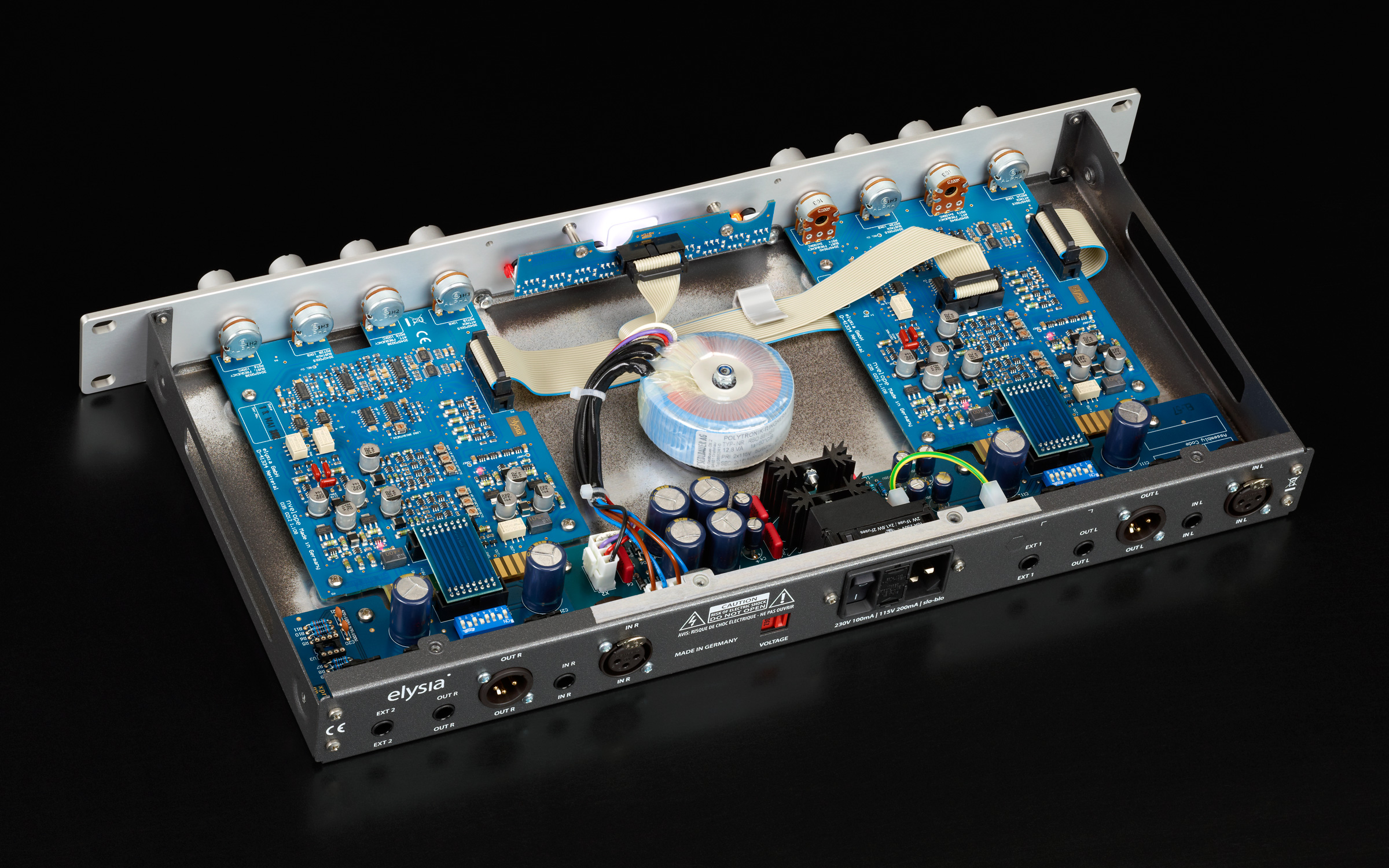

The nvelope is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.
The nvelope operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.
With its unique Dual Band mode, the nvelope gives you enhanced control over processing, and can easily handle complex program material. Additionally, its dynamics sections can be bypassed, allowing it to function as a flexible high/low shelf EQ...
So, the nvelope is a dynamics processor that can change the character of a sound by altering its impulse structure. It gives you direct control over the envelope of a signal by shaping its attack and sustain intensity.More specifically, a drum set (or individual drums) can be made to sound more aggressive and punchy by accenting the attack, or tones that are already overly aggressive can easily be tamed. Other useful applications would be on picked or slapped bass, edgy guitar or any kind of piano recording. Generally speaking, the nvelope works optimally on audio signals with a significant/percussive attack structure.
As a balance to the attack shaping, the sustain parameters offer control over room sound and space. An instrument or a reverb tail can sound tighter by reducing its sustain, or can gain more depth/make a signal sound longer by increasing it.
The nvelope is a great tool for shaping individual signals, but it can be an indispensable resource in mixing situations as well, as it effortlessly helps you to bring a sound to the front with more attack and less sustain… or blends it gently into the background by reducing its attack and increasing its sustain.
A unique feature of the nvelope is the enhanced tweakability offered in Dual Band mode. Individual frequency controls for attack and sustain yield excellent processing results without unwanted artifacts, even when utilized on complex material like a summing bus. We’re sure you’ll be happy to know the nvelope offers true dual mono or linked stereo operation whether you are using it in Full Range, Dual Band or EQ mode.
When the nvelope is not in Stereo Link mode, the two individual channels can be used as different processors simultaneously. For example, you can shape one signal in Dual Band mode in channel L and a completely different signal in Full Range mode in channel R.
Or, you can connect the output of channel L to the input of channel R, and then process the frequency response with the EQ first, followed by some nice Dual Band impulse shaping... As you can imagine, there are lots of possible combinations!
Discrete Class-A Topology
As a true elysia specialty, the audio path of the nvelope is completely based on discrete circuitry and does not use any integrated circuits at all.
To explain the advantages of discrete circuitry we’d like to present a comparison that might seem a little odd at first: audio technology vs. cooking! If somebody uses instant meals exclusively, he will have to accept whatever comes out of the box. A creative cook, however, focuses on his own special recipes and ingredients.
In this respect, integrated circuits (ICs) are pretty similar to packet soups: they are cheap, mainstream and they simply do not match haute cuisine. So if you want to design an analog audio device 100 % according to your own demands and ideas without any compromise, there will be no way around a discrete design.
The nvelope follows this philosophy consequently. Its complete audio path is a new design which is based on the exclusive use of high grade discrete components. A truly unique recipe!
In addition, our signal shaper operates in permanent class-A mode. This means that the transistors are always conductive, resulting in the absence of crossover distortion and providing a pristine sonic base: the general sound character is always wide, open and punchy.
Full Range Mode
In Full Range mode, the attack and sustain intensity of a signal can be raised or reduced fast and efficiently with just two controllers.
The nvelope is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.
The nvelope operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.
Full Range mode is especially fast and easy to use, as all you need to do is dial in more or less attack and sustain by turning their specific controllers to the left (reduction) or to the right (increase).
Similar to a compressor and unlike in Dual Band mode, you can use the Freq A controller to reduce the influence of low frequencies on the attack processing (higher frequency = less bass influence).
Dual Band Mode
This mode functions basically the same as Full Range, but it provides more tweakability by assigning the attack and sustain controls to individual frequency selectors.
The unique Dual Band mode of the nvelope takes you to the next level of impulse shaping. The attack and sustain parameters become much more flexible by selectively processing a certain frequency range chosen by the user.
The Freq A controller now sets the start frequency for attack processing, while the Freq S controller determines the end frequency for sustain processing. The function of the Attack and Sustain controllers remains the same as in Full Range mode.
So it is pretty likely you'll find yourself using the Dual Band mode in any situation where you would like to adapt the way the nvelope processes more individually and on material which tends to produce unwanted artifacts in Full Range mode.
Generally speaking, Dual Band mode gives you more distinct processing options and the possibility to even cope with complex material like a summing bus.
EQ Mode
The nvelope can mutate into a two band equalizer with a high/low shelf characteristic, and even here the channel link for processing stereo material can be activated.
A very nice side effect of the topology of the nvelope is that it can also be used as a shelving filter. This is achieved by temporarily deactivating its dynamics sections while keeping the the filter stages active.
Freq A now sets the frequency of the high shelf filter, while Attack determines the amount of cut (turn left) or boost (turn right) in this band. Similarly, Freq S sets the frequency of the low shelf filter and Sustain determines the amount of cut or boost.
The special architecture also allows for another nice feature which is kind of hard to find on other EQs: Not only can the two channels be used as two separate equalizers at the same time, but they can be linked for processing stereo material conveniently as well.
Mixed Mode
When Stereo Link mode is not active, the two individual channels can be used as completely different processors at the same time.
The nvelope really gets the best out of its two separate channels. It can be two channels of Full Range or Dual Band impulse shaper or shelving EQ, which can be operated stereo linked or dual mono.
But, the two separate channels can also be used for different tasks at the same time. For example, you can shape one signal in Dual Band mode in channel L and a completely different signal in Full Range mode in channel R.
Or, you can connect the output of channel L to the input of channel R, and then process the frequency response of one single signal with the EQ first, followed by some nice Dual Band impulse shaping.
A you can imagine, there are lots of possible combinations...
Dual Mono/Stereo Link
For ultimate flexibility, the nvelope offers true dual mono and linked stereo operation as well – no matter if you are using it in Full Range, Dual Band or EQ mode.
The header says it all, but you might want to have a look at the possible channel combinations resulting from this. Ultimate flexibility!
Stereo Link:
2 x Full Range2 x Dual Band2 x EQDual Mono:
Full Range – Full RangeFull Range – Dual BandFull Range – EQDual Band – Full RangeDual Band – Dual BandDual Band – EQEQ – Full RangeEQ – Dual BandEQ – EQ
Auto Gain
Should distortion or huge jumps in level occur as an unwanted side effect of the attack processing, the Auto Gain function will compensate and get the level right.
Boosting the attack in Full Range mode can sometimes result in some pretty huge level peaks. These can make your processed signal sound uneven, and in the worst case they will create the nasty kind of distortion you don't want.
The nvelope solves this very conveniently with the Auto Gain function. This simple button makes the impulse shaper automatically compensate stronger level peaks, so this can be the solution for many level-related issues caused by the attack processing.
By the way, Auto Gain is typically not needed in Dual Band operation and therefore not offered in this mode. Also, Auto Gain does not have any influence on a channel operating in EQ mode.
Stepped Potentiometers
The frequency potentiometers have 41 steps for an easy recall, while the gain pots have a center detent for finding their neutral position at once.

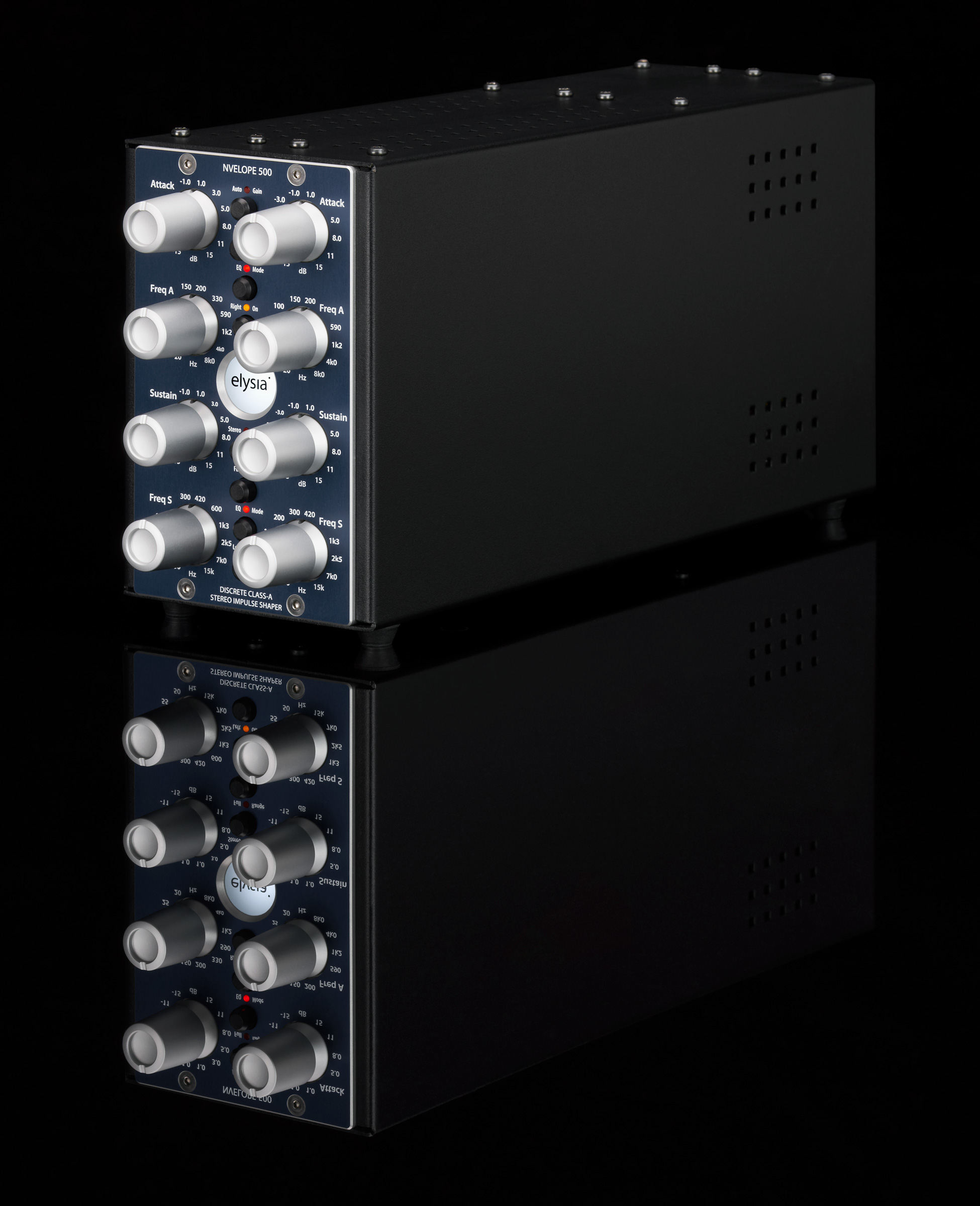

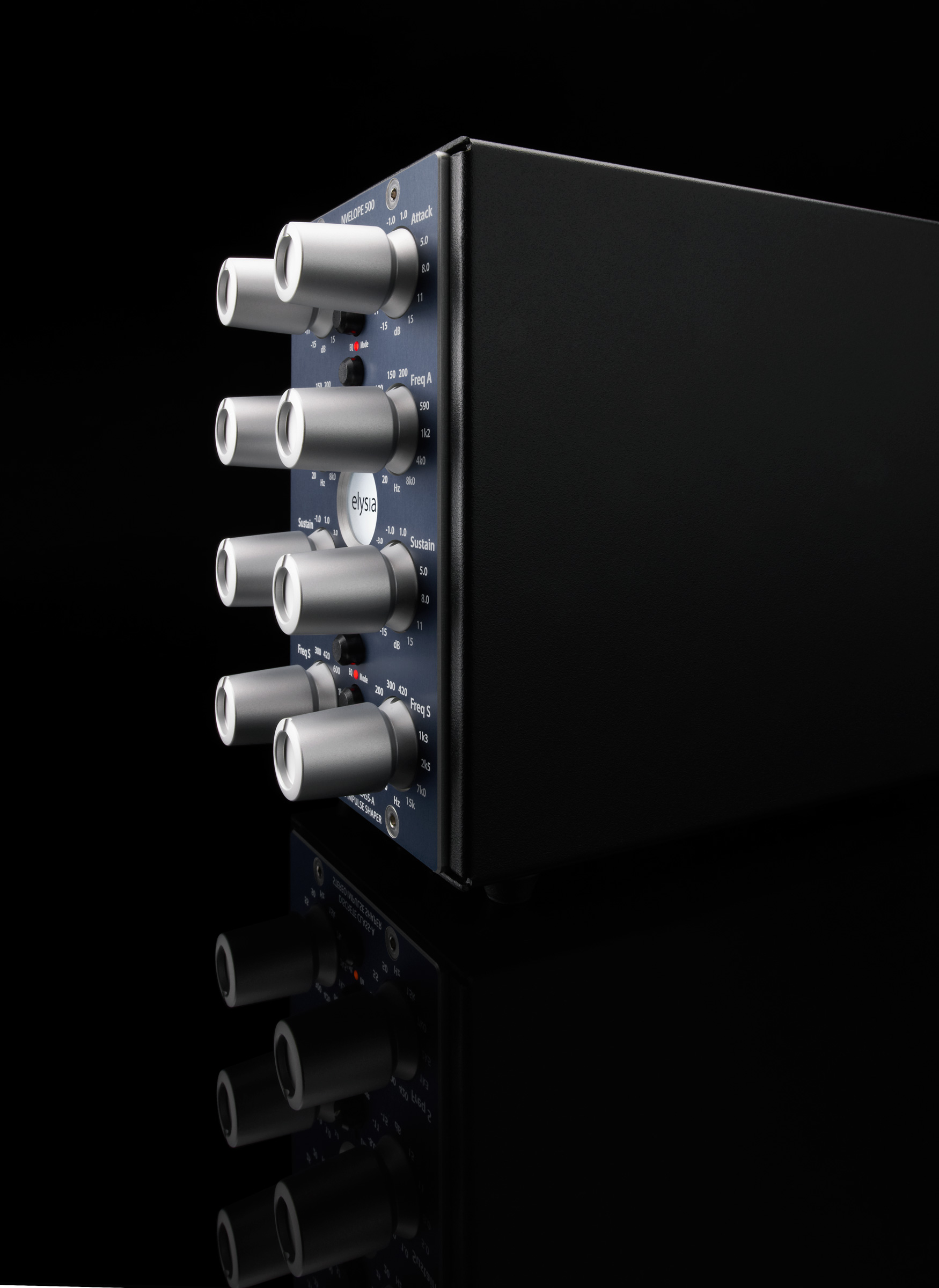

Elysia nvelope 500
The nvelope 500 is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.
The nvelope 500 operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.
With its unique Dual Band mode, the nvelope 500 gives you enhanced control over processing, and can easily handle complex program material. Additionally, its dynamics sections can be bypassed, allowing it to function as a flexible high/low shelf EQ...
Features:
Discrete Class-A Topology Pristine audio quality.
Full Range Mode Fast & efficient envelope shaping.
Dual Band Mode Enhanced frequency controls.
EQ Mode Alternative high/low shelf equalizer.
Mixed Mode Two different processors at the same time.
Stereo Link/Dual Mono Flexible channel use and combination.
Auto Gain Eliminates level peaks and distortion.
Made in Germany High grade components, solid aluminum knobs.

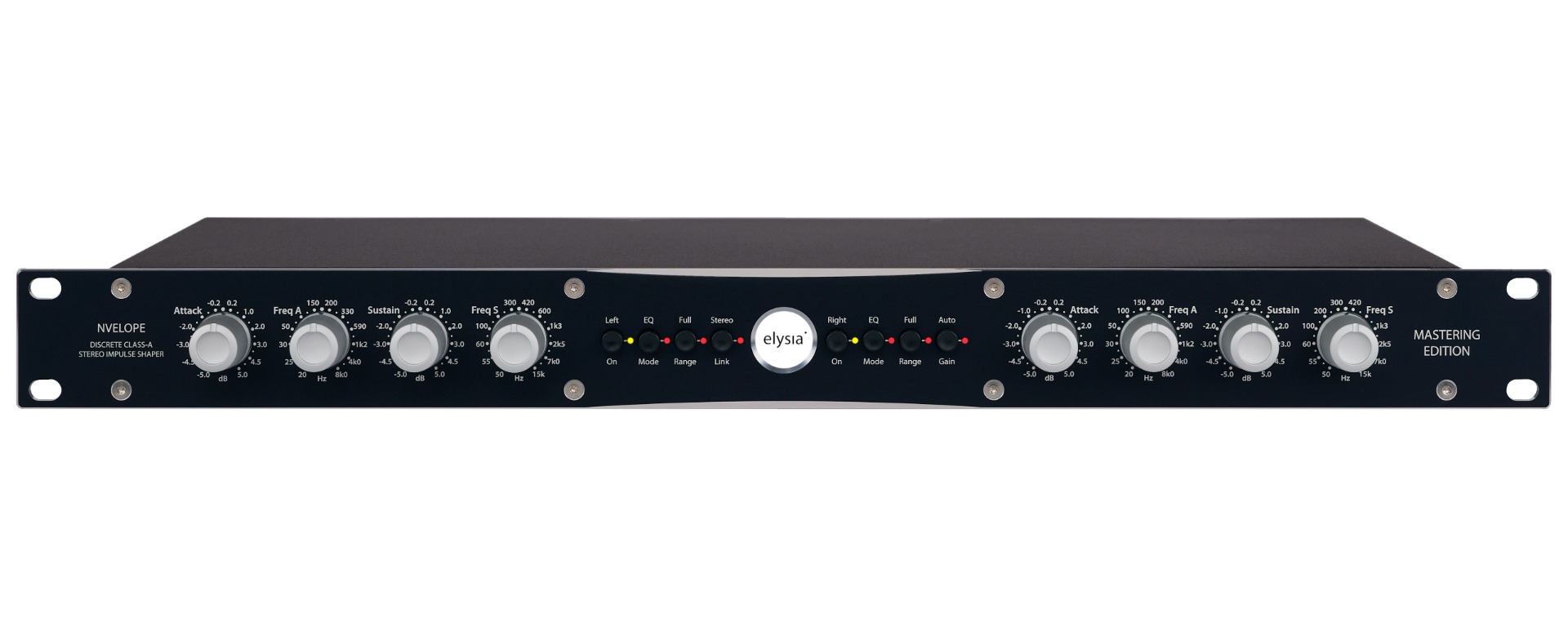

Every single of its many aspects – sound, features, circuitry, components, design, materials, manufacturing – has been thought over and over until there was just nothing left to improve. Basically, every single part of our fine products is custom, and most of these are made according to our own designs and specs. Only the best components the market has to offer are good enough for the nvelope, and it shows. Each of our product is manually built to order and tested by ourselves, here at our headquarters in Germany. Our product benefits sum up in an audio quality that is beyond all doubt. Even when extreme settings are used, the sound always stays clean and powerful. The nvelope Mastering Edition provide stepped controller and precise control range of +/-5dB.
Features
Class-A Stereo Transient Shaper for mixing and mastering
Developed by Ruben Tilgner, the creator of the original SPL Transient Designer
Precision control range of +/- 5dB, specifically designed for mastering applications
All potentiometers are detented – perfect for quick and accurate session recall
Full Range Mode (Classic Mode)
Exceptionally sounding Shelf Equalizer Mode
Dual Band Mode
Best-sounding Transient Designer on the market
Ideal for drum room or overhead microphones
Can be used as Dual Mono or in full Stereo Link
Pleasant and natural sound for all acoustic instruments
nvelope 500 is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well. Especially drums and other percussive signals will benefit big time from the nvelope’s magic.
The nvelope 500 can effectively change the spatial perception of a signal, ranging from small/dry to large/wet. You can form a signal and enhance its cut in the mix without deforming it too much as you would by using excessive EQ and compression.

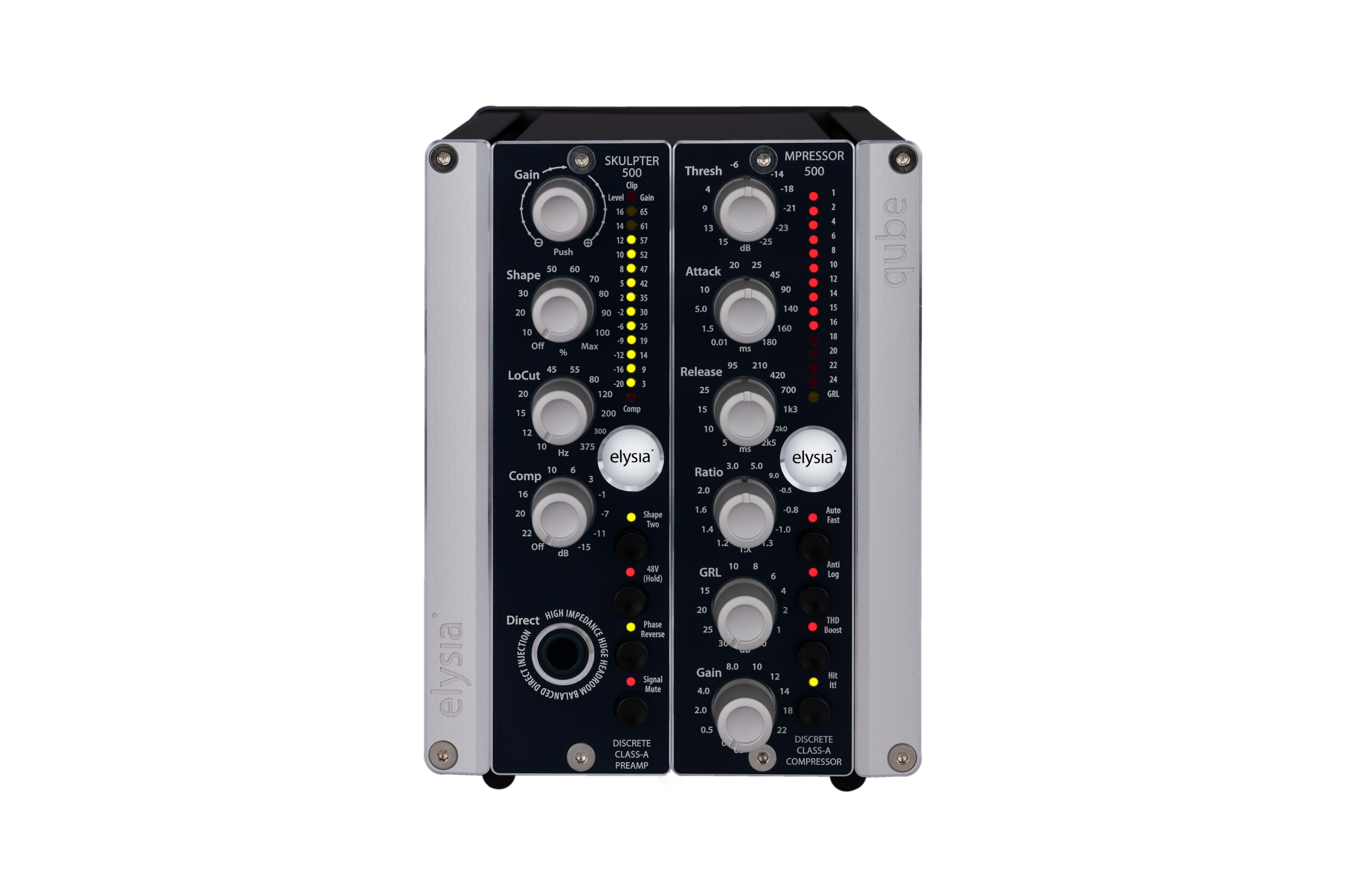

Ein Class-A High-End Preamp kombiniert mit dem ultimativen kreativen Kompressor
in einem kleinen und ultraportablen Formfaktor - das perfekte TeamClass-A Mono Channel StripHigh-End Class-A Preamp + Class-A kreativer KompressorKombiniere beide Geräte und erhalte volle Kontrolle über dein AudiosignalVoll einstellbarer und unhöhrbarer Low CutKombinierte Level und Gain AnzeigeShape Funktion mit zwei untertschiedlichen Sound FlavorInterne 48V Generierung für Kondensator- und aktive BändchenmikrofoneVielseitiger Kompressor für jegliche musikalische Anwendungen
Geringe bis keine Nachbearbeitung notwendig im Mix (“Mix ready“ Audio Signal)Ideal für alle Arten von Musik/VoiceOver AnwendungenHerausragende Qualität zu einem unschlagbaren PreisUltraportables elysia qube Format mit eigenem Netzteil, XLR und ¼“ Buchsen für Ein- und Ausgänge

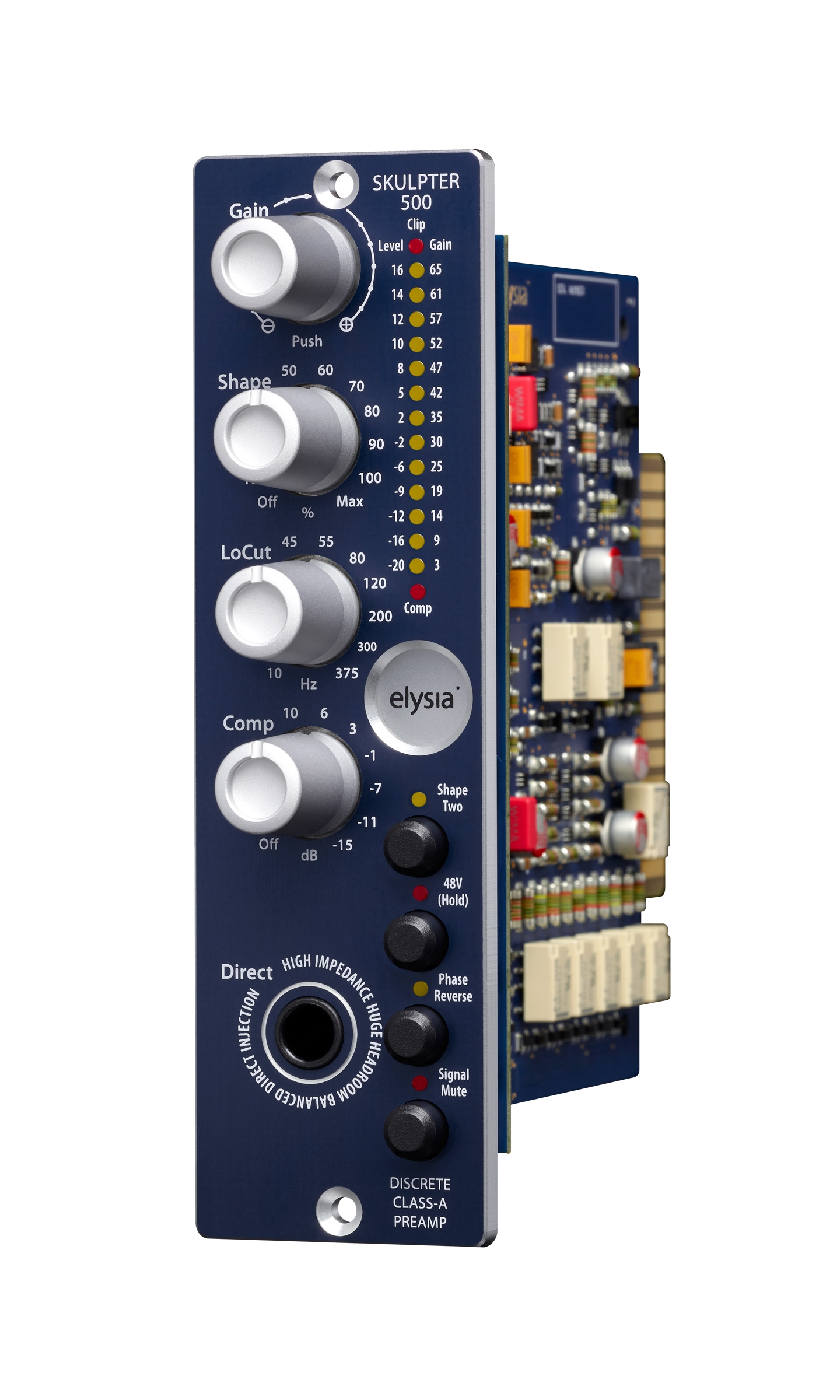

Der skulpter 500 ist das ultimative Recording-Frontend. Sein audiophiler Preamp basiert auf einzelnen Widerständen, die einen vollständig diskreten Class-A Verstärker steuern. Der äußerst natürliche Klangcharakter unterstreicht die Stärken jedes individuellen Mikrofons bis ins kleinste Detail. Mehr Mojo gewünscht? Kein Problem, denn die flexible Klangformung und der intelligente Kompressor machen es möglich, bereits während der Aufnahme einen komplett „fertigen” Sound zu produzieren. Ob fein oder fett – das Soundvergnügen endet nicht am Mikrofonschrank. Der skulpter 500 verfügt über einen symmetrischen DI-Eingang mit sehr viel Headroom, sodass auch Gitarren, Bässe, Synthesizer und Effekte in den Genuss eines hochwertigen Audiopfads mit absolut überzeugender Klangveredelung kommen.
So viel mehr als nur ein Preamp... der skulpter 500 ist eine komplette Aufnahmelösung, und damit der perfekte Partner für jede DAW.
Features:
100% Diskrete Class-A Topologie: Höchste Güte für Audiopfad und Processing.
Audiophile Gainstruktur: Natürlicher und äußerst detailreicher Klang.
Dual Sound Shaper: Mojo-Maschine mit Filtern und Harmonischen.
Intelligente Onboard-Dynamik: Clever gesteuerte, musikalische Kompression.
Variables Low Cut-Filter: Flexible Optimierung der tiefsten Frequenzen.
Symmetrischer DI-Eingang: Instrumenten-Eingang mit massig Headroom.
Multifunktionale Anzeige: Pegel, Verstärkung, Kompression und Clipping.
Gerasterte Regler: Exakte und wiederholbare Einstellungen.

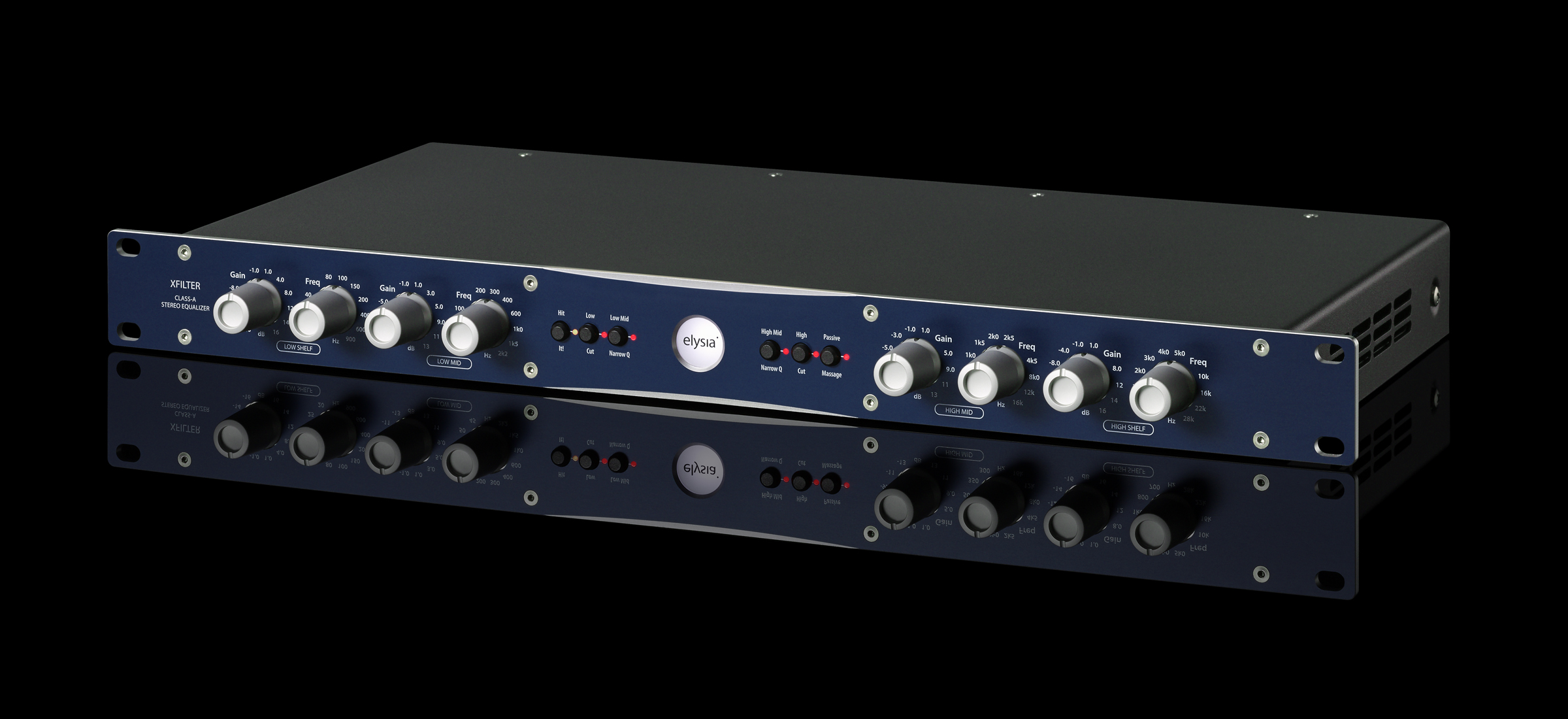

The xfilter is a true linked stereo equalizer with the heart and soul of our flagship EQ, the museq. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped pots and low tolerance film caps.
This EQ is serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.
With its exceptionally open sound, straight transient projection and solid punch, the xfilter is the perfect match for your xpressor – or any other piece of delicious outboard gear!
100% Class-A Topology Expensive boutique sound made affordable.
True Stereo Operation Two channels, just one set of controllers.
Resonance High & Low Pass Filters Extremely useful secret weapons.
Additional Passive High-Band Magic LC polish for opening up the top end.
Switchable Filter Quality Wide and narrow Q for the parametric mids.
Special Low Tolerance Pots and CapsComputer-selected for better stereo accuracy.
Stepped ControllersFast and easy recall guaranteed.
Made in GermanyBuild quality without compromise.

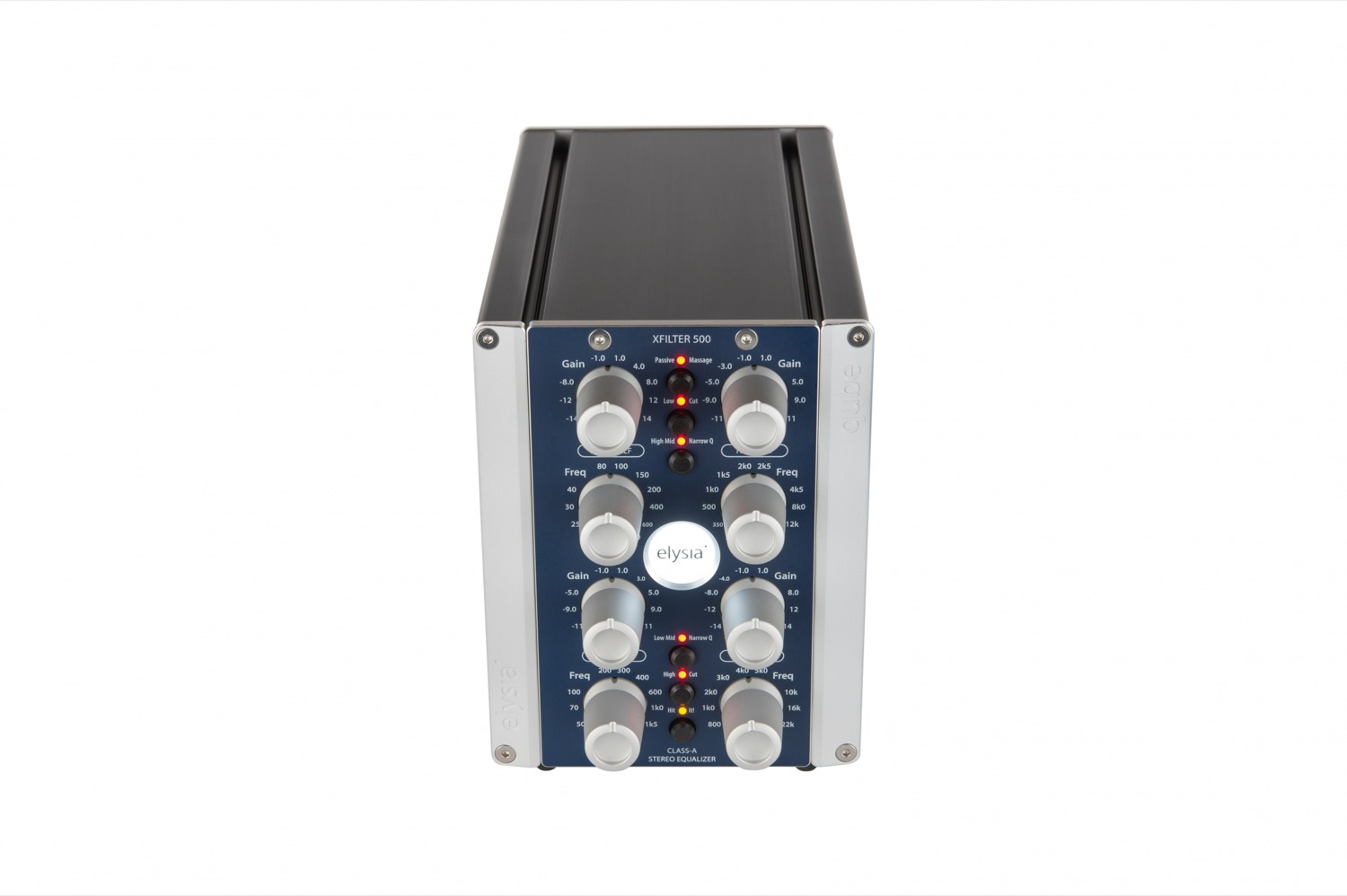

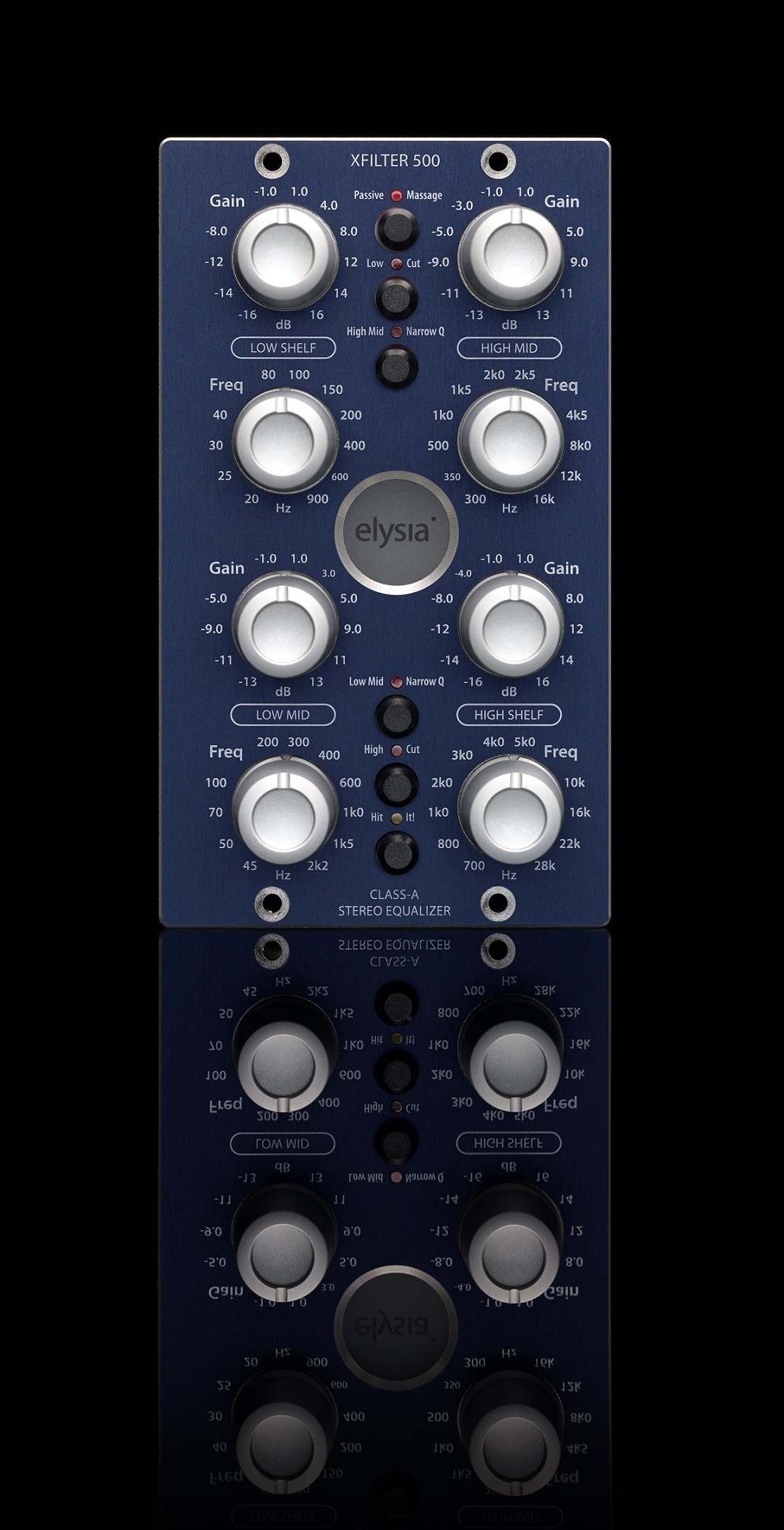

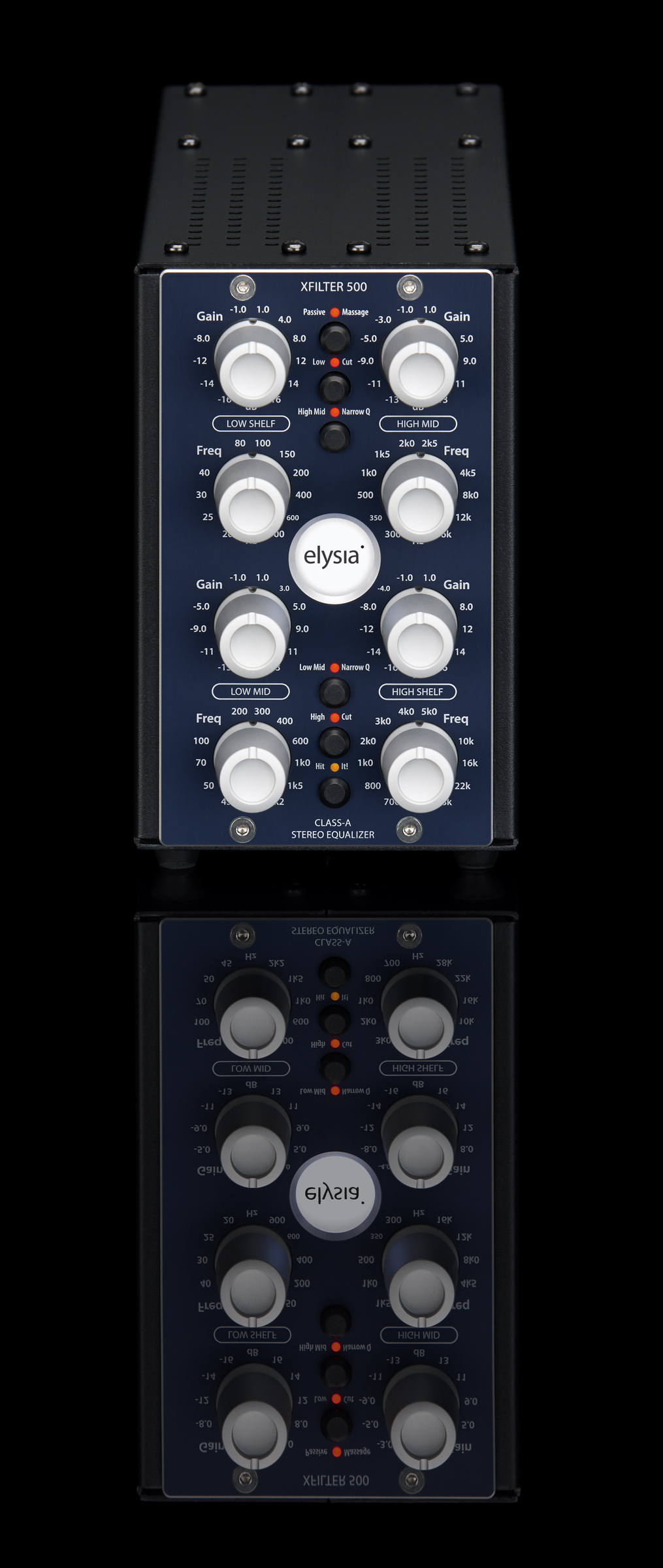

The xfilter 500 is a true linked stereo EQ in the 500 series format. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors.
This EQ is serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.
With its exceptionally open sound, straight transient projection and solid punch, the xfilter is the perfect match for your xpressor – or any other piece of delicious outboard gear!
100% Class-A Topology: Discrete input, output and mix stages plus the complete audio path running in constant class-A mode are the basis for an exceptionally transparent, wide and open sounding EQ.
True Stereo Operation: As one of the few exceptions in the market, the xfilter 500 processes both of its channels with just one set of controllers – a true stereo linked EQ.
Computer-Selected Potentiometers: Every single dual and quad layer pot we buy is measured with custom computer routines, and only the good ones go into production.
Special Low Tolerance Capacitors: The special series of film caps used for the xfilter 500 performs twice as good as the industry standard in terms of component tolerance.
Resonance High & Low Cut Filters: The shelving filters can be switched into high and low cut filters with an additional resonance peak. Not ordinary, but extremely useful.
Switchable Filter Quality: The quality of the peak filters can be switched from a wide to a narrow Q factor which remains independent from the setting of the gain controller.
Additional Passive High-Band: The beautiful sheen only passive filters can deliver... the xfilter 500 has it all. An additional LC filter with shielded coils gives you the 'Passive Massage'.
Stepped Controllers: All potentiometers on the xfilter 500 have 41 steps, which is a great help for recalling your previous sessions fast and precisely.
Ground Layer Shield: One of the four layers of both PCBs is a full copper plane which helps to reduce interferences caused by electric fields.

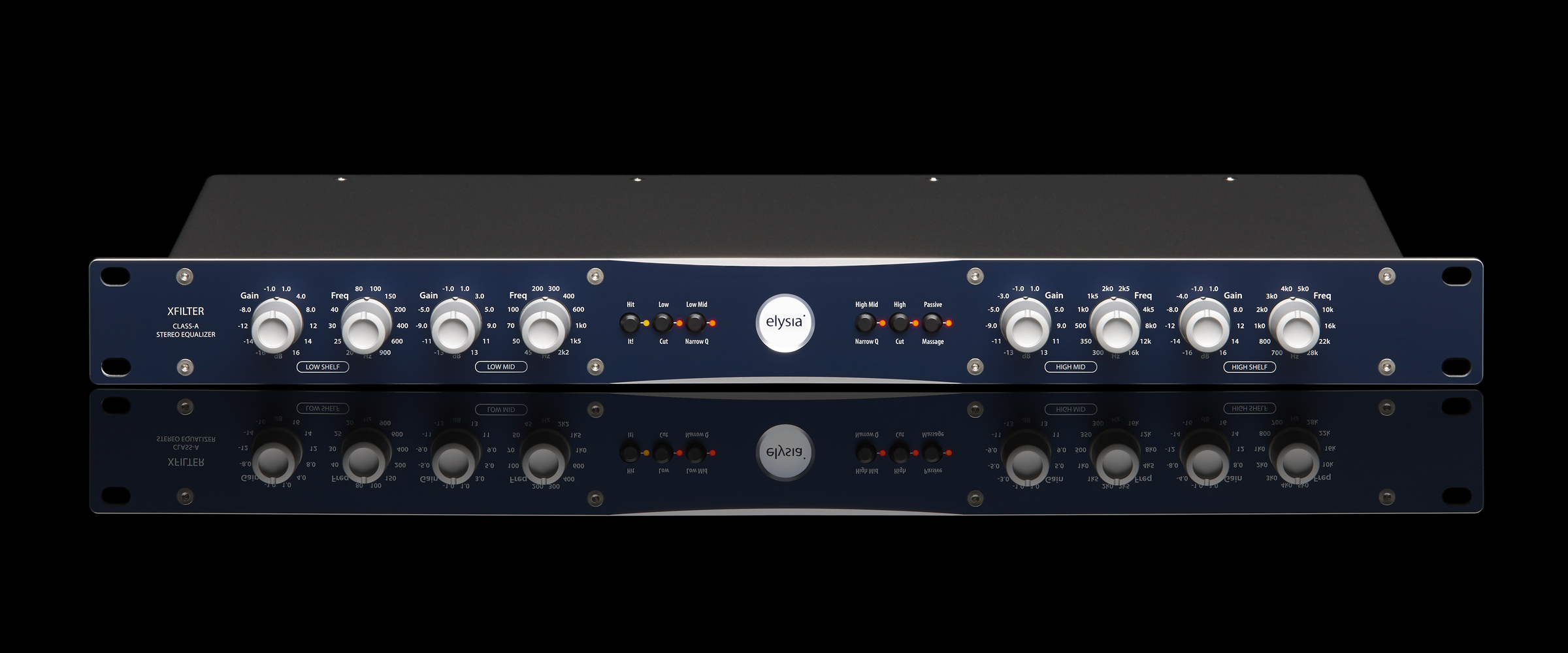

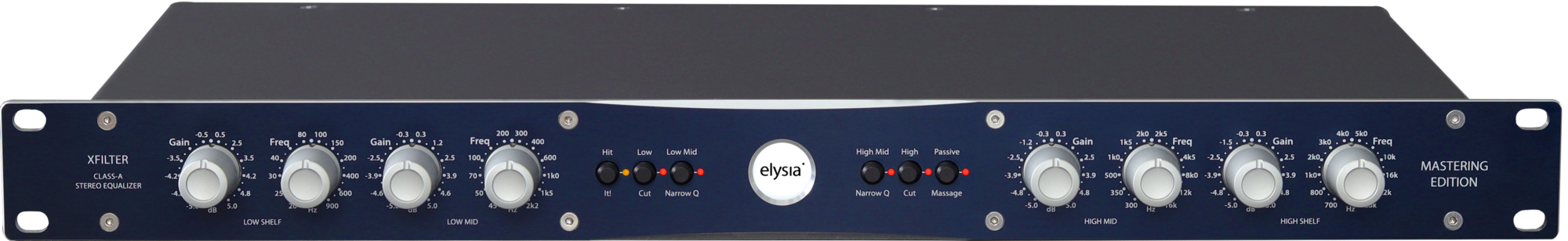

The elysia xfilter Mastering Edition is a very sophisticated, handcrafted analog stereo 4-band equalizer, with both channels linked for stereo operation. All four bands provide a precise control range of +/-5dB. The xfilter Mastering Edition produces the high-end sound of a Class A equalizer at an amazing value for the money. This fine analog 4-band stereo equalizer produces an absolutely precise stereo image based on the use of computer-selected components with extremely low tolerances. A special feature of this analog equalizer shines through its double flexibility! It offers high and low shelf bands which can be switched to high and low pass filters with resonance control. Two bell filters with narrow and wide Q for the mid frequencies as well as additional passive LC stages with shielded coils to refine the treble frequencies. The extraordinarily open sound, the direct transient reproduction, the solid punch as well as the balanced output stage with up to +27dBu make the xfilter Mastering Edition the perfect companion in the mastering studio.
The xfilter Mastering Edition Highlights
4-band stereo analog equalizer with real stereo link
High-quality and light construction in aluminium housing | Made in Germany
Class-A Topology
Gridded potentiometers
High and Low Shelf Bands
Hi- and Low Pass Filter with Resonance
Two parametric Mids with switchable Q-Faktor
Additional passive high-band
The xfilter 500 is a true linked stereo EQ in the 500 series format. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors.
With its exceptionally open sound, straight transient projection and solid punch, the xfilter 500 is the perfect match for your xpressor 500 – or any other piece of outboard gear!
A yummy and magically linked stereo equalizer in the box. With our xfilter 500 included, there is no excuse for bad ingredients like lost frequencies, flat sounds, and flavorless audio soups.
Now you have all the great transparency and the pure spicey Class-A analog sound at your fingertips for an affordable price.

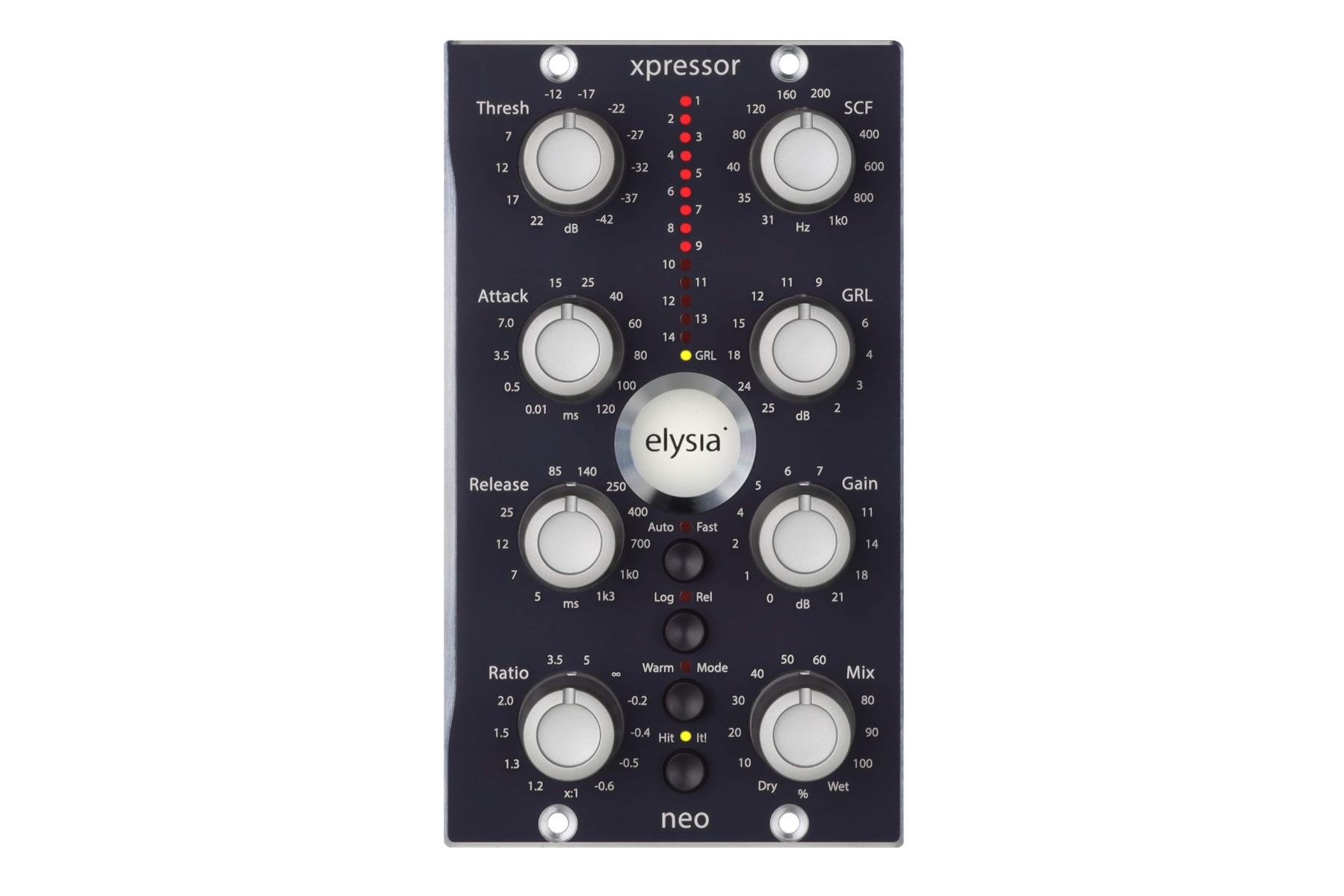

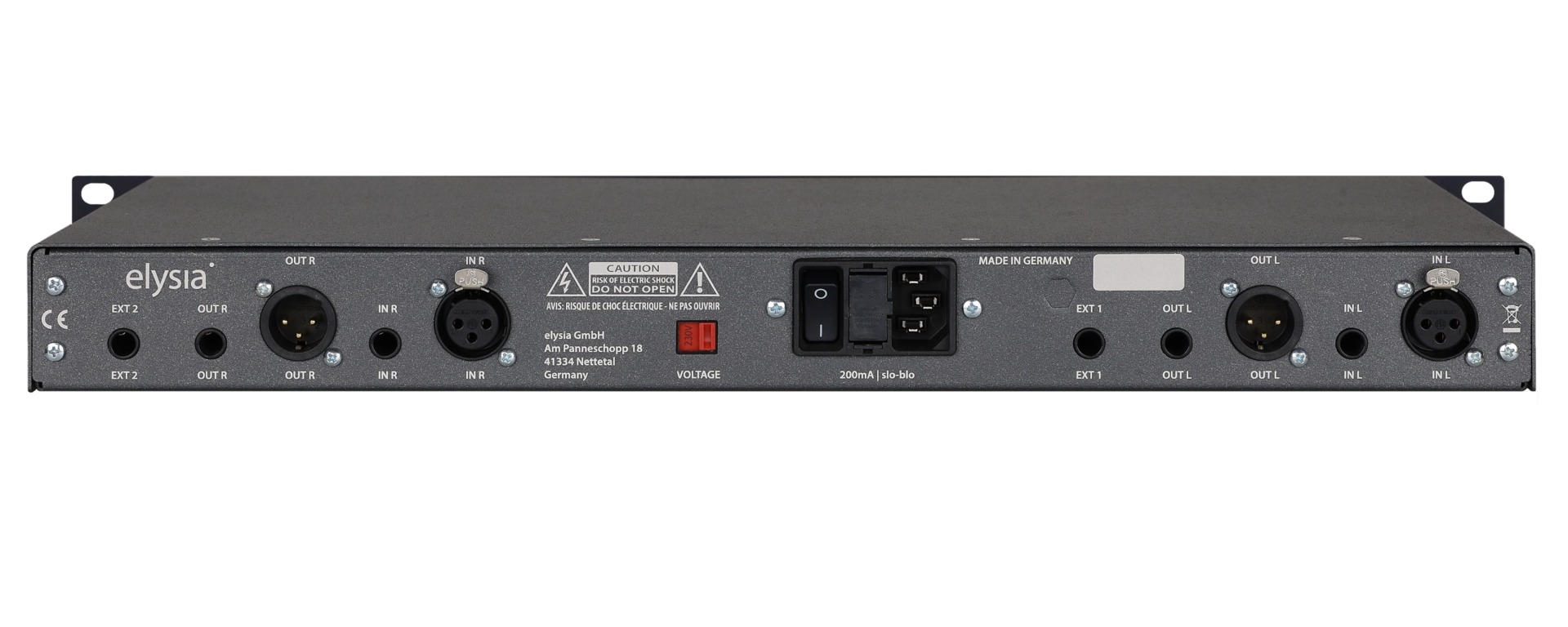

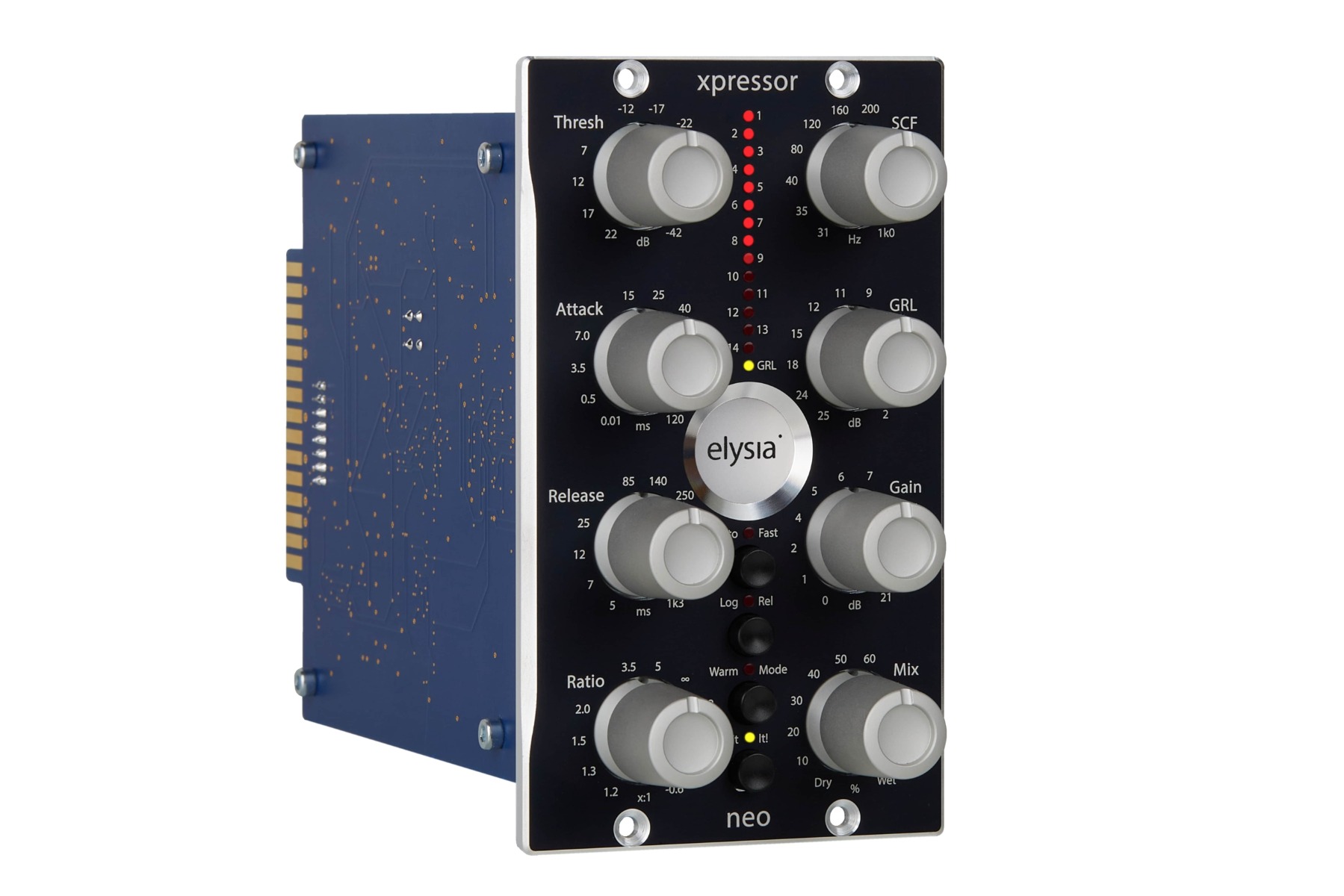

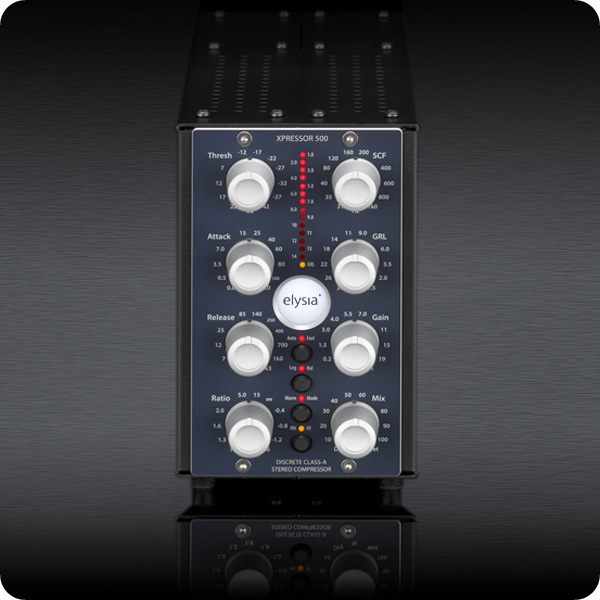

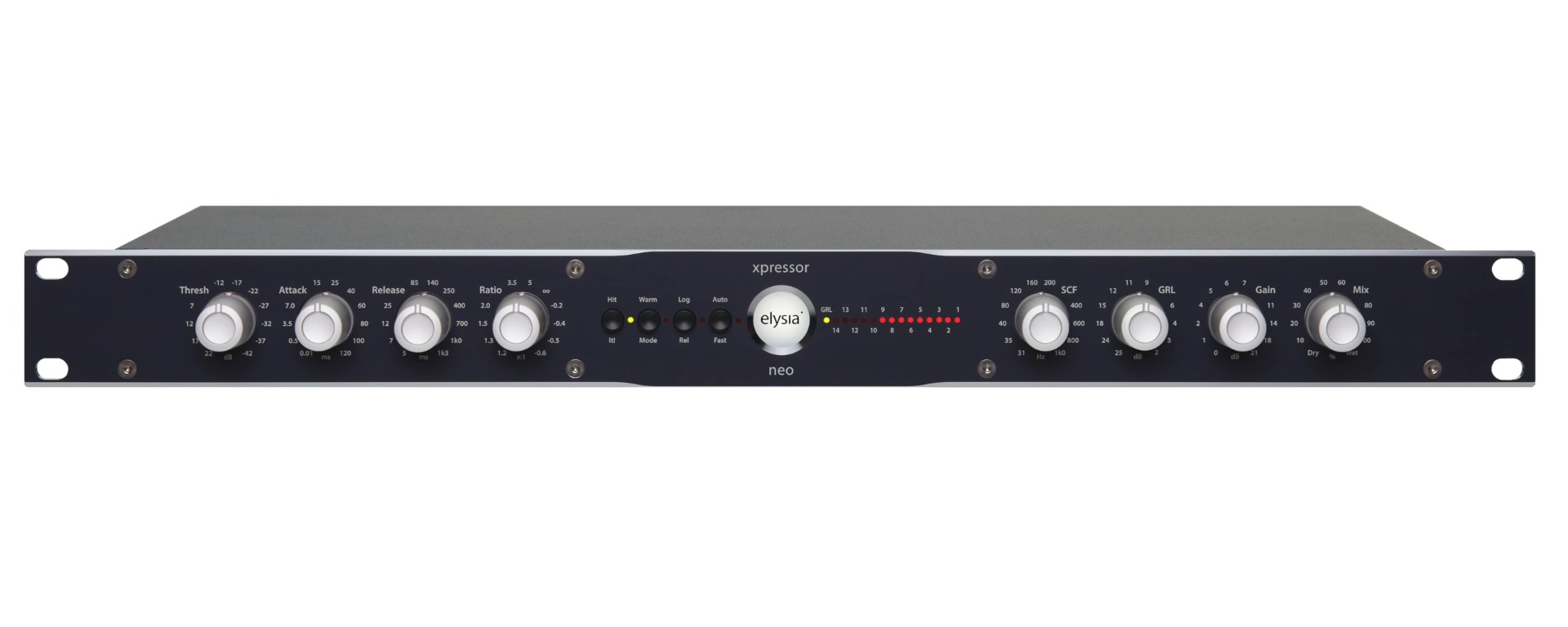

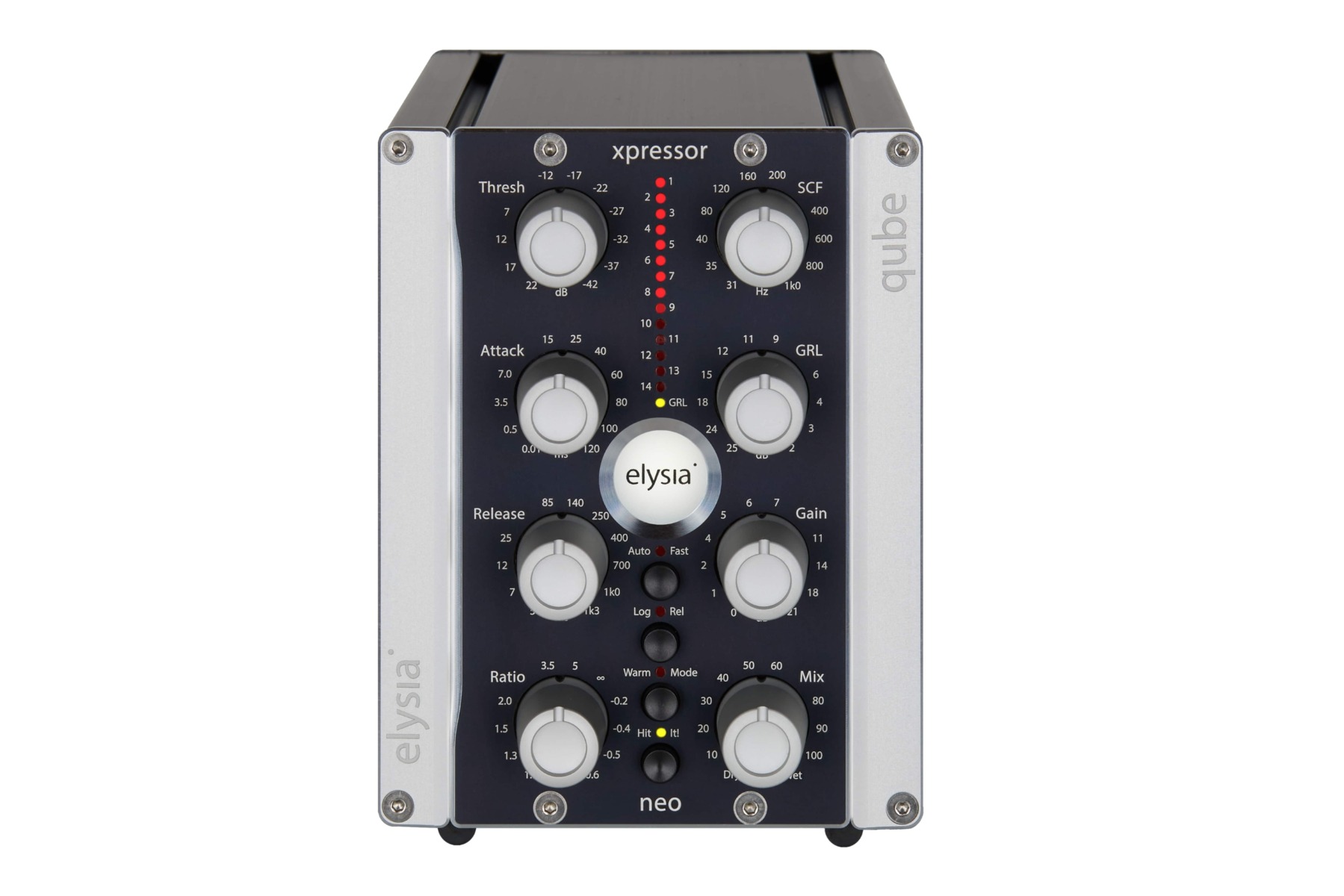

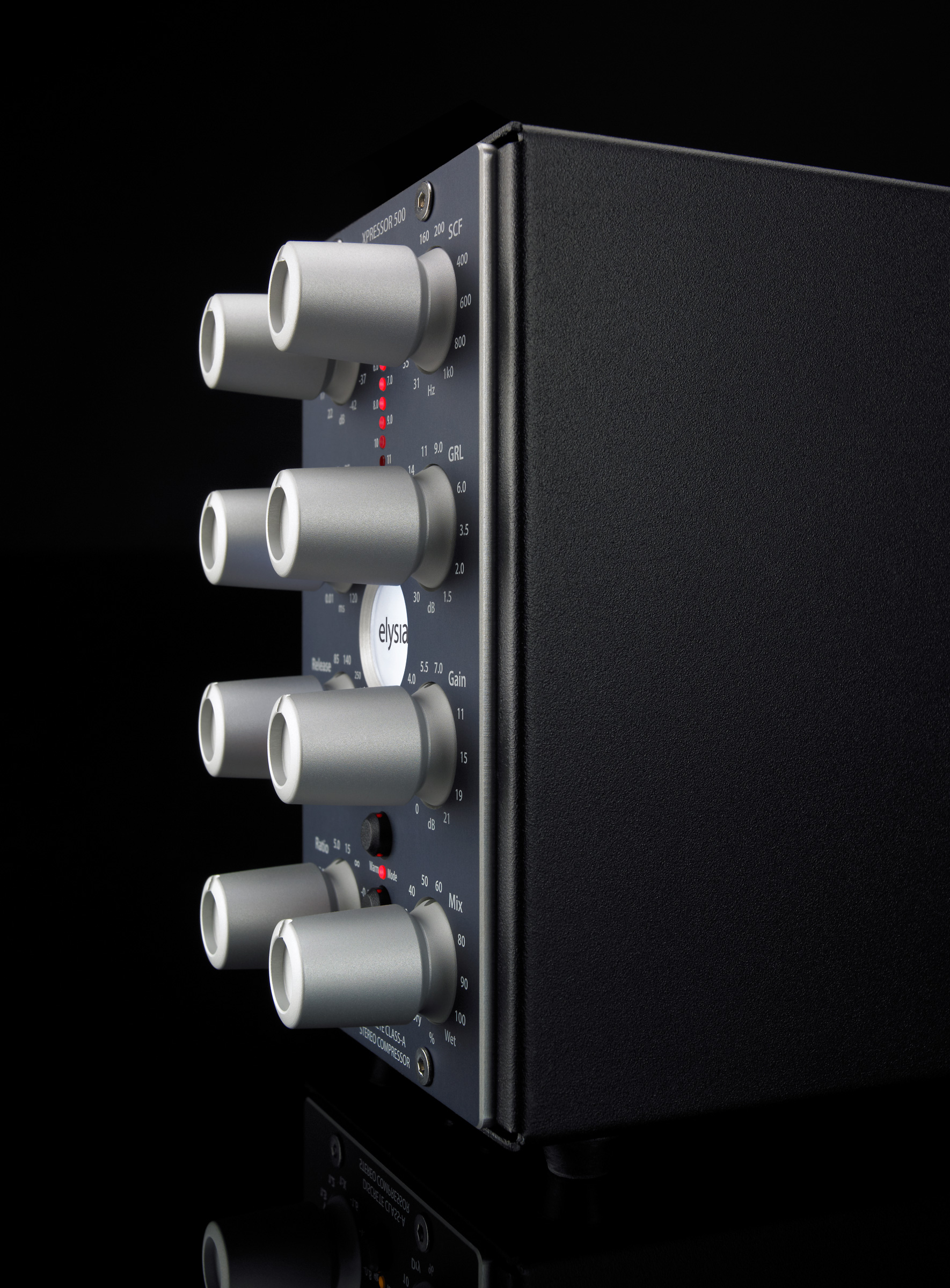

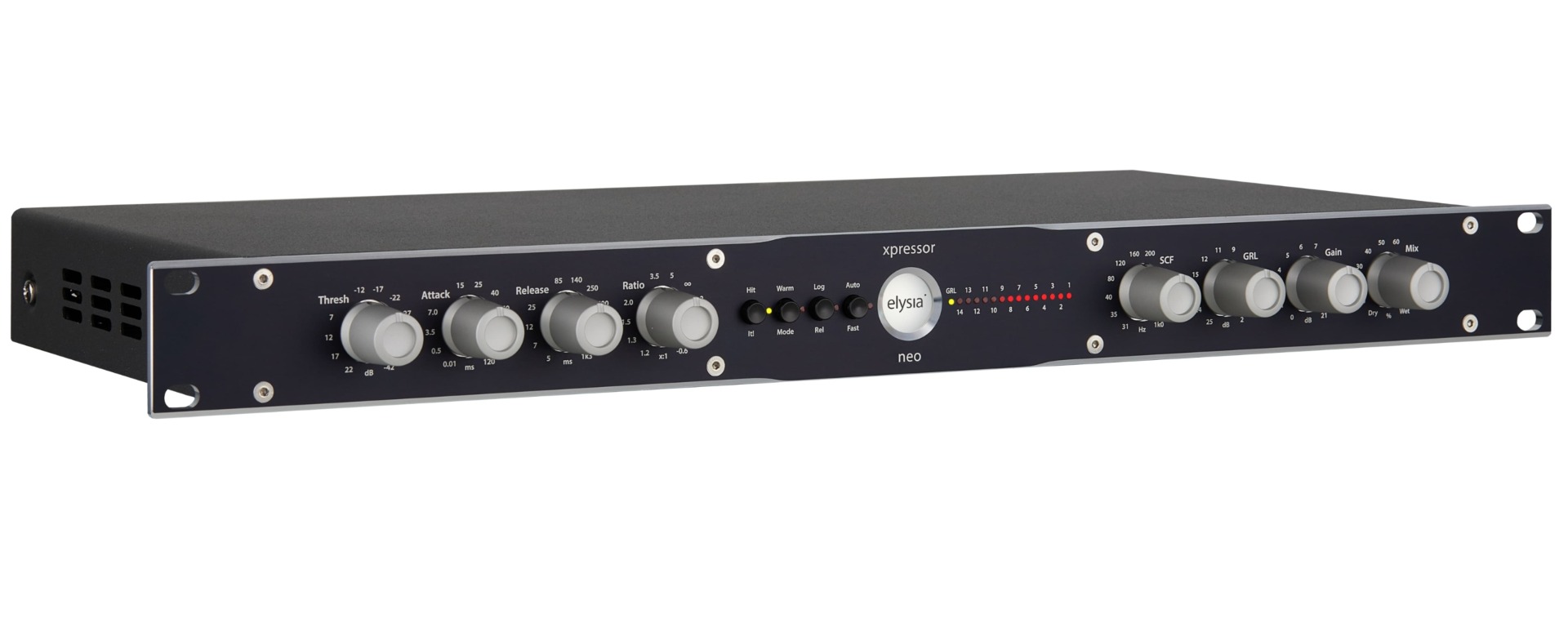

Since its release in 2010, the xpressor became one of the most modern, sophisticated compressors in the audio world in an absolutely affordable price range and found its way to many studios around the world.
We re-engineered and refined our famous compressor and the results are stunning. More Depth, more transparency, and more three dimensional processing packed in a new hardware design. xpressor|neo takes what its original version elysia xpressor is skillfully capable of and opens up new sonic dimensions.
Since its release in 2010, the xpressor became one of the most modern, sophisticated compressors in the audio world in an absolutely affordable price range and found its way to many studios around the world.
We re-engineered and refined our famous compressor and the results are stunning. More Depth, more transparency, and more three dimensional processing packed in a new hardware design. xpressor|neo takes what its original version elysia xpressor is skillfully capable of and opens up new sonic dimensions.
Since its release in 2010, the xpressor became one of the most modern, sophisticated compressors in the audio world in an absolutely affordable price range and found its way to many studios around the world.
We re-engineered and refined our famous compressor and the results are stunning. More Depth, more transparency, and more three dimensional processing packed in a new hardware design. xpressor|neo takes what its original version elysia xpressor is skillfully capable of and opens up new sonic dimensions.
Elysia xpressor 500
The xpressor 500 is an extremely versatile stereo compressor available in API's 500 series format. With its many unique features taken from our flagship products, you not only get great compression, but an amount of control on processing which is hardly ever experienced elsewhere.
No matter if you want to set and forget or plunge deep into the secrets of compression, the xpressor 500 is for you. Its discrete audio path running in constant class-A mode provides a superior audio quality which combines a clear and open sound with a good lot of punch.
Stereo buss compression, processing single signals, approaching dynamics in creative ways – the xpressor 500 shines in many different applications. Best of elysia? You got it!
Features:
Discrete Class-A Topology Pristine audio quality.
Auto Fast Attack Perfect attack in any situation.
Switchable Release Characteristic Smooth or crisp – the choice is yours.
Warm Mode Transparency? Saturation? Both!
Parallel CompressionMixing direct and compressed signals.
Sidechain FilterFrequency selective compression.
Gain Reduction LimiterUltimate control on the compression process.
Made in GermanyHigh grade components, solid aluminum knobs.
The karacter 500 is a box full of vibrant colors. It covers a complete spectrum including mastering-grade saturation, tube-inspired distortion and glorious destruction. Gone are the days when only racks full of outboard gear could achieve these elusive and highly desirable styles of tonal coloration.
The entire unit is designed with discrete class-A topology, so even the most lo-fi sounds will benefit from the karacter’s high-end touch. Enhance your tracks or decimate everything – It’s a matter of karacter.
899,00 €*
Diese Website verwendet Cookies, um eine bestmögliche Erfahrung bieten zu können. Mehr Informationen ...
