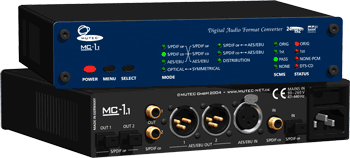

Due to the increasing number of devices with S/PDIF and AES/EBU interfaces found in every studio environment more and more often, a problem of different transmission formats and interface standards occurs mostly when those devices should exchange their digital audio data. At this point MC-1 and MC-1.1 come in and help to convert both digital audio formats and their corresponding interface standards in different ways.MC-1 + MC-1.1 COMMON FEATURES: • S/PDIF optical/coaxial and AES/EBU interfaces in one box. • Uni-directional format conversion from 32.0kHz to 192.0kHz between • S/PDIF and AES3/AES11. • Simultaneous format conversion to all output formats while allowing • the original signal to pass through. • Signal improvement by low-jitter PLLs. • ADAT™ transfer through AES/EBU lines. • NONE-PCM and DTS bitstream detections. • SCMS processing and status analysing. • Easy configurable. • User's settings will be stored after switching-off. • Rack space saving 1/2 19" housing allowing for mounting two devices • in one rack unit. • Built-in international power supply. ADDITIONAL FEATURES FOR MC-1.1: • Bi-directional format conversion from 32kHz to 192kHz. • ADAT™ signal splitting + line extension. • S/PDIF optical/coaxial + AES/EBU signal splitting. • S/PDIF, AES/EBU and ADAT™ signal distribution. MC-1.1 are multifunctional, high-performance digital audio format converters for S/PDIF and AES/EBU digital audio data. Using latest digital audio circuitries, both units process all formats with clock rates up to 192.0kHz! The format conversion process does not only the necessary electrical conversion but also a format conversion of the reference signals in compliance with the specifications which are standardized by the Audio Engineering Society (AES) and the International Electrotechnical Commision (IEC). Various additional operation modes like ADAT™ line extension through AES/EBU lines, SCMS processing or signal status detection enable the use of MC-1 and MC-1.1 in a wide range of applications. MC-1.1 especially offers double circuitries for bi-directional connections which allows to run two signal paths individually. In addition, this unit consists of two outputs for each digital audio format which enables to use MC-1.1 as an ADAT™ signal splitter and S/PDIF + AES/EBU distribution amplifier. APPLICATIONS: • Interconnection of consumer and professional digital audio devices. • Realtime bi-directional signal transfer and format conversion • between send/returns of digital mixing consoles and effect processors. • Uni- or bi-directional interconnection of computer-based sound cards • with professional digital audio equipment. • S/PDIF, AES3 and AES11 signal splitting and distribution. • Distance extension for ADAT™ and S/PDIF optical signals • through symmetrical AES/EBU lines for e.g. theater or broadcast installations. • Digital audio signal refreshing. • SCMS coding of digial audio productions to protect those against illegal copying.• S/PDIF optical/coaxial status analysing.

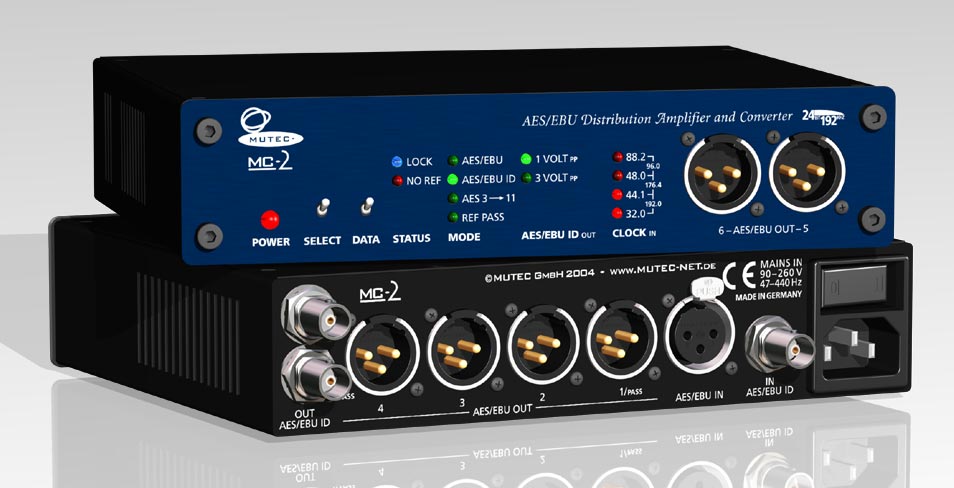

MC-2 is a high-performance digital audio signal and reference sync signal distribution amplifier and format converter for AES/EBU and AES/EBU ID signals.FEATURES: • AES/EBU and AES/EBU ID interfaces in one box. • Supports all audio-related clock rates between 32kHz and 192kHz. • All interfaces meet the specifications of the according AES + AES ID standards.• Signal improvement by low-jitter PLLs. • Converting from AES3 to AES11. • Detects and monitors all studio sampling rates between 32kHz and 192kHz. • Reference pass functionality. • Input lock detection. • Simple user interface. • Built-in international power supply. MC-2 comes basically as an AES/EBU distribution amplifier. Additonally AES/EBU ID interfaces are available to offer conversions between both interface standards. Using latest PLL and conversion techniques, MC-2 processes digital audio signals aligned to AES3 and AES3 ID and reference sync signals aligned to AES11 and AES11 ID including all usual clock rates from 32kHz to 192kHz. Each interface standard offers one input whereas AES/EBU can be distributed to 6 outputs and AES/EBU ID to 2 outputs. Various operation modes enable the use of MC-2 in a wide range of applications. An input reference signal will be distributed to all outputs simultaneously. In this process, a conversion between the AES/EBU and the AES/EBU ID interfaces will be done automatically. A supplied AES3 digital audio signal can be converted in realtime into an AES11 digital sync signal and distributed through all outputs. To keep the original AES3 signal for further use, the first output of the according interface standard can be switched to pass the original signal separately without any format changes. The voltage of the outputs of the AES/EBU ID interface can be switched from standard 1V to 3V to enable very long cable runs. MC-2 is mountable in a 19" rack system by using our optional rack adapters. All functions can be set convenient from the front panel with help of a simple user interface. The device is shipped in a rugged aluminium housing and meets CE, UL and FCC, part 15, specifications. APPLICATIONS:• AES/EBU and AES/EBU ID reference signal distribution. • AES/EBU and AES/EBU ID digital audio signal distribution. • Reference signal and digital audio signal refreshing. • Signal conversion between AES/EBU and AES/EBU ID. • AES3 to AES11 conversion. • Clock rate indication of AES/EBU and AES/EBU ID signals. • Line extension for e.g. theater or broadcast installations. • Output expansion for e.g. MUTEC's iCLOCK, iCLOCKdp, iD, iDdp, • MC-3, MC-3.1 and MC-3.2 and other clock generators.
DIGITAL AUDIO AND SD/HD VIDEO SYNC MASTER CLOCK GENERATORMC-3.2 SMART CLOCK HD is an universal digital audio and SD/HD video sync master clock generator. The MC-3.2 SMART CLOCK HD provides different high-stable clock signals for simultaneous synchronization of digital audio and SD/HD video devices. The unit offers lowest clock-jitter, extremely high flexibility, 16 outputs in total and a new designed, simple user interface. Based on circuit designs of MUTEC‘s well-known iCLOCK and iD, the MC-3.2‘s signal quality and function flexibility achieve levels of performance, which are totally outstanding in the respective market range! The SD bi-level video reference generator supports PAL 24/25fps and NTSC 29.97/30fps as Black + Burst, composite sync and color bar. The HD tri-level video reference generator offers 720p, 1080i and 1080p formats with various frames rates. Furthermore, MC-3.2 generates 17 lowest-jitter Word Clock rates up to 768.0kHz and so-called ‘Super Clocks’ with all common Pull Ups/Downs. Different multipliers can be individually assigned to every pair of outputs for multi-clock-operation. This all makes MC-3.2 SMART CLOCK HD the most flexible A/V clock generator in a 9.5" case currently available in the industry! FEATURES: • SD bi-level and HD tri-level syncs simultaneously available • Audio and video signals coupled to one common AES11, Grade 1, • reference clock (0.5ppm) • Improves acoustical audio quality and eliminates digital "Clicks and Pops" • Generates Word Clocks, Super Clocks, AES/EBU + S/PDIF blanks • at the same time • Built-in international power supply APPLICATIONS: • SD/HD video + audio synchronization • Ultra low-jitter clock supply for entire studio • Film, video and audio transfers • Acoustical improvement of AD/DA converters • Stellate clock signal supply
Enhancement of Sound Quality by high-resolution Audio Re-Clocking
It is widely known that a master clock changes the sound quality of digital audio devices more or less to a higher level. But carving out finest audio details in your recordings to reproduce individual instruments as clear as possible and to raise the precision of their positions within the spatial sound to a maximum is possible at best with high-resolution re-clocking of your digital audio material. That is what MUTEC's new audio re-clocking algorithms paired with the 1G-Clock technology perform in the MC-3+ Smart Clock. Thus, the sensing of the incoming audio is carried out with highest resolution which leads to ultimate precision during merging the audio data with the new ultra-low-jitter clock. The result is unparalleled richness of details and spatiality of the re-clocked audio material.
The real next Step in Audio Clock Generation
While others argue for their products with standardly known technical aspects, MUTEC really sets the benchmark of digital audio clocking to a higher level using the proprietary 1G-Clock technology for the first time in the MC-3+ Smart Clock. Running a frequency synthesis on a specifically calculated high clock rate, eliminates completely typical jitter inducing artifacts which are present in all standardly implemented DDS processes. Additionally, we took a look around the clock generation circuit and developed totally new ultra-low-noise power supplies and PCB design rules aligned to high-speed communication technologies to virtually eliminate all electrical noise. Thus, the new 1G-Clock technology helps you to bring jitter down to an unique low level, which leads to unprecedented transparency in your audio recordings.
Usability in Studio and Live Event Environments
The new MC-3+ Smart Clock works not only as generator, but also as clock distributor. Unlike other products, the MC-3+ effectively regenerates incoming clock signals to higher purity as the signal source. This helps to stabilize already existing clock systems and improves the level of sound reproduction quality in your studio environment. In cases when the MC-3+'s digitally-compensated clock accuracy is not sufficient, it is possible to lock the system to references of higher accuracy like so-called Atomic clocks or GPS receivers to raise the timing accuracy to the highest possible level. Additional to that, for the use during live events or in mobile trucks, the MC-3+ features anytime-fail-safe clock generation in every state of operation. Entering the hold-over-mode and re-synchronization of returning clock references is carried out so smoothly that live recordings will surely not be affected. Thus, the new MUTEC MC-3+ Smart Clock ensures flawless synchronization of connected devices at any time, while enhancing the sound of your audio production impressively.
Features
Incorporates MUTEC's unique 1G-Clock technology for lowest jitter possible
Improves audiophile quality of any connected digital audio device
Re-clocks digital audio most aggressively
Raises clearly audible the sound quality of any DA converter
Eliminates digital “Clicks and Pops”
Enhances existing master clocks
Digitally-compensated clock accuracy for highest precision of the generated clocks
Locks to 10 MHz clock signals of so-called Atomic clocks or GPS receivers
Outputs clock signals fail-safe in any state of operation
Generates Word Clocks, Super Clocks, AES3 + S/P-DIF blanks simultaneously
Converts between AES3 and S/P-DIF as well as between AES11 and Word Clock
New-designed, simple user interface
Front panel lock-out for preventing misuse
Rack-space-saving 9.5“ housing
Built-in, international power supply
The MC-3+ Smart Clock USB is setting a new benchmark for clocking technology and the reproduction of digital audio by uniquely combining an audiophile USB interface with an audio re-clocker in perfection! Particularly designed for the demands of high-end consumer audio, the device expands a new sonic universe with increased musicality, clarity, and precision. As such, the MC-3+USB will prove its worth in many audiophile listening rooms around the world.
Features:
Unique, bit-transparent Re-Clocking without conventional sample rate conversion for purest sound quality
Audiophile, asynchronous two-channel USB interface with ultra-low noise audio clock oscillators and total galvanic isolation of up to 2500 VRMS, respectively 4242 VPK, for suppression of high-frequency interferences
Converts DSD/DoP streams (64-256) to PCM audio with selectable output clock rate
Locks to MUTEC's REF10, as well as so-called atomic clocks and GPS clock references
Improved, next-generation REVIVE re-clocking and 1G-Clock technology by MUTEC
Additional Features:
Serves as a flexible digital input switching matrix, audio format converter and master clock
Compatible to Apple Macintosh and Windows PCs
Intuitive user interface and easy installation
Update-capability via USB
Available with black- or clear aluminum front panel
Galvanic isolation up to 2500 VRMS in accordance with UL1577, respectively 4242 VPK in accordance with DIN EN 60747-5-2 (VDE 0884 part 2)
Converts DSD/DoP streams (64-256) to PCM audio with selectable output clock rate
Transfers USB audio streams into AES3 and S/P-DIF and outputs those to five digital audio formats simultaneously
Converts between USB PCM audio, USB DSD/DoP audio, AES3 and S/P-DIF, as well as between AES11 and Word Clock
Highly compatible USB audio class 2.0 driver for Windows supporting ASIO, MME, DirectSound, WASAPI, Kernel Streaming, PCM 16Bit, 24Bit, 32Bit and Float-32Bit at all clock rates between 44.1kHzand 192.0kHz
Ultra-low jitter Word Clock generation with clock rates up to 1,536.0 kHz
Scalable to FS1x512 clock rates, 22,5792 MHz & 24,576 MHz, for e.g. high-end audio interfaces
Locks to Rubidium- (10 MHz), Cesium- (5 MHz) and GPS clock references
Generates Word Clocks, Super Clocks, AES3 + S/P-DIF blanks simultaneously
Uninterruptable, fail-safe clock generation in all operation modes
Eliminates so-called digital "clicks and pops"
Individual lock indicators for the clock or audio reference and the re-clock reference
USB, AES/EBU, AES/EBUid and S/P-DIF interfaces in one box
S/P-DIF interconnections via BNC, RCA and optical interfaces available as in- and outputs
Front panel lock-out for preventing of misuse
Rack-space-saving 9.5" housing
Built-in, universal power supply

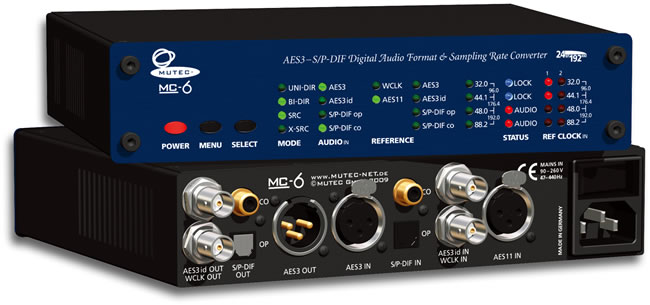

The MC-6 converts AES3, AES3id and S/P-DIF digital audio stereo signals whereas uni- and bidirectional conversion modes are available. All signals can be processed up to 192.0kHz. Based on latest FPGA designs, the MC-6 achieves levels of performance regarding its sound and signal quality, unique flexibility, clocking features and the 4 channel sampling rate conversion engine (SRC), which are outstanding in today’s industry! FEATURES:
• AES/EBU, AES/EBUid and S/P-DIF interfaces working in one box. • Format and sampling rate conversions up to 192.0kHz. • Signal improvement through audiophil-optimized PLL synthesizers. • Extremely flexible synchronization options. • Separate AES11 reference clock input for e.g. broadcast use. • Converts standalone and bidirectionally with different sampling rates: X-SRC.• 4 channel sampling rate conversion engine (SRC) for bidirectional conversions. • Continuous clock signal supply in absence of the reference audio or clock signal. • Runs standalone in all SRC operation modes without needing an external master clock reference. • AES11, Grade 1, internal reference clock (0.5ppm). • Word Clock output useable as master clock reference. • Easy configurable. • User settings will be stored in FLASH memory after switching-off. • Rack space saving 1/2 19” case allowing for mounting two devices side by side in one rack unit. • Built-in international power supply. The enormous feature-set with various operation modes enables the use of the MC-6 in many studio applications. Generally, incoming digital audio signals are converted unidirectionally to all three audio formats simultaneously, with or without SRC functionality. If clock rate conversion is necessary, the SRC engine can be locked to Word Clock, AES11 (separate input available) and any digital audio input in both, uni- and bidirectional operation modes. One of the unique features of the MC-6 is its capability to lock two digital audio stereo sources with different clock rates and to convert their audio formats and clock rates bidirectionally in realtime with help of the X-SRC mode. Therefore, the unit includes a 4 channel SRC engine as a standard, whereas two audiophil-optimized PLL synthesizers secure best sound quality in all operations modes. The MC-6’s unique X-SRC Mode The MC-6 extracts the master clocks out of each of the two incoming digital audio stereo streams and uses these clock references to synchronize the SRCs in front of each of the format-same outputs. Thus, the two digital audio sources are held permanently in sync to each other by the MC-6 without the necessity to lock any of the involved devices to an external master clock reference. This is especially useful when interconnecting two non-synchronized or non-synchronizable digital audio devices, each running on its own internal clock base. As further special feature, the MC-6 offers an internal, ultra low-jitter clock base with outstanding accuracy to which the SRCs can be locked to, if no external reference is available. Running the MC-6 in this mode, its Word Clock output can be used e.g. as master clock reference to synchronize any other digital audio device in the studio. Additionally, the MC-6 can be used for upsampling of digital audio signals up to 96.0kHz or even 192.0kHz. This function is recommended for supplying DA converters. The upsampling process eliminates possibly existing signal jitter and improves the audiophil quality overall. This all makes the MC-6 for sure a unique and the most flexible digital audio converter currently available in the pro-audio industry! APPLICATIONS:
• Interconnection of consumer and professional digital audio devices. • Audiophil clock recovery and signal regeneration. • Upsampling for improving the acoustical result of DA conversions. • Integration of non-synchronizable devices, like musical instruments, DAT players, MD recorders or DAWs into digital studio environments. • Realtime bidirectional signal transfers between sends/returns of digital mixing consoles and effect processors. • Uni- and bidirectional interconnection of computerbased sound cards with professional digital audio equipment. • Usable within small studio set-ups up to broadcast installations.
Word Clock Distribution Amplifier and Audio Clock Converter The MUTEC MC-7 is a very flexible, high-performance Word Clock distribution amplifier and audio clock converter. In today’s studio environments, clock distribution is more significant as mostly assumed. Actually, a clock signal does more than only synchronizing digital audio devices, it does also influence the acoustical result of your recordings. Due to this, the MC-7 is designed to cover both aspects with excellence! FEATURES:
• Distributes and converts Word Clock, AES3/11 and S/PDIF. • Extracts and re-generates clock signals out of digital audio signals. • Improves audio quality of connected devices. • Handles clock rates from 32.0kHz up to 192.0kHz/768.0kHz. • Supports so-called Super Clocks for older Digidesign ProTools systems. • Offers 4 inputs and 11 outputs in total. • Protects from reference signal dropouts. • Supplies interruption-free output signals. • AES11, Grade 1, internal reference clock (0.5ppm). • Compact case size fits in every studio set-up. • Built-in international power supply. The MC-7 converts and distributes Word Clock, AES3/11 and S/P-DIF signals. An incoming reference signal passes latest audiophil-optimized PLL circuits, to be distributed and output as low-jitter, high-quality clock signal, regardless of the condition of the reference signal. Thereby, connected audio devices will benefit from the MC-7’s signal regeneration abilities, which improve their sound qualities audibly. Furthermore, the MC-7 functions as multiplier for the clock rate of the incoming reference signal. Therefore, the outputs can be individually multiplied by x1, x2, x4, which leads to a very wide range of possible output Word Clock rates from 32.0kHz up to 768.0kHz. This enables e.g. the contemporaneous output of an incoming 48.0kHz reference signal with 96.0kHz, 192.0 kHz and as so-called Digidesign Super Clock. A special ‘Pass’ functionality secures the availability of an incoming digital audio signal for further use. For live or broadcast use, a special ‘Hold’ functionality can be activated additionally with every operation mode. This function guarantees interruption-free output signal supply in cases when the external reference is of insufficient quality or lost completely. Thus, the MC-7 is predestined to be used as centralized clock stabilizer and distributor, where reliable signal availability is a must. Due to its synchronisation features and connection flexibility, the MC-7 offers unique possibilities to provide interconnections between digital audio devices on a reliable and useful basis. This all makes MC-7 for sure an unique and outstanding digital audio clock distributor and converter enabling to handle every clocking issue in your studio set-up with ease! APPLICATIONS:
• Stellate Word Clock distribution. • Sound improvement of digital audio devices. • Audiophil clock recovery and regeneration. • Interconnection of consumer and professional digital audio devices. • Line extension for e.g. theatre or broadcast installations. • Output expansion for MUTEC's iCLOCK, iCLOCKdp, iD, iDdp, MC-3, MC-3.1 and MC-3.2.
The MUTEC REF 10 is an audiophile reference master clock generating 10 MHz signals with industry-leading low phase noise (i.e. jitter) to significantly improve digital playback systems. As the conductor of your digital audio orchestra at home, the REF 10 will inspire you with unheard-of clarity, graceful dynamics, and pure music. It is the most flexible, most compatible 10 MHz clock on the market allowing you to spend less time worrying about integration and leaving you with more hours to enjoy blissful playback.
Unlock a more dynamic, more transparent sound stage with exceptional spatiality and level of detail, free from any digital blur. For all music enthusiasts reaching for the pinnacle of signal purity, audio quality, and clock precision, the REF 10 is the must-have expansion to conduct your digital playback chain.
Features:
Audiophile 10 MHz reference generator with industry’s lowest phase noise
Improves and enhances compatible DACs, audio re-clockers, music servers, and master clocks
Engineered around a handcrafted, ultra-low phase noise OCXO made in Germany
Generates a very high slew-rate square wave signal for superior lock precision compared to the sine wave signals used by competing brands
Provides simultaneous reference outputs with 50 and 75 Ω impedance for maximum compatibility with clocks and DACs by other manufacturers
Eight galvanically isolated, individually switchable BNC clock outputs
Revolutionary, sub-Hz optimized, lowest noise power supply for every circuit section
Integrated, highest-quality international linear power supply
Highly efficient power line filtering
Intuitive user interface with noble aesthetics
Rack-mountable with optional mounting brackets for studio use (2 RU)
The MUTEC REF 10 is an audiophile reference master clock generating 10 MHz signals with industry-leading low phase noise (i.e. jitter) to significantly improve digital playback systems. As the conductor of your digital audio orchestra at home, the REF 10 will inspire you with unheard-of clarity, graceful dynamics, and pure music. It is the most flexible, most compatible 10 MHz clock on the market allowing you to spend less time worrying about integration and leaving you with more hours to enjoy blissful playback.
Unlock a more dynamic, more transparent sound stage with exceptional spatiality and level of detail, free from any digital blur. For all music enthusiasts reaching for the pinnacle of signal purity, audio quality, and clock precision, the REF 10 is the must-have expansion to conduct your digital playback chain.
Features:
Audiophile 10 MHz reference generator with industry’s lowest phase noise
Improves and enhances compatible DACs, audio re-clockers, music servers, and master clocks
Engineered around a handcrafted, ultra-low phase noise OCXO made in Germany
Generates a very high slew-rate square wave signal for superior lock precision compared to the sine wave signals used by competing brands
Provides simultaneous reference outputs with 50 and 75 Ω impedance for maximum compatibility with clocks and DACs by other manufacturers
Eight galvanically isolated, individually switchable BNC clock outputs
Revolutionary, sub-Hz optimized, lowest noise power supply for every circuit section
Integrated, highest-quality international linear power supply
Highly efficient power line filtering
Intuitive user interface with noble aesthetics
Rack-mountable with optional mounting brackets for studio use (2 RU)
3.799,00 €*
