ALVA MADI-Cabledrum is a professional 4-fibre SC to SC Optical Multicore for MADI use on stage, broadcast, TV etc in a good value. MCD-cables are extremely flexible, crush and impact resistant. Alva designed a simple, but effective splash-water protection, traction relief and took care for easy-handling. MADI-cable system for all mobile applications.The cable drum is a Made in Germany product. Every cable comes with an own, specific measuring protocol.ALVA offers a special and quick service for replacements.Specifications MCD-100/150/300
Type: Multimode, 50µm / 125 µm
Length: 100 m (MCD-100) / 150 meter (MCD-150) / 300 meter (MCD-300)*
Fibre count: 4, each with captive dust-protections Overall transport and splash-water protection with a handy pull-out applet
Secondary Coating: 900 µm
Fibres Identification: Colours, Numbers
Strength Members: Aramid Yarns
Outer Jacket: Polyurethane
Outer Jacket Colour: Dark-Green
Diameter Cable: 5,2 mm
Applications: Broadcast, PA, Mobile Recording
Cable-Drum: Schill GT-310 RM (MCD-150) / Schill GT-380 RM (MCD-300)
Dimensions (HxWxD): 36cm x 27cm x 23cm (MCD-150) / 49cm x 31cm x 29cm (MCD-300)
Weight: 4,9 kg (MCD-150) / 10,3 kg (MCD-300)
Available lenghts
100 m = Part No. MCD-100
150 m = Part No. MCD-150
300 m = Part No. MCD-300
Mechanical & Enviromental Properties
Weight: 4 kg / km
Tensile Load: 600N [EN187000/501(IEC 60794-1-E1)]
Min. Bend Radius: 20x Outer Ø [EN187000/513(IEC 60794-1-E11)]
Operating Temperature: -50 to + 80 C [EN187000/601(IEC 60794-1-F1)]
Crush Resistance: 2000N [EN187000/504(IEC 60794-1-E3)]
Impact Resistance: 200 impacts / 1 N.m [EN187000/505(IEC 60794-1-E4)]
Flexing Resistance: 2000 cycles [EN187000/509(IEC 60794-1-E8)]
ALVA MADI-Cabledrum is a professional 4-fibre SC to SC Optical Multicore for MADI use on stage, broadcast, TV etc in a good value. MCD-cables are extremely flexible, crush and impact resistant. Alva designed a simple, but effective splash-water protection, traction relief and took care for easy-handling. MADI-cable system for all mobile applications.The cable drum is a Made in Germany product. Every cable comes with an own, specific measuring protocol.ALVA offers a special and quick service for replacements.Specifications MCD-100/150/300
Type: Multimode, 50µm / 125 µm
Length: 100 m (MCD-100) / 150 meter (MCD-150) / 300 meter (MCD-300)*
Fibre count: 4, each with captive dust-protections Overall transport and splash-water protection with a handy pull-out applet
Secondary Coating: 900 µm
Fibres Identification: Colours, Numbers
Strength Members: Aramid Yarns
Outer Jacket: Polyurethane
Outer Jacket Colour: Dark-Green
Diameter Cable: 5,2 mm
Applications: Broadcast, PA, Mobile Recording
Cable-Drum: Schill GT-310 RM (MCD-150) / Schill GT-380 RM (MCD-300)
Dimensions (HxWxD): 36cm x 27cm x 23cm (MCD-150) / 49cm x 31cm x 29cm (MCD-300)
Weight: 4,9 kg (MCD-150) / 10,3 kg (MCD-300)
Available lenghts
100 m = Part No. MCD-100
150 m = Part No. MCD-150
300 m = Part No. MCD-300
Mechanical & Enviromental Properties
Weight: 4 kg / km
Tensile Load: 600N [EN187000/501(IEC 60794-1-E1)]
Min. Bend Radius: 20x Outer Ø [EN187000/513(IEC 60794-1-E11)]
Operating Temperature: -50 to + 80 C [EN187000/601(IEC 60794-1-F1)]
Crush Resistance: 2000N [EN187000/504(IEC 60794-1-E3)]
Impact Resistance: 200 impacts / 1 N.m [EN187000/505(IEC 60794-1-E4)]
Flexing Resistance: 2000 cycles [EN187000/509(IEC 60794-1-E8)]
ALVA MADI-Cabledrum is a professional 4-fibre SC to SC Optical Multicore for MADI use on stage, broadcast, TV etc in a good value. MCD-cables are extremely flexible, crush and impact resistant. Alva designed a simple, but effective splash-water protection, traction relief and took care for easy-handling. MADI-cable system for all mobile applications.The cable drum is a Made in Germany product. Every cable comes with an own, specific measuring protocol.ALVA offers a special and quick service for replacements.Specifications MCD-100/150/300
Type: Multimode, 50µm / 125 µm
Length: 100 m (MCD-100) / 150 meter (MCD-150) / 300 meter (MCD-300)*
Fibre count: 4, each with captive dust-protections Overall transport and splash-water protection with a handy pull-out applet
Secondary Coating: 900 µm
Fibres Identification: Colours, Numbers
Strength Members: Aramid Yarns
Outer Jacket: Polyurethane
Outer Jacket Colour: Dark-Green
Diameter Cable: 5,2 mm
Applications: Broadcast, PA, Mobile Recording
Cable-Drum: Schill GT-310 RM (MCD-150) / Schill GT-380 RM (MCD-300)
Dimensions (HxWxD): 36cm x 27cm x 23cm (MCD-150) / 49cm x 31cm x 29cm (MCD-300)
Weight: 4,9 kg (MCD-150) / 10,3 kg (MCD-300)
Available lenghts
100 m = Part No. MCD-100
150 m = Part No. MCD-150
300 m = Part No. MCD-300
Mechanical & Enviromental Properties
Weight: 4 kg / km
Tensile Load: 600N [EN187000/501(IEC 60794-1-E1)]
Min. Bend Radius: 20x Outer Ø [EN187000/513(IEC 60794-1-E11)]
Operating Temperature: -50 to + 80 C [EN187000/601(IEC 60794-1-F1)]
Crush Resistance: 2000N [EN187000/504(IEC 60794-1-E3)]
Impact Resistance: 200 impacts / 1 N.m [EN187000/505(IEC 60794-1-E4)]
Flexing Resistance: 2000 cycles [EN187000/509(IEC 60794-1-E8)]

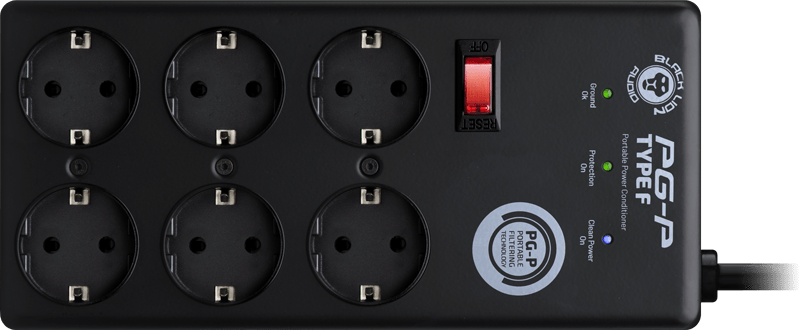

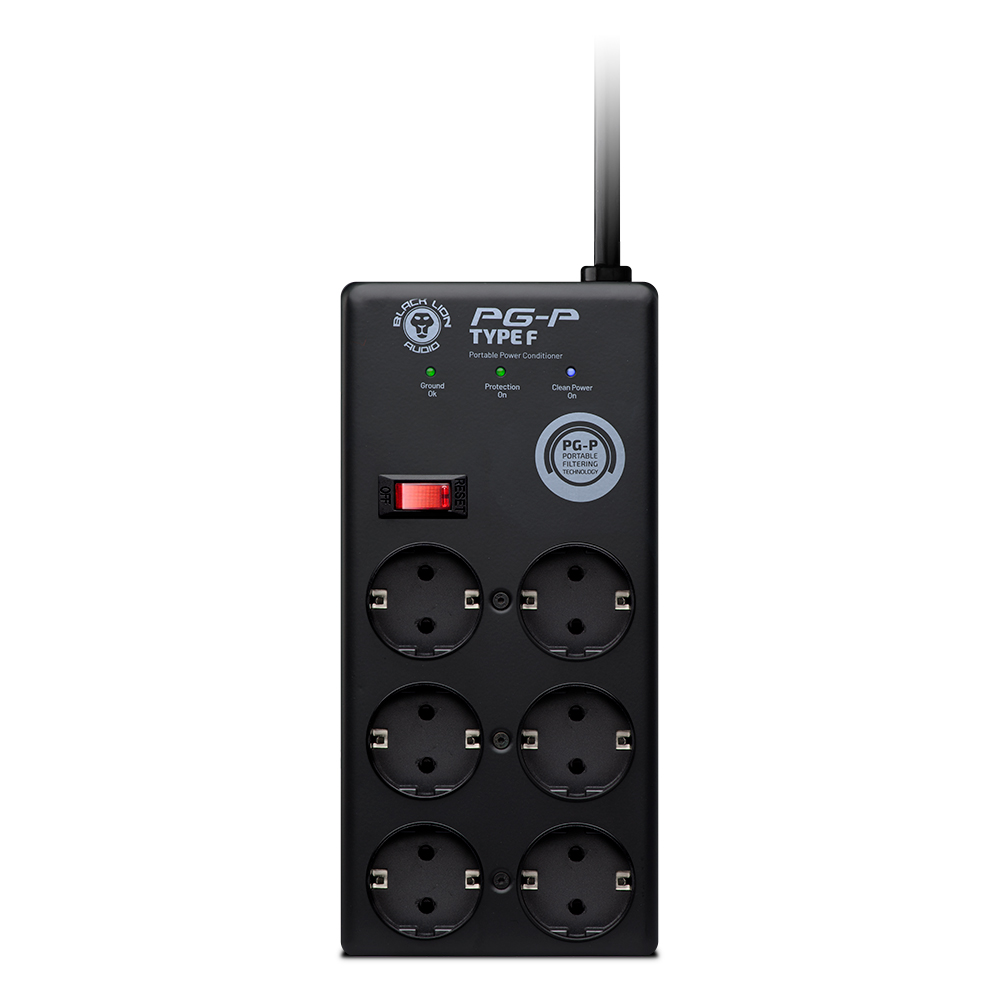

Black Lion Audio präsentiert mit dem PG-P Type F einen tragbaren Power Conditioner für mobile Produktionen.
Gestaltet wie ein gewöhnlicher Mehrfachstecker ermöglicht der PG-P Type F professionelles Arbeiten auf höchstem Niveau wo auch immer Musiker, Tontechniker oder Podcaster ihre Kreativität entfalten.
Konig & Meyer 28664 19"Power Box1 space Power Box, sturdy aluminum housing. Only for power current 16A 380 V~, with 5 pole CEE-plug and cable (length 2 m), 6 sockets 230 V~ in different colors on the front side. CE-mark. For more information, please visit this products webpage
Konig & Meyer 28665 19"Power Box1 space Power Box, sturdy aluminum housing. Only for alternating voltage. Power supply 16 A 230 V~. Plug with 2 m cable. With on/off switch on the front side and 7 sockets on the back side. CE-mark. For more information, please visit this products webpage
Konig & Meyer 28668 19"Power Box1 space Power Box, sturdy aluminum housing. Only for alternating voltage. Power supply 16 A 230 V~. Plug with 2 m cable. With on/off switch on the front side and 7 sockets on the back side. CE-mark. For more information, please visit this products webpage

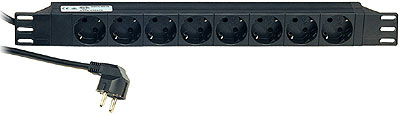

Konig & Meyer 28670 19"Power Box1 space Power Box, sturdy aluminum housing. Only for alternating voltage. Power supply 16 A 230 V~. Without on/off switch. With plug and 2 m cable and 8 sockets on the front side. CE-mark. For more information, please visit this products webpage
Konig & Meyer 28675 19"Power Box1 space Power Box, sturdy aluminum housing. Only for alternating voltage. Power supply 16 A 230 V~. With on/off switch, plug and 2 m cable and 7 sockets on the front side. CE-mark. For more information, please visit this products webpage
Konig & Meyer 28676 19"Power Box
1 space Power Box, sturdy aluminum housing. Only for alternating voltage. Power supply 16 A 230 V AC. With on/off switch and 6 sockets on the front side and 6 sockets on the back side. Plug and 2 m cable. CE-mark.
For more information, please visit this products webpage
