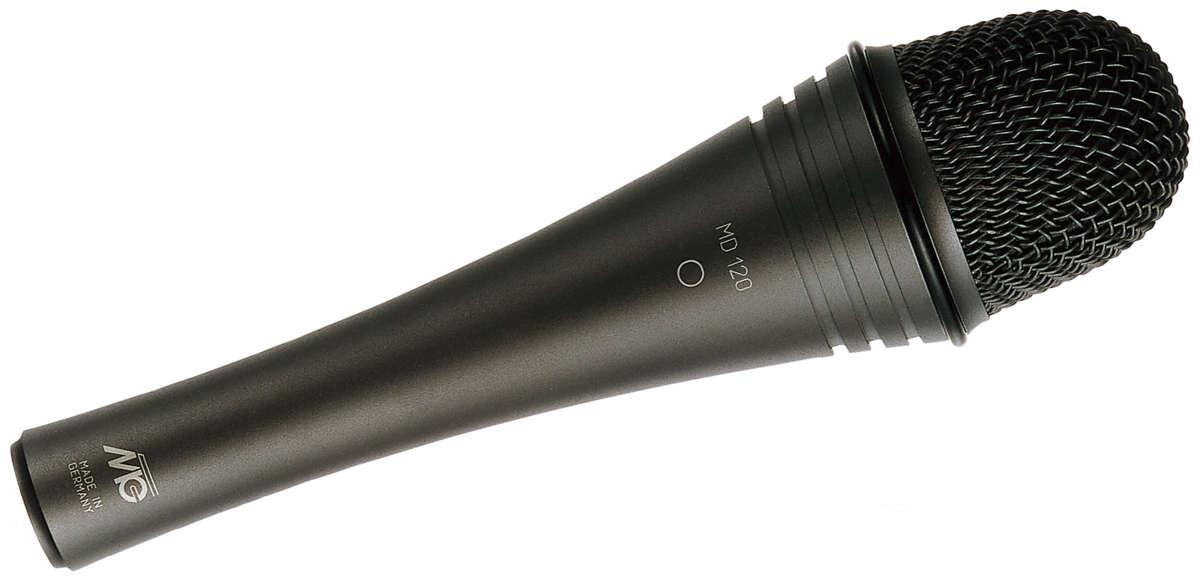

Microtech Gefell MD 120
Produktinformationen "Microtech Gefell MD 120"
Microtech Gefell MD 120
The MD 120 is a dynamic microphone with omni polar pattern and is recommended for high-quality in sound studios and recordings of speech and music in the professional and semi-professional area.
The MD 120 is manufactured in Germany together with Mikrofontechnik Leipzig GmbH (MTL) a company with a long history of dynamic microphone produktion. Microtech Gefell prides itself in making quality products and supporting them with promt service.
Technical Data
- Dynamic microphone
- MD 120
- Polar pattern
- omni
- Operating principle
- acoustic: Pressure transducer
- electric: Moving - coil principle
- Frequency range
- 50 ... 18000 Hz
- Sensitivity at 1 kHz
- 1,5 mV / Pa ± 3 dB
- Rated impedance
- 220 Ω ± 30 %
- Load impedance
- ≥ 1 k Ω
- Magnetic field disturbing factor at 50 Hz
- ≤ 1 V/T
- Operating temperature range
- - 10 °C bis + 45 °C
- Output connector
- 3-pin XLR-connector,
- goldplated contacts
- Connector assignment
- pin 2 (+) and 3 moving - coil
- pin 1 and housing ground
- Weight
- 380 g
- Dimensions (L x Ø )
- 198 mm x 53 mm
