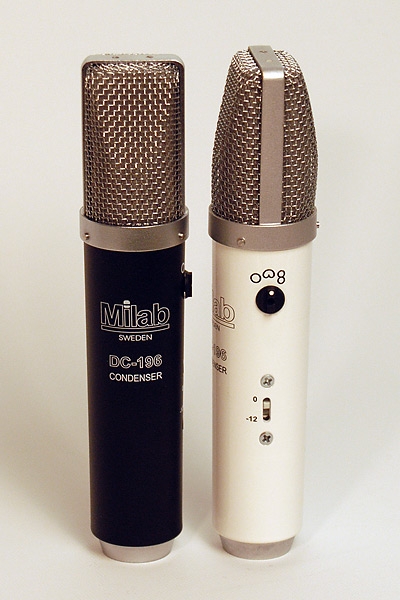

Milab DC-196 (Matched Pair)
Produktinformationen "Milab DC-196 (Matched Pair)"
The DC-196 is an unusually small microphone considering that it is equipped with a large membrane capsule. It is an extremely powerful tool that can handle almost any recording situation thanks to its compact size, superior sound quality and versatility. The DC-196 is a formidable studio workhorse but also perfect for many live applications.
Features:
- Transformerless
- Variable pattern
- Rectangular large dual membrane capsule
- Built-in pop protection
- 12 dB attenuation pad
- Shock absorbing rubber fitted capsule
- Gold-plated XLR connector
| Product name | Milab DC-196 | |
| Type | Condenser | |
| Article number | 1133 | |
| Frequency response | 20 to 20,000 Hz - View curve | |
| Polar pattern | Cardioid - View diagram Omni - View diagram Figure eight - View diagram | |
| Pre-attenuation pad | -12 dB (switchable) | |
| Max. SPL (1% THD at 1 kHz) | 132 dB | |
| Max. SPL with 12 dB pad | 144 dB | |
| Sensitivity at 1 kHz | 21,5 mV/Pa (± 1dB) | |
| A-weighted noise level (IEC 179-A) | 12 dB | |
| Power supply | 48 ± 4 V Phantom (DIN/IEC) | |
| Current consumption | 4,2 mA | |
| Output impedance | <200 Ω | |
| Minimum load impedance | 1 kΩ | |
| Connection | 3-pin XLR | |
| Net weight | 230 g | |
| Length | 145 mm | |
| Diameter | 27 mm |
