Shadow Hills Industries Equinox

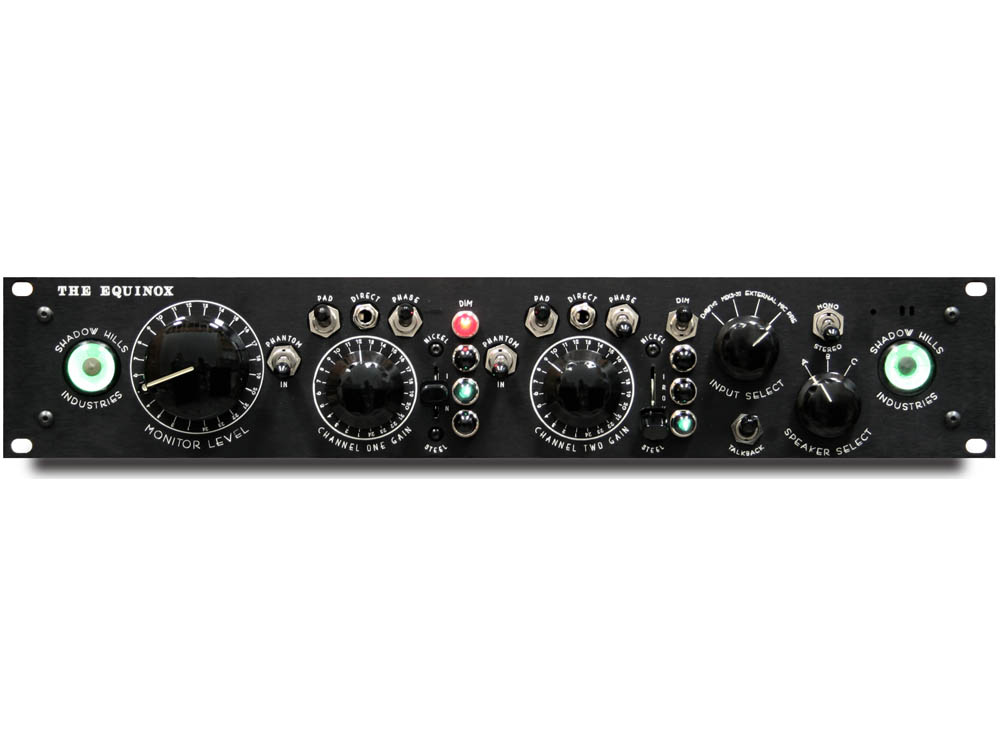

The Shadow Hills Equinox is a complete recording console. First, the control room section features a twenty-four-position discrete monitor volume control and a three-position speaker selector. The four position input selector chooses from: DAW 1+2, Channels 3 - 32 summed, 2-track or external input, and Mic Pre.

The summing buss is a 30-channel mixer utilizing copper buss bars and esoteric resistors, for simply the finest sounding passive monitor section ever made. Combined through our switchable custom output transformers, Nickel, Iron, and Steel. Effectively giving you the sound of three different consoles. The Mic Pres are the same as our stellar Gama.

There is a built in talkback microphone, a dim and a mono stereo switch, and VU-meters. The Equinox may just be the most solid two rack spaces ever built. With it you can record, mix, and monitor to the tolerance of a bygone era.

The front panel is engraved. The knobs are bake-lite, and the two-rack space external power supply will work in any country on any voltage.

A dual channel version of the Golden Age Microphone Amp, and Thirty-two channel summing mixer in a 2u package. The microphone preamp features three selectable output transformers, to create a broad pallet of sonic characteristics. 24 position Stepped input switches included. 60DB gain, phase, 48v, 1/4' DI.

The mode switch selects between microphone preamp and sixteen or thirty-two channel summing mixer. The summing mixer uses hand matched esoteric holco resistors, The same type used in our mastering consoles and attenuators. The mixer output also uses the selectable output transformers, thus allowing three different sounding mix buss options. The control volume section includes: Control room volume, 3 speaker selector, 2x two track inputs. You toggle between your DAW stereo mix, the summing mixer's stereo output, or just the 2x mic pre outputs. Dim, mute and talk back. Rear panel connections: sum buss inputs via DB25, in stereo pairs. Odd/left, even/right. All other connections via XLR.

Without PSU
