Antelope Audio AMARI
Produktinformationen "Antelope Audio AMARI"

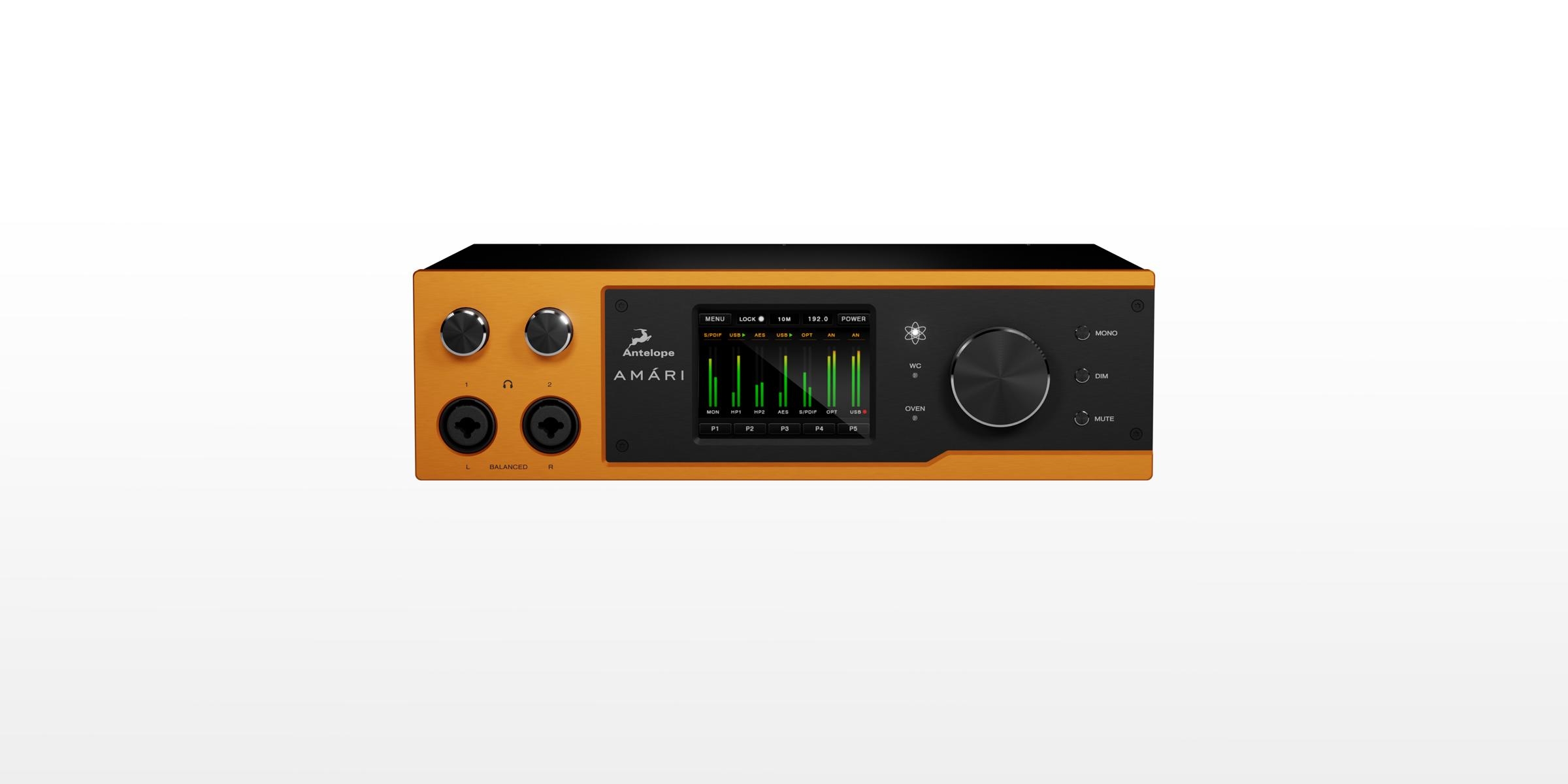

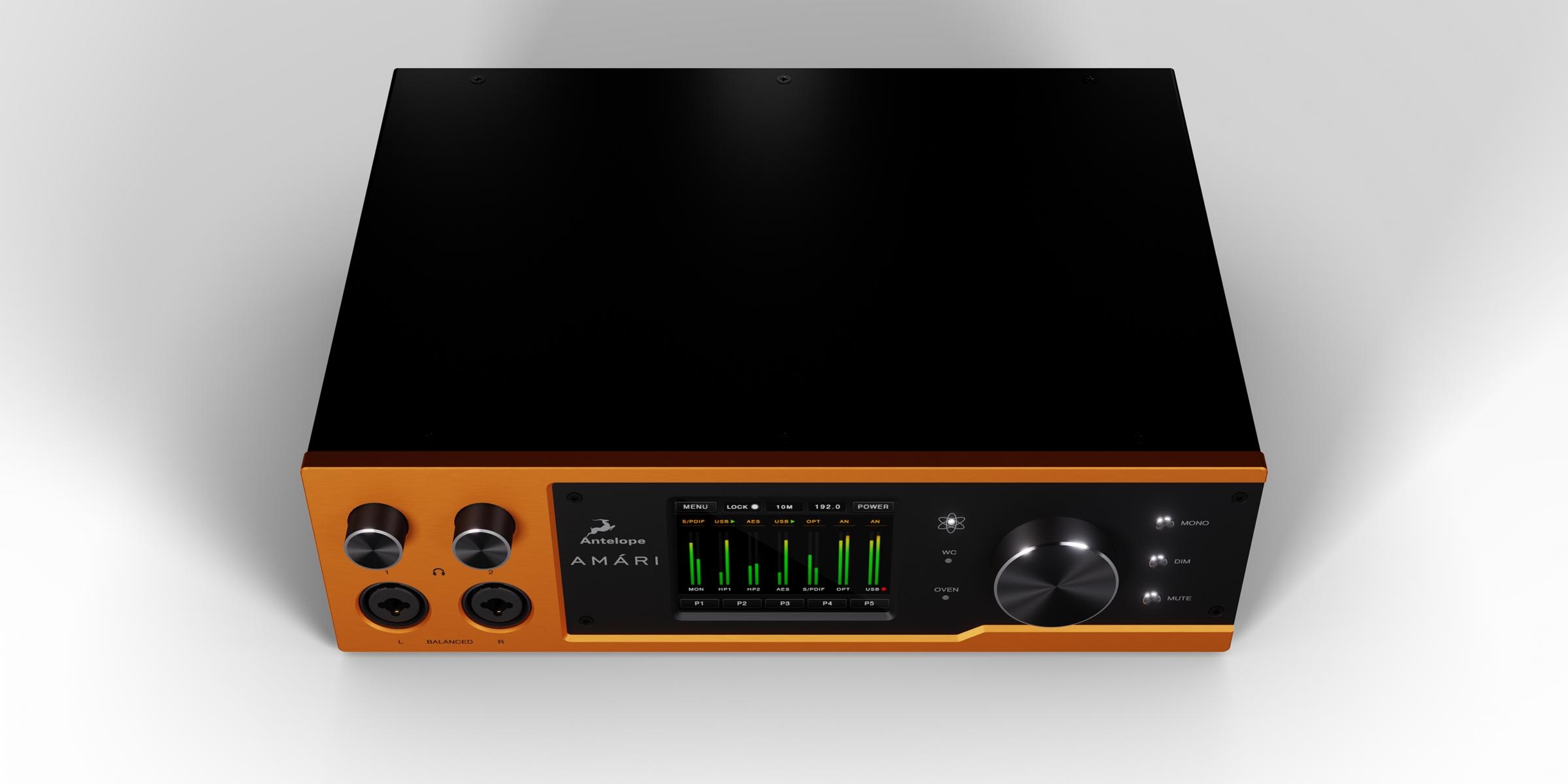

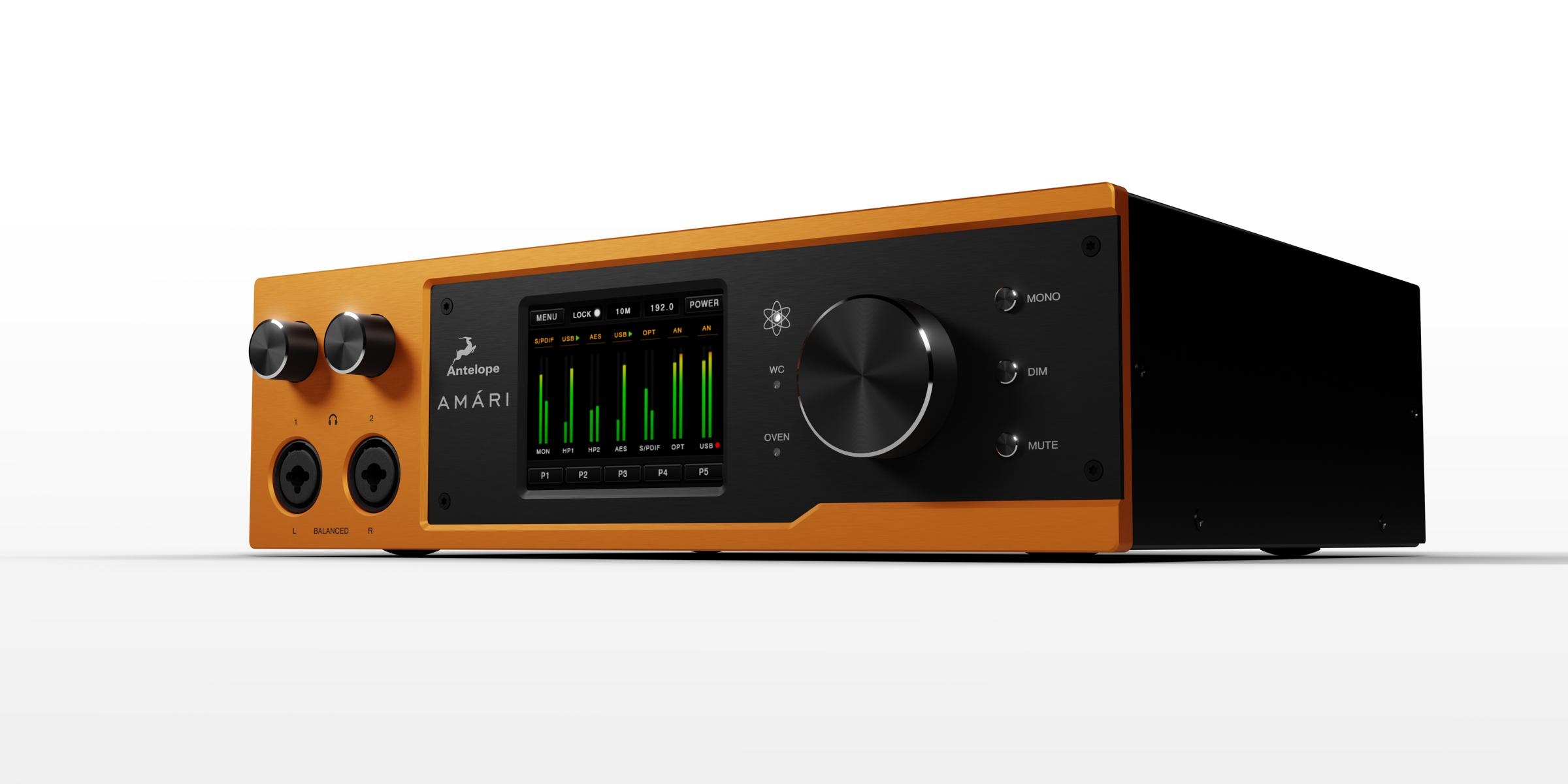

Amari is a hi-end 384kHz PCM / DSD256 AD/DA Converter. Its majestic sound will suit mixing engineers, mastering gurus and the most dedicated audiophiles. The beautifully designed desktop unit is equipped with a slick touchscreen display. Amari offers 1 pair of Analog outs (either on XLR or TRS connectors), 1 pair of analog inputs (either on Combo XLR or RCA), and 2 high power headphone (HP) outputs with dedicated volume control and adjustable output impedance.
Key features:
- High-End 24-bit 384kHz for play back and recording
- A/D – Dual AK5578 ADC chips. Dynamic Range 128dB
- D/A -Eight CS43198 DAC chips. Dynamic range of 138dB
- DSD64, DSD128 and DSD256 formats supported (DSD over PCM a.k.a. DoP) playback
- 2 headphone outputs with dedicated volume control for each output with user-selectable output resistance (a.k.a. headphone membrane weight compensation) that can be switched to balanced mode.
- Standard and Balanced mode for Headphones
- 4th Generation 64-Bit Acoustically Focused Clocking.
- 10M Atomic Clock Input and Word Clock Input for better system integration and improved audio clarity
- 2 pairs of Analog Ins on combo XLR and RCA
- 2 pairs of Analog Outs on combo XLR and TRS
- AES/EBU, S/PDIF and TOSLINK I/O.
- Large touchscreen display to ease the advanced functions control and visualization
- USB 3.1 Connection for playback and recording.
- Software Control Panel for flexibility and advanced functionality both on MAC and PC.
- Stunning design

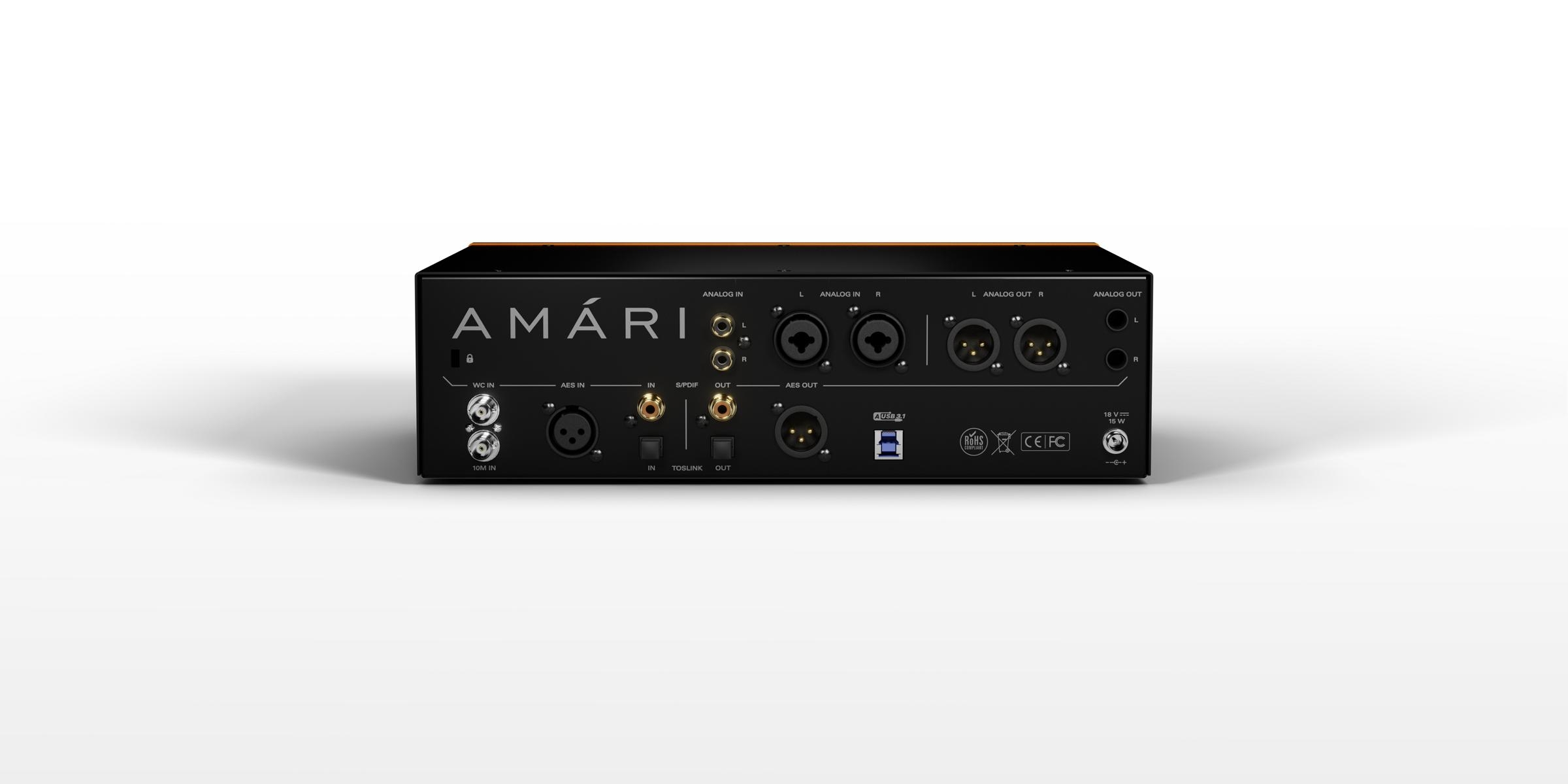

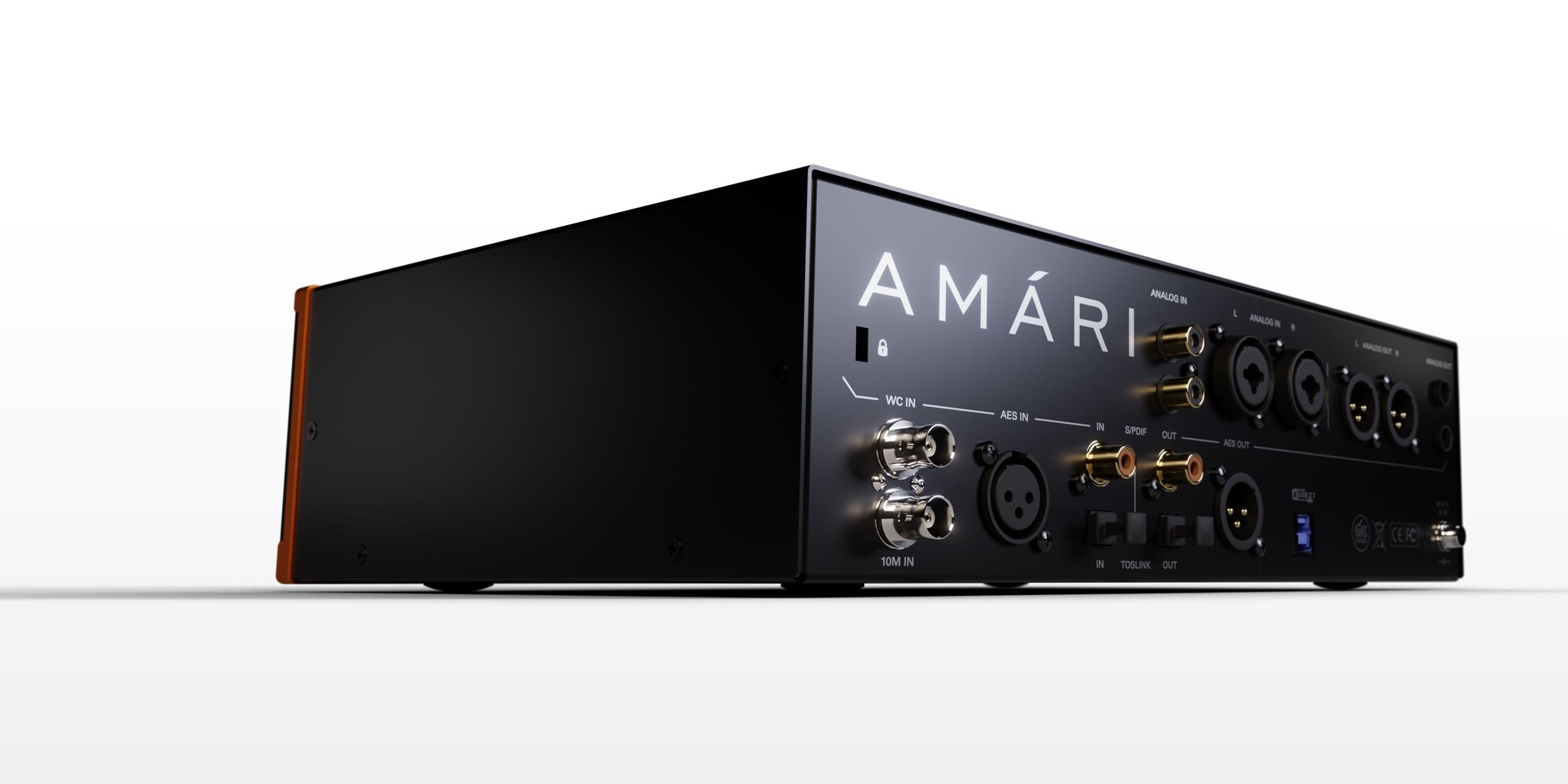

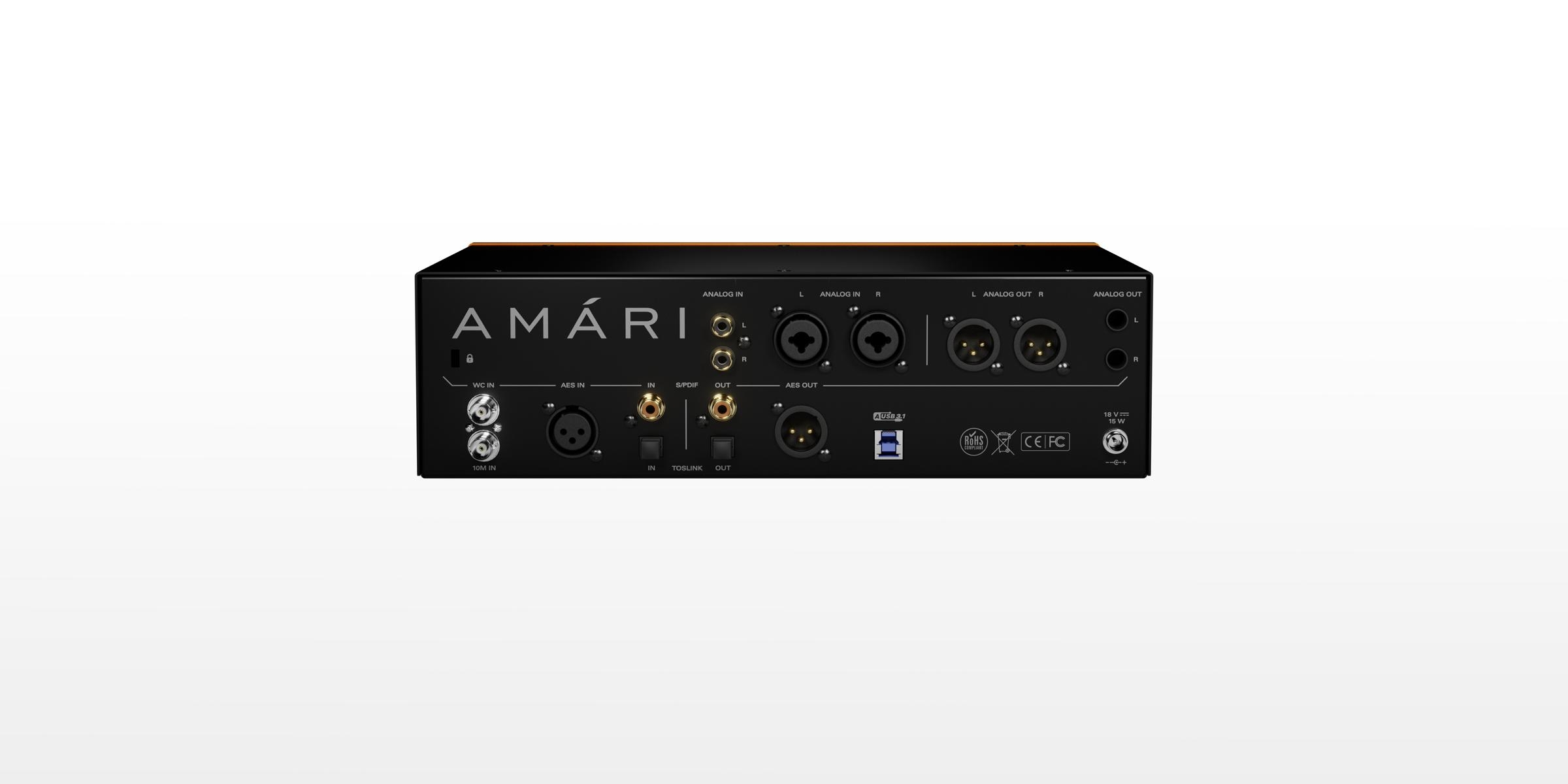

Connectivity
Inputs
Analog
- 1x Stereo Pair balanced on ComboXLR 24dBu max input level
- 1x Stereo Pair unbalanced on RCA 8,2dBu / 6dBv max input level
Digital
- 1x AES/EBU up to 192 kHz
- 1x S/PDIF up to 192kHz
- 1x TOSLINK up to 96kHz
Sync
- 1x WC
- 1x Atomic
Outputs
Analog
- 1x Stereo Pair balanced on XLR. Output Level: 24dBu max, digital trim available
- 1x Stereo Pair balanced on TRS. Output Level: 18dBu max, digital trim available
- 2x Stereo Headphone outs on ComboXLR with individual volume control knobs. Output Power: 1,4 Watts max. Selectable output impedance from -4.6 to 85.3 Ohm available in 17 steps
- Headphone outputs are also configurable to drive 1 pair fully balanced headphone set with dedicated volume control
Digital
- 1x AES/EBU up to 192kHz
- 1x S/PDIF up to 192kHz
- 1x TOSLINK up to 96kHz
Bidirectional
- 1x USB 3.1 on Type-B connector up to 384kHz
Power
- DC Power Inlet with lock nut
AD Conversion
- 2x AK5778 A/D Converter chips
- 24 bit 384kHz
- Input: Full Differential Inputs
- S/(N+D): 112 dB (S/N: 124 dB)
- THD+N: -109dB
- Dynamic Range: 128dB
DA Conversion
- 8x CS43198 D/A Converter chips
- 24-bit 384kHz PCM / up to DSD2562 over PCM
- Dynamic Range: 138dB
- XLR: THD+N: -113dB, DNR: 137dB
- TRS: THD+N: -111dB, DNR: 135dB
Clocking
- 4th Generation 64-bit Acoustically focused clock technology
- Sample-rates supported:
AD and DA PCM: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 352.8kHz, 192kHz, 384kHz
DA DSD: 64, 128, 256
Power supply:
- 18VDC / 0.83A
- Wall wart power supply unit (supplied)
Weight (Approx):
- 3.0 kg/ 6.61 lbs
