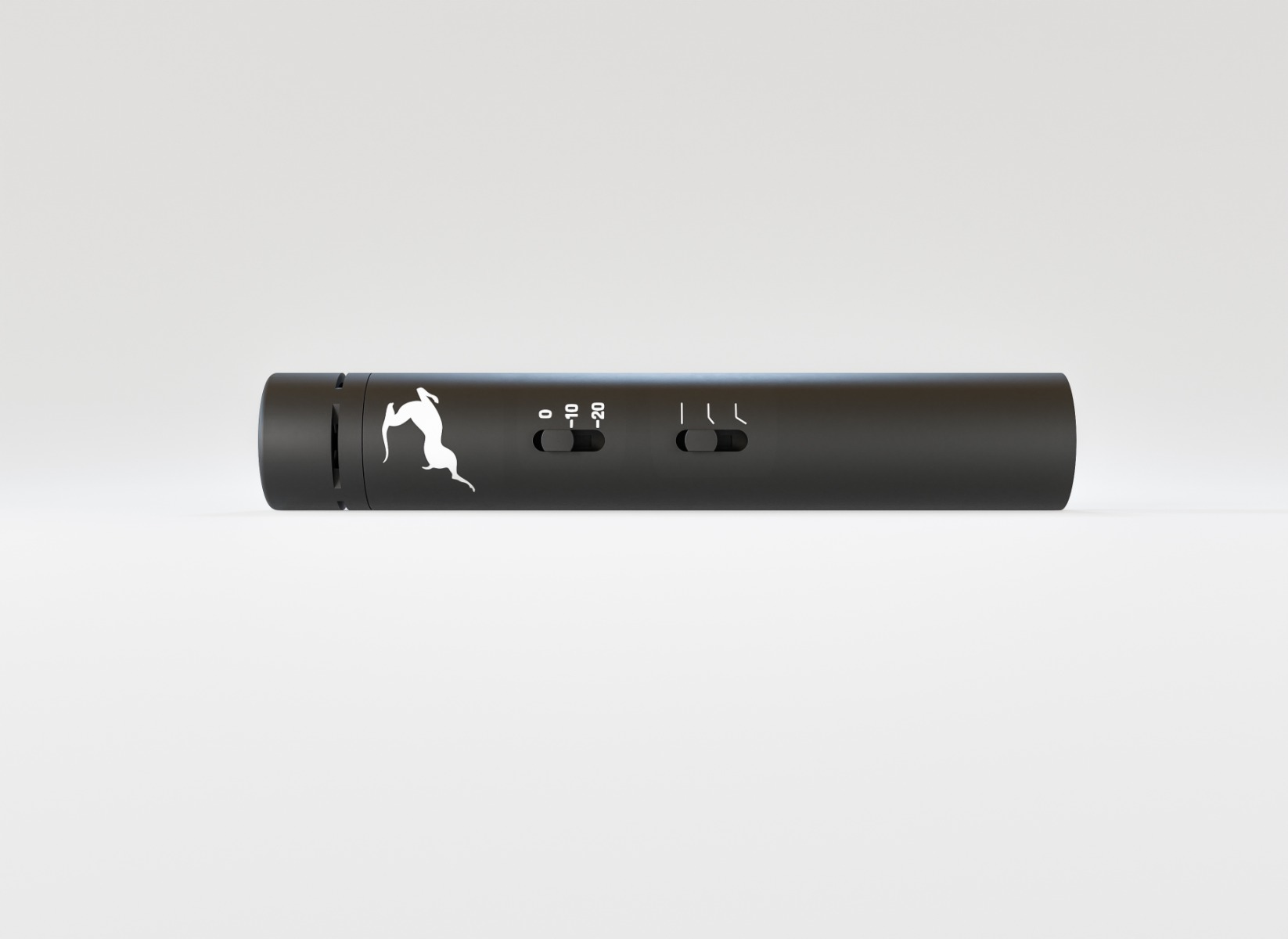

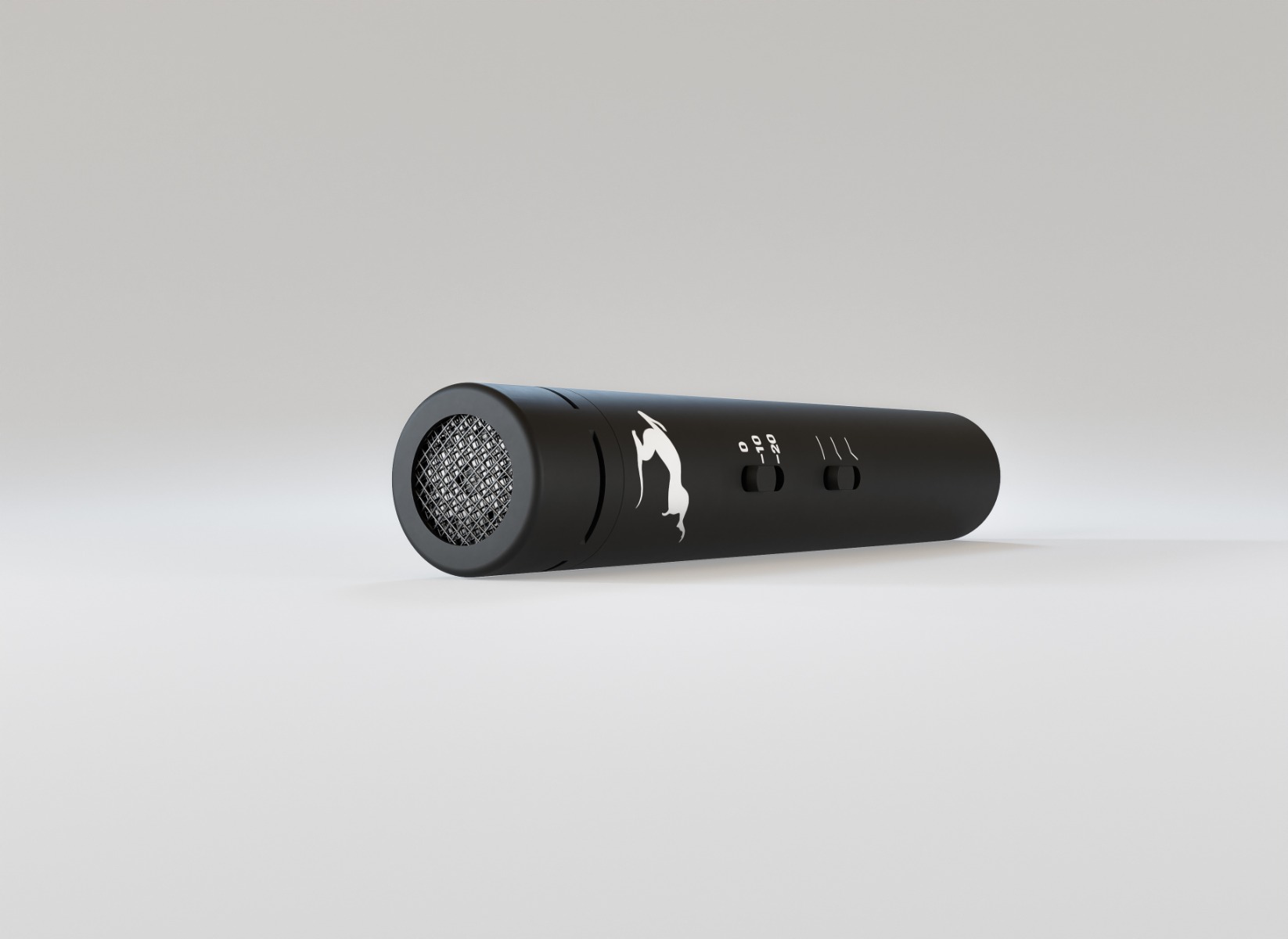

Antelope Edge Note
Produktinformationen "Antelope Edge Note"
Features
- 13 microphone emulations of classic microphone models
- Back-electret design provides transparent, balanced sound, & accurate transient responses
- Cardioid polar pattern suitable for wide variety of recording scenarios
- Frequency response of 20Hz–20kHz covers the audible spectrum
- Signal-to-noise ratio of 69dB
- Pad attenuation switch (-10db and -20dB) improves close-miking of loud sources, ensuring a clean signal without distortion.
- Maximum sound pressure level of 146dB
- High-pass filter switch (75Hz and 115Hz) eliminates low-frequency rumble and compensates for proximity effect
- Metal housing and black-matte finish provides style and endurance
- Includes shock mount holder to eliminate unwanted vibrations and provide easy positioning
- 48V DC Phantom Power required
Included Mic Emulations
Edge Note comes with 13 mic emulations, accessible via native plug-in or within an Antelope interface:
- Aalborg 4006
- Berlin 184
- Berlin K53
- Berlin K54
- Berlin K86
- Freiburg 6
- Hamburg 211
- Hamburg 40
- Hamburg 441
- Illinois 57
- Illinois 7B
- Perth 55
- Vienna D112
Technical Specifications
- Diaphragm type: Back-electret Condenser
- Diaphragm diameter: 0.63" (16.1mm)
- Polar Pattern: Cardioid
- Freq. response: 20Hz ~ 20kHz
- Sensitivity: -42dB | 8mV/Pa (+/-3dB)
- SNR: 69dB (A)
- Max input SPL: 146dB
- Output impedance: 65 Ohms
- Power Requirements: 48V DC Phantom Power
- Output Connector: 3-pin male XLR
- Color: Black matte
- Dimensions (mic body): 4.5" x 0.8" (114mm x 20mm)
- Mount: Shock absorber type
