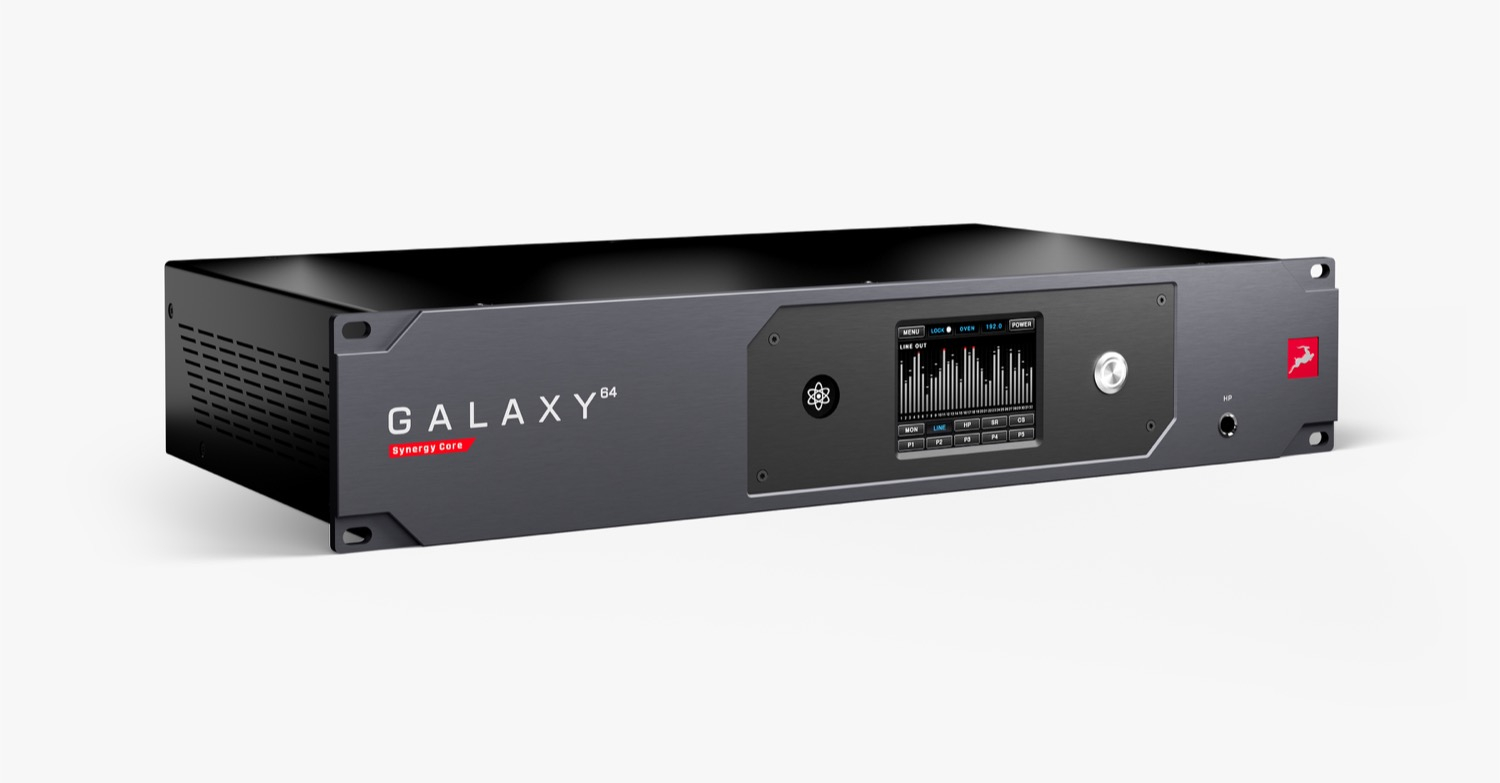

Antelope GALAXY 64 Synergy Core
Galaxy 64 Synergy Core is a high-end recording system that connects your entire studio within a 2U rack space while providing high-fidelity audio and onboard effects processing for your most demanding projects. With Dante, HDX and Thunderbolt connectivity, the world’s first 64-channel AD/DA converter offers unbeatable flexibility when moving sound around your high-profile production facility, live stage, broadcast, or other enterprise applications.
36 Real-Time Effects Included Galaxy 64 Synergy Core includes a massive expandable library of 36 real-time effects. It is largely composed of software emulations of vintage analog gear found in world-renowned recording studios. The collection does not lack in variety – you can find rarities like a boutique autowah pedal from Finland, a Danish master-grade compressor or emulation of famous units like American-design EQs.
A/D LINE INPUT
Input Connection: 8 × DC-Coupled D-Sub 25-pin with AC/DC Coupling Switch (TASCAM Standard)
I/O Channel Count: 64 Channels
Input level trim: 14 dBu to 24 dBu in steps of 1 dB
Dynamic Range: 124 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -112 dB
Impedance Load: 11.2 kOhms
D/A LINE OUTPUT
Output Connection: 8 × DC-Coupled D-sub 25-pin (TASCAM Standard)
I/O Channel Count: 64 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 128 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms
D/A MONITOR OUTPUT
Output Connection: 2 × ¼” 6.35 mm Jack (3 pin)
Chanel Count: 2 Channels
Output level: -inf to 24dBu // 1 dB step
Dynamic Range: 130 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 56 Ohms
HEADPHONE OUTPUT
Output Connection: 1 × ¼” 6.35 mm Jack (3 pin)
Output level: 20dBu
Dynamic Range: 122 dB
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
THD+N (A): -115 dB
Impedance Load: 120 Ohms
DIGITAL INTERFACE – THUNDERBOLT™
Interface Connection: 2 × Thunderbolt 3 Ports
I/O Channel Count: 64 Channels
Daisy-chain: Supported
Remote Control: Supported, (Over USB Type-C)
Supported Sample Rates: 44.1 kHz—192 kHz, 24-bit PCM
Control Panel Support: Supported
DIGITAL INTERFACE - DANTE®
Interface Connection: 2 × RJ-45 Ports, I/O
I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
Redundancy: Supported
Connectivity: Dual Ethernet, switched or redundant
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
DIGITAL INTERFACE - HDX
Interface Connection: 4 × HDX Ports,
I/O Channel Count: 128 Channels (32 Per Port)
Primary/Secondary ports: 4 Primary
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
Delay Compensation: Supported
Manual Delay Compensation: Supported, (up to 128 samples)
Session I/O Support: Yes (16 ×16)
DIGITAL INTERFACE - MADI
Interface Connection: 2 × Optical SC Connectors
MADI Mode: Dual Wire, Optical
SMUX: Supported
MADI Protocol: AES10-2003
I/O Channel Count: 64 Channels @44.1/48.0 kHz
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
DIGITAL INTERFACE - S/PDIF
Interface Connection: 2 × RCA Connectors
S/PDIF SRC: Supported
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
DIGITAL INTERFACE - AES/EBU
Interface Connection: 2 × XLR Connectors
AES Mode: AES/EBU
I/O Channel Count: 2 Channels
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
CLOCKING SYSTEM
Clocking Technology: 4th Generation Acoustically Focused Clocking, 64-Bit Jitter Management DDS
Word Clock Input: 1 × Input @ 75 Ohms 3Vpp on BNC
Word Clock Output: 6 × Output @ 75 Ohms 3Vpp on BNC
Loop-Sync Input: 1 × Input @ 75 Ohms 3Vpp on BNC
Loop-Sync Output: 1 × Output @ 75 Ohms 3Vpp on
10M Atomic Reference Input: 1 × Input @ 75 Ohms 1Vpp on BNC
Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
Other
Operating Temperature: - 0-50*C, 32-122*F
Dimensions (Approx):
- Width: 482.6 mm / 19"
- Depth: 270 mm / 10.63"
- Height: 88.mm / 3.47"
Weight (Approx): 6.4 kg / 14.1 lbs
Power Consumption: 60 Watts
