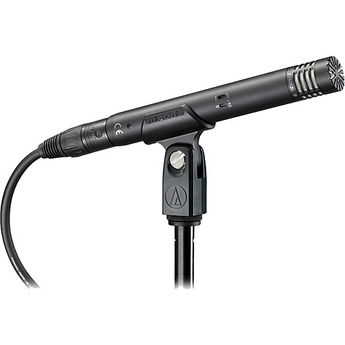

Audio Technica AT4053b

This versatile studio performer may be used with confidence in a wide variety of professional miking applications.

Featuring direct-coupled balanced outputs for clean signals in high-output conditions, the microphone is totally free of the distortion associated with conventional transformer-coupled outputs. And its fast response to transients contributes to the open, transparent reproduction of even the most difficult-to-capture instruments. The microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

The AT4053b consists of two modular subassemblies: an AT4900b-48 body and an AT4053b-EL hypercardioid head capsule (both available separately). Additional interchangeable capsules are available in omnidirectional (AT4049b-EL) and cardioid (AT4051b-EL).

Features

• Specially engineered to meet the most critical acoustic requirements of professional recording, broadcast and sound reinforcement
• Hypercardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Direct-coupled, balanced output results in a clean signal even under high-output conditions
• Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
• Switchable 80 Hz hi-pass filter and 10 dB pad
• Rugged turned-brass microphone housing for enduring dependability
• State-of-the-art design and manufacturing techniques ensure compliance with Audio-Technica's stringent consistency and reliability standards
• RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

Accessories

• AT8405a stand clamp for 5/8"-27 threaded stands
• Windscreen
• Protective carrying case

Specifications

• Element: Externally polarized (DC bias) capacitor
• Polar Pattern: Hypercardioid
• Frequency Response: 20-20,000 Hz
• Low Frequency Roll Off: 80 Hz, 12 dB/octave
• Open Circuit Sensitivity: -34 dB (19.9 mV) re 1V at 1 Pa
• Impedance: 50 ohms
• Maximum Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)
• Dynamic Range: 129 dB, 1 kHz at Max SPL
• Signal to Noise Ratio: 78 dB, 1 kHz at 1 Pa
• Phantom Power Requirements: 48V DC, 4.8 mA typical
• Switch: Flat, roll-off; 10 dB pad (nominal)
• Weight: 127 g (4.5 oz)
• Dimensions: 155.0 mm (6.10") long, 21.0 mm (0.83") maximum body diameter
• Output Connector: Integral 3-pin XLRM-type
