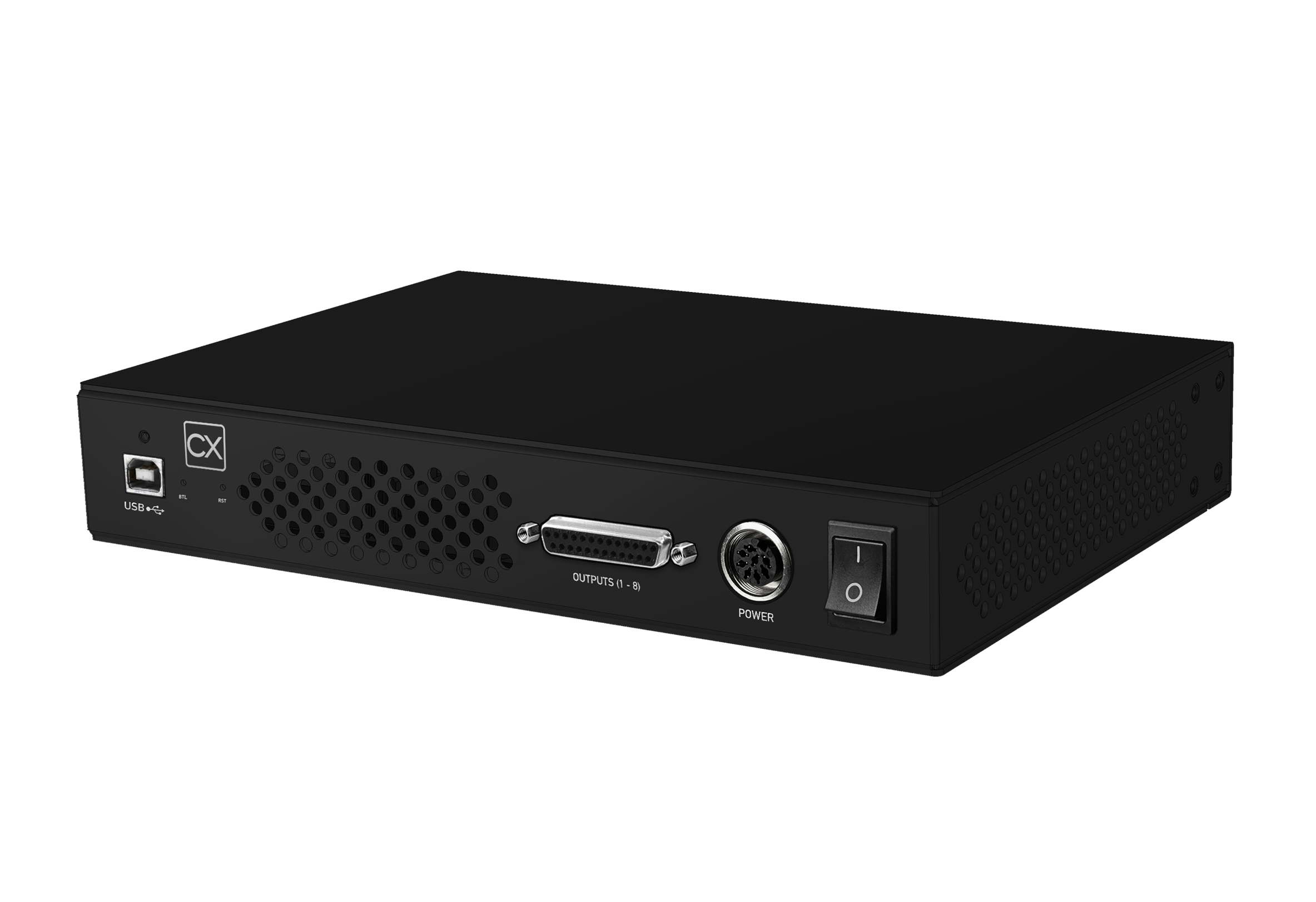

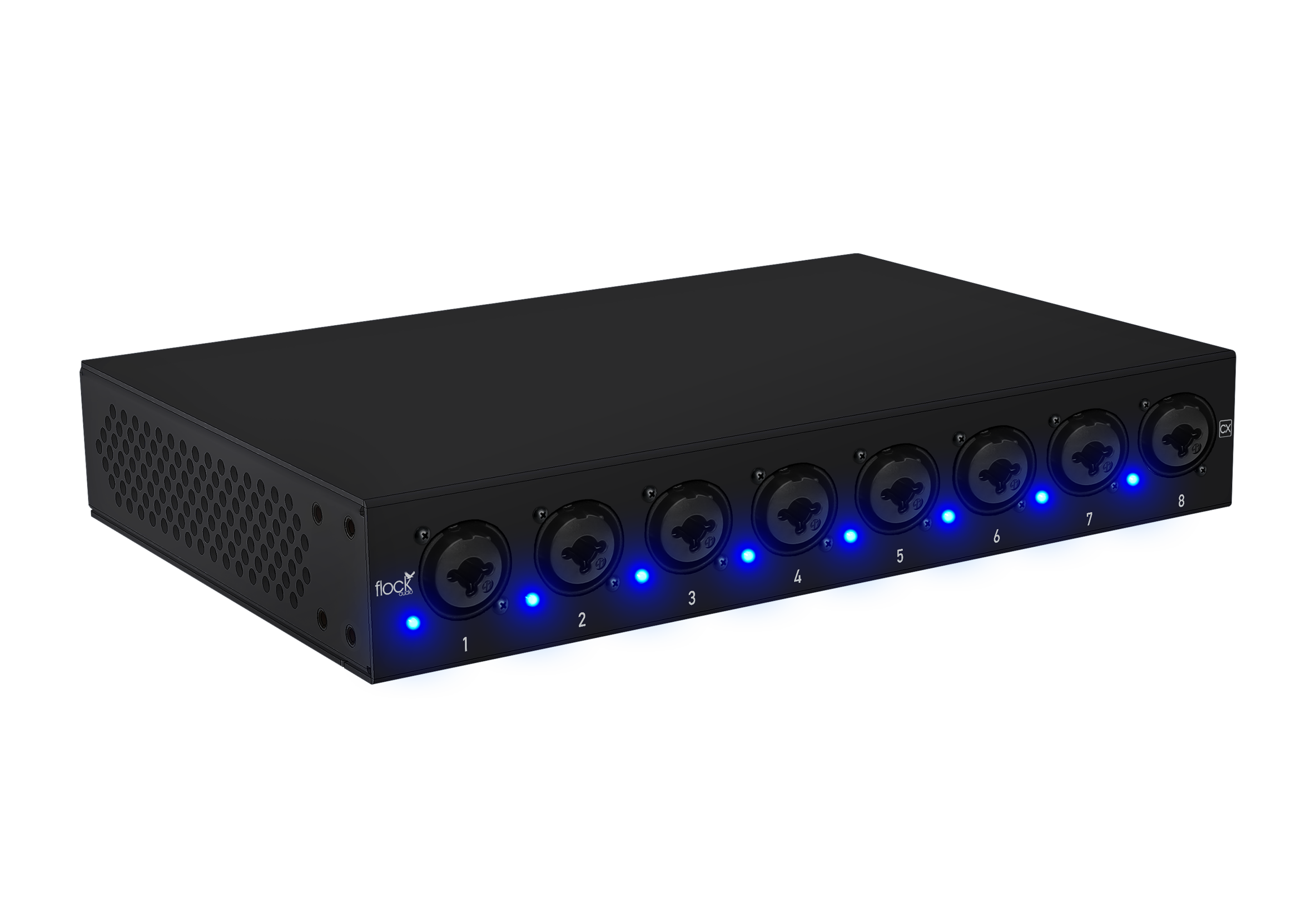

PRODUCT DETAILS
8 Channel Mic/Instrument Level XLR/TRS Combo Inputs
8 Channel Line Level DB-25/D-SUB Output Tascam Standard Pinout Format Connector
8 Assignable Independent Channels of 48V Phantom Power
PATCH APP & PATCH APP DX - Setup & Controlling Software (OSX, Windows, iOS)
Connect any type of analog audio signal to the PATCH Series via the CX Hardware
No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Signal Path
Stand Alone Desk Module -or- Rack Ear Mountable Package Design (Ears Included)
External Power Supply w/ Threaded Locking Connector (IEC Cable Included)
10 Ft. - USB 2.0 (USB-A to USB-B) Cable for Host Control (Cable Included)
Unit Dimensions: 1.75”(H) x 10.25” (L) x 7” (D) - 5 lbs

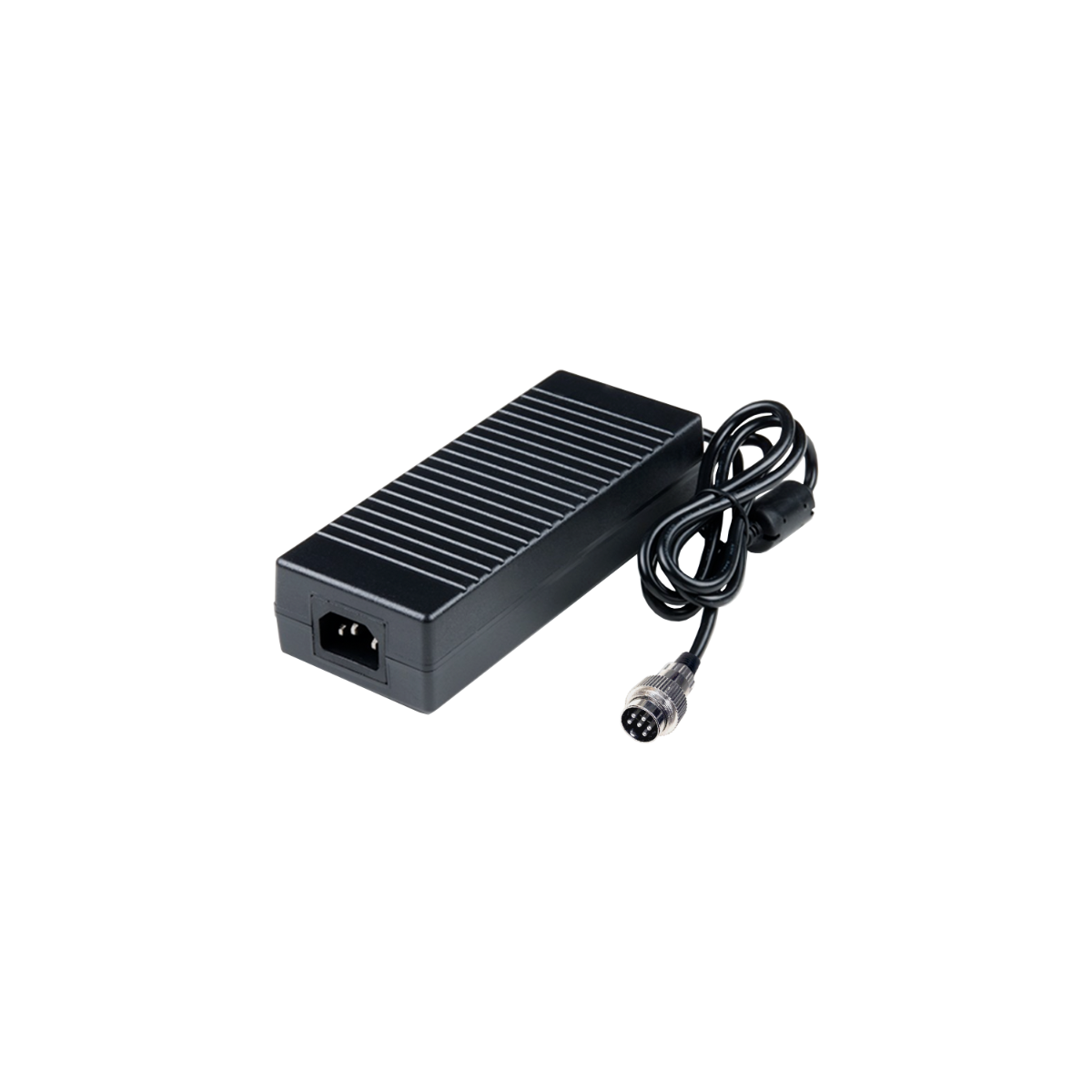

Replacement Power Supply for the Flock Audio PATCH System. This Power Supply supports 110v & 220v/240v voltages without any requirement to switch or replace fuses. This is sold with the threaded locking collar to fit the PATCH Systems 5 Pin Power Input Connector.
*Note: This does not include the Power IEC Cable*

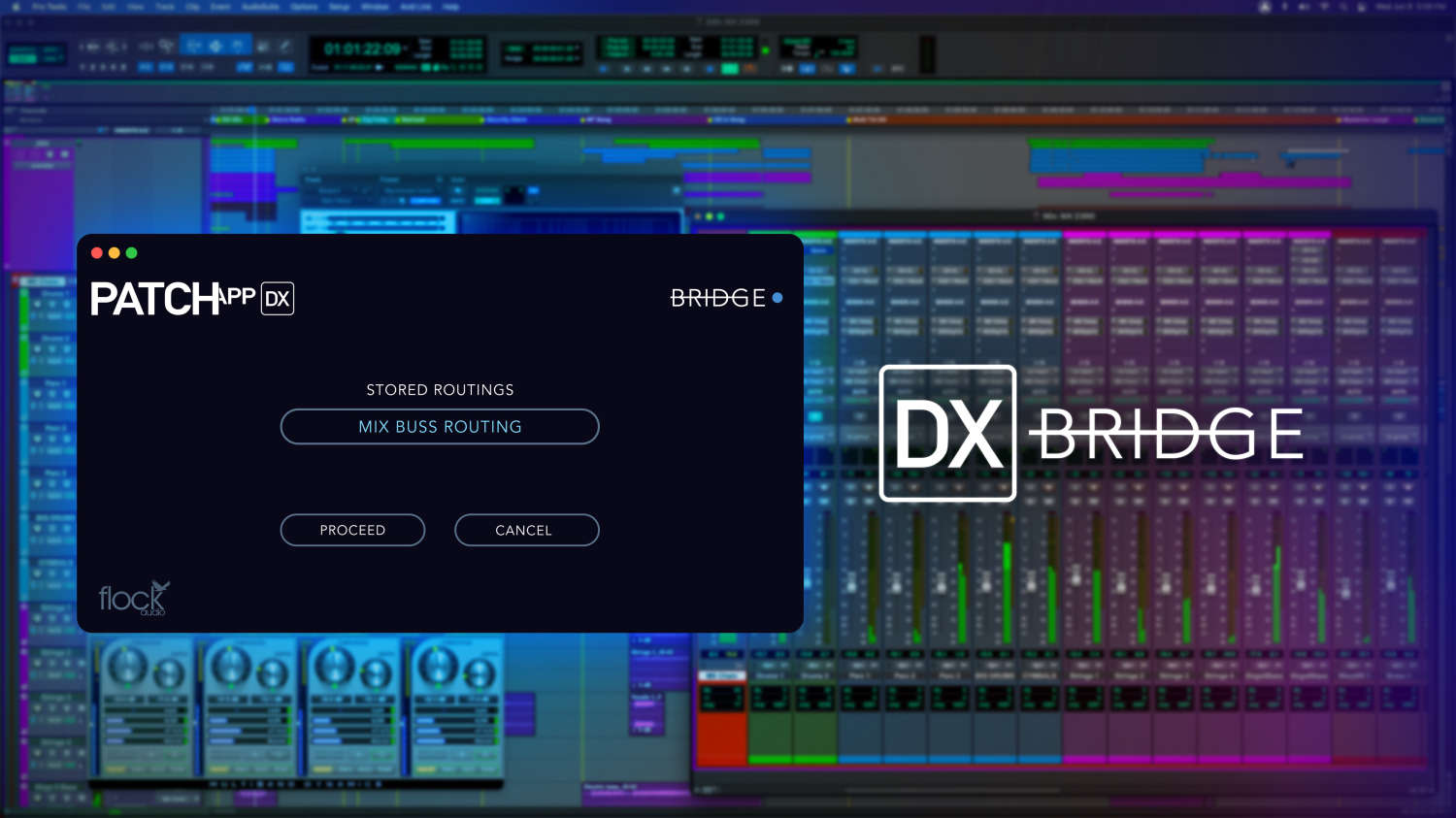

"PATCH APP DX is our Premium Upgrade Software that completes the entire PATCH Series Controlling Eco System!
PATCH APP DX works with your PATCH Series Hardware connected Computer to open even more creative and recall opportunities than ever before possible.
You can use your iPad, iPhone &/or Desktop CPU to create & recall routings. Customize Digital Rack Spaces & Labelling and use our newly announced "Hardware Management System" to snap photos, take notes and store all that important information directly in your Flock Audio PATCH APP Stored Routing Menu.
The possibilities are nearly endless."
32 Point Connections (16 Inputs / 16 Outputs)
DB-25/D-SUB Tascam Standard Pinout Format Connectors
16 Independent Channels of 48V Phantom Power
Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output
PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
Create, Store & Recall Routings in Seconds
Create Complex Multing Combinations w/ No Impedance Issues
No AD/DA Conversion, 100% Transparent Analog Signal Path
Patented Flock Audio Matrix Technology (Same as PATCH)
Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
External 5Pin 24VDC Power Supply w/ IEC Cable Included
10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs
32 Point Connections (16 Inputs / 16 Outputs)
DB-25/D-SUB Tascam Standard Pinout Format Connectors
16 Independent Channels of 48V Phantom Power
Front Panel - 1 Combo TRS/XLR Input & 1 XLR Output
PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
Create, Store & Recall Routings in Seconds
Create Complex Multing Combinations w/ No Impedance Issues
No AD/DA Conversion, 100% Transparent Analog Signal Path
Patented Flock Audio Matrix Technology (Same as PATCH)
Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
External 5Pin 24VDC Power Supply w/ IEC Cable Included
10 Ft. - USB 2.0 (USB-A to USB-B) - Cable Included
Unit Dimensions: 1U - 1.75”(H) x 19” (L) x 8” (D) - 15 lbs

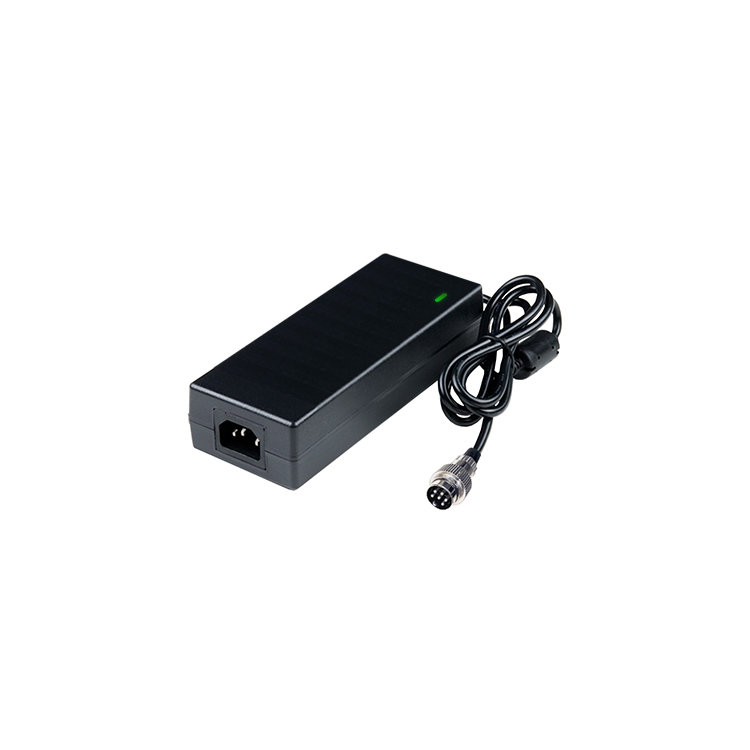

Replacement Power Supply for the Flock Audio PATCH LT System & CX Module. This Power Supply supports 110v & 220v/240v voltages without any requirement to switch or replace fuses. This is sold with the threaded locking collar to fit the PATCH LT Systems & CX Modules 5 Pin Power Input Connector.
*Note: This does not include the Power IEC Cable*
Features:
64 Point Connections (32/32)
32 Channels 48V Phantom Power
2 Input / 2 Output Front Panel Connections
Create, store and recall routings
Advanced multing capabilities
Multiple System Expansion (8 unit support)
OSX & Windows compatible Software
Software and firmware updates
Safeguard warning notifications
DB-25 connectors
No label templates required
No patch cables required
2 COMBO INPUTS & 2 XLR OUTPUTS
The PATCH System comes equipped with 4 Connectors housed in the front panel of the system. 2 - Inputs (XLR/TRS Combo jacks) and 2 - XLR Output jacks. These front panel connectors allow a user quickly & easily integrate outside audio equipment or instruments into your recording setup. The front panel connection points are optional use and can be activated/deactivated via using the Flock Audio PATCH APP. The 2 - Inputs (XLR/TRS) are also capable of powering 48v microphones.
FRONT PANEL LED INDICATORS
Three coloured LED Indicators assist the user with visual notifications including...
Host Signal - This LED Illuminates solid Blue when the PATCH System Hardware is connected and communicating with the associated CPU.
48V Front Inputs - This LED Illuminates solid Blue when 48V has been enabled to the Front Input Combo Jacks, notifying the user to not plug or unplug any audio equipment until the the 48V is disabled.
External 48V Warning - This LED Illuminates solid Red when any connected preamp has its 48V actively on, because The PATCH System has its own on-board 48V Power, its not necessary to activate 48V on the connected preamp.
USB-A TO USB-B CONTROL
The PATCH System uses very little CPU processing power to send and receive commands from the hardware. Because of the minimal amount of processing required, the PATCH System works off a USB 2.0 and on-wards compatibility. The design was chosen for a low CPU usage so you can have your system processing working harder for your Interface & DAW rather then devoting a large amount of that processing to routing your analog audio equipment.
DB25 REAR CONNECTIONS
DB-25's/D-Subs create a clean, simple and organized form of connections to the rear chassis of PATCH. Utilizing the standard Tascam Wiring Pinout schematic, any DB-25/D-Sub cable following this wiring format will work seamlessly with your system. For additional flexibility we've added the feature that Inputs & Outputs (31 - 32) will flip from the rear side of the chassis to the front when activated in the PATCH APP. This allows a user to quickly audition other outside audio equipment without disconnecting any already designated hardware connected to the PATCH System.
MULTI-PATCH UNIT EXPANSION
Connect Multiple PATCH Systems together for Expanded I/O Routing Capabilities. When we said 100% analog...we meant it. The PATCH System has no A/D or D/A conversions built in and with that comes no rules either...meaning connections for audio processing is transferred purely through an analog circuitry no digital. Users can connect multiple PATCH Systems together through their existing on-board I/O in many different configurations, whether you do equal Sends & Returns, maybe more sends than returns or even as little or as many connections between units as you require for your analog configurations.
Control these D.A.P's (Digital Analog Passes) right from the PATCH APP, simply drag & drop a Digital Analog Pass in place of your desired signal flow in the App to move your activate signal from one PATCH Unit to the next. Every analog signal coming in or out remains purely Analog getting the most of out of your PATCH Routing system. However, each studio is as unique as its audio engineer, so don't let us tell you how to configure your PATCH setup... you're going to tell us.
UP IN SMOKE? NOPE.
Built behind the scenes of the PATCH System is a fully integrated diagnostic monitoring system to ensure your PATCH is running like new under the hood. Because of the complex architecture in each PATCH System, we felt it was important to add this internal feature in to maintain the highest quality out of each PATCH System. When something becomes the centre piece and hub of your recording studio...you want to know that its working the same as the first day you opened the box and so do we.
WE PLAY NICE
Wondering if its possible to integrate a Flock Audio PATCH System into your already existing traditional patch bay setup? Of course it is! PATCH's flexible design allows users to configure it into any existing setup and utilize its incredibly versatile and intuitive functionality into your studio! We take no prisoners, only friends! We developed PATCH to be a powerful tool allowing you to use & route your analog hardware with ease... However, we can't make any promises that you won't fall in love with PATCH and wonder how you ever lived without it in your workflow.
Features:
64 Point Connections (32/32)
32 Channels 48V Phantom Power
2 Input / 2 Output Front Panel Connections
Create, store and recall routings
Advanced multing capabilities
Multiple System Expansion (8 unit support)
OSX & Windows compatible Software
Software and firmware updates
Safeguard warning notifications
DB-25 connectors
No label templates required
No patch cables required
2 COMBO INPUTS & 2 XLR OUTPUTS
The PATCH System comes equipped with 4 Connectors housed in the front panel of the system. 2 - Inputs (XLR/TRS Combo jacks) and 2 - XLR Output jacks. These front panel connectors allow a user quickly & easily integrate outside audio equipment or instruments into your recording setup. The front panel connection points are optional use and can be activated/deactivated via using the Flock Audio PATCH APP. The 2 - Inputs (XLR/TRS) are also capable of powering 48v microphones.
FRONT PANEL LED INDICATORS
Three coloured LED Indicators assist the user with visual notifications including...
Host Signal - This LED Illuminates solid Blue when the PATCH System Hardware is connected and communicating with the associated CPU.
48V Front Inputs - This LED Illuminates solid Blue when 48V has been enabled to the Front Input Combo Jacks, notifying the user to not plug or unplug any audio equipment until the the 48V is disabled.
External 48V Warning - This LED Illuminates solid Red when any connected preamp has its 48V actively on, because The PATCH System has its own on-board 48V Power, its not necessary to activate 48V on the connected preamp.
USB-A TO USB-B CONTROL
The PATCH System uses very little CPU processing power to send and receive commands from the hardware. Because of the minimal amount of processing required, the PATCH System works off a USB 2.0 and on-wards compatibility. The design was chosen for a low CPU usage so you can have your system processing working harder for your Interface & DAW rather then devoting a large amount of that processing to routing your analog audio equipment.
DB25 REAR CONNECTIONS
DB-25's/D-Subs create a clean, simple and organized form of connections to the rear chassis of PATCH. Utilizing the standard Tascam Wiring Pinout schematic, any DB-25/D-Sub cable following this wiring format will work seamlessly with your system. For additional flexibility we've added the feature that Inputs & Outputs (31 - 32) will flip from the rear side of the chassis to the front when activated in the PATCH APP. This allows a user to quickly audition other outside audio equipment without disconnecting any already designated hardware connected to the PATCH System.
MULTI-PATCH UNIT EXPANSION
Connect Multiple PATCH Systems together for Expanded I/O Routing Capabilities. When we said 100% analog...we meant it. The PATCH System has no A/D or D/A conversions built in and with that comes no rules either...meaning connections for audio processing is transferred purely through an analog circuitry no digital. Users can connect multiple PATCH Systems together through their existing on-board I/O in many different configurations, whether you do equal Sends & Returns, maybe more sends than returns or even as little or as many connections between units as you require for your analog configurations.
Control these D.A.P's (Digital Analog Passes) right from the PATCH APP, simply drag & drop a Digital Analog Pass in place of your desired signal flow in the App to move your activate signal from one PATCH Unit to the next. Every analog signal coming in or out remains purely Analog getting the most of out of your PATCH Routing system. However, each studio is as unique as its audio engineer, so don't let us tell you how to configure your PATCH setup... you're going to tell us.
UP IN SMOKE? NOPE.
Built behind the scenes of the PATCH System is a fully integrated diagnostic monitoring system to ensure your PATCH is running like new under the hood. Because of the complex architecture in each PATCH System, we felt it was important to add this internal feature in to maintain the highest quality out of each PATCH System. When something becomes the centre piece and hub of your recording studio...you want to know that its working the same as the first day you opened the box and so do we.
WE PLAY NICE
Wondering if its possible to integrate a Flock Audio PATCH System into your already existing traditional patch bay setup? Of course it is! PATCH's flexible design allows users to configure it into any existing setup and utilize its incredibly versatile and intuitive functionality into your studio! We take no prisoners, only friends! We developed PATCH to be a powerful tool allowing you to use & route your analog hardware with ease... However, we can't make any promises that you won't fall in love with PATCH and wonder how you ever lived without it in your workflow.

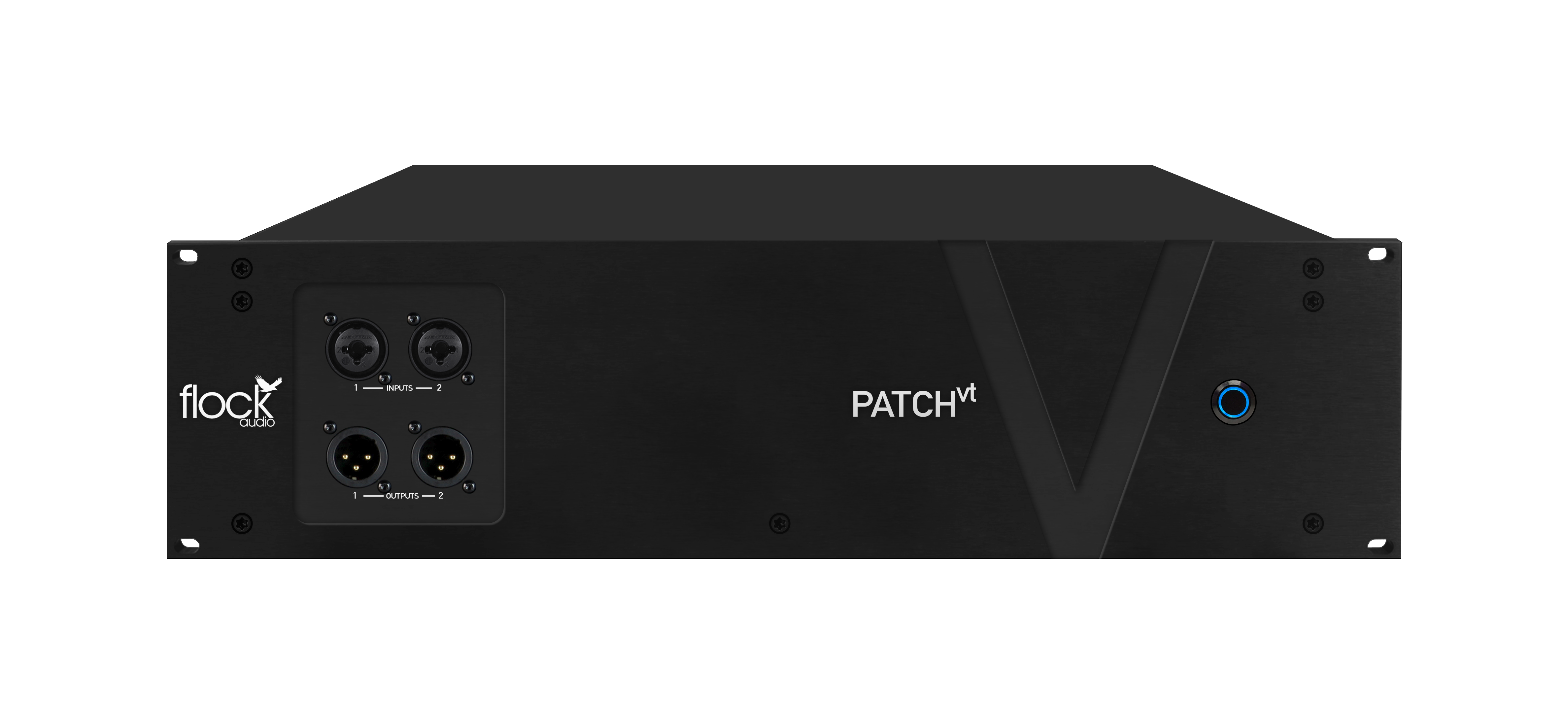

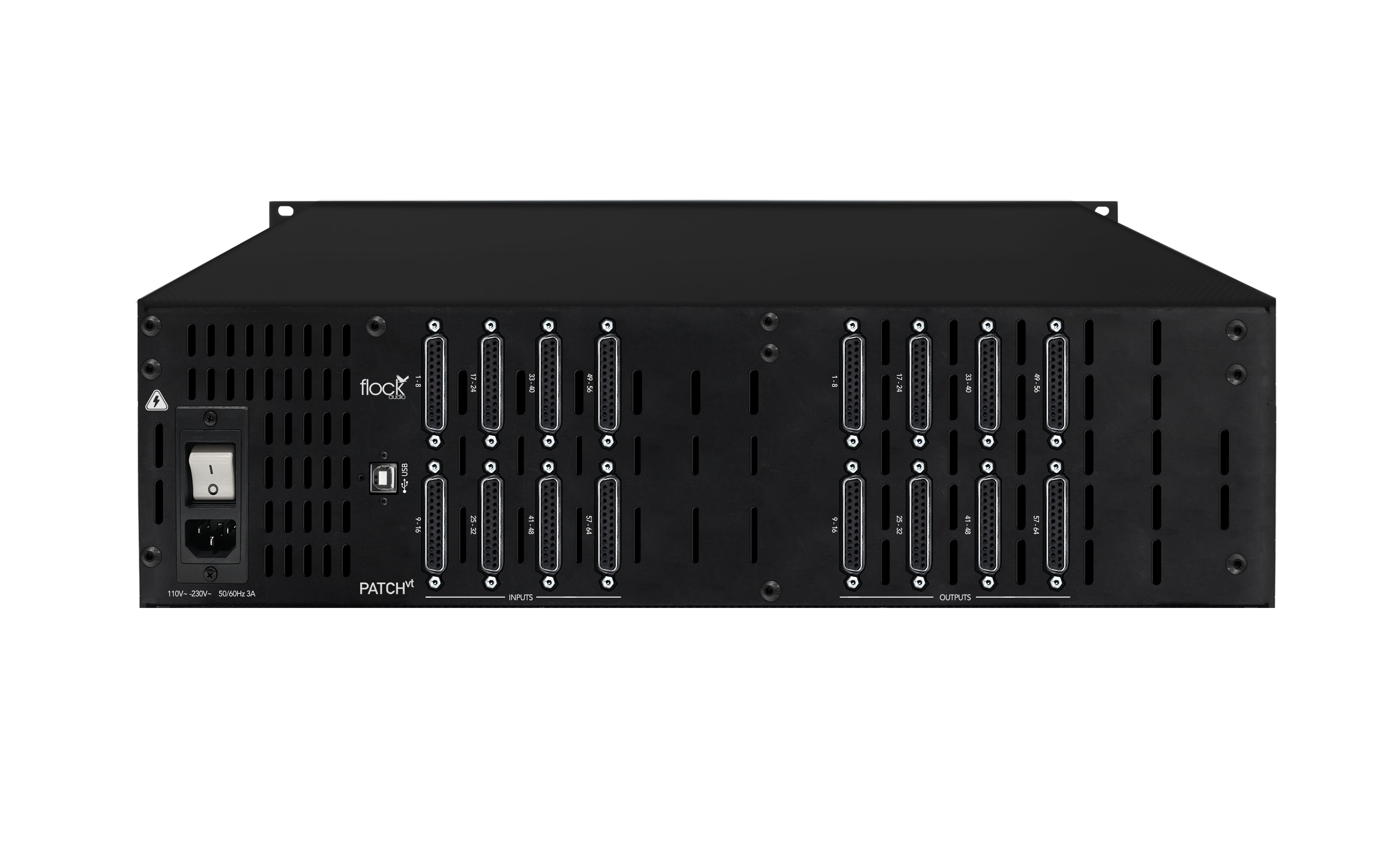

PRODUCT DETAILS
128 Point Connections (64 Inputs / 64 Outputs)
DB-25/D-SUB Tascam Standard Pinout Format Connectors (Rear Panel)
32 Assignable Independent Channels of 48V Phantom Power
Front Panel - Includes (2 Combo TRS/XLR Input & 2 XLR Output)
PATCH APP & PATCH APP DX - Routing Software (OSX, Windows, iOS) Compatibility
Create, Store & Recall Routings in Seconds
Create Complex Multing Combinations w/ No Level or Impedance Changes
No AD/DA Conversion, No Latency, 100% Sonically Transparent Analog Routing
Remote Sleep/Wake Mode Control of PVT Hardware
Input Signal Audio Detection Integration
Patented Flock Audio Matrix Technology
Multiple Unit Expansion with 10 of any PATCH Series Model (PATCH LT, PATCH, PATCH VT, PATCH XT)
Internal Power Supply w/ IEC Cable Included
6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Locking USB Connector - Cable Included
Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 24 lbs
Compatible with XTH Cable Hanger/Management Accessory (Product Code: XTH Cable Hanger) Compatible
Das Flock Audio Patch ist eine digital gesteuerte analoge Patchbay, die entwickelt wurde, um beispiellose Flexibilität und Recall-Fähigkeiten im Routing von Outboard Equipment zu erreichen. Mit dieser Kombination aus Hard- und Software gehören Patchkabel der Vergangenheit an!
Es gibt keine AD / DA Wandlung, lediglich die Pfade der analogen Signale werden digital gesteuert.
Patch bietet Ihnen das Beste aus beiden Welten – rein analoge Audioqualität und vollständige digitale Kontrolle.

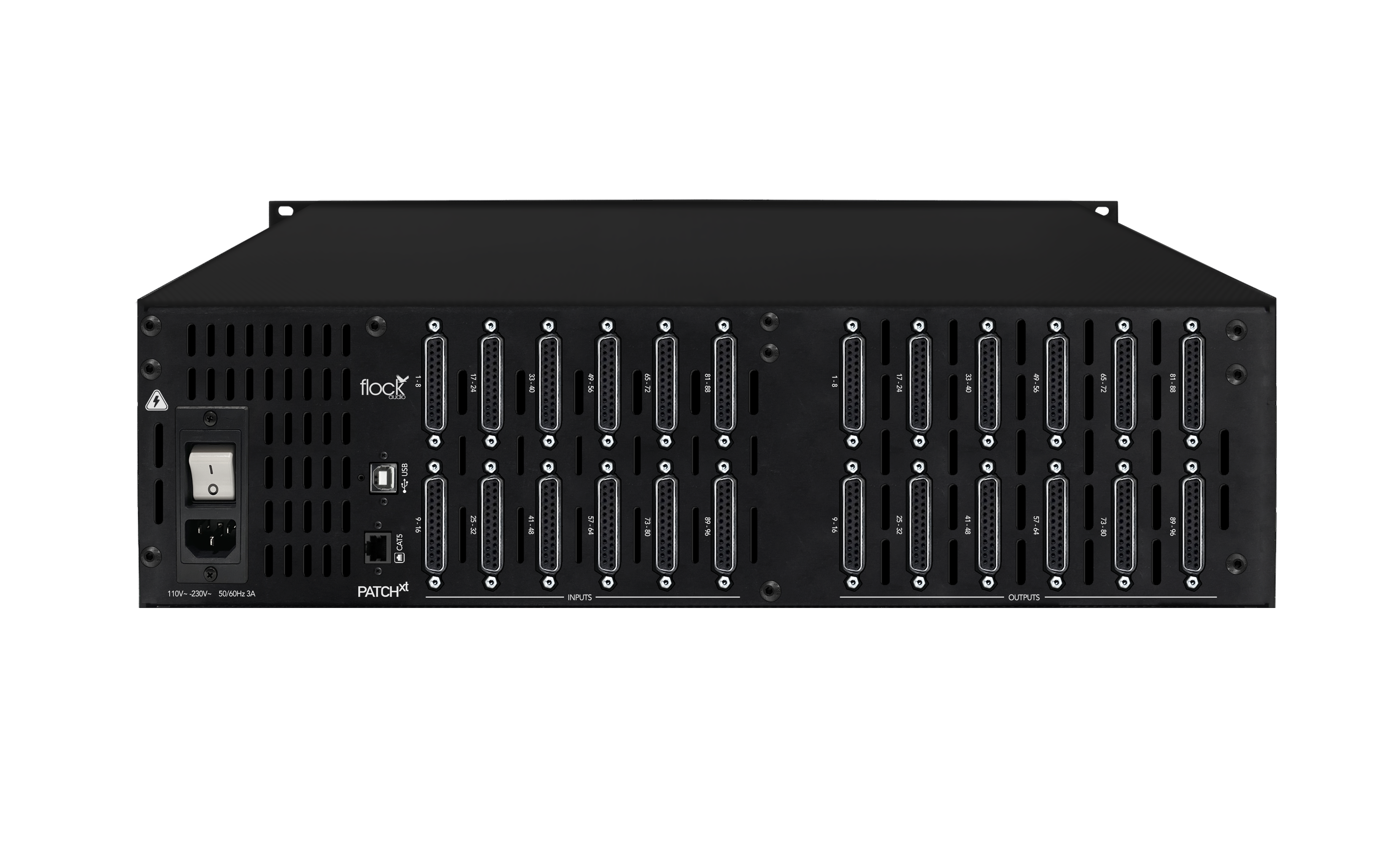

Der Hardwareteil ist eine analoge Patchbay im robusten 3E-Gehäuse. Auf der Rückseite befinden sich je 96 Ein- und Ausgänge als DB-25 Buchsen ausgeführt. Ebenfalls rückseitig ist ein USB-to-Host-Anschluss mit dem die Kommunikation mit dem Softwareteil, der benutzerfreundlichen Patch-App (Mac/Win), ermöglicht wird. Die Patch-App bietet dem Benutzer Routing-Speicher und sofortige Abrufe.
Features
192 Anschlusspunkte (96 Eingänge / 96 Ausgänge)
DB-25/D-SUB (Standard Tascam Belegung)
96 unabhängige Kanäle mit 48V Phantomspeisung

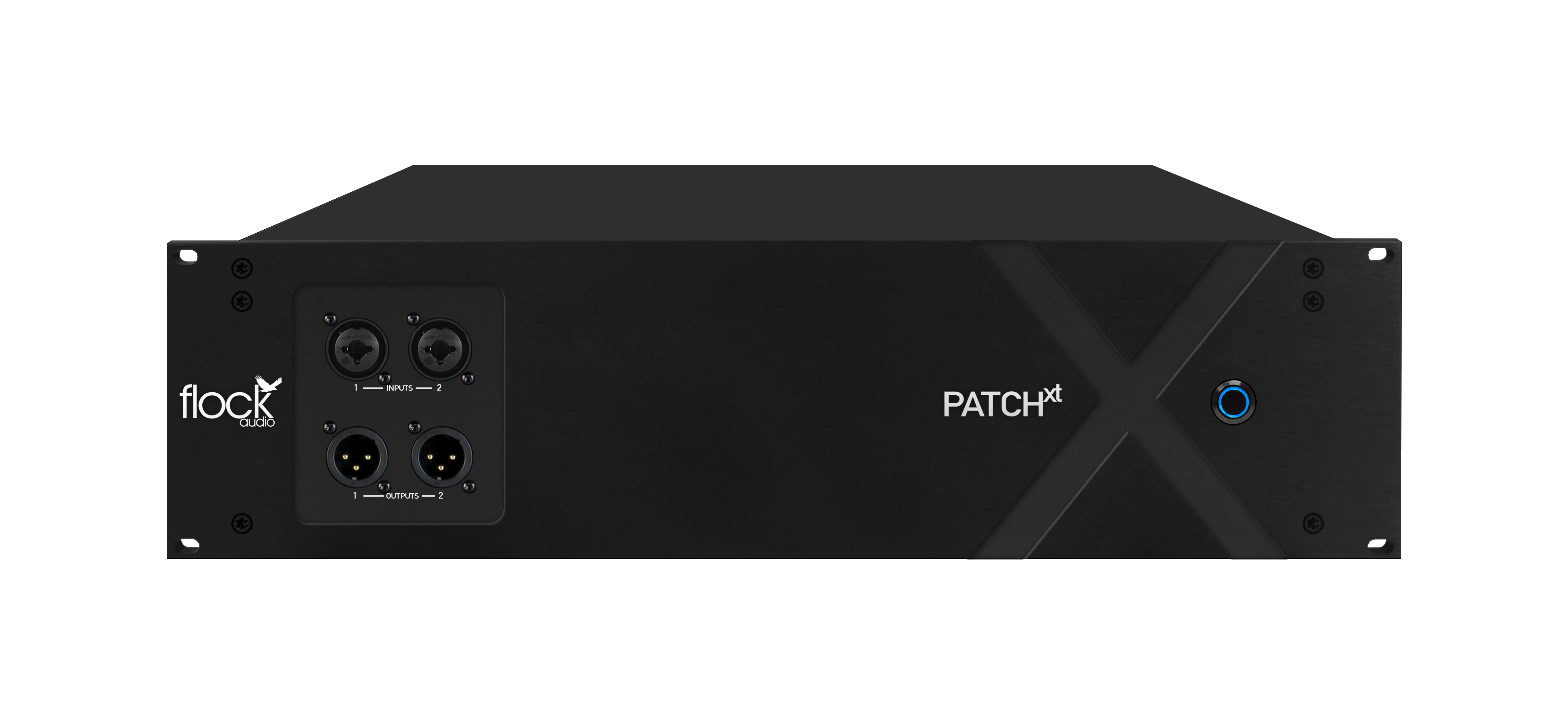

Frontblende: Zusätzlich die Pfade 31/32 mit XLR- / TRS Kombo (Eingang) und XLR (Ausgang)
PATCH APP Routing Software (OSX & Windows) (iOS iPad kommt bald)
Erstellen, speichern & wiederherstellen von Einstellungen in Sekunden
Erstellung komplexer Kombinationen duplizierter Signale ohne Impedanzprobleme
Keine AD / DA Wandlung, 100% transparenter analoger Signalpfad
Patentierte Flock Audio Matrix Technologie
Beliebig erweiterbar mit allen Modellen der PATCH Serie (PATCH, LT & XT)
CAT5 Netzwerkfähigkeit (optionale Steuerung)
Integration der Eingangssignal-Audioerkennung
Internes Netzteil

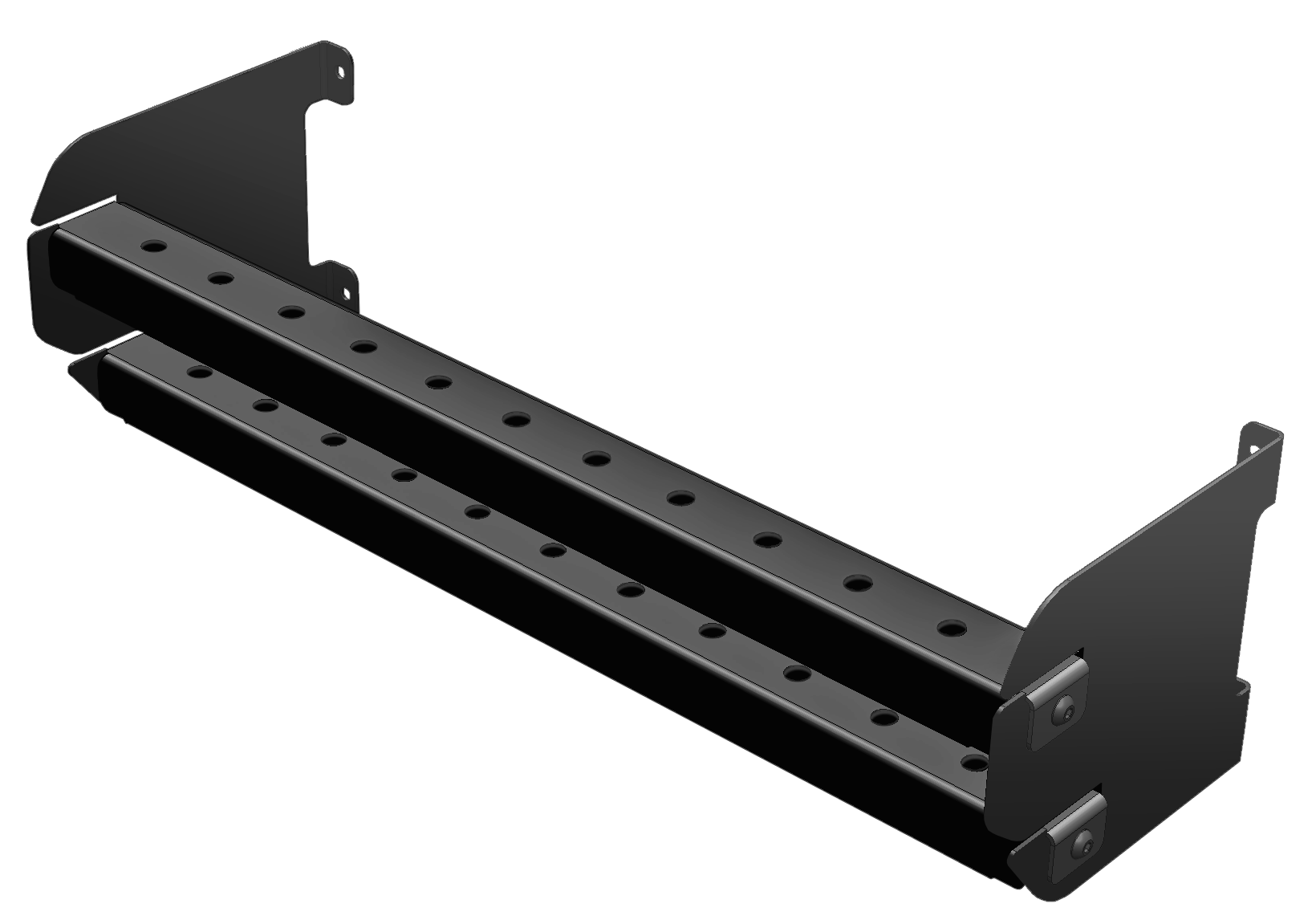

Der XTH Cable Hanger ist ein optionales Zubehörteil exklusiv für das PATCHXT Modell.
Der XTH Cable Hanger wird als 4-teiliger Bausatz geliefert und lässt sich in wenigen Minuten mit den 4 mitgelieferten Befestigungselementen und dem Sechskantschlüssel sicher an der Rückseite des PATCHXT-Gehäuses montieren.

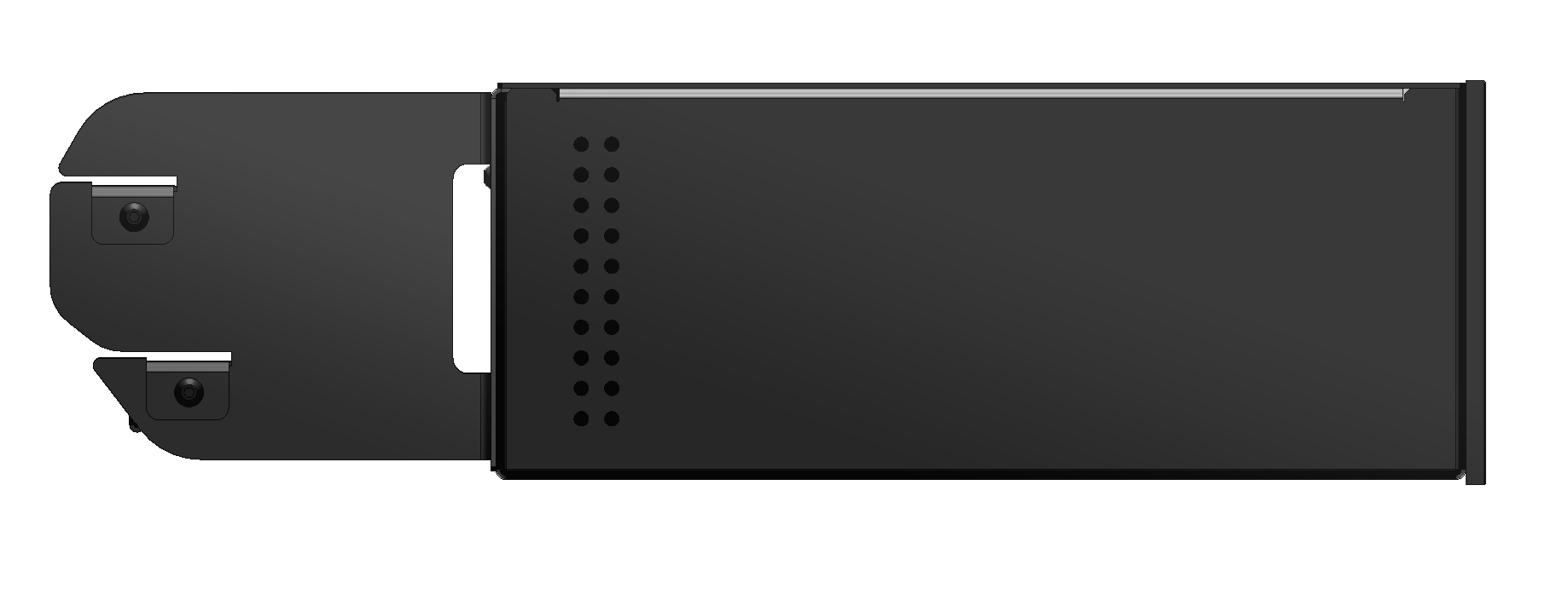

Die XTH-Kabelaufhängung schafft eine Zugentlastung am PATCHXT-Gehäuse, wenn alle 24 DB-25/D-SUB-Kabel an der Rückwand des Systems angeschlossen sind. DB-25/D-SUB-Kabel können von Hersteller zu Hersteller unterschiedlich schwer sein, und wenn sie mit bis zu 24 Kabeln aufwärts kombiniert werden, kann dies zu einem erheblichen Gewicht auf der Rückseite des PATCHXT Chassis führen.
Die XTH-Kabelaufhängung verteilt das Gewicht der DB-25/D-SUB-Kabel gleichmäßig, so dass die Steckverbindungen auf der Rückseite des PATCHXT-Modells weniger belastet werden.
Hochbelastbare Metallkonstruktion
Schwarz pulverbeschichtetes Finish
Durchbrüche in den Querstäben für Kabelbinderbefestigungen
4 Stück - M5-Befestigungselemente (im XTH-Montagesatz enthalten)
1 Stück - Sechskantschlüssel (im XTH-Montagesatz enthalten)
