Features
Thunderbolt 3 interface, with 256 Bidirectional Channels at 48 & 96 kHz, 128 channels at 192 kHz and 64 channels at 384 kHz.
Main and expansion Thunderbolt 3 Port w. 15W Power Source Each. Both of the two Thunderbolt 3 ports can function as main and expansion port.
Audio Drivers for macOS and Windows.
MADI interface on BNC connectors with 64 Bidirectional Channels at 48kHz, 32 channels at 96kHz, 16 channels at 192 kHz and 8 channels at 384 kHz.
Dual ADAT interface on TosLink Light pipes with 16 Bidirectional Channels at 48kHz, 8 channels at 96kHz, and 4 channels at 192 kHz. Configurable also as 2 Ch. S/PDIF input.
DANTE AoIP interface via Ethernet with 256 Bidirectional Channels at 48 and 96kHz, 128 channels at 192 kHz.
Module Slot for optional dual Madi module via 2 x SFP (LC Fiber or HD/BNC Coax) connectors with 128 Bidirectional Channels at 48kHz, 64 channels at 96kHz, 32 channels at 192 kHz and 16 channels at 384 kHz.
wo card slots available for DAD I/O Expansion Cards.
Word Clock I/O, and Video Black and Burst input on BNC connectors.
128 channels speaker processing with a total of 1024 filters and delay.
Summing Processor 64 Output / 512 Input Busses.
Internal Router: 4096 x 4096.
32bit Floating Point Processing.
DADman control software for macOS and Windows connecting via Ethernet or Thunderbolt.
Pro|Mon monitor control functionality and integration for Avid Eucon Enabled Devices via DADman.
19” Rack Unit 1U Height.

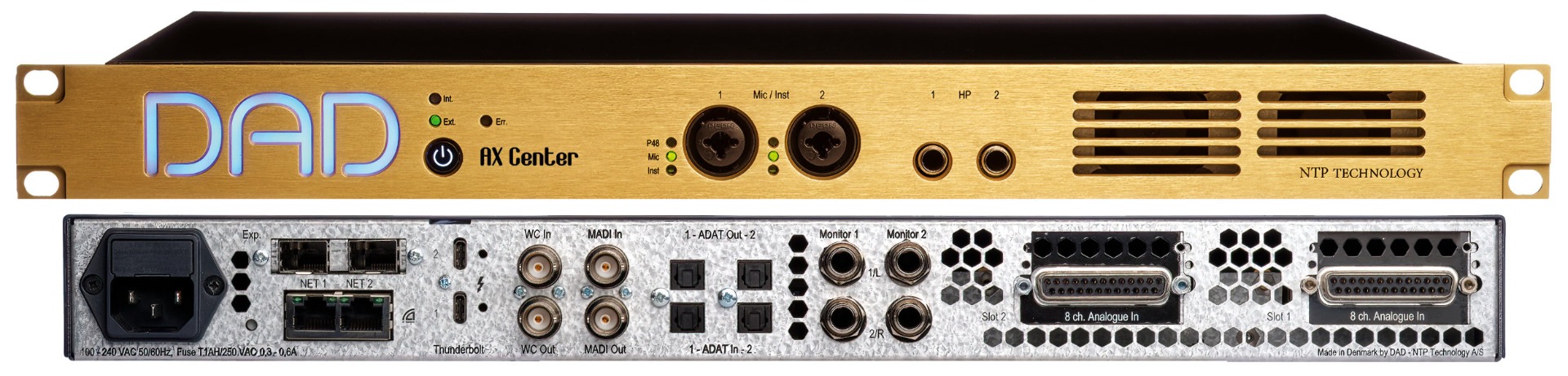

Technical Overview
2 Ch. microphone or instrument input
Dual stereo headphone output
Dual stereo monitor output
A/D, D/A and D/D Converter with sample rates from 44,1 to 384 kHz and DSD
Up to 984 Input and Output Channels
Router and Monitoring Interface
Thunderbolt 3 I/O (256 Ch.)
Dante AoIP I/O (256 Ch.)
MADI I/O (64 ch.)
ADAT I/O (16 Ch.) / SPDIF (2 ch.)
2 Slots for Optional Multi-Format DAD I/O Cards
512x64 Ch. Pro|Mon Summing and Speaker 1024 ch. EQ Processing

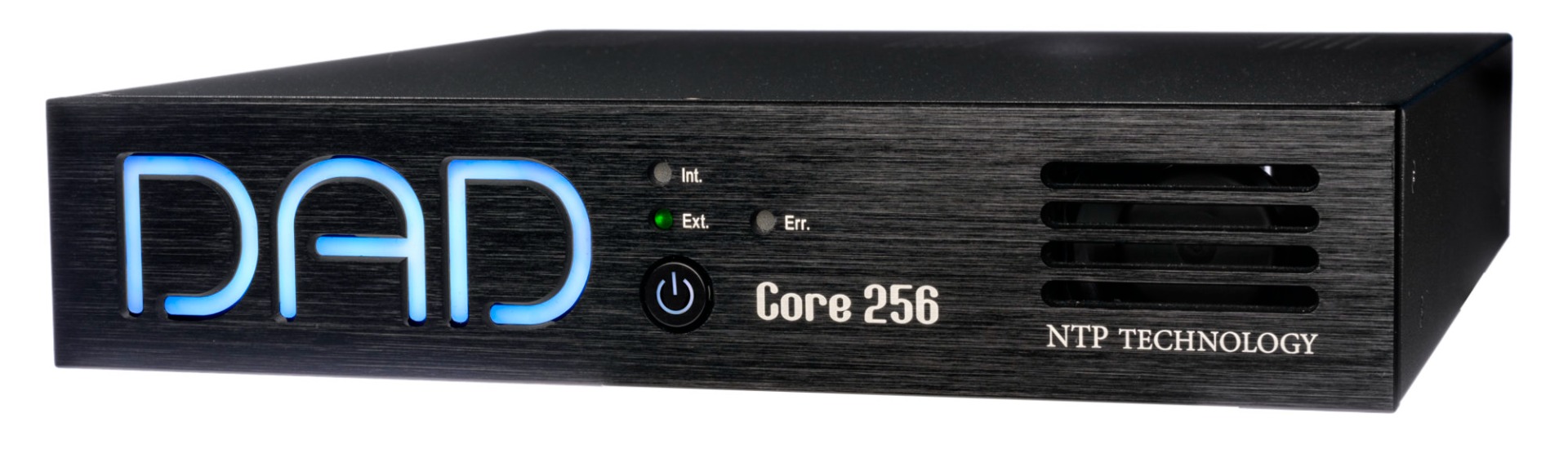

Core 256 may not take up much space, but the power you can squeeze out of this little box might just make your jaw drop to the floor. With tons of channels, a wide palette of digital connectivity, built-in SPQ processing, Eucon control compatibility, internal summing engine and drivers for macOS and Windows 10, it is a pristine digital audio interface by any measure and for just about any application.
However, there is one application that should be emphasized in particular: Core 256 is simply the perfect Dante and MADI interface for Dolby Atmos® RMU.
The size and shape of Core 256 fits nicely for sharing a 1U rack shelf with a Mac Mini running Dolby Atmos® Renderer, Dolby Atmos® Production Suite or Dolby Atmos® Mastering Suite. For immersive audio post production facilities, this solution will represent the missing link that streamlines and optimizes the multichannel workflows seamlessly.
Features

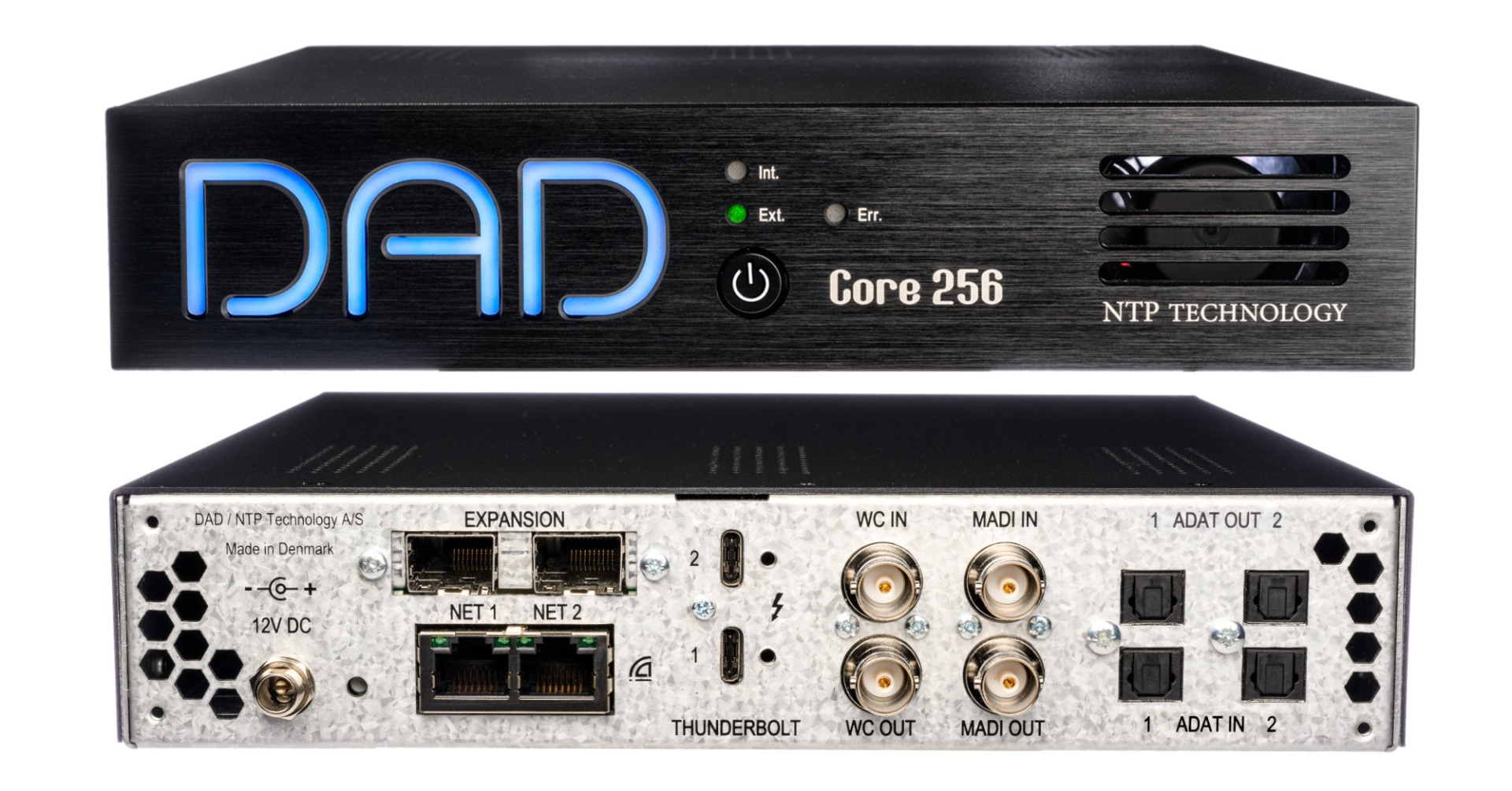

The basic I/O configuration for the Core 256 interface is:
• 2 Thunderbolt 3 Ports (each w. 15W power)• 256 Bidirectional Channels at 48 & 96 kHz• ASIO / Core Audio Thunderbolt PCIe drivers• MADI/BNC-Optional 2 x SFP (LC fiber or HD/BNC coax)• ADAT /Lightpipe (16 Ch.)• DANTE: 256 Ch. at 48 kHz, 128 Ch. at 96 kHz, 64 Ch. at 192 kHz (IP Core)• WC I/O• SPQ: 64 Ch. with 16 Filters• Pro|Mon Support• Summing Processor 64 Output / 512 Input Busses• Internal Router: 1500 x 1500• 32bit Floating Point Processing• Avid Eucon Enabled Devices via DADman• APPLE Silicon M1 and Intel Compatible Software• Control via Ethernet or Thunderbolt Connection• 12V DC External Power (Max 60W)• ½ Rack Unit 1U Height
Further, the mini module slot can be mounted with an optional dual bidirectional MADI module with optical SFP or mini coax connectors.

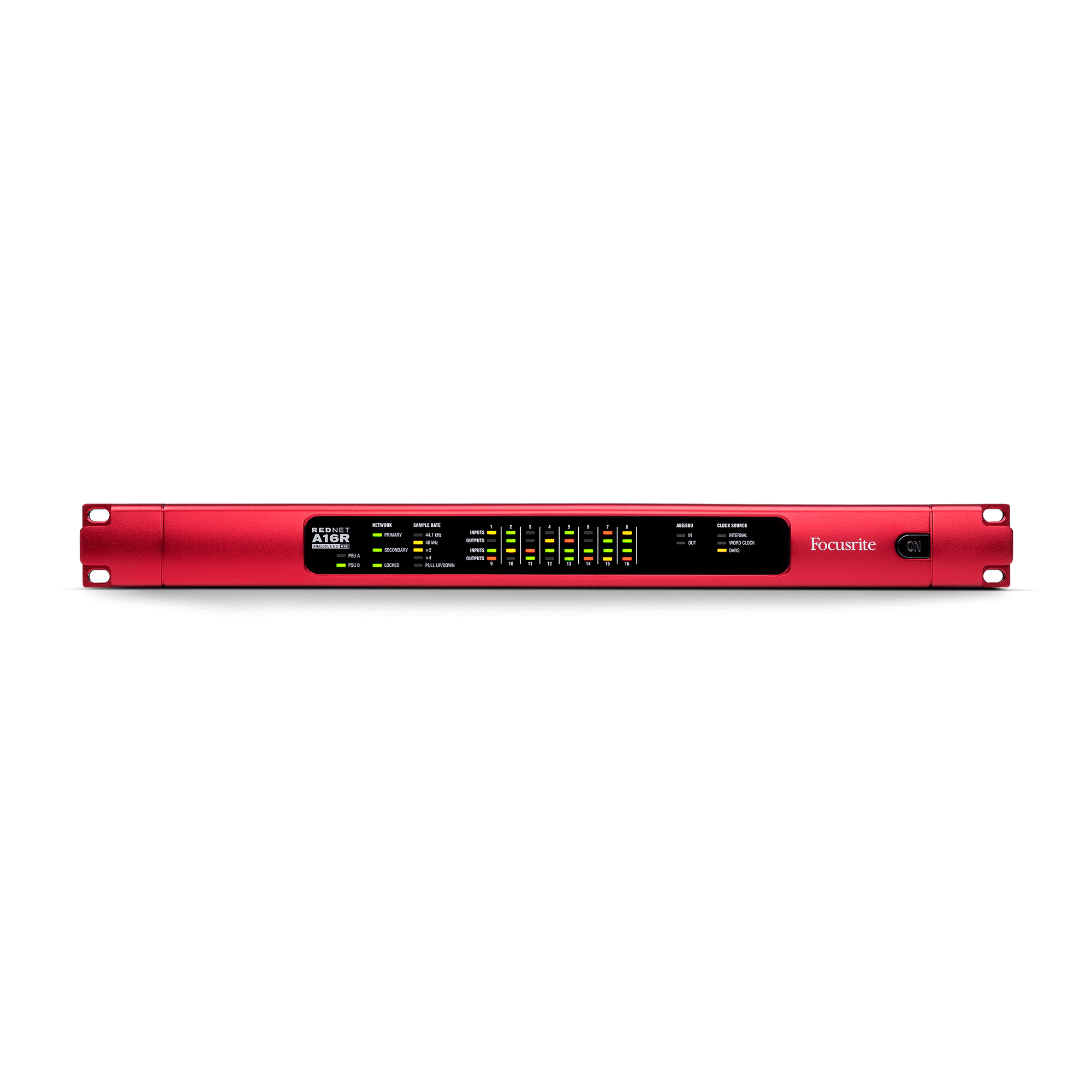

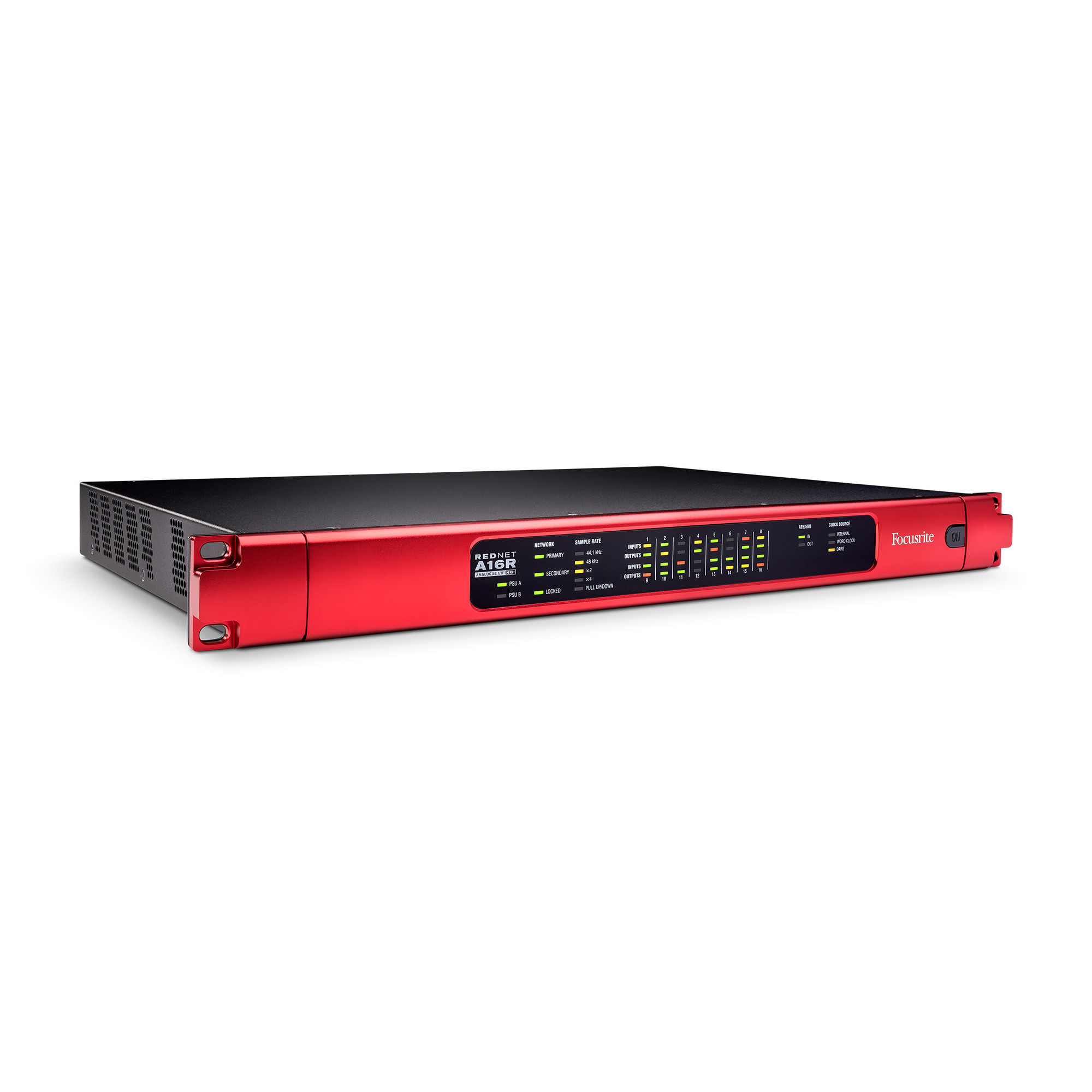

Der RedNet A16R MkII ist ein 16-Kanal-Analog-Interface für Dante-Netzwerke, mit zwei Kanälen AES3 I/O. Individuelle Eingangs- und Ausgangspegelregelungen ermöglichen eine präzise Anpassung aller I/O-Pegel über RedNet Control. Mit zwei Netzteilen sowie primären und sekundären etherCON-Netzwerkanschlüssen ist der RedNet A16R MkII perfekt für kritische Anwendungen in den Bereichen Aufnahme, Postproduktion, Live-Sound und Rundfunk geeignet. Eingebaute Redundanzfunktionen ermöglichen einen lautlosen Failover im Falle eines Strom- oder Netzwerkausfalls und bieten so Sicherheit für Systemtechniker.Die analogen Eingänge und Ausgänge werden über vier rückseitige, nach AES59 standardisierte DB25-Anschlüsse verbunden, während ein zusätzliches Paar AES3 I/O über männliche und weibliche XLR-Anschlüsse für zusätzliche Flexibilität zur Verfügung steht. Der XLR-Eingang kann neben AES3 auch DARS-Signale empfangen. Word-Clock-I/O an BNC-Anschlüssen ermöglicht es externen Geräten, sich an den RedNet A16R MkII zu synchronisieren, oder alternativ, den RedNet A16R MkII als Netzwerk-Clock-Grandmaster zu verwenden, der mit einem externen Signal synchronisiert wird. Der RedNet A16R MkII eignet sich hervorragend für Festinstallationen und wiederholtes Auf- und Abbauen: Alle Anschlüsse sind verriegelbar und bleiben auch unter Belastung gesichert, was eine sorgenfreie Installation und beruhigende Sicherheit nach der Rack-Montage bietet. Darüber hinaus verfügen alle Focusrite Pro Produkte über eine dreijährige Garantie und preisgekrönten Kundensupport.

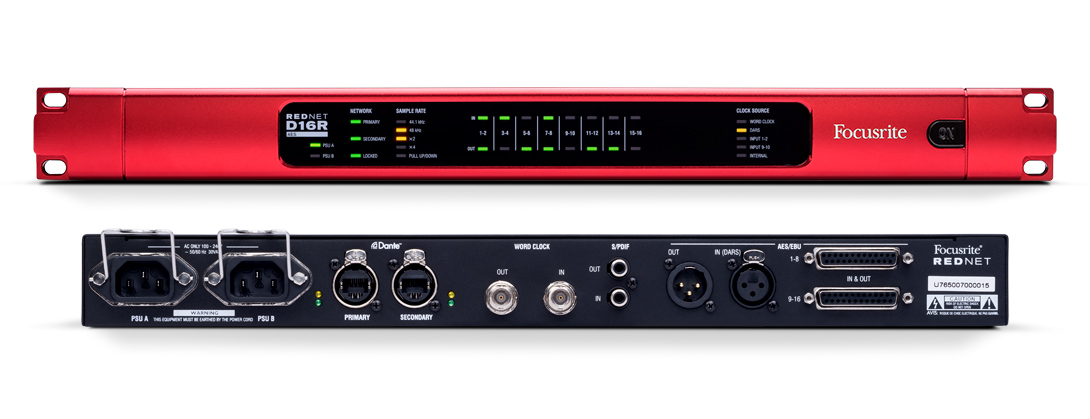

RedNet D16R MkII is a 16-channel bi-directional digital interface for Dante networks. The 1U rackmount device features individual input and output channel level controls, allowing for precise calibration and control of all input and output levels using RedNet Control. RedNet D16R MkII features power supply and Ethernet redundancy with auto switchover in case of failure. Various connection options make RedNet D16R MkII a flexible addition to any Audio-over-IP system. A pair of DB25 multipin connectors each connect eight channels of AES3 I/O into and out of the interface, while XLR and RCA ports enable two-channel AES3 and S/PDIF connections, respectively, to be made. Sample rate conversion on every input enables external equipment to operate at different sample rates, and DARS signals are accepted on the XLR connector. Word Clock I/O on BNC connectors allows synchronisation to house clock, or syncing external equipment to the Dante network. Key Features
16-channel bi-directional digital interface for Dante networks.
Individual input and output channel level control using RedNet Control software.
Dual PSUs with locking IEC inlets.
Dual locking etherCON connectors for Primary and Secondary network connections.
Power supply and ethernet redundancy with auto switchover in case of failure.
Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
Sample rate conversion on all input channels.
Two DB25 connectors with AES59 standard configuration; each carries eight channels of AES3 I/O.
RCA connectors for two-channel S/PDIF input and output.
XLR connections for alternate AES3 I/O and DARS input.
BNC connectors for Word Clock input and output.
Compact 1U chassis allows maximum functionality in minimum rack space.
Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
Remote routing and control using RedNet Control and Dante Controller.

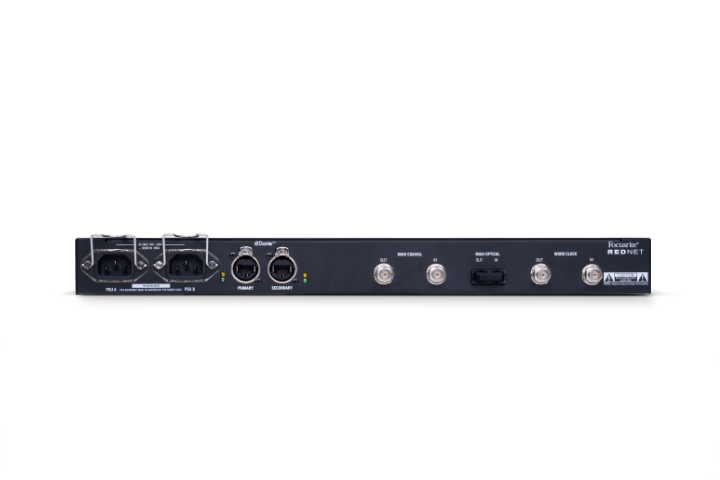

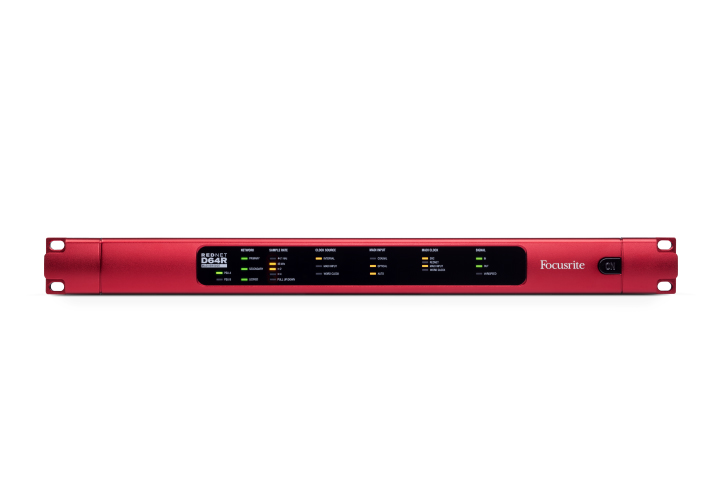

64-channel bridge between MADI and Dante Networks
RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet’s high quality interface products with a MADI system – or MADI components with a Dante system. D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. Connect a Dante network to MADI-based digital consoles, computer cards, converters and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out. The D64R features a rugged, roadworthy exterior and high internal build quality, with Ethernet and power supply redundancy. In addition, it offers a compact 1U rack-mount form factor for a full 64 channels of I/O.
Key Features
Connects a MADI system and a Dante network seamlessly together. Connect Dante to digital mixing consoles, interfaces and cards that use MADI; or extend a MADI system with RedNet’s versatile, superb-quality audio interfaces and connectivity – or any other Dante compatible devices.
Built-in redundancy with dual locking power and etherCON network connectors.
Supports both coax and optical interfaces – connect simply to any MADI equipment.
Slave either the Dante system or MADI streams to an external clock
Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz) from a MADI system, 32 channels at 96kHz and 16 at 192kHz.
Sample rate conversion (SRC) on each input and output, allowing MADI and Dante systems to operate simultaneously at different sample rates.
Simple 1U rack-mount module with the classic red aluminium faceplate.
RedNet Control and Dante software allow remote routing and control from the audio computer system via a software control panel – no hardware patching required.
32-Channel Bridge between Dante Networks and Pro Tools|HD
RedNet HD32R is a 1U, 19in rack-mount Dante interface that allows Pro Tools|HD users direct access to the full benefits of the Dante digital audio networking system, including its uniquely flexible network topology and premium quality audio interfaces. The Pro Tools system is connected to the HD32R via standard Mini DigiLink ports. HD32R acts as a 64-channel (32 in/32 out) digital break in/out box, operating in the same way as a standard interface, and supporting a wide range of Pro Tools|HDX and HD cards. Up to six HD32R modules can be used with a Pro Tools|HDX system and three with Pro Tools|HD, allowing the maximum channel count for either. The HD32R features a rugged, roadworthy exterior and high internal build quality, with Ethernet and power supply redundancy. In addition, it offers a compact 1U rack-mount form factor for a full 32 channels of I/O.
Key Features
Allows Dante Ethernet-based audio networking products to interoperate fully with Pro Tools|HD & Pro Tools|HDX
Ethernet and power supply redundancy with auto switchover in case of failure and locking connectors
Provides the vital link to create an extensive high-quality audio network based on standard Cat 5e or Cat 6 wiring, bringing the latest advances in digital audio networking to Pro Tools|HD
Cost-effectively increase audio I/O quality and flexibility with RedNet interfaces
Permits multiple workstations to access the same interface hardware and I/O
No changes to Pro Tools workflow required – simple, logical assignment of RedNet I/O to Pro Tools|HD inputs and outputs
Up to 32 I/O with Pro Tools|HD over single DigiLink connection per RedNet HD32R
Additional Avid/Digidesign interfaces may be connected to expansion ports
Upgrade to RedNet interfaces while remaining fully compatible with TDM- or AAX-DSP-based plugins and saved sessions
Overview

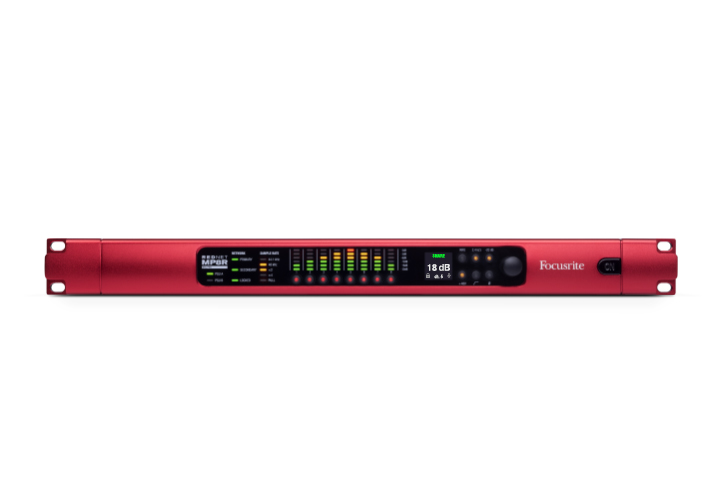

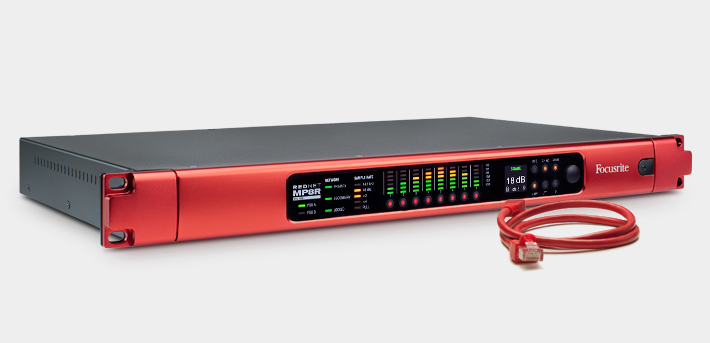

8-channel remote-controlled mic pre and A/D for Dante networks
RedNet MP8R is an 8-channel remote-controlled microphone preamplifier and A/D for the Dante audio-over-IP network, designed specifically for the live sound/recording and broadcast environments, and other workflows where reliability is paramount, with Ethernet and power supply redundancy. The MP8R features eight high-quality remote-controlled mic preamps developed specifically for the RedNet range, and backed by thirty years of mic preamplifier development. Each preamp has a dual input impedance of 10k or 2.4k ohms, allowing flexibility when running multiple mic pres in parallel. The device includes eight auxiliary outputs with automatic DSP-based gain tracking for digital “splits”. Following the mic pres are eight channels of Focusrite’s legendary high-precision A/D converters, operating at up to 192kHz/24-bit with minimum latency and offering class-leading dynamic range and overall performance. The MP8R features a rugged, roadworthy exterior and high internal build quality. In addition, the unit offers a compact 1U rack-mount form factor.
Key Features
Built-in redundancy with dual power and network connections
Rugged roadworthy all-metal construction, high build quality, locking power and etherCON Ethernet connectors
Eight Focusrite remote-controlled preamps with enhanced input level capability, and dual input impedance to deliver maximum performance when one mic feeds single or multiple pres
Two outputs from each preamp: one direct and the other automatically gain-compensated to deliver a constant level
Remote-controllable Gain, Phantom Power and High-Pass Filter from Yamaha CL and QL Series Consoles.
20dB pad, HPF and polarity inversion per input
Operate locally, or remotely via RedNet Control software, Pro Tools, MIDI or OCA (Open Control Architecture – available 2015 via firmware update)
Precision low-latency conversion at up to 24-bit/192kHz, with best-in-class dynamic range and overall audio quality
6-segment LED level meters; OLED display indicates input gain and system information
Compact 1U form factor
Full interoperability with other Dante products and networks

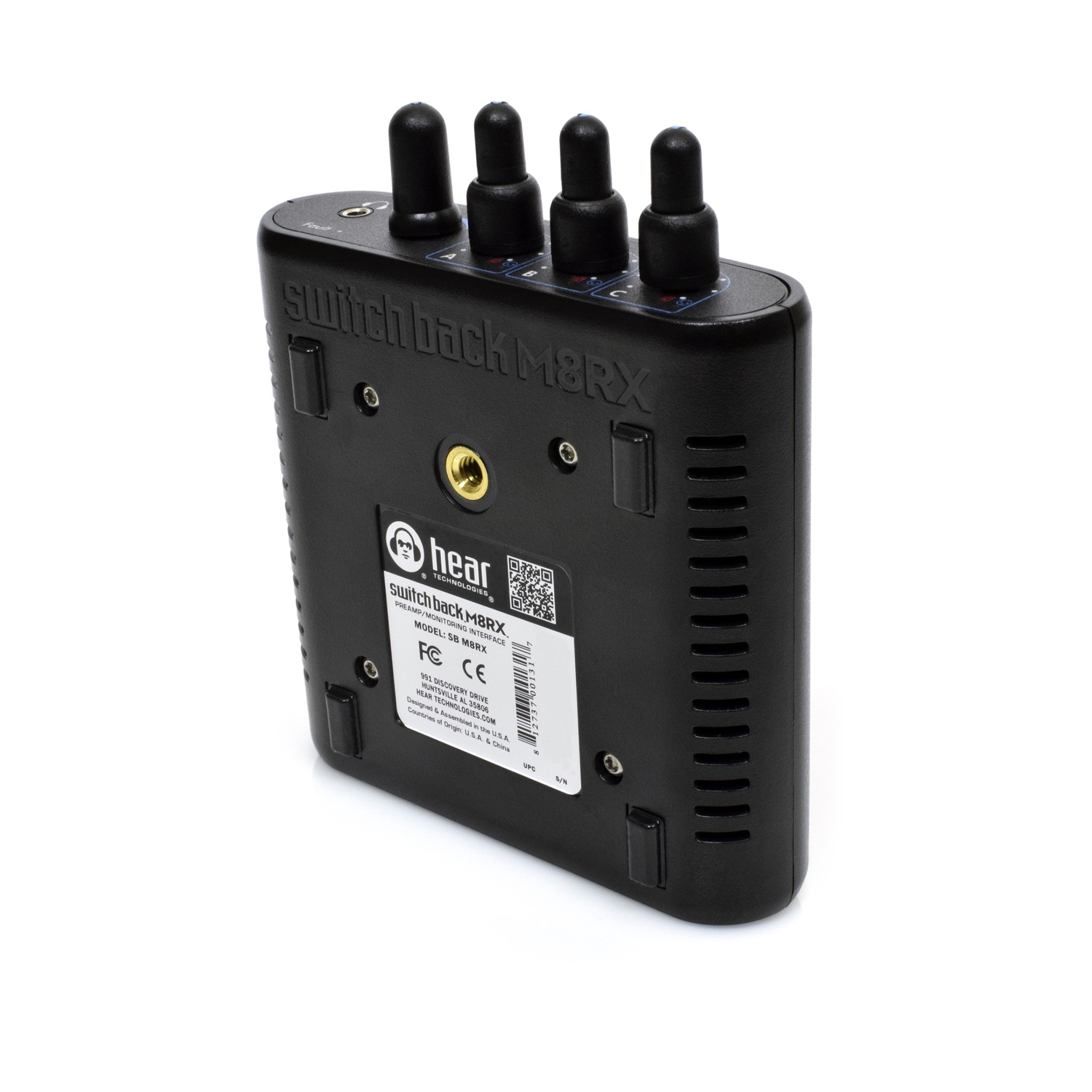

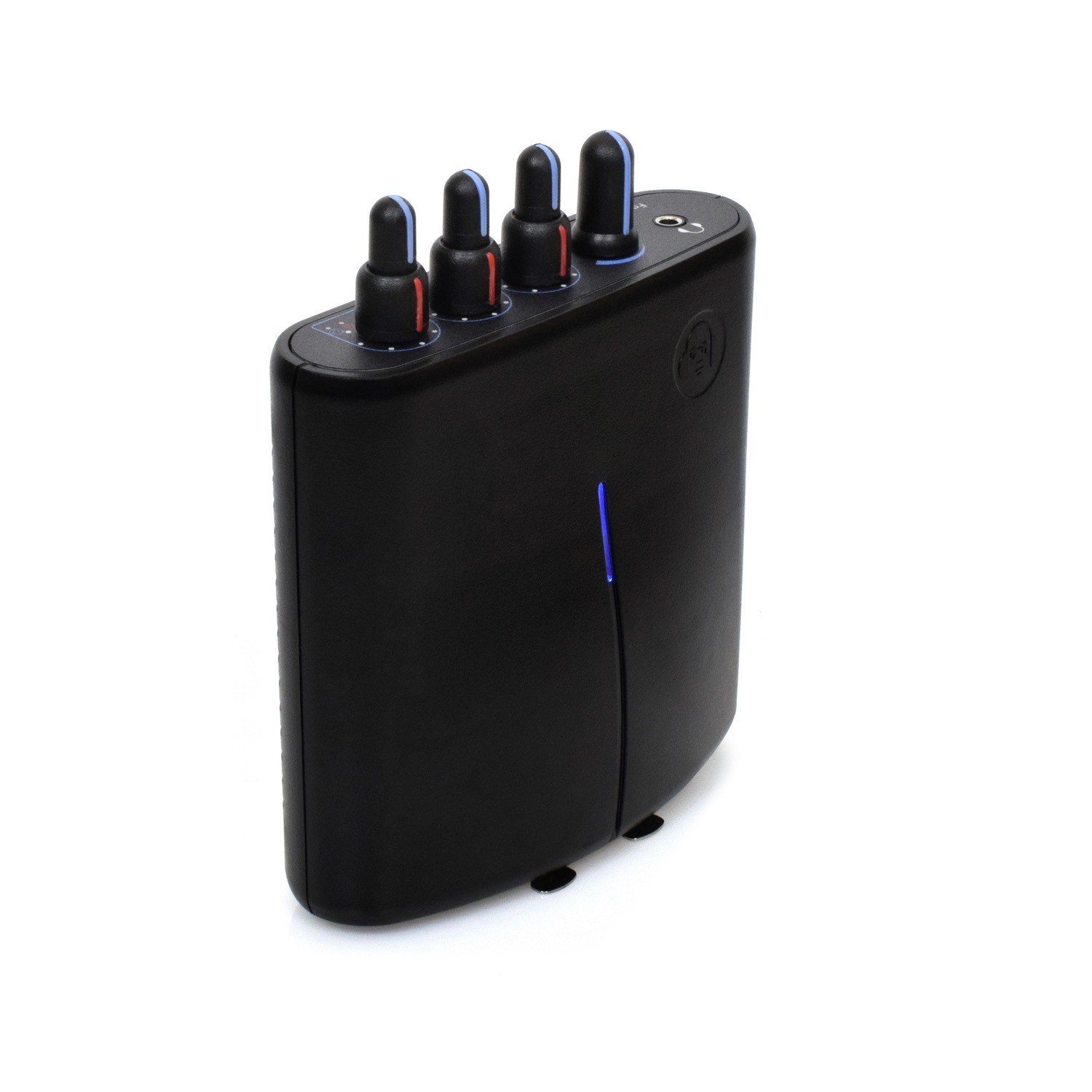

Feature:
4x4 Dante (4 Dante Inputs and 4 Dante Outputs)
Master volume control for headphones
Easy access to all volume controls on face of unit
Dual-color signal and peak indicators on each input channel
Concentric volume control on each channel reduces space and simplifies user interface by placing local inputs on the tips and Dante inputs on the rings of each knob
True 48-volt phantom power remotely/locally selectable on each microphone input
Burr-Brown 24-bit Delta-Sigma A/D converters
Burr-Brown 24-bit enhanced multilevel delta-sigma D/A conversion
1/8” unbalanced stereo input for auxiliary sources such as metronome, iPod, external microphone preamp, etc.
Balanced 1/4” inputs automatically have 18dB of padding over XLR inputs
Combo XLR & 1/4” TRS balanced inputs on channels 1 & 2 for connecting microphones or instruments
100/1000 BaseT Ethernet
Powered by Power over Ethernet (PoE+) guarantees ground isolation between M8RX interfaces Zero latency headphone monitoring of the local analog inputs
Gain, phantom power, and Dante status indictors tucked away on rear of unit
Streamlined cable connections on rear of unit

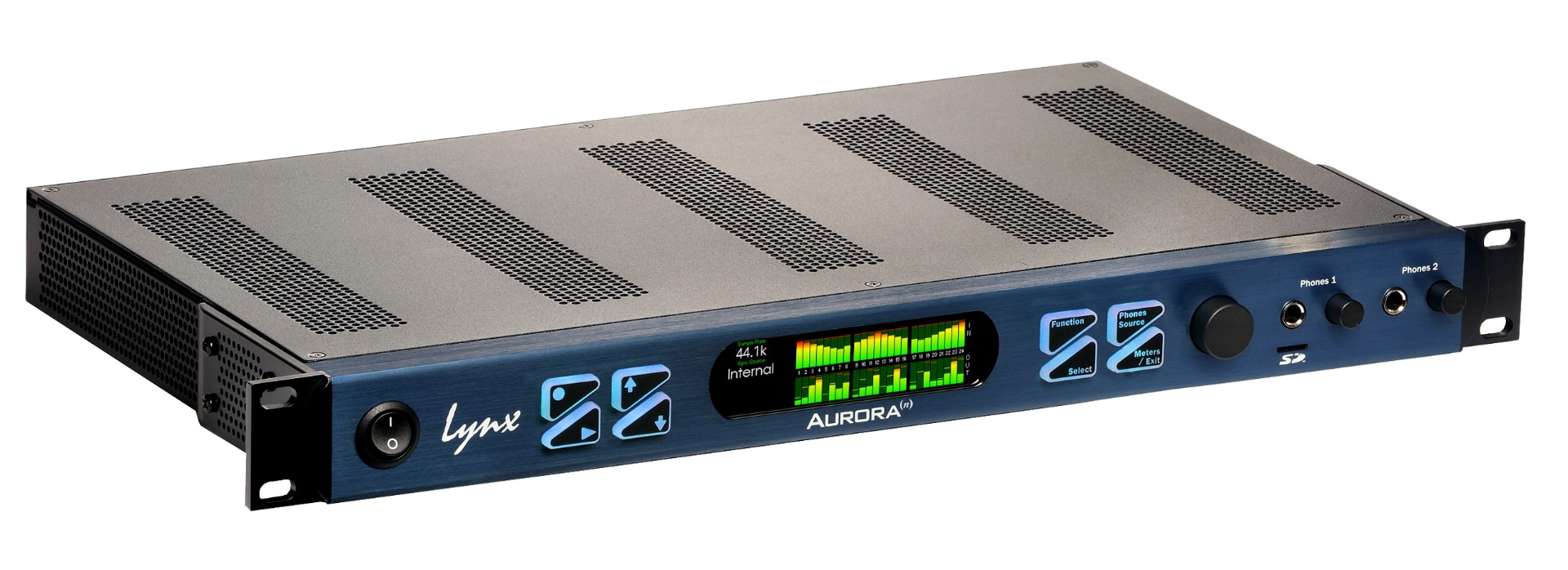

Der Aurora definierte die Standards in Transparenz, Zuverlässigkeit und Wertstabilität für professionelle A/D D/A Wandler und ist Mittelpunkt professioneller Aufnahmestudios auf der ganzen Welt. Der komplett neu entwickelte Aurora(n) führt dieses Vermächtnis fort.
Das Wichtigste im Überblick:
16 Kanal Version - jeweils auf einer Höheneinheit.
24 Bit / 192 kHz Mastering Qualität über alle Kanäle gleichzeitig.
DANTE Interfacekarte.
Onboard 32 Kanal microSD Rekorder für direkte Aufnahme und Wiedergabe.
Zwei audiophile Kopfhörerausgänge mit unabhängigen Lautstärkereglern.
1 IN, 3 OUT Wordclock, gepaart mit der neu entwickelten Lynx SynchroLock 2™ Technologie.
Kompromißlose Windows und OSX Kompatibilität.
Road-taugliches, verstärktes Rack-Chassis.
Der Aurora definierte die Standards in Transparenz, Zuverlässigkeit und Wertstabilität für professionelle A/D D/A Wandler und ist Mittelpunkt professioneller Aufnahmestudios auf der ganzen Welt. Der komplett neu entwickelte Aurora(n) führt dieses Vermächtnis fort.
Das Wichtigste im Überblick:
24 Kanal Version - jeweils auf einer Höheneinheit.
24 Bit / 192 kHz Mastering Qualität über alle Kanäle gleichzeitig.
DANTE Interfacekarte.
Onboard 32 Kanal microSD Rekorder für direkte Aufnahme und Wiedergabe.
Zwei audiophile Kopfhörerausgänge mit unabhängigen Lautstärkereglern.
1 IN, 3 OUT Wordclock, gepaart mit der neu entwickelten Lynx SynchroLock 2™ Technologie.
Kompromißlose Windows und OSX Kompatibilität.
Road-taugliches, verstärktes Rack-Chassis.
Der Aurora definierte die Standards in Transparenz, Zuverlässigkeit und Wertstabilität für professionelle A/D D/A Wandler und ist Mittelpunkt professioneller Aufnahmestudios auf der ganzen Welt. Der komplett neu entwickelte Aurora(n) führt dieses Vermächtnis fort.
Das Wichtigste im Überblick:
32 Kanal Version - jeweils auf einer Höheneinheit.
24 Bit / 192 kHz Mastering Qualität über alle Kanäle gleichzeitig.
DANTE Interfacekarte.
Onboard 32 Kanal microSD Rekorder für direkte Aufnahme und Wiedergabe.
Zwei audiophile Kopfhörerausgänge mit unabhängigen Lautstärkereglern.
1 IN, 3 OUT Wordclock, gepaart mit der neu entwickelten Lynx SynchroLock 2™ Technologie.
Kompromißlose Windows und OSX Kompatibilität.
Road-taugliches, verstärktes Rack-Chassis.
Der Aurora definierte die Standards in Transparenz, Zuverlässigkeit und Wertstabilität für professionelle A/D D/A Wandler und ist Mittelpunkt professioneller Aufnahmestudios auf der ganzen Welt. Der komplett neu entwickelte Aurora(n) führt dieses Vermächtnis fort.
Das Wichtigste im Überblick:
8 Kanal Version - jeweils auf einer Höheneinheit.
24 Bit / 192 kHz Mastering Qualität über alle Kanäle gleichzeitig.
DANTE Interfacekarte.
Onboard 32 Kanal microSD Rekorder für direkte Aufnahme und Wiedergabe.
Zwei audiophile Kopfhörerausgänge mit unabhängigen Lautstärkereglern.
1 IN, 3 OUT Wordclock, gepaart mit der neu entwickelten Lynx SynchroLock 2™ Technologie.
Kompromißlose Windows und OSX Kompatibilität.
Road-taugliches, verstärktes Rack-Chassis.

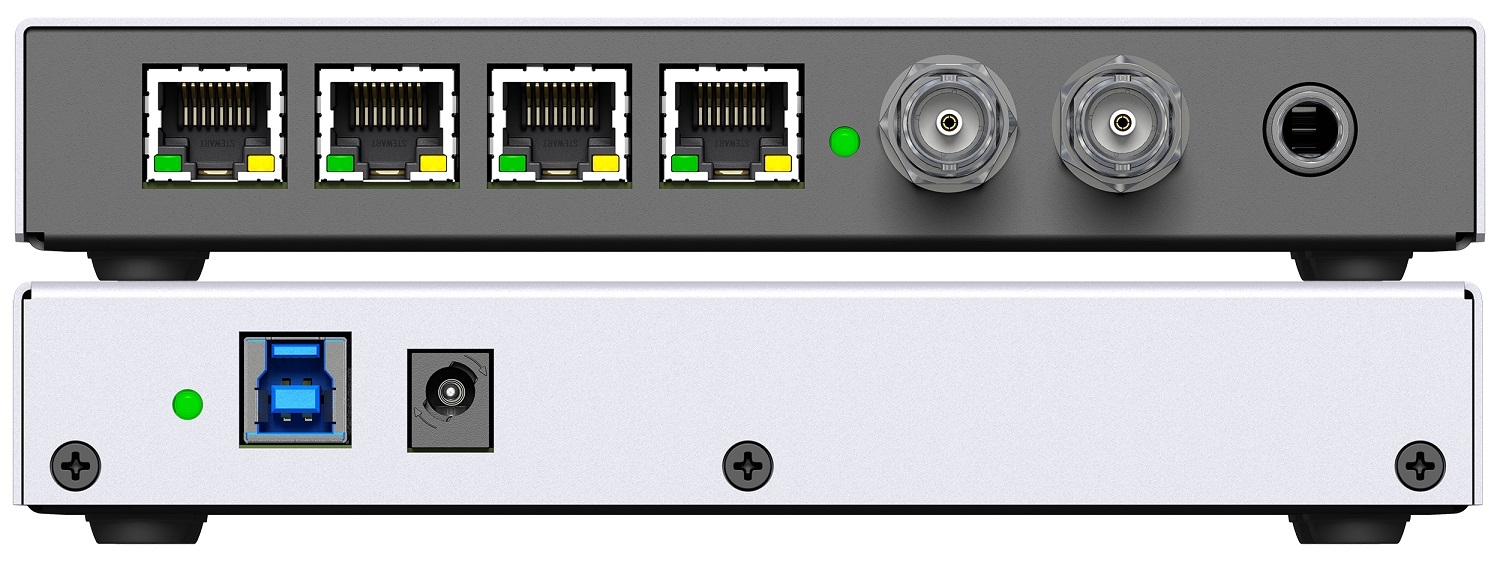

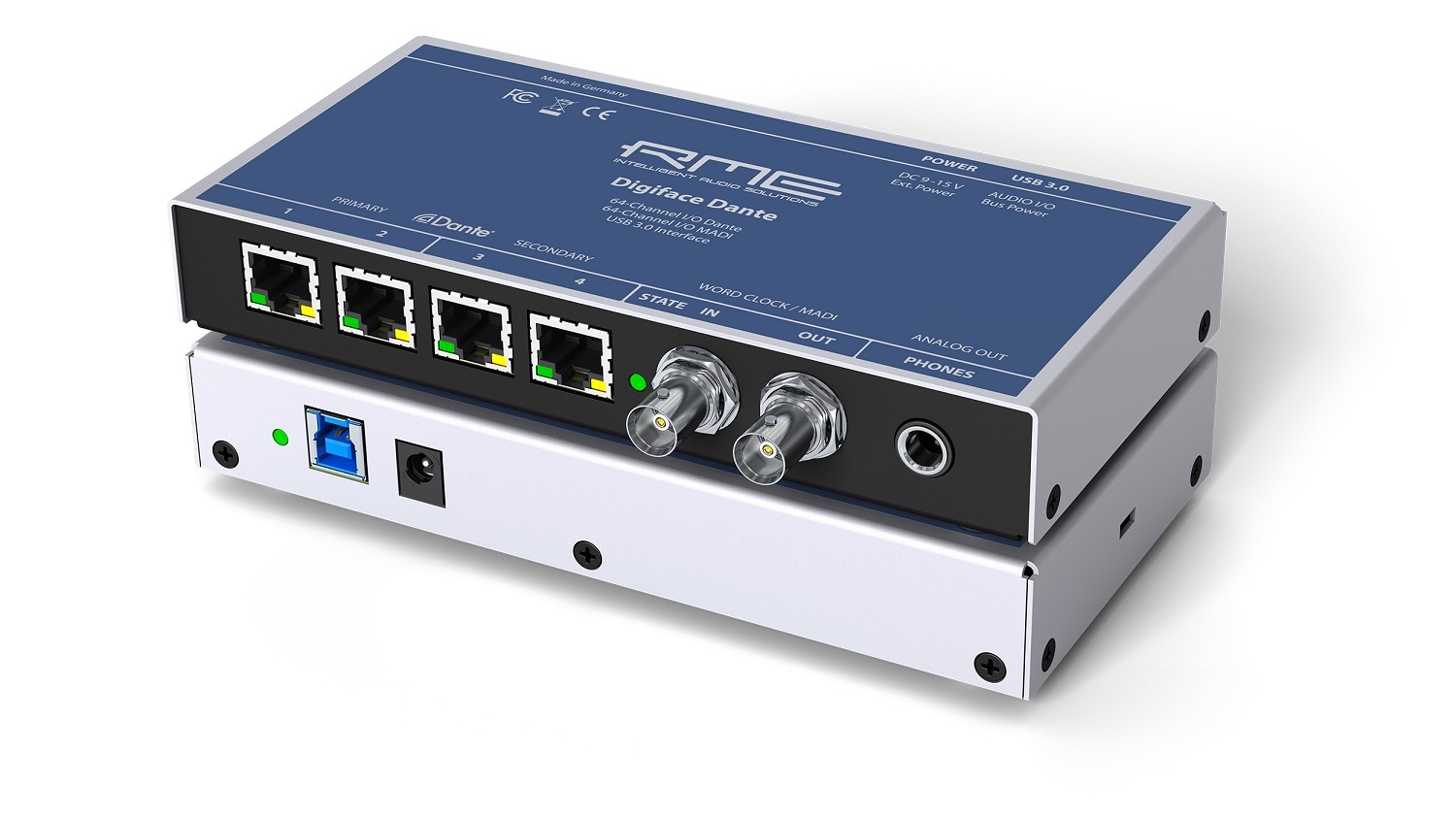

Digiface Dante
A lightweight, portable audio interface, combining Dante network connectivity and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.
Connectivity & Features
256 Channels: 128 in / 128 out
64 Channels Dante / 64 Channels MADI
2 x Gigabit Ethernet (802.3 compliant)
1 x MADI I/O coaxial I/0
Headphone Output
Wordclock I/0
USB 3
Bus-powered
TotalMix FX

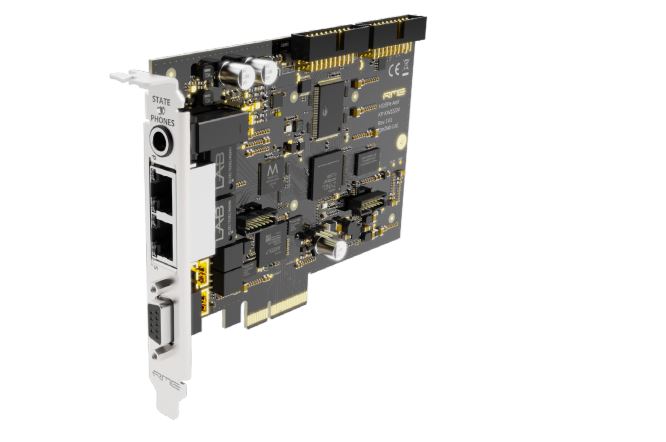

512-Kanal 4x MADI PCI Express Card Serie NEU
mit Dante oder Milan-kompatiblem AVBDie PCIe x4-Audiointerfacekarten HDSPe AoX (AVB) und HDSPe AoX-D (Dante) bieten zwei Netzwerkanschlüsse mit Kopfhörerausgang, AES3, MIDI, SteadyClock™ für alle digitalen Eingangssignale und interne Erweiterungen für bis zu vier optionale
MADI-Anschlüsse. Ob in einem Thunderbolt™-Erweiterungsgehäuse oder eingebaut in DAWs oder Audioprozessoren, diese
Karten senden und empfangen bis zu 512 Audiokanäle und bieten zahlreiche Misch- und Routing-Möglichkeiten über TotalMix.Connectivity• PCIe I/O: 512/256/128 Kanäle bei 48/96/192 kHz Abtastrate• 1x stereo phones out, ¼“ TRS• 4 x MADI I/O (koaxial BNC & optional erhältlich optisches SFP Modul)• AES3 I/O über DB9 auf XLR Breakout-Kabel• 2 x RJ45 1 GigE• Wordclock I/O (BNC)• MIDI I/O über DB9 auf 2x DIN Breakout-Kabe

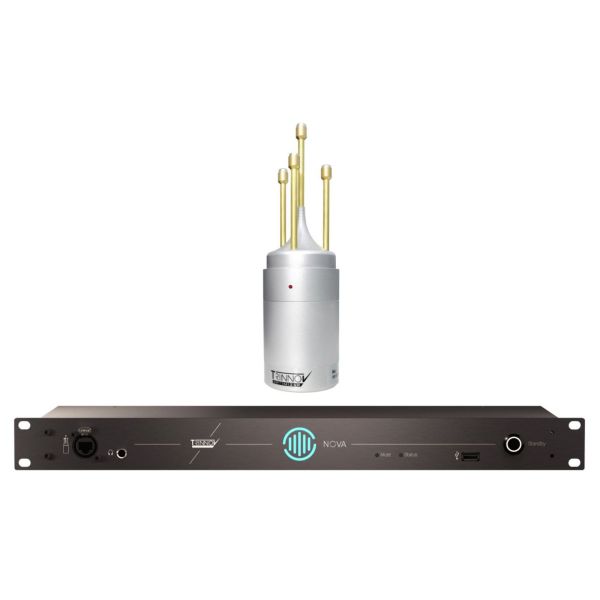

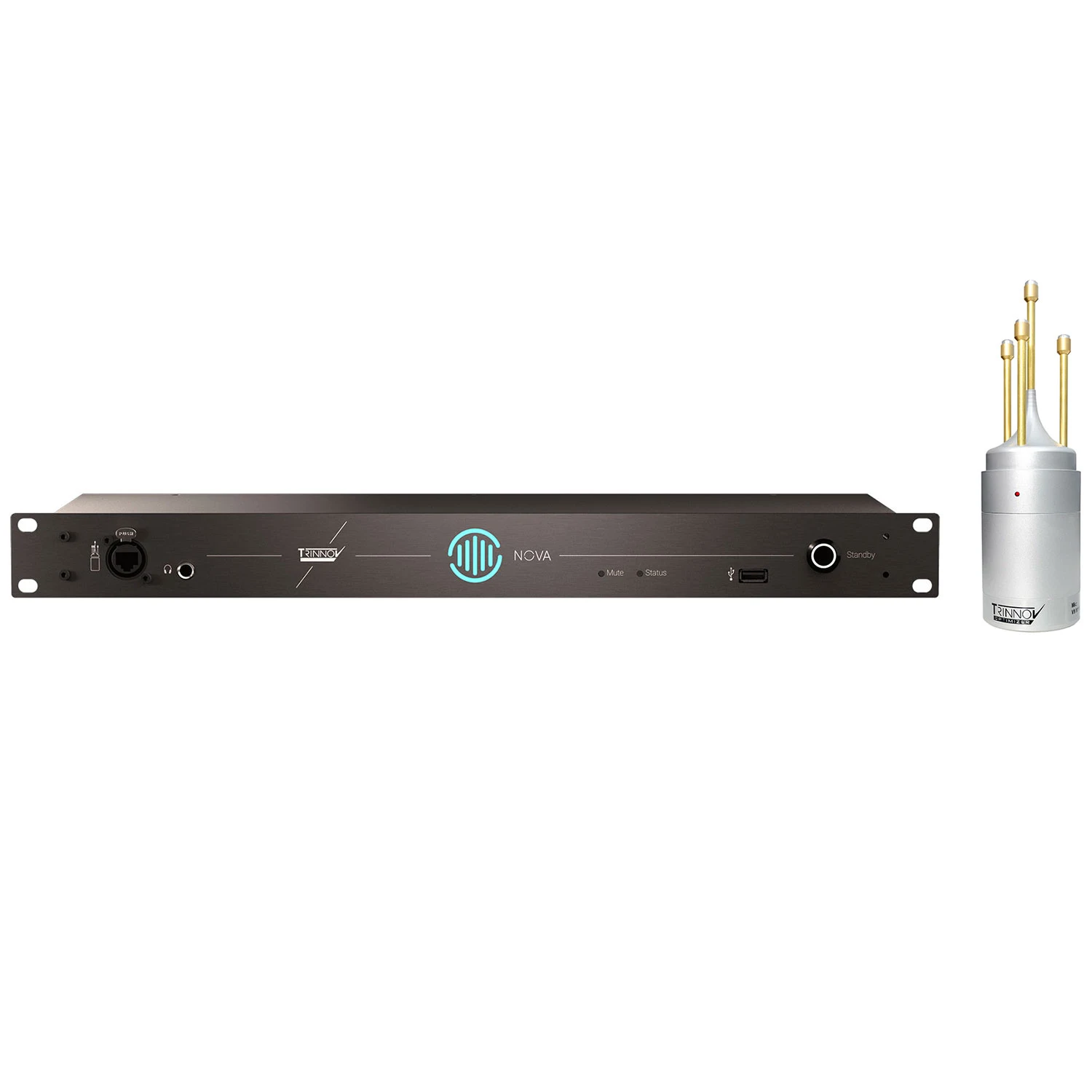

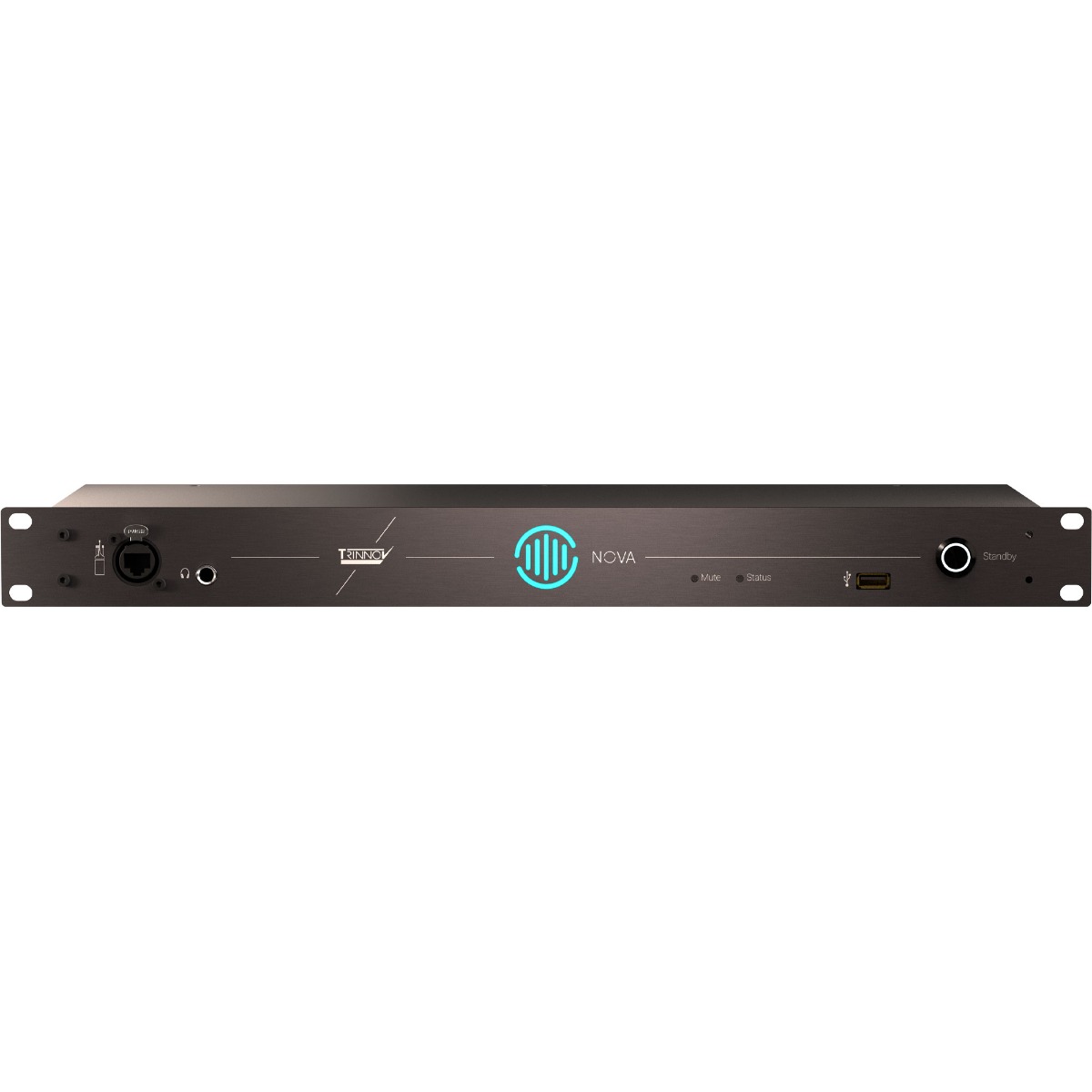

TRINNOV’S NEW GENERATION OF PRODUCTS
Trinnov is pleased to introduce NOVA, the first of a new generation of pro audio products. NOVA will be coming to market after 4 years of extensive research and development across multiple areas.
“I am very excited to be able to finally reveal the extraordinary work that our R&D team has accomplished over the past 4 years in terms of hardware design, software development and user experience.” said Arnaud Laborie, CEO and co-founder.
NOVA differs from the previous product generation in that it’s PC-less. Trinnov’s new Audio Core utilizes an ARM processor that provides the computational power necessary for full Trinnov processing of a limited number of channels, without the need of an additional CPU or fans.
“NOVA will be introduced in the year of our 20th anniversary. This new platform enables us to address a wider market with more cost-effective solutions for stereo and small surround applications, and ultimately to support our continued growth as a business. We developed it with the same commitment to performance and sustainability as the previous platform. This includes the ability to develop and maintain the same software across both hardware platforms” added Arnaud Laborie.
THE NEW STUDIO ESSENTIAL
NOVA is set to become the new studio essential for music makers, providing 3 main functions.

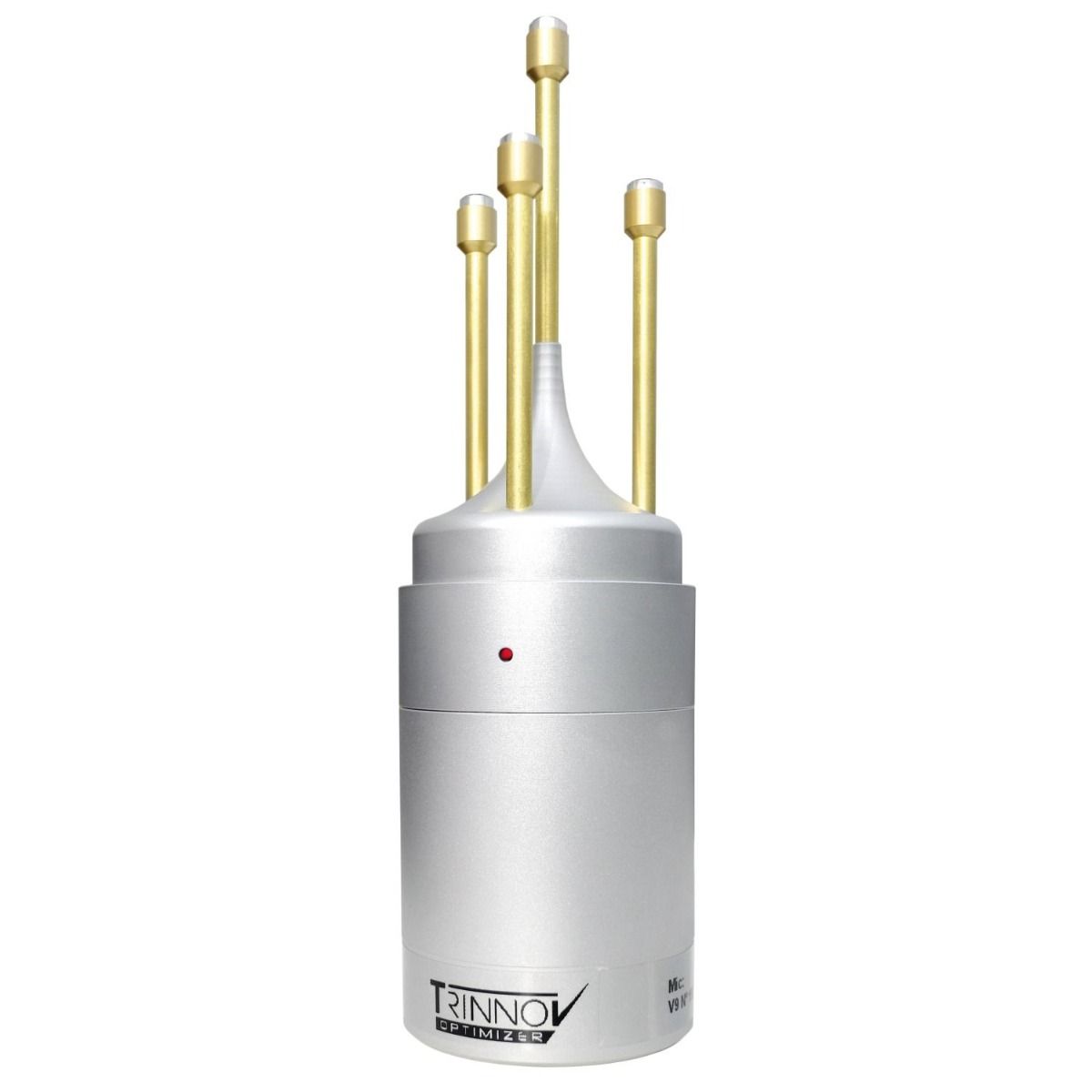

Trinnov’s Optimizer is NOVA’s main feature. Trinnov’s exclusive room correction and acoustic optimization technology is acclaimed by the most renowned sound engineers and music producers. NOVA can process and optimize up to 6 channels, including bass management.
Nova is not just a digital acoustic processor, it is also a powerful monitoring controller with no limitations in mind. From choosing your speaker sets to creating all kinds of downmixes and alternate cues.
Finally, via the Dante Virtual Sound card, NOVA can be used as an audio interface for direct DAW-to-monitoring integration.
Compact Digital Audio Processor (1U-19" rack format) featuring Trinnov Optimizer technology and additional advanced monitoring functions:
Comprehensive set of analog and digital I/Os
Dante Audio Interface (8in x 8out)
2 channels of Loudspeaker/Room Optimization
included, upgradable to 6
Handles multiple stereo or a single 5.1 speaker set
Bass management
Full control via Trinnov La Remote,
Eucon compatible (S1, S3, S6)
Compact Digital Audio Processor (1U-19" rack format) featuring Trinnov Optimizer
technology and additional advanced monitoring functions: Comprehensive set of analog and digital I/OsDante Audio Interface (16in x 16out)From 2 channels of Loudspeaker/Room Optimization up to 6Handles multiple stereo or a single 5.1 speaker setBass managementFull control via Trinnov La RemoteEucon compatible (S1, S3, S6) NOVA Bundle 4 includes:- 1x NOVA Processor- 1x 3D Microphone ETH- 1x La Remote- 1x Pair of Licenses
