Product Key Features
It is an efficient solution for room mode problems in low frequencies
It works independently from any source of sound and doesn't alter it
It is stable with no settings or measurements required
It can be used in recording room, control room, listening room or any room that has low frequency problems
It simply works like an acoustical element in the room
It can be turned ON and OFF to alter the acoustic environment
It can easily be moved into different rooms
It doesn't emit any sound
It has a small footprint and is a cost effective solution It is 100% analog - no DSP, no latency
What does the AVAA do?
The AVAA is designed to absorb the standing modes between 15 and 120 Hz in a room. It will do so just like passive absorbers but in a much more efficient way and using up much less space. Each operating AVAA will have the same effect as a hole in the wall much larger than the dimensions of the AVAA (that is 0.2 m2). The exact ratio will depend on the frequency and environment but typically range between 5 and 20.
The AVAA will affect the impedance of the air and “suck” low frequencies around it.
Therefore the best position to place an AVAA is in the most rigid corners as that is where all room modes will be most present.
How does it work?
Note that this technology has several international patents pending. A microphone will measure the acoustic pressure in front of an acoustic resistance. The acoustic resistance is designed to let air through but reducing significantly the pressure. A transducer membrane is driven to absorb the volume of air going through the acoustic resistance. This significantly reduced the acoustic pressure (between 15 and 120 Hz) around the microphone and around the AVAA.
What does the AVAA not do?
The AVAA is a solution for room modes below 120 Hz and absorbs low frequencies only. The AVAA will not absorb frequencies above approximately 150 Hz. It is therefore not a total solution for acoustically bad rooms. For best results, it needs to be combined with passive absorption in higher frequencies.
What effect will the AVAA have in my room?
The AVAA will have the same effect, on frequencies from 15 to 120 Hz, as opening a window about 5 to 10 times the size of the AVAA. This will impact sound in the time, frequency and space dimensions.
Time: it will significantly reduce reverberation time in these frequencies especially on room modes.
Frequency: with more precise and tighter bass, the masking effect of higher frequencies is reduced. Details in higher frequencies also become clearer.
Space: with less indirect sound in the room, the location of the sound is more accurate making the sound image more precise.
How many AVAAs do I need?
An acoustician will be able to compute the effect of a certain number of AVAAs in a particular room.
Depending on the dimension and type of room as well as the result required, between 2 and 8 AVAAs are necessary. For very small rooms a minimum of two AVAAs is recommended to have a symmetrical effect. For most normal size rooms (between 20 and 80 m2) it is recommended to use 4 AVAAs and for larger rooms the number can be increased to 6 or 8.
Die neue aktive Bassfalle AVAA C214 steht an der Seite ihres weltberühmten Geschwisters, der C20. Die innovative AVAA Technologie eliminiert Raummoden von 15 Hz bis 160 Hz, ohne dass eine Kalibrierung oder Abstimmung erforderlich ist. Das Ergebnis ist eine wesentlich sauberere Basswiedergabe in anspruchsvollen Hörumgebungen wie professionellen Studios oder audiophilen Umgebungen. Während C20 mit rein analoger Technologie arbeitet, nutzt C214 innovative digitale Technologie und verwendet kleinere Membranen für eine noch kompaktere Bauweise. Dank der Integration digitaler Technologie kann der AVAA C214 über eine App auf einem Smartphone oder Tablet gesteuert werden, was die hervorragende klangliche Leistung noch weiter verbessert.
Die Absorbtion der tieffrequenten Anteile ist eine der wichtigsten Aufgaben der Raumakustik. Sonitos hilft mit seinen Produkten stehende Wellen wirksamt zu bekämpfen. Die Produkte sind aus hochwertigem Polyesterschaum gefertigt.
Maße: 37x37x60 cm
Inhalt: 2 Stck.
Der Decotrap Natur ist das derzeitige Topmodell unter den Tieftonabsorbern.
Maße:60x60cm (Front), Kantenlänge 43 cm
Polyesterschaum mit 40kg/m3 Gewicht
ansprechende Front mit 3 mm Pappelholz in sechs Oberflächen
Sonitus LOW KILLER Basstrap
Die Absorbtion der tieffrequenten Anteile ist eine der wichtigsten Aufgaben der Raumakustik. Sonitos hilft mit seinen Produkten stehende Wellen wirksamt zu bekämpfen. Die Produkte sind aus hochwertigem Polyesterschaum gefertigt.
Maße: 35x35x60 cm
Inhalt: 2 Stck.
Die Absorbtion der tieffrequenten Anteile ist eine der wichtigsten Aufgaben der Raumakustik. Sonitos hilft mit seinen Produkten stehende Wellen wirksamt zu bekämpfen. Die Produkte sind aus hochwertigem Polyesterschaum gefertigt.
Maße: 30x30x60 cm
Inhalt: 4 Stck.
Designed especially for corners, considerably reducing standing waves, making it ideal for recordings. Greater power to absorb very low frequencies even below 125Hz.
Our beast for large rooms. Specially for corners, considerably reducing standing waves, making it ideal for recordings. Greater power to absorb very low frequencies even below 80Hz.

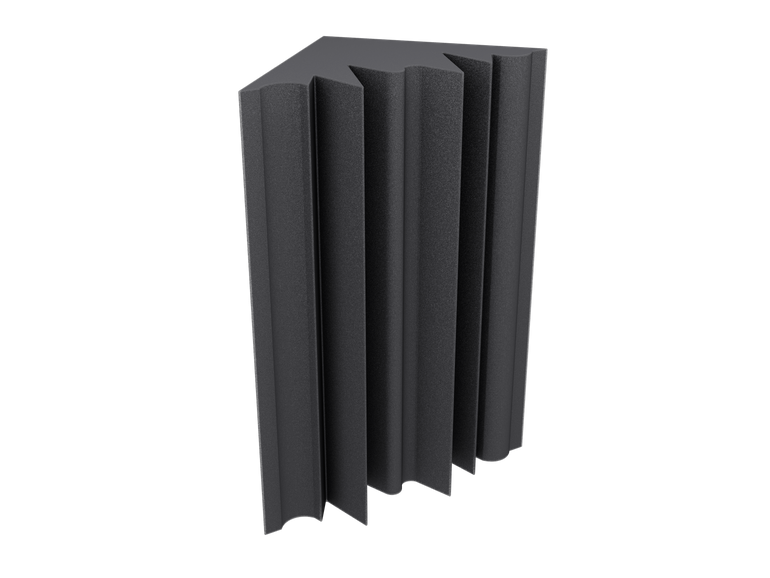

Bass Traps are considered to be one of the best-optimized solutions when treating low frequencies. They are also an excellent complement to other acoustic products. The unique shape of the Mega Fuser Bass Traps allows you to minimize the dramatic effects that result from Resonating Waves, commonly associated with the “boomy” sound often heard in untreated rooms.

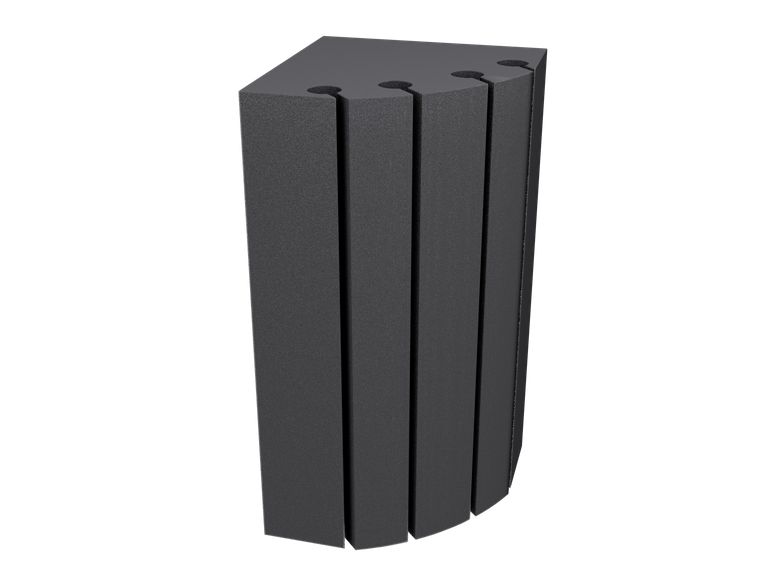

These Bass Traps, sold in sets of four units per package, are considered to be one of the best-optimised solutions when treating low frequencies. They are also an excellent complement to other acoustic products. The unique shape of all the Bass Trap options allows you to minimize the dramatic effects that result from resonating waves, commonly associated with the "boomy" sound often heard in untreated rooms. Super Bass 90 combines several techniques to treat low frequencies in a room. Using Vicoustic patented technology, these Bass Traps are the perfect complement to the Studio Line absorption panels.

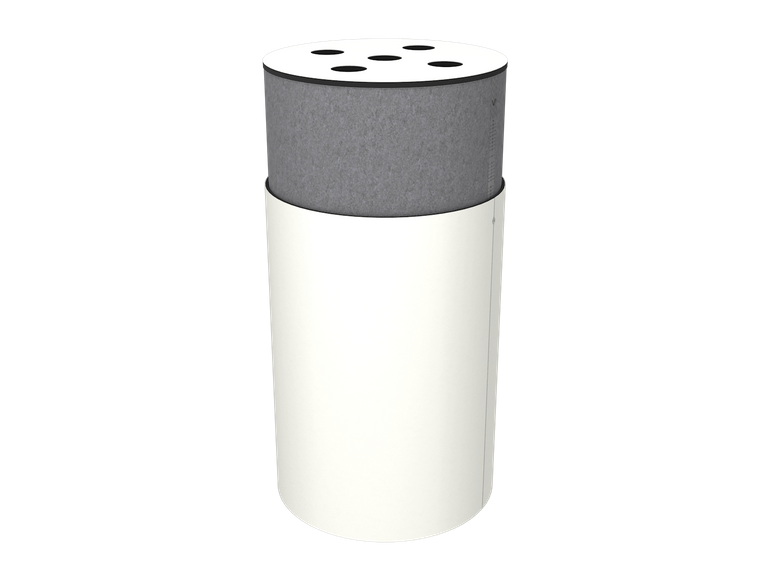

A stacker made from lacquered MDF to combine two units of the Vari Bass Ultra, available in Matte finish. Bass frequency resonance is one of the most difficult acoustic issues to solve in any room. Until now, the most effective options have generally involved using bass traps that are specifically designed, or customised to fit the room. However, these solutions can often be expensive and invariably involve complex measuring procedures. There’s also little scope for flexibility if changes are made to the listening space, such as moving furniture or gear. Vari Bass Ultra is designed for use in any professional recording space, home studio, or hi-fi room.
Bass frequency resonance is one of the most difficult acoustic issues to solve in any room. Until now, the most effective options have generally involved using bass traps that are specifically designed, or customised to fit the room. However, these solutions can often be expensive and invariably involve complex measuring procedures. There’s also little scope for flexibility if changes are made to the listening space, such as moving furniture or gear.
Vari Bass Ultra is designed for use in any professional recording space, home studio, or Hi-Fi room. Made from MDF with High-Pressure Laminate, it includes high-density acoustic foam in the interior that was covered with grey fabric. The bass trap can be tuned between 50Hz-100Hz by simply moving up or down its top (which has a series of resonant pots) until the problem disappears. A scale is included to show the exact frequencies on which the Vari Bass Ultra is acting.
739,00 €*
