Dynamount X2-R Micro

1.079,00 €*

Hersteller: Dynamount
Produktinformationen "Dynamount X2-R Micro"


Our latest tech in a smaller size. The X2-R Micro is different from the standard X2-R in two key ways:

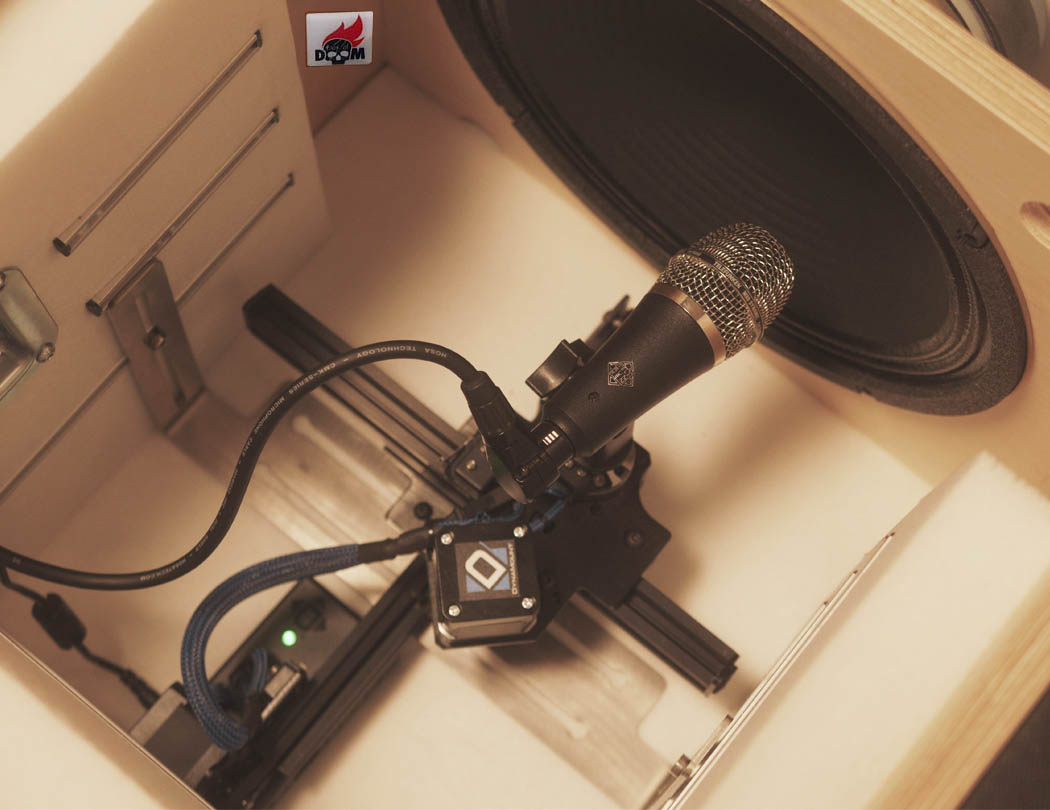

  1. The X2-R Micro has a smaller footprint and range of motion (roughly 2″ / 5 cm less on each axis, see specs for details) allowing it to fit in tight spaces like iso-cabs, or making it perfect when only a small range is needed.
  2. The X2-R Micro has integrated Power over Ethernet (PoE) so it can be powered and controlled over a single cat6 cable. This makes it easier to set up in hard to reach spaces like iso-cabs and on stage for live sound. (The standard power supply can still be used if preferred)

Includes all the features of our gen2 mounts. New ultra-quiet drive with 10X finer motions for exceptional precision, added flexibility via Ethernet/Wi-Fi/USB control options, real-time steering enabling slow sweeps to find the sweet spot, and unlimited recallable position presets… be a mic placement jedi.

  • All control apps are free (Mac, PC, iOS, Android)
  • 30 day money back guarantee
  • 2 year warranty on all parts and labor
  • Patented technology

Key Features

X2-R Micro: Our Smallest Dual-Axis Model
A smaller footprint and integrated Power over Ethernet (PoE) make this the perfect option for iso-cabs, live sound, or any time only a small range is needed.

Ethernet, Wi-Fi, or USB Controlled
Focus on using your ears as you remotely adjust the position and orientation of any mounted microphone.

Gen2 Advanced Drive
Ultra-quiet motions with 10X finer increments gives you the power to dial in the sweet spot down to fractions of a millimeter without any noise distractions.

Gen2 Real-Time Steering
Hunt the sweet spot like the mic is actually in your hand. Slow controlled sweeps and pausing mid-motion are no problem with gen2 units.

Unlimited Recallable Position Presets
Enjoy the freedom to experiment by saving and returning to various positions with extreme precision at the push of a button.

Use Your Stands & Mics
Get the most out of your gear; all gen2 models can support most mics (up to 5 lb / 2.2kg) and attach to any sturdy mic stand.

Aircraft Grade Aluminum Alloy Construction
High quality components ensure a lightweight but strong and durable product.

INCLUDED FREE! Pro Accessory Pack
Allows for more flexibility in mounting the DynaMount vertically or on an incline. Also useful for additional clearance when mounting certain microphone styles such as those with the XLR input on the bottom (e.g. R-121). Includes On-Stage Posi-Lok Clutch 4″, LyxPro 1.5ft Right-Angle XLR Cable, Latch Lake Thread Extender, & Latch Lake Oversize Jam Nut.

Plugs into your laptop/desktop computer and lets you control mic positions using a physical joystick. Move the mic, save/recall/delete presets, and even calibrate the device all at the push of a button.

  • Control Methods: Ethernet, Wi-Fi, USB
  • Special Features: Ultra-Quiet Drive, Smaller Size, Power over Ethernet (PoE)
  • Dimensions (L x W x H): 12.75″ x 11.0″ x 5.75″ (32.4 cm x 27.9 cm x 14.6 cm)
  • Weight: 4.1 lb (1.86 kg)
  • Primary Construction Material: 6061-T6 Aluminum
  • Range of Motion (Axis-1): 3.5″ (8.8cm)
  • Range of Motion (Axis-2): 6.1″ (15.5 cm)
  • Range of Motion (Rotation): 360°
  • Minimum Axial Nudge Increment: 0.001″ (0.025 mm)*
  • Minimum Rotation Nudge Increment: 0.043°*
  • Ethernet Standard: 100BaseTX
  • PoE Standard: IEEE 802.3af (15.4W)
  • Wi-Fi Standard: 802.11 b/g/n
  • USB Standad: 2.0
  • Included Power Adapter: DC 12V, 2.5A
  • Power Adapter Cable Length: 8 ft (2.5 m)
  • Mounting Method: 5/8″-27 threads (3/8″ adapters included for sales in Europe & select countries)
  • Max Microphone Weight (horizontal/level setup)**: 5 lb / (2.2 kg)
  • Max Microphone Weight (upside-down setup)**: 2 lb / (0.9 kg)
  • Max Microphone Weight (vertical/inclined setup)**: 1.25 lb (0.6 kg)
  • What’s in the box: X2-R Micro, external power adaptor, pro accessory pack, USB controller, reusable zip tie, iso-cab mounting screws
  • To complete the initial setup an internet connection is required; later it is optional but recommended
* When controlled via our standard apps, the minimum motion increment for Gen2 units is 10X finer than for Gen1 units. To achieve even finer motion increments, either the available Precision Upgrade must be purchased with the unit, or the private API must be used (contact us for details).
** Maximum microphone weights assume a microphone 6″ (15 cm) in length with a clip 2.5″ (6 cm) tall. Mics that are longer or have taller clips will have their maximum allowed weight reduced. These values are subject to change without prior notice.
