The Roots Gen I 16 Channel
Full Featured 8 and 16 channel / 2 Buss Tube Hybrid Console
Features:
All Tube: Mic pre / line input / direct input (instrument in) / EQ and limiter on each channel
4 – 500 series slots
Vacuum tube linear regulated power supply
Meter Bridge:
Buss master trim 1 & 2 / aux master 1 & 2 / talkback mic in XL / talkback level
Stereo select external aux in 1 & 2 / mono combine / source select
Speaker select / big knob monitor level
Buss Master Module:
Big knob master stereo buss level / headphone level with headphone jack
Talkback (to stereo buss or aux master select)
The Roots Gen I 8 Channel Console
All channels are pure tube and transformers
Discrete Class A Solid State buss and master section
Fully regulated Vacuum tube and linear power supplies
Shipping dimensions for a Roots Gen I 8 channel console:
1 Pallet: 48" x 40" x 25"
Total weight: Approx. 200 lbs
The Tree Audio The Roots 16 Gen II is a 16-channel version of the Roots.
The Tree Audio Roots Gen II is an eight-channel valve and hybrid recording console based around an all valve channel strip design, balanced inserts 4 aux sends and 4 500 series slots.
The Tree Audio Roots 16 Gen II has all tube EQ and limiter, mic pre with line in, filter and metering. The EQ section uses a baxandall type curve with controls over low and high bands fro quick shaping of the sound, while the limiter uses an optical design with a simple knob to control the amount. A three-way toggle switch is used to engage the limiter as well as activating the side-chain 6dB/oct 250Hz high-pass filter.
The Mic preamp provides up to 60dB of gain and is complemented with a direct output trim. A selectable high-pass offers a choice of three frequencies, 80Hz, 125Hz and 250Hz while an input transformer impedance select lets you find the best impedance to match your microphone or even provide different tonalities.
At the top can be found four aux sends with the option to set each pair as Pre or Post (or Off) These can be made to send to the 500 Series section where a 500 series mixbus compressor or other modules can be added.
The Roots II also uses a fully regulated tube linear power supply.
Tree Audio Roots 16 Gen II Main Features:
16-channel, tube/hybrid, full-featured, recording console
All tube and transformer mic pre / line input / DI / EQ and limiter
4 – aux sends / 4 – 500 series slots / Full featured master section
Balanced inserts on all channels and stereo buss
Fully regulated tube linear power supply
Hand-built in the USA.
The Tree Audio Roots Gen II is an eight-channel valve and hybrid recording console based on an all valve channel strip design, balanced inserts 4 aux sends and 4 500 series slots.
The Tree Audio Roots Gen II has all tube EQ and limiter, mic pre with line in, filter and metering. The EQ section uses a Baxandall type curve with controls over low and high bands fro quick shaping of the sound, while the limiter uses an optical design with a simple knob to control the amount. A three-way toggle switch is used to engage the limiter as well as activating the side-chain 6dB/oct 250Hz high-pass filter.
The Mic preamp provides up to 60dB of gain and is complemented with a direct output trim. A selectable high-pass offers a choice of three frequencies, 80Hz, 125Hz and 250Hz while an input transformer impedance select lets you find the best impedance to match your microphone or even provide different tonalities.
At the top can be found four aux sends with the option to set each pair as Pre or Post (or Off) These can be made to send to the 500 Series section where a 500 series mixbus compressor or other modules can be added.
The Roots II also uses a fully regulated tube linear power supply.
Tree Audio Roots Gen II Main Features:
8-channel, tube/hybrid, full-featured, recording console
All tube and transformer mic pre / line input / DI / EQ and limiter
4 – aux sends / 4 – 500 series slots / Full featured master section
Balanced inserts on all channels and stereo buss
Fully regulated tube linear power supply
Hand-built in the USA.

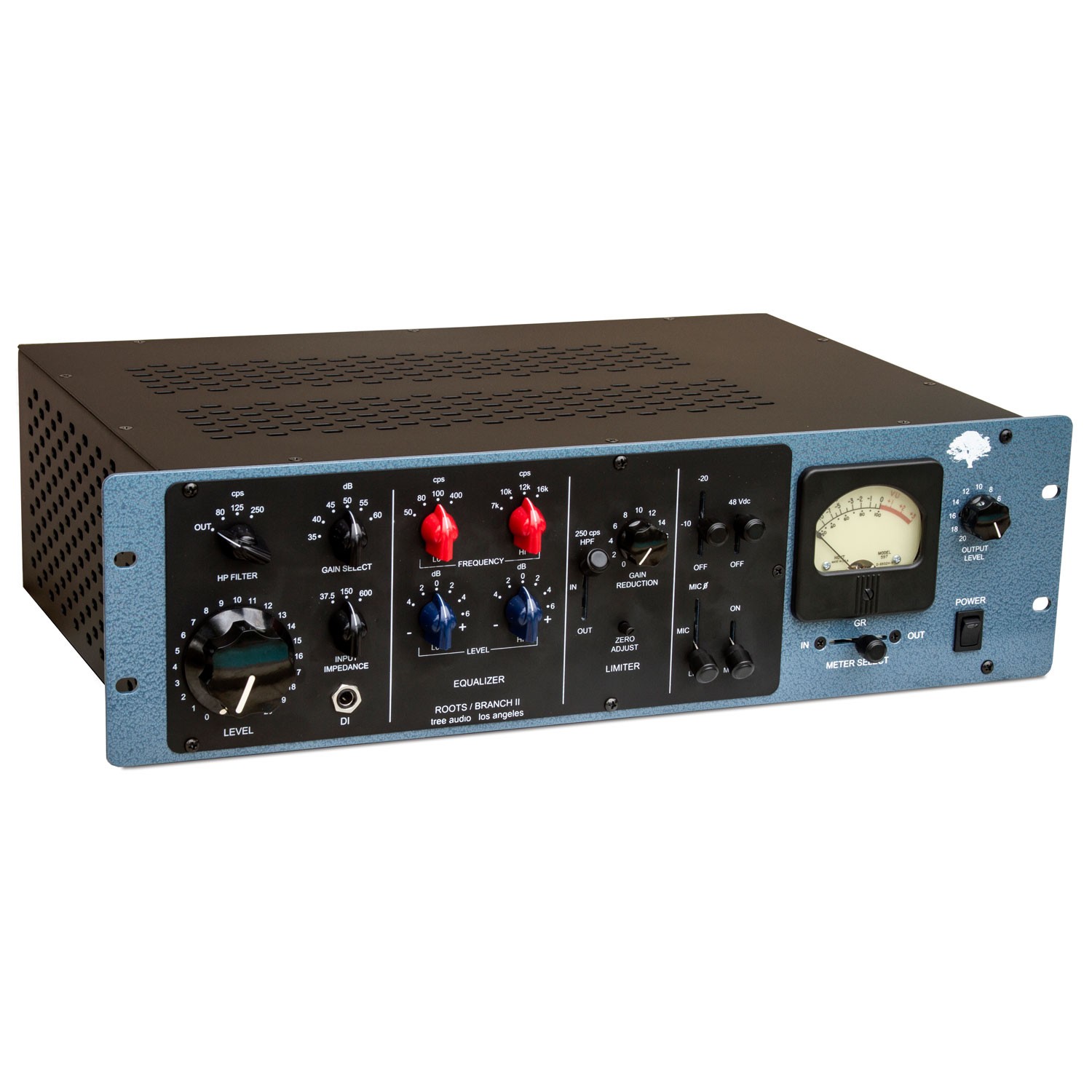

All Tube Channel Strip
Mic Pre / Line Input / Direct Input (Instrument In)
EQ and Limiter
Due to the overwhelming success of Tree Audios original Branch channel strip, they have added some new features requested by many of their loyal clients.
New Features:
80Hz, 125Hz, 250Hz Hi Pass Filter
Variable Gain Select
Output Level pot
Input Impedance Select – 37.5, 150, 600 Ohms
Standard Features:
Big Knob level control
Direct Input (HI Z)
Hi EQ 7k,10k, 12k, 16k CPS
Lo EQ 50, 80, 100, 400 CPS
Limiter In/Out, HPF (250 CPS)
Gain Reduction
VU Adjust
Line / Mic / Mic Phase Reverse
Pad Off, -10dB, -20dB
48VDC
Mute
Meter with meter select switch (line input, gain reduction, line output)
Custom wound input / output transformers
Vacuum tube and linear, fully regulated power supply
All tube and transformer input module mic pre / line input / DI
2 - 500 slots above each input module (total 20 modules for 8 channel)
Stereo buss 4 group / busses / 4 aux sends / meter on each channel
8 channel monitor section with 4 aux sends (16 channels on mixdown)
Full featured master section
Fully regulated tube hi voltage linear power supplies
Tube-hybrid stereo buss and monitor section
Enhance and warm up your DAW or solid state analog console
Excellent for mastering

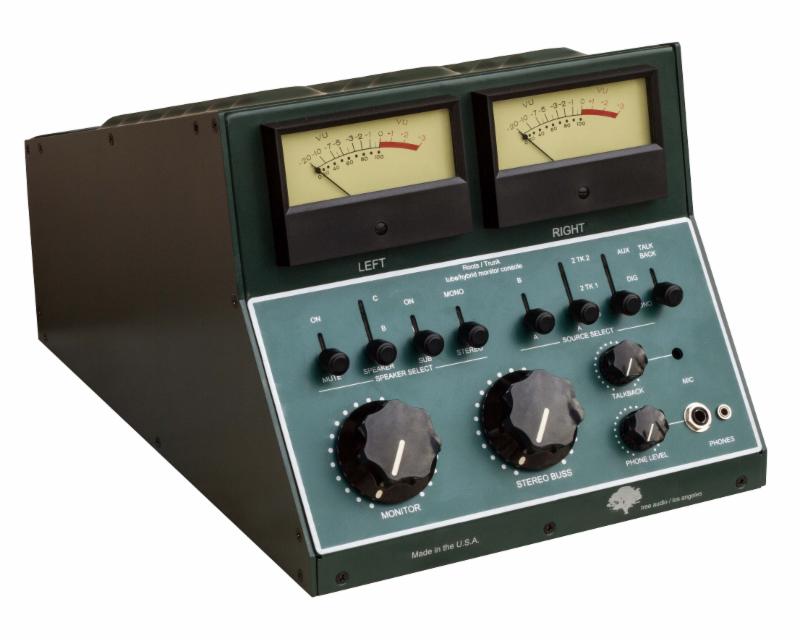

Overview:
Custom wound input and output transformers
Hybrid phono input and headphone output
External all vacuum tube fully regulated 300 Vdc power supply
Front Panel Features:
Speaker select: A, B, C and sub. Speaker mute. Mono combine
Source select A: Stereo buss, 2 track 1, 2 track 2
Source select B: Phono, digital, auxilliary Talkback, remote talkback input
5.429,00 €*
