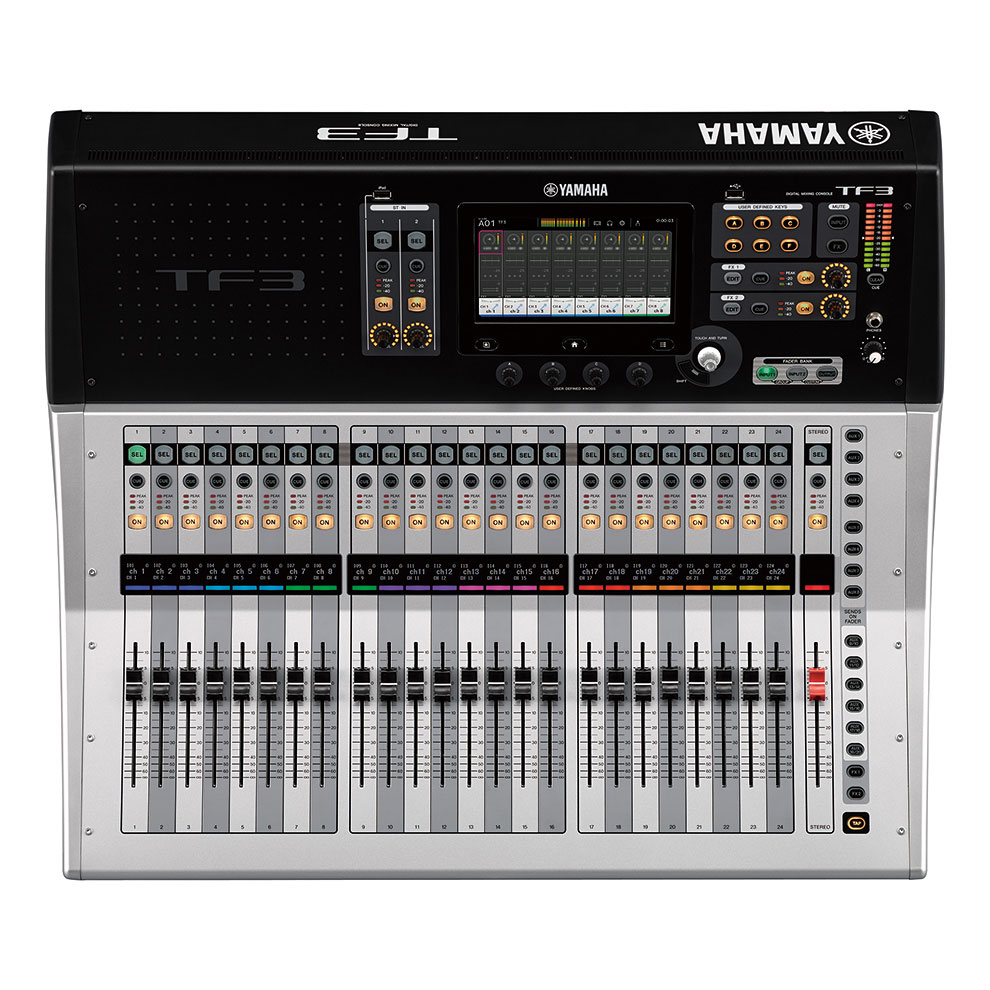

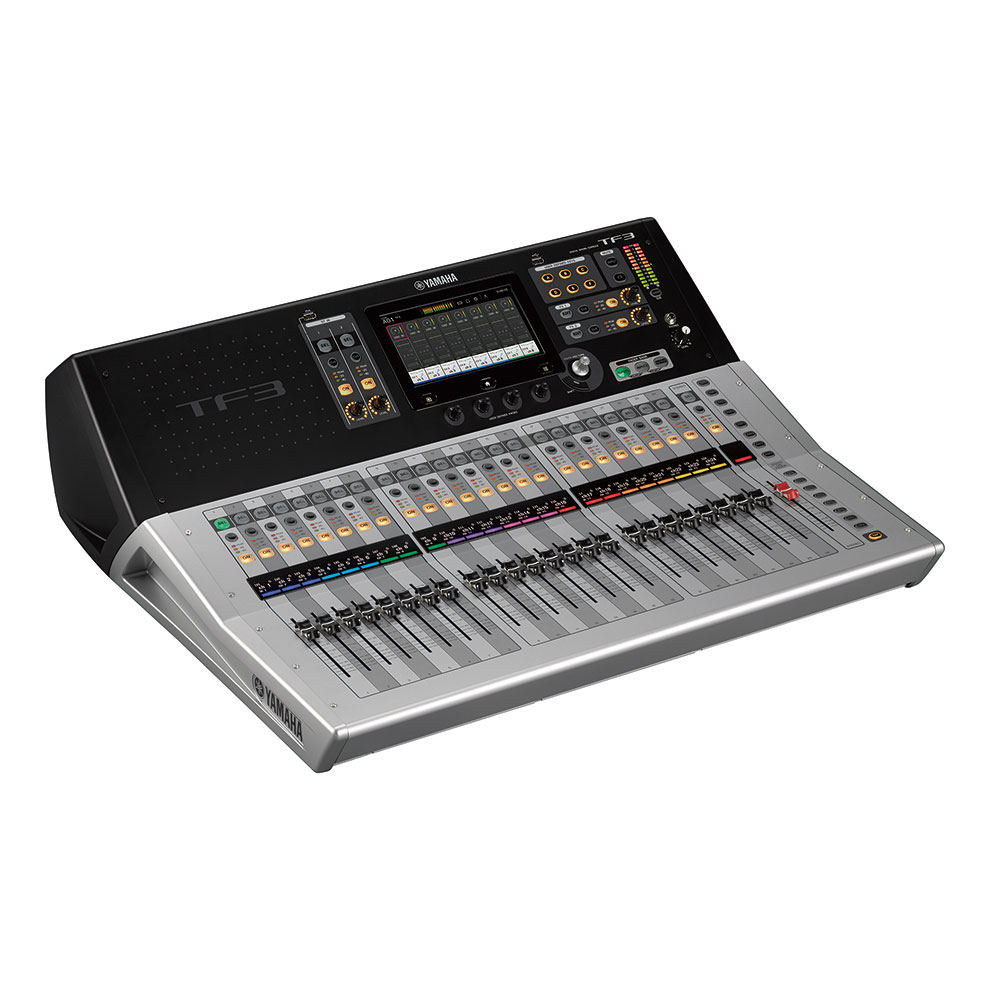

Yamaha TF3
Produktinformationen "Yamaha TF3"
Yamaha TF3
- 25 motor faders (24 channels + 1 master)
- 48 input mixing channels (40 mono + 2 stereo + 2 return)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
- 8 DCA groups with Roll-out
- 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- 1 expansion slot for NY64-D audio interface card
Mehr Infos auf de.yamaha.com: PDF Broschüre zur TF Serie
OUTLINE
- Fader Configuration: 24 + 1 (Master)
Mixing Capacity
- Input Channels: 48 (40 mono + 2 stereo + 2 return)
- Aux Buses: 20 (8 mono + 6 stereo)
- Stereo Buses: 1
- Sub Buses: 1
- Input channel functions: 8 DCA Groups
I/O
- Inputs: 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
- Outputs: 16 (XLR)
- Expansion slots: 1
- On-board processors: DSP: 8 Effects + 10 GEQ
- USB: 34x34 USB Audio Interface, 2-track recording via USB Storage Device
GENERAL SPECIFICATIONS
- Sampling frequency rate (Internal): 48 kHz
- Signal delay: Less than 2.6 ms, INPUT to OMNI OUT,
