Eigenschaften
Geeignet für alle Stimmen
Vereint den Charakter von Broadcast-Mikrofonen mit der Klarheit von Earthworks Audio
Geringere Ermüdungsgefahr für den Hörer durch hervorragende Verständlichkeit und natürlichen Klang
Entwickelt, abgestimmt und gefertigt in den USA
Verbesserte Präzision im Zeitbereich, mit einer ultraschnellen Ansprechzeit von 11,67 Mikrosekunden
Erweiterter linearer Frequenzgang von 20Hz bis 30kHz
Außergewöhnlicher Schutz vor Plosivgeräuschen und unerwünschten Audio-Artefakten
Enge, präzise Supernierencharakteristik
Natürliche, sanfte Zischlaute mit einem großzügigen Sweet Spot und sanften Nahbesprechungseffekt
Kompakt und elegant; einfach zu montieren, positionieren und zu reinigen
Auswechselbarer Schaumstoff-Windschutz (inklusive)
Farbe: Edelstahl
ICON is a Studio-Quality USB Condenser Microphone designed for home recording, remote working, podcasting and gaming. This elegant streaming microphones simply “Sounds Like Life” and looks as good as it sounds.
The ICON USB has a gain control with mute function and a headphone output as all in one solution for audio streaming on PC and Laptops. With a cardioid polar pattern and an ultra fast capsule rise time speed of 14 microseconds the microphone provides a high quality sound for better intelligibility and communication on streaming applications.
As part of the look, Earthworks partnered with Triad-Orbit to design and build a custom desktop microphone stand that ships as part of the full ICON experience. The stand is sleek yet robust enough to hold and balance the stainless-steel microphone. For maximum flexibility, the integrated M-2R swivel ball joint can be disconnected and re-mounted on any studio mic stand or boom arm.
Features
Sound signature designed for streaming, podcasting, interviewing, gaming, web conferencing, and content creating
Capture studio-quality audio
Ultra fast capsule Rise Time Speed of 14 microseconds
Off-axis rejection prevents room noise from entering your stream — even when you're working from home along with the rest of the family
Integrated visual LED status indication
Intuitive analog mute & gain control
Headphone out with sidetone (sidetone available on PC and Linux)
Interchangeable Class-compliant USB Connectivity for plug 'n play simplicity
No foam. Easy to clean and sanitize stainless steel windscreen with integrated pop filter
Designed, Machined, & Assembled in the USA
Technical Specifications
Microphone Type: Condenser
Frequency Response: 20Hz - 20kHz
Polar Pattern: Cardioid
Diaphragm Size: Small
Max SPL: 132dB SPL
Power Source: USB Bus Power
Signal to Noise Ratio: 70dB A-weighted
Noise: 24dB SPL (A weighted)
Power Consumption: 70 mA at 5V (Bus Power)
Typical Headphone Impedance: 16 Ohms
Headphone Ouput Power: 50 mW (at 16 Ohms)
Color: Stainless Steel
Dimensions: 141 x 41 mm
Weight: 680g
ICON Pro is a Cardioid Condenser Broadcast Microphone with an attached Triad-Orbit M2-R stand and stands out with a distinctly modern stainless steel design. This elegant streaming microphones simply “Sounds Like Life” and looks as good as it sounds.
The ICON Pro is hand tuned with an extended frequency response and the capsule has a fast Rise Time Speed of just 11.67 microseconds. That extra speed makes the vocals even richer, fuller and more detailed. Because it is an XLR broadcast microphone requiring 48 volts of phantom power, it offers extended headroom and dynamics.
As part of the look the ICON Pro integrates a Triad-Orbit M-2R swivel ball joint to be mounted on any studio mic stand or boom arm.
Features
Perfect for broadcast-quality speech and voice over recording
Ideal for streaming, podcasting, interviewing, gaming, web conferencing, and content creating
Lightening fast. Rise Time Speed of 11.67 microseconds
Mounts to a boom or stand with included custom Triad-Orbit M2-R connector
Off-axis rejection prevents ambient room noise from entering your stream
No foam. Easy to clean and sanitize stainless steel windscreen with integrated pop filter
Designed, Hand Tuned & Assembled in the USA
Technical Specifications
Microphone Type: Condenser
Frequency Response: 20Hz - 30kHz
Polar Pattern: Cardioid
Diaphragm Size: Small
Max SPL: 139dB SPL
Power Source: 24 - 48V Phantom Power
Signal to Noise Ratio: 79dB A-weighted
Noise: 15dB SPL (A weighted)
Color: Stainless Steel
Dimensions: 131 x 41 mm
Weight: 680g

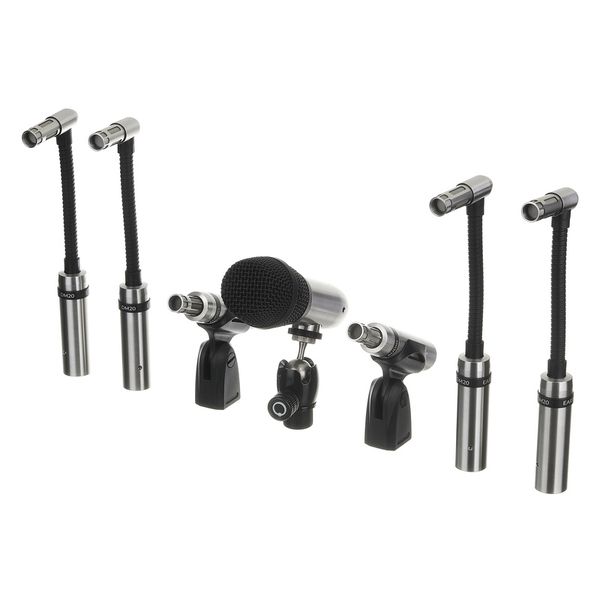

DK7 - 7-Microphone Kit for Miking Full Drum Set
The Earthworks DK7 Drum Kit System is 7 microphone kit comprised of 4 DM20 precision engineered cardioid condenser microphones designed for close miking toms and snare, plus 2 SR25 cardioids for miking overheads, and 1 specially engineered SR20LS (low sensitivity) for kick drum that can be deployed in both live performance and studio recording environments.
Performance
Whether onstage or in the studio, the DK7 captures a drum sound that is larger than life. Onstage the DK7 delivers sound so detailed and natural that the sound coming out of the PA sounds like the drummer is right in front of you. For recording, it will reproduce a drum kit with incredible detail and pristine sound, faithfully reproducing its true character.
Its near-perfect cardioid polar pattern is consistent across all frequencies, simplifying mic placement, virtually eliminating phasing issues and ensuring more gain before feedback. The DK7 transient response is lightning fast, handling sharp attacks with ease, while still picking up all of the subtle nuances and softest dynamics. Even the loudest drummer cannot overload the DK7 DrumMic™, which can handle high sound pressure levels.
Construction
Designed to withstand the rigors of the road while still delivering the sound quality Earthworks is known for, the DK7 Drum FullKit™ provides the best of both worlds. Capable of withstanding a stray stick hit, the DM20 DrumMic™ removes the worry of close miking toms and snare. Its right angle microphone head makes the positioning of the microphone easily and precise to get the best drum sound. Featuring a stiff yet flexible gooseneck, the microphone will stay in the found sweet spot.
Mounting
Included with the DK7 is an RM1 RimMount™ for mounting the DM20 tom and snare microphones directly on the rim of a snare or toms, reducing the number of mic stands required. Plus, save time on setup and teardown by storing the DK7 with the mic clips still attached in its carrying case.
Featrues
Full microphone kit vor close miking a full drum set
Ultra fast impulse response ideal for reproducing the full detail of the attack
Substantially shorter diaphragm settling time prevents subtle details from being blurred or covered by earlier loud attacks
Near-perfect cardioid polar pattern reproduces all specified frequencies uniformly at any position within the pattern
With 32dB of rear rejection, it is ideal for live performances or recording environments where there may be bleed from surrounding instruments
More gain before feedback
High SPL rating ensures the mic will not overload from the loudest of drum attacks
Heavy stainless steel construction is able to withstand the punishment of all touring environments
RM1 RimMount™ is included for mounting the DM20 on rim of snare or toms

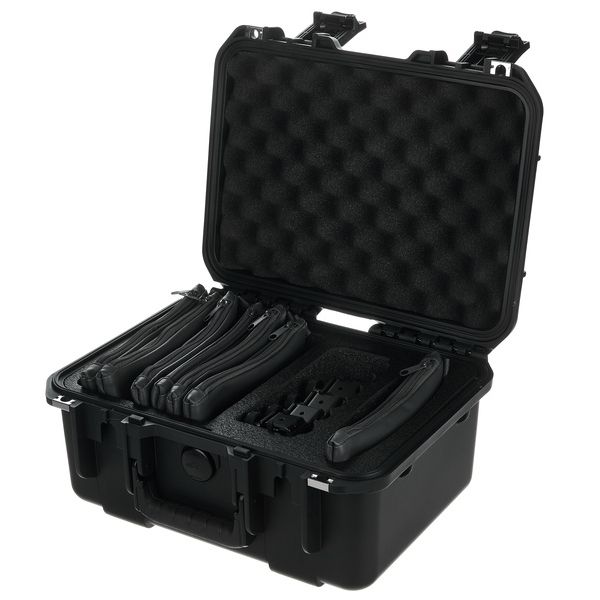

Includes 4x DM20 DrumMics, 4x RM1 RimMounts, 2x SR25 microphones, 1x SR20LS microphone, 3x microphone clips in a rugged carrying case
DM20 - Close Miking Tom & Snare Microphone
The Earthworks DM20 DrumMic™ is a precision engineered cardioid condenser microphone designed for close miking toms and snare in live performance and studio recording environments.
Performance
Whether onstage or in the studio, the DM20 captures a drum sound that is larger than life. Onstage the DM20 delivers sound so detailed and natural that the sound coming out of the PA sounds like the drummer is right in front of you. For recording, it will reproduce toms and snare with incredible detail and pristine sound, faithfully reproducing their true character.
Its near-perfect cardioid polar pattern is consistent across all frequencies, simplifying mic placement, virtually eliminating phasing issues and ensuring more gain before feedback. The DM20 transient response is lightning fast, handling sharp attacks with ease, while still picking up all of the subtle nuances and softest dynamics. Even the loudest drummer cannot overload the DM20 DrumMic™, which can handle up to 150dB SPL.
Construction
Designed to withstand the rigors of the road while still delivering the sound quality Earthworks is known for, the DM20 DrumMic™ provides the best of both worlds. Capable of withstanding a stray stick hit, the DM20 removes the worry of close miking snare and toms. Its right angle microphone head makes the positioning of the microphone easily and precise to get the best drum sound. Featuring a stiff yet flexible gooseneck, the microphone will stay in the found sweet spot.
Mounting
Included with the DM20 is an RM1 RimMount™ for mounting the microphone directly on the rim of a snare or toms, eliminating the need for mic stands. Plus, save time on setup and teardown by storing the DM20 with the RM1 still attached in its carrying case.
Features
Frequency response from 50Hz-20kHz to capture more detail and dynamics
Ultra fast impulse response makes this microphone ideal for reproducing the full detail of the attack
Shorter diaphragm settling time prevents subtle details from being blurred by earlier loud attacks
Near-perfect cardioid polar pattern reproduces all specified frequencies uniformly at any position within the pattern
With 32dB of rear rejection, it is ideal for live performances or recording environments where there may be bleed from surrounding instruments
High gain before feedback
150dB SPL capability ensures the mic will not overload from the loudest of drum attacks
A right angle mic head is mounted to the gooseneck for easy positioning
The microphone head housing is designed to protect the microphone capsule and withstand a direct hit from a drumstick
Stiff mini-gooseneck that will not move when the drums are hit hard
Heavy stainless steel construction is able to withstand the punishment of touring
RM1 RimMount™ is included for mounting the DM20 on rim of snare or toms
PW1 windscreen included
Earthworks M-series microphones have become the accepted standard for reliable measurement and reference. They are accurate in the time and frequency domain and have exceptionally uniform polar response. They feature flat free-field frequency response, fast impulse response, and are remarkably stable with respect to temperature changes, meeting or exceeding Type 1 specifications. The M Series measurement microphones are used and recommended by SMAAR, MLSSA, Spectrafoo, TEF, RTA in addition to acoustic measurement systems manufactured by dbx, Loud Technologies, DEQX and others. Consultants and engineers have been asking for a high quality, lower cost version of the popular M30. The Earthworks M23 Measurement Microphone is the answer to this request. The Earthworks M23 Measurement Microphone provides a frequency response from 9Hz to 23kHz, and will handle 142dB SPL. In comparison, the M30 offers a frequency response from 5Hz to 30kHz. The Earthworks M23 Measurement Microphone also has a shorter body than the M30. For those who are looking for a lower cost alternative to our popular M30, the Earthworks M23 Measurement Microphone is it. The Earthworks M23 Measurement Microphone is a direct replacement for the Earthworks manufactured model S-30 SMAART microphone, which has been historically offered by Loud Technologies, Inc. The Earthworks M23 Measurement Microphone comes in a sturdy foam-lined case with its own individual calibration chart. For those who desire calibration files to interface with their software, these are available for a nominal cost (from Earthworks.com only). The Earthworks M23 Measurement Microphone requires standard 48V phantom power for operation. The M23 is the ideal choice for those who desire a high-quality reliable measurement microphone for room measurements and sound system setup. The Earthworks M23 Measurement Microphone will provide the same excellent polar accuracy as our higher-priced measurement microphones. Earthworks M23 Measurement Microphone Features:Improved Version of the MeasurementMicrophone Manufactured for LoudTechnologies SMAART SystemMeets or Exceeds Type 1 Specifications23kHz Free-Field Frequency Response142dB SPL Max Acoustic InputShorter Body Than the M30Ideal for SMAART, MLSSA,Spectrafoo, TEF, RTA and all"Audio Band" MeasurementsRequires 48V Phantom Power

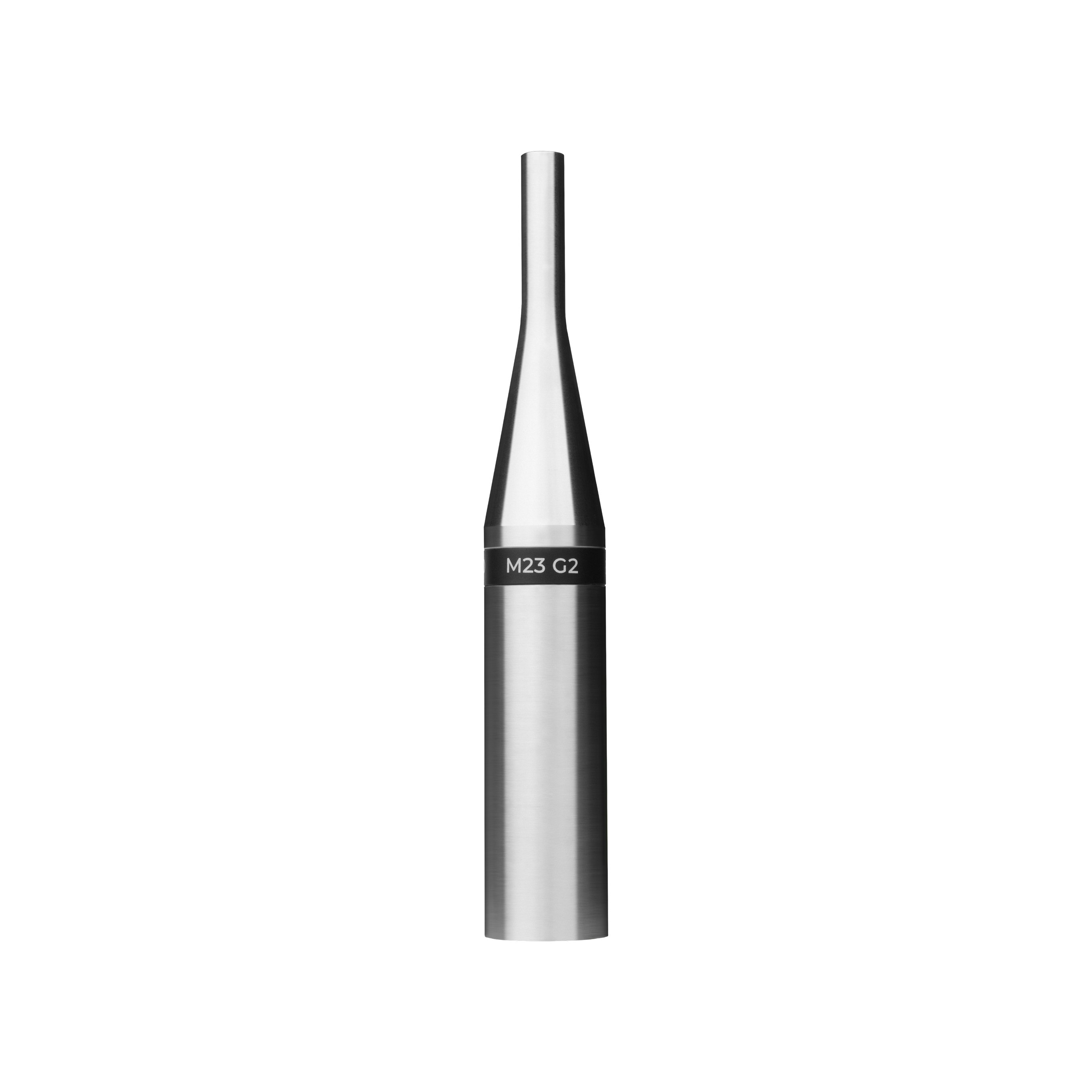

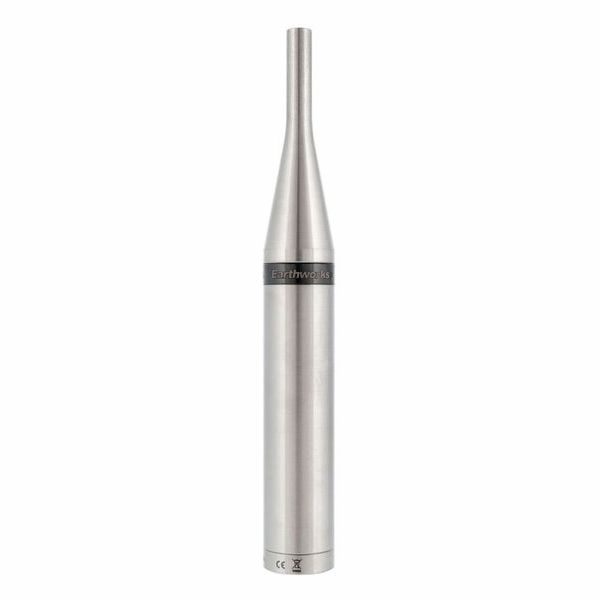

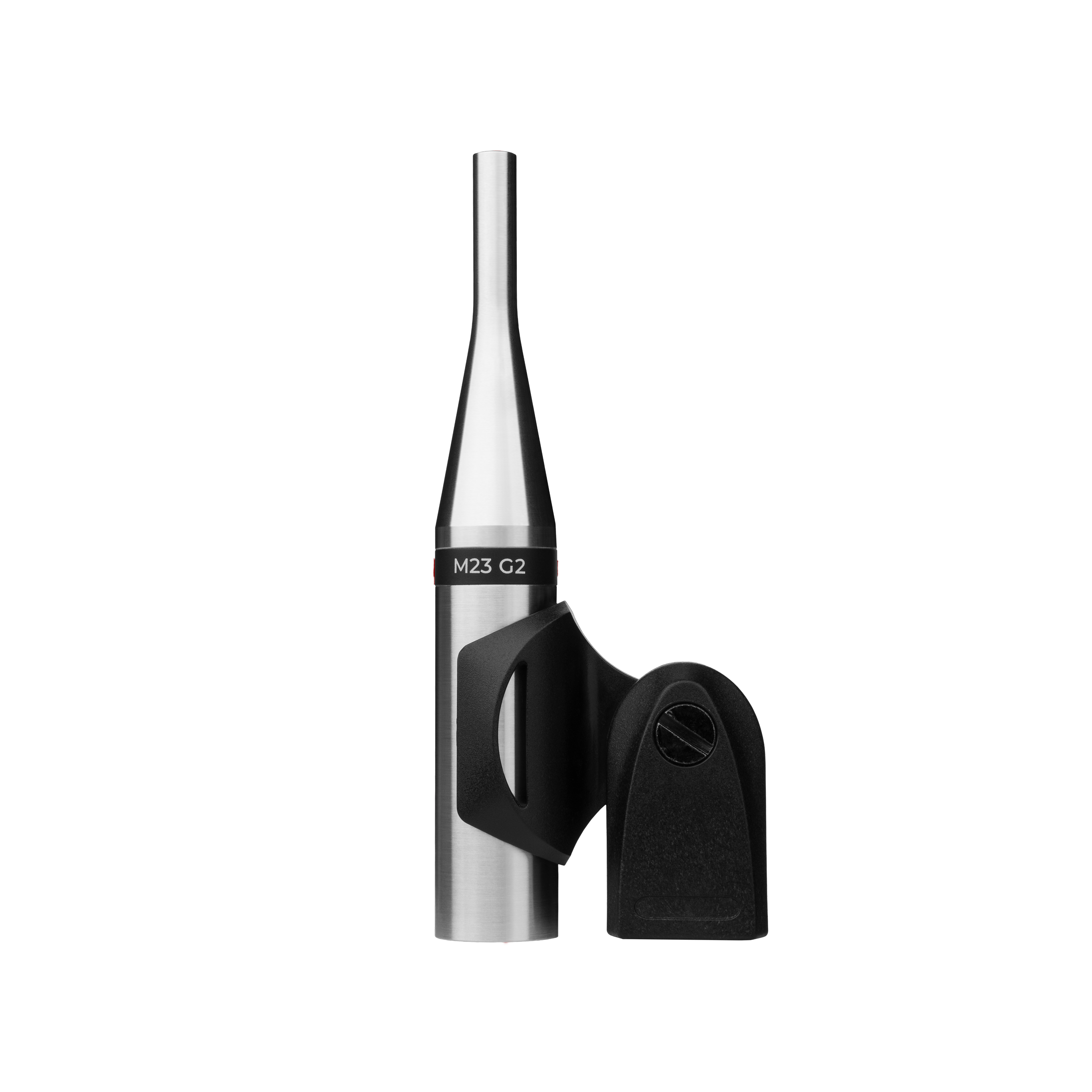

Earthworks M23mpThe M23 from Earthworks is a cost effective reference microphone for SMAART, MLSSA, Spectrafoo software, TEF and RTA and all "audio band" measurements. It has a flat frequency response, fast impulse response and exceptional polar characteristics.The company is well known and respected for its reliable reference and measurement microphones. The M23 is highly accurate in the time domain and frequency response and is optimized for clean and very fast impulse performance. Additionally, the microphone is immune to most temperature and atmospheric fluctuations.• Small element provides an accurate omni-directional pattern with an even coherent response at the direct and off-axis sections of the microphone capsule• Wide, linear frequency response accurately captures audio signal and reproduces the slightest nuance with great detail• Uncolored, flat signal results in accurate room calibration for indoor and outdoor application• Requires 48V phantom power to operateFor more information, please visit this products webpage

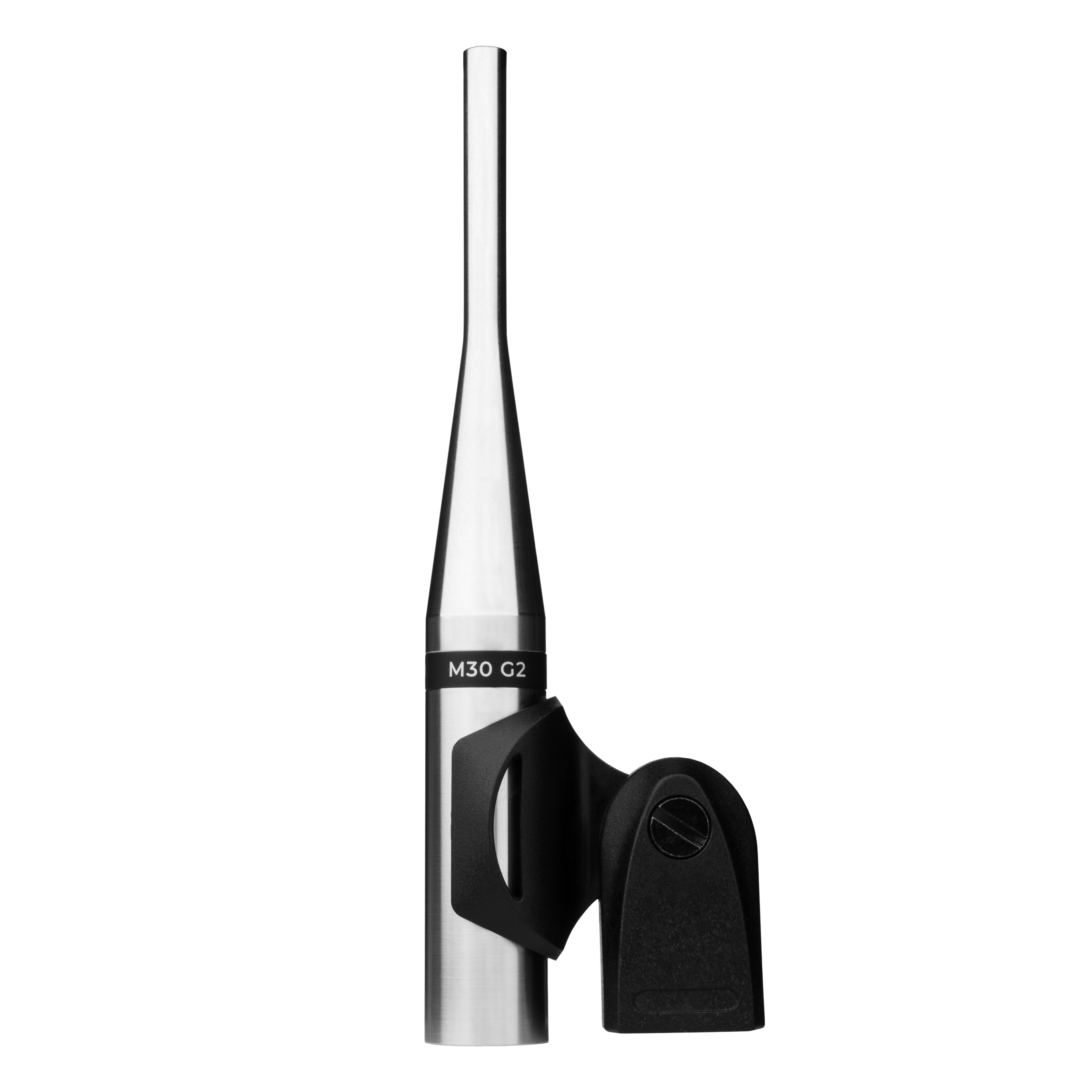

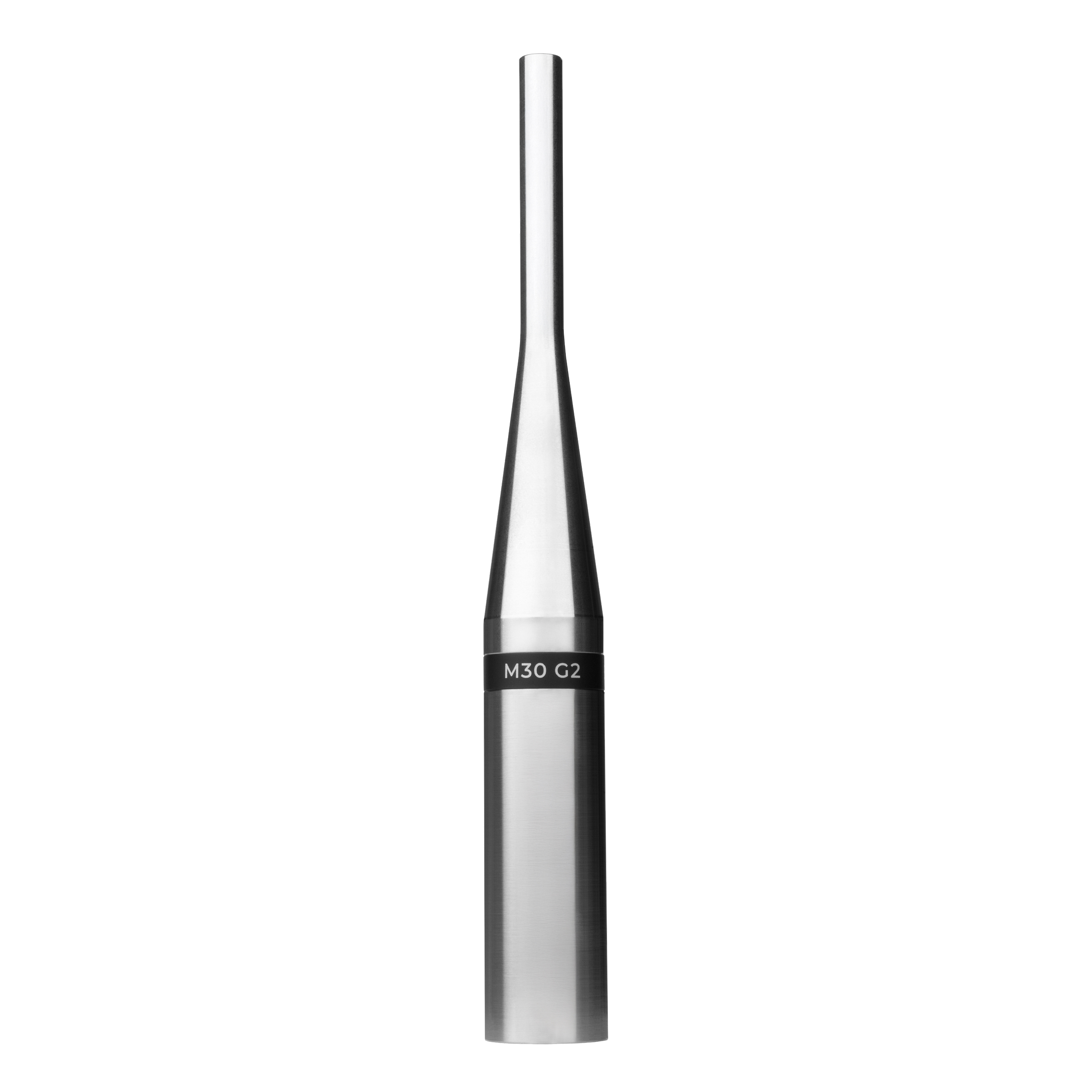

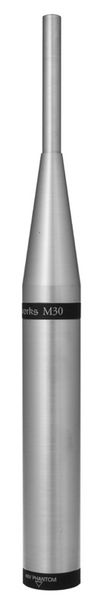

Das M30 definiert den Weltstandard bei Messmikrofonen. Es gibt keinen namhaften Her-steller von Schallwandlern oder Meßtechnik, der dieses Mikrofon nicht einsetzt. Das Mikrofon wird mit einer Messtabelle geliefert. Aufgrund seiner extremen Temperaturunabhängigkeit, können Sie die Messwerte in Ihr Testprogramm einpflegen und so extrem akkurate SPL Messungen durchführen. Technische Daten Frequenzgang: 9Hz27kHz +/ 1dB Charakteristik: Kugel Empfindlichkeit: 8mV/Pa (42dB/Pa) Stromversorgung: 48V, 10mA SPL max: 150 dB SPL max. Ausgangsspannung: 10V Ausgang: XLR symm. Lastwiderstand: 600 Ohm Noise: 27dB SPL ABewertet Abmessungen: 229mmx22mm Gewicht: 225g

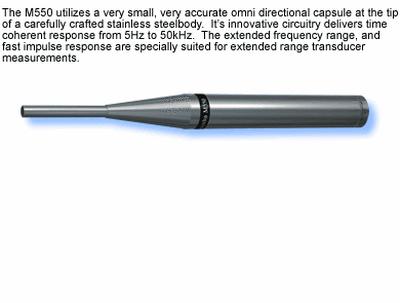

Das M50 repräsentiert das Maximum des derzeit technisch Realisierbaren im Bereich der Messmikrofone. Zeitkohärente Abbildung im Bereich von 5Hz bis über 50 kHz garantiert erstklassige Messergebnisse. Durch das damit verbundene nahezu perfekte Impulsver-halten lassen sich extrem akkurate Messungen an Übertragern erzielen. Frequenzgang: 5Hz 50kHz +1/3dB Charakteristik: Kugel Empfindlichkeit: 30mV/Pa (30,5dB/Pa) Stromversorgung: 48V, 10mA SPL max: 142 dB SPL max. Ausgangsspannung: 10V Ausgang: XLR symm. Lastwiderstand: 600 Ohm Noise: 22dB SPL ABewertet Abmessungen: 229mmx22mm Gewicht: 225g
Description
The Earthworks PM40 PianoMic™ System is a revolutionary solution for miking grand pianos with no mic stands or booms.
Performance
The PM40 PianoMic™ provides the best of both worlds. A simple piano miking system that takes just minutes to setup and provides incredible results for live performances and studio recordings.
Engineered to allow open or closed lid miking, the PianoMic™ is ideal for a wide range of miking situations. In a recording studio with no other instruments, the PianoMic™ shines with the lid open. When in more crowded settings such as on a concert stage shared with other instruments, merely close the piano lid to isolate the piano and minimize leakage. In both scenarios the PianoMic ™will capture the piano with incredible detail.
At the heart of the PianoMic™ are two random incidence omnidirectional microphones, specifically designed for use inside of a piano, which is a diffuse sound field. This means that sound is coming at the microphones from multiple sources and multiple directions. A random-incidence microphone is designed to be placed within such a diffuse sound field and pick up sounds uniformly, whether they arrive at the front, the sides or the rear of the microphone. The PianoMic™ System achieves much of its remarkable performance through the use of specially designed, 40kHz random-incidence High Definition Microphones™.
Because of the near-perfect omnidirectional polar response of the microphones and extraordinarily tight impulse response, the PianoMic™ picks up every note with consistently. So, the full range of the piano including the high and low strings will be reproduced with no hot spots.
In addition, the microphones exhibit no proximity effect, regardless of their distance from the piano strings or soundboard. The mics, when positioned close to the sound source, also provide incredible gain before feedback and can handle up to 148dB SPL.
Construction
Designed for minimal visibility, the PM40 PianoMic™ system mounts within the piano. The telescoping bar allows the PianoMic™ to be quickly and easily installed in nearly all grand pianos and to place the microphones close to or away from the dampers and get the exact sound desired.
Set on flexible goosenecks, the microphone capsules can be easily repositioned for optimal microphone placement.
A separate output stage box features a 5-pin XLR input and two 3-pin XLR outputs. A leather case with a strap allows the box to be mounted onto a piano leg, so the microphone remains nearly invisible from outside the piano or with the lid closed.

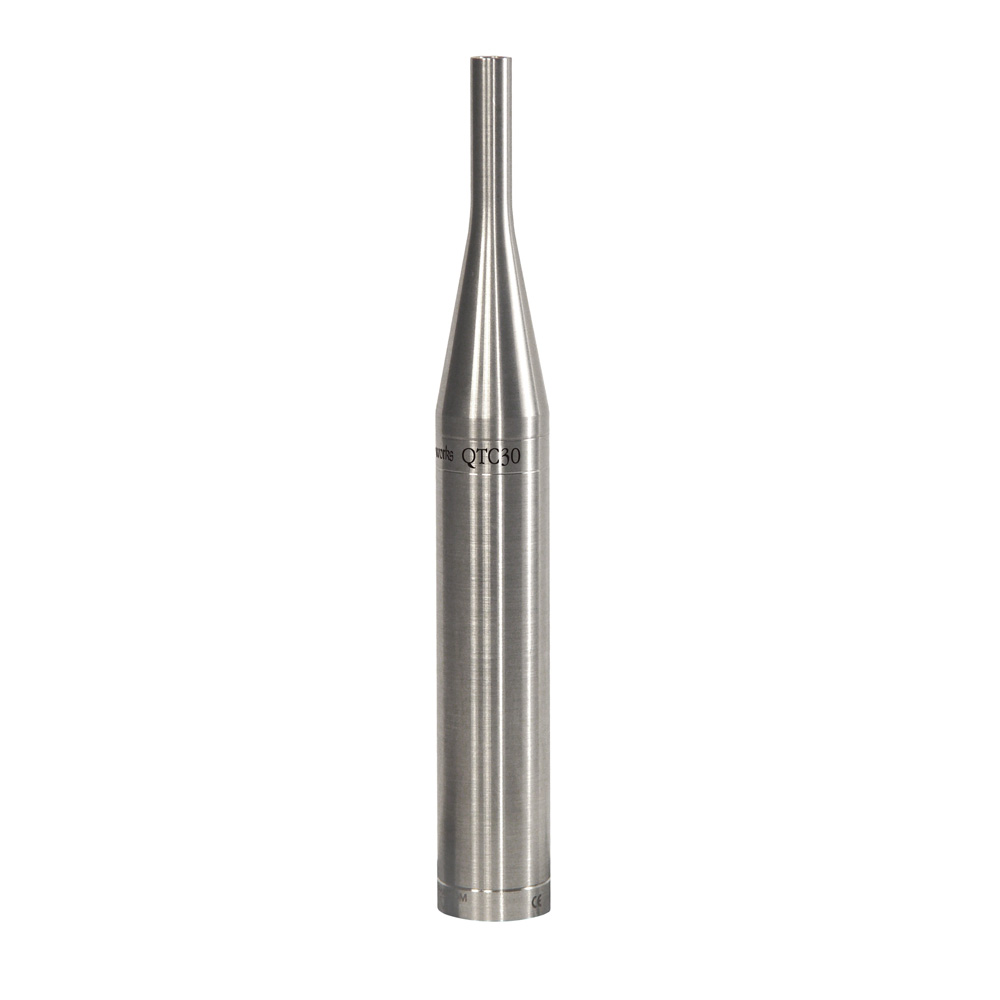

Das QTC30 ist ein außergewöhnlich akkurates Mikrofon. Es verkörpert den Earthworks Sound bei extrem geringem Eigenrauschen, was für ein Kleinstmembran Mikrofon sehr untypisch ist. Ein flacher Frequenzgang, bestes Impulsverhalten, niedriges Rauschen und eine minimale Störung des Schallfeldes durch die Mikrofon-Geometrie reproduzieren das Schallfeld exakt so, wie es am Mikrofon anliegt. Wenn Sie Transparenz einem gefärbten Sound vorziehen, stellt ein selektiertes Paar QTC30 das Mikrofonset Ihrer Träume dar. Frequenzgang: 6Hz30kHz +/ 1dB/3dB Charakteristik: Kugel Empfindlichkeit: 30mV/Pa (30,5dB/Pa) Stromversorgung: 48V, 10mA SPL max: 142 dB SPL max. Ausgangsspannung: 10V Ausgang: XLR symm. Lastwiderstand: 600 Ohm Noise: 22dB SPL ABewertet Abmessungen: 165mmx22mm Gewicht: 160g
Das QTC30 HDM Mikrofon zeichnet sich durch ein exzellentes Preis/Leistungsverhältnis aus. Mit seinem linearen Frequenzgang bis über 30kHz und einem exzellenten Impulsverhalten, überträgt es auch subtile Feinheiten und fängt den Klangkörper mit absolutem Realismus und einer atemberaubenden Authentizität ein. Das QTC30 ist extrem kompakt und völlig unempfindlich gegenüber Griffgeräuschen. Features: [ Typ: Kondensator [ Ersatzgeräusch: 22dB SPL A-bewertet [ Empfindlichkeit: 30mV/Pa [ Richtcharakteristik: Omni (Kugel) [ Übertragungsbereich: 6Hz-30kHz +1/-3dB [ Verstärkertyp: Class-A [ Grenzschalldruckpegel: 142dB [ PSU: 48V 2x10mA [ sehr gute Impulsantwort [ sauberer unverfärbter transparenter Klang [ für Quellen mit geringerem Schallpegel [ unempfindlich für Griffgeräusche [ sehr kompakte Abmessungen [ Matched Pair

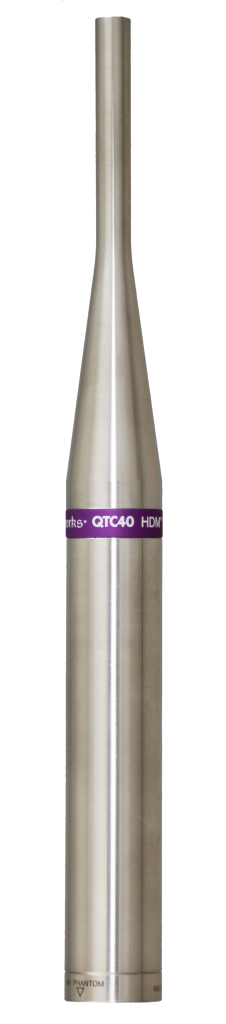

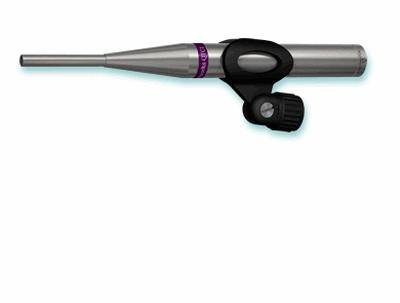

Das Earthworks QTC 40 liefert einen flachen, erweiterten Frequenzbereich, eine exzellentes Impulsverhalten, sehr hohe Empfindlichkeit und den großartigen Earthworks-Sound mit geringerem Eigenrauschen als die anderen Modelle mit Kugelcharakteristik. Das QTC 40 ist ein außergewöhnlich genaues Mikrofon mit den typischen ±0,5dB im Bereich von 20Hz bis 20kHz. Wichtiger ist vielleicht noch, dass das QTC 40 die sauberste Impulsantwort liefert die von Earthworks gemessen wurde. Das Impulsverhalten das Tönen zu eigen ist, ist die Information die man braucht um Musik Präsenz zu verleihen. Die saubere Impulseigenschaft erlaubt es dem QTC 40 Wellenformen exakt zu übertragen.Das QTC 40 ist wundervoll zur Raummikrofonierung und für ruhige Schallquellen und ausserdem großartig für Nahmikrofonierungen. Das QTC 40 hält die volle Größe und die Natürlichkeit vieleer schwieriger und komplexer Schallereignisse fest. Dieses Mikro ist eine exzellente Wahl wenn natürlicher und ungefärbter Klang das gewünschte Resultat ist. Frequenzgang: 4Hz to 40kHz ±1dB Richtcharakteristik: Kugel Empfindlichkeit: 30 mV/Pa (30.5 dBV/Pa) Phantomspeisung: 48V, 10mA Max SPL: 142 dB Ausgangsspannung: 10V Anschlüsse: XLR Ausgangs Impedanz: 600 Ohm zwischen pin2 und pin3 Noise: 22 dB SPL (A bewertet) Größe (LxT): 229mm x 22mm (9 x .860 inches) Gewicht: 225g (.5 lb)
Das populärste Omni Mikrofon aus der Earthworks Produktpalette. Das QTC40 ist die erste Wahl von professionellen Toningenieuren und wurde von diversen Profis als das akkurateste Mikrofon bezeichnet. Mit diesem Mikrofon erhalten Sie spektakuläre Ergebnisse. Die außergewöhnliche Genauigkeit wird durch eine hervorragende Impulsantwort und extrem kurze Einschwingzeit der Kapsel erreicht. Ideal für feine Schallquellen.Es gibt keine Verfärbungen im Übertragungsbereich. Das QTC40 wird Ihre Hörerfahrungen maßgeblich verändern!Earthworks Audio aus New Hampshire, U.S.A. hat sich Qualität und klanglicher Exzellenz verschrieben und wurde einst von David Blackmer, dem brillianten Erfinder und Gründer von dbx, gegründet . Bei Earthworks galt seine Aufmerksamkeit der Entwicklung neuer Technologien für Mikrofone, Vorverstärker und Monitorlautsprecher. Diese neuen patentierten Technologien ermöglichen Earthworks die Herstellung der "nächsten Generation? professioneller Audioprodukte, welche jegliches andere hochwertige Audioequipment auf dem Markt deutlich in den Schatten stellt.Anwender von Earthworks Mikrofonen, Verstärkern oder Monitorlautsprechern beschreiben die enorme Verbesserung in punkto Klangqualität oft mit den Worten ?atemberaubend? oder ?höchst beeindruckend?. Und auch die Fachpresse ist sich einig und bezeichnet Earthworks in Ihren Testberichten als überragend. Jedes Earthworks Produkt wird mit großer Sorgfalt, akribischer Liebe zum Detail und höchsten Qualitätsansprüchen gefertigt. Earthworks ist stolz darauf nur das beste an professionellem Audioequipment zu herzustellen und fertigt ausschließlich in den USA. Die wichtigsten Daten im Überblick:außergewöhnlich gute Impulsantwortsauberer unverfärbter transparenter Klangfür Quellen mit geringerem Schallpegelmatched pair - aufeinander abgestimmtes Mikrofonpaar Technische Daten: Typ: Kondensator KleinstmembranRichtcharakteristik: KugelÜbertragungsbereich: 4 Hz - 40 kHz +/-1dBEmpfindlichkeit: 30 mV/Pa, -30,5 dBV/PaStromversorgung: 48V Phantomspeisung, 10mAGrenzschalldruckpegel: 142 dB SPLAnschluss: XLR (Pin 2+)Ersatzgeräusch: 22 dB, A-bewertetAbmessungen: 165 x 22 mmGewicht: 225 g
The QTC series (Quiet Time Coherent) is designed for recording quieter sources such as vocals, strings and distant miked orchestras or choirs. Earthworks' reputation for realism is based on these distinctive omnis. Their degree of clarity is unparalleled. Their claim of Time Coherent Response means these models do not smear the time domain as most microphones do. Earthworks microphones have exceptional impulse response and diaphragm settling time. QTC microphones handle sound levels up to 142dB with no proximity effect or handling noise. The QTC50 is the microphone for those who demand the very best. It is ideal for digital recording with sample rates up to 192kHz, and even higher where every nuance of sound must be captured. It has all of the exceptional attributes of our popular QTC40 (same as QTC1). The QTC50 has an extended high frequency response to 50kHz and better impulse response.

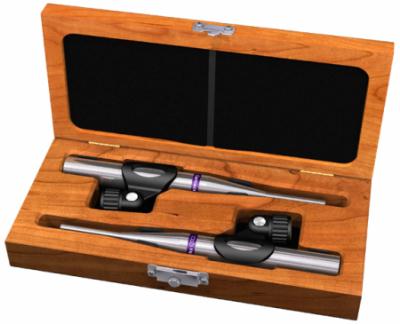

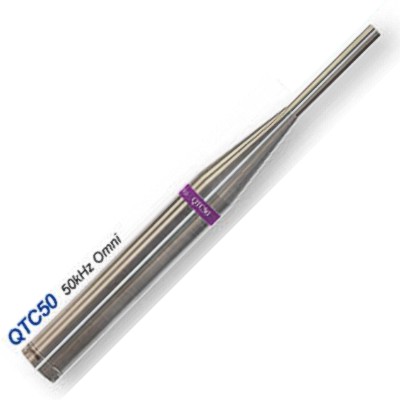

Das QTC 50 ist eine Weiterentwicklung des QTC 40 und besitzt zusätzlich zu dessen Eigenschaften einen erwiterten Frequenzgang (>50 kHz) und eine verbesserte Impulswiedergabe.
