Lipinski Sound L-707A Grand (Passive)

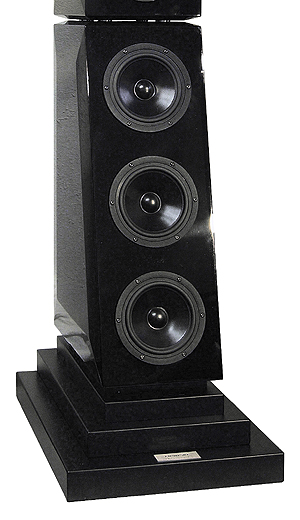

Lipinski Sound L-707A Grand Studio Monitor

Feature

•  By adding one mid-woofer segment on the bottom, or on the top of L-707A to peer above a console, it eliminates the need For
• a separate subwoofer. Provides for a fully integrated, full-bandwidth Loudspeaker.
•  Five -woofers work together. This combination eases the load on all midrange drivers lowering distortion by 50% up to crossover point at over 2 kHz, and  extends bass, to the point equivalent to having one 15" woofer per side.
•  Unique neodymium magnet sign anoints and mechanical stabilizers (patent pending), trouble connection for low impedance and smooth signal transition. Extremely simple mechanical assemblage: just stack it, and the magnets connect by themselves.
• Not required: terminals/wires/assembly/tooling
• Provided: convenience / reliability / ergonomics / smooth signal transition

Specifications:

• One 1” (25mm) custom Neodymium Ring Radiator tweeterFive 7" (180mm) custom Glass Fiber Mid-Woofers In MTM configuration
• Frequency response 43Hz-20kHz +/- 1 dB (24Hz-40kHz +/- 3 dB)
• Speaker-to-speaker consistency: +/- 1/4 dB
• IEC Power Handling: 400W
• SPL: 90.5 dB lW/lm Impedance 6 Ohms
• Dimensions: 51 7/8” H x 10” W x 14 1/4” / 21” D (1317 mm x 256 mrn x 362 / 534 mm)
• Height provided without pedestal
• Weight: 106.7 lbs (48 kg)

This is a passive monitor speaker, meaning you need an additional amplifier, e. g. the Lipinski L-700A or L-700B (see: Sidebar Related Products).
